QM5HRIELT5H Overview

AC-DC Power Factor Correction Module,

QM5HRIELT5H Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Base Number Matches	1

Preview

Download Datasheet

View All

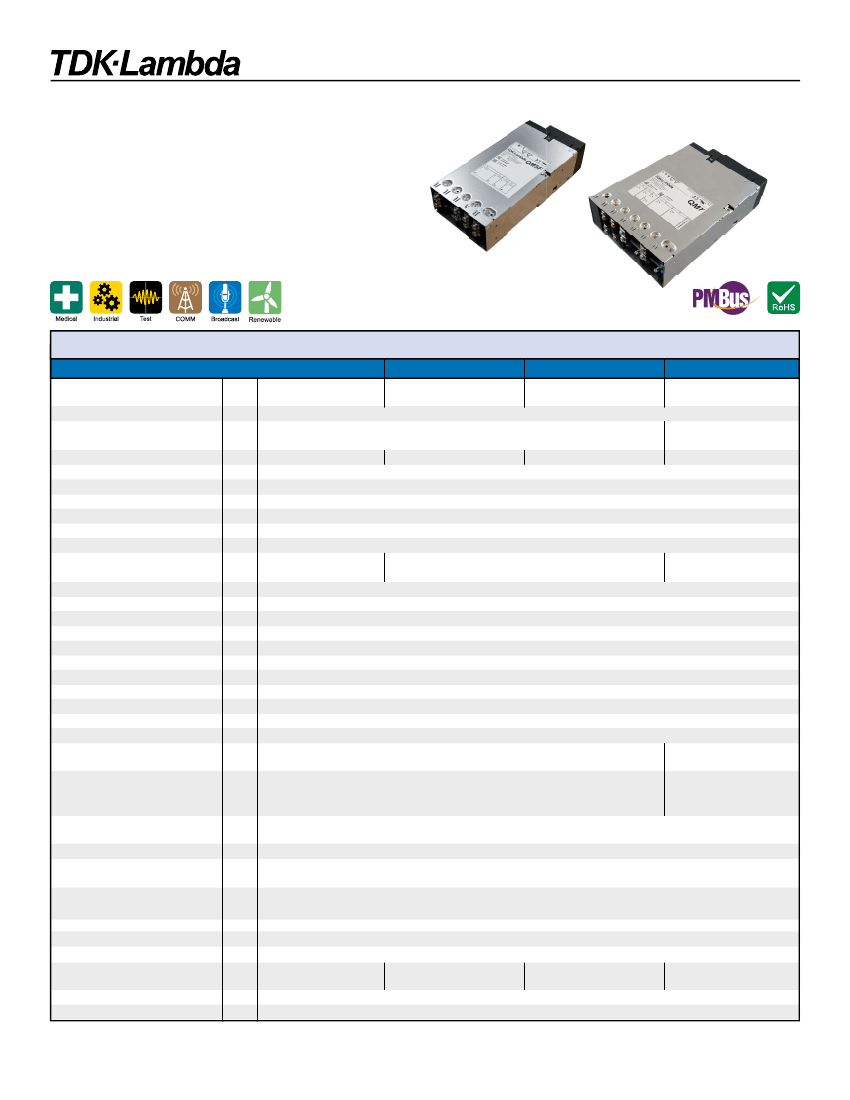

QM Series

550-1500W Multiple Output Modular Power Supplies

Features



Full Medical Isolation (MOPP)



Low Speed, Low Audible Noise Fan



Up to 18 Outputs



Industry Leading Flexibility



7 Year Warranty



Suitable for B and BF Rated Equipment



PMBus

Communication Option

Key Market Segments & Applications

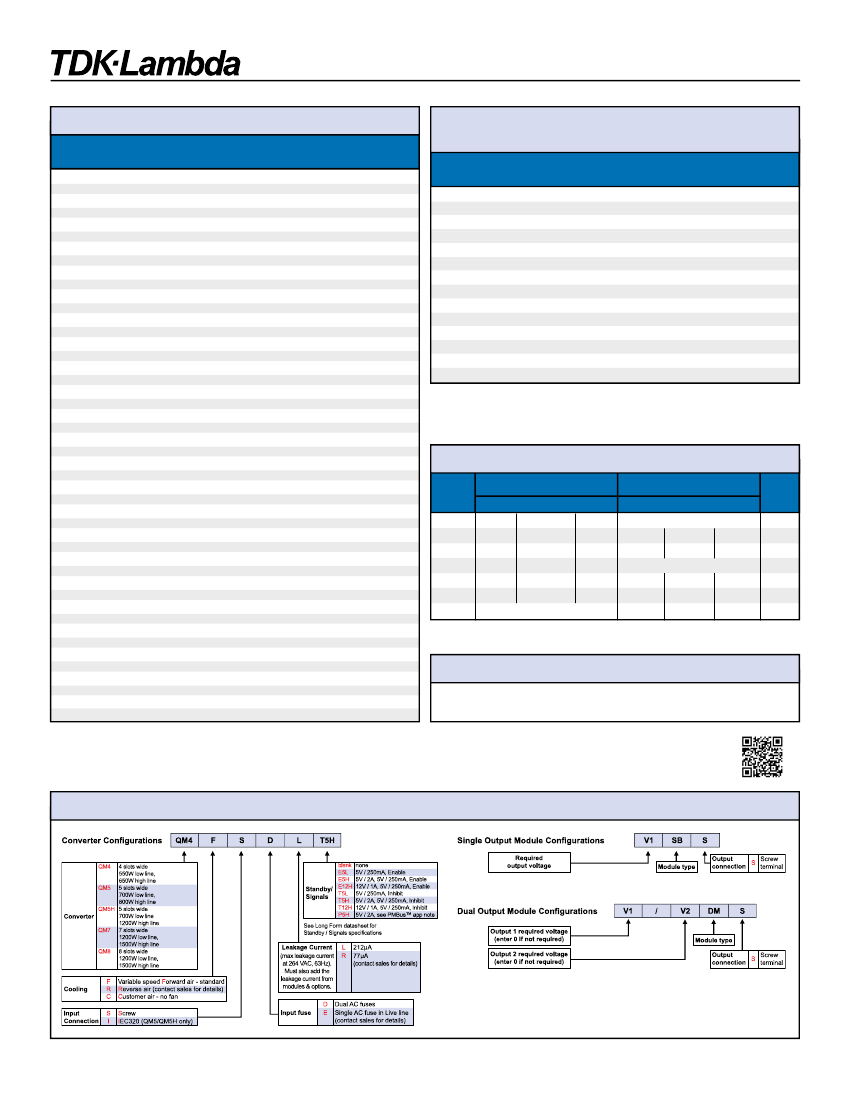

Speciﬁcations

Model

Input Voltage Range

Input Frequency Range

Inrush Current

Input Current (Max)

Touch Current

Power Factor Correction

Eﬃciency

Overcurrent Protection

Overvoltage Protection

Overtemperature Protection

Hold up time

Leakage Current (maximum)

Remote Sense Compensation

Remote On/Oﬀ

AC Fail Signal

DC Good Signal

Remote on/oﬀ

PMBus™ Interface

Standby Output

Operating Temperature

Storage Temperature

Humidity (Non condensing)

Cooling

Audible Noise

Withstand Voltage

Vibration

Shock

Safety Agency Certiﬁcations

Altitude

Emissions

Immunity

Size (W x H x D)

Weight

Warranty

QM4

QM5

QM5H

QM7 / QM8

VAC 550W output: 90 - 264VAC 700W output: 90 - 264VAC

700W output: 90 - 264VAC 1200W output: 90 - 264VAC

650W output: 180 - 264VAC 800W output: 180 - 264VAC 1200W output: 180 - 264VAC 1500W output: 150 - 264VAC

47 - 63Hz (440Hz with reduced PFC)

<40A at 25°C &

<45A at 25°C &

264VAC (cold start)

A 7.06A / 3.53A (90/180VAC) 9.1A / 5.2A (90/180VAC) 9.1A / 7.8A (90/180VAC) 15.5A / 11.7A (90/150VAC)

µA

<100µA (with 4 or fewer modules) (1)

> 0.95 (at 100% load), Meets EN61000-3-2

up to 91% , 240VAC & above 50% rated power, conﬁguration dependent

Hiccup/constant current style - Module dependent (1)

Latching. Output shut down, cycle AC to reset (1)

Converter: auto restart (fan oﬀ); Modules: individually protected

ms 550W output: > 16ms

700W output: > 16ms

1200W output: > 20ms

650W output: > 10ms

1200W output: > 10ms

1500W output: > 16ms

µA

L option: 300µA; R option: 150µA (264VAC, 63Hz)

Module dependent (1)

Module & Converter option dependent (1)

Available with all Signal Option Types

Open collector, standard on all output modules

Converter: Inhibit or Enable (Signal Option Type dependent). Modules: Inhibit.

- Power supply on/oﬀ, fan speed/warning, temperature read back/warning, run time and manufacturing data

5V/250mA / 5V/2A / 12V/1A (Standby Option Type dependent)

°C

-20 to +70°C, derate linearly to 50% load from 50 to 70°C; -40°C start up.

°C

-40°C to +70°C (max 12 months)

%RH

5 - 95%RH

One variable,

Two variable,

low speed internal fan

low speed internal fans

dBA

40.3 dBA @ 25°C / 54.9 dBA @ 50°C

43.6 dBA @ 25°C /

QM5I: 36.9 dBA @ 25°C / 51 dBA @ 50°C

57.3 dBA @ 50°C

per BS ISO 3744:2010

Input to Output: 4kVAC (production tested to 4.3kVDC) (2xMoPP), Input to Ground: 1.5kVAC (1xMoPP),

Output to Ground: 1.5kVAC (1xMoPP), Output to Output: 200VDC

Conforms to EN60068-2-6, IEC68-2-6, MIL-STD-810G, Method 514.6, Pro I

Conforms to EN60068-2-27, EN60068-2-47, IEC68-2-27,

IEC68-2-47, JIS C0041-1987, MIL-STD-810G, Method 516.6, Pro I, IV

IEC/UL/CSA/EN 60950-1, IEC/UL/CSA/EN 60601-1,

ANSI/AAMI ES60601-1 & CE Mark. IEC/EN61010 included in 60950 report

5,000m

EN61000-6-3:2007, EN60601-1-2:2015 4th Edition, EN55011B, EN55032B, Class B radiated & conducted

EN61000-6-2:2005, EN60601-1-2:2015

4.3 x 2.5 x 10.6”

5 x 2.5 x 10.6”

6.9 / 7.9 x 2.5 x 10.6”

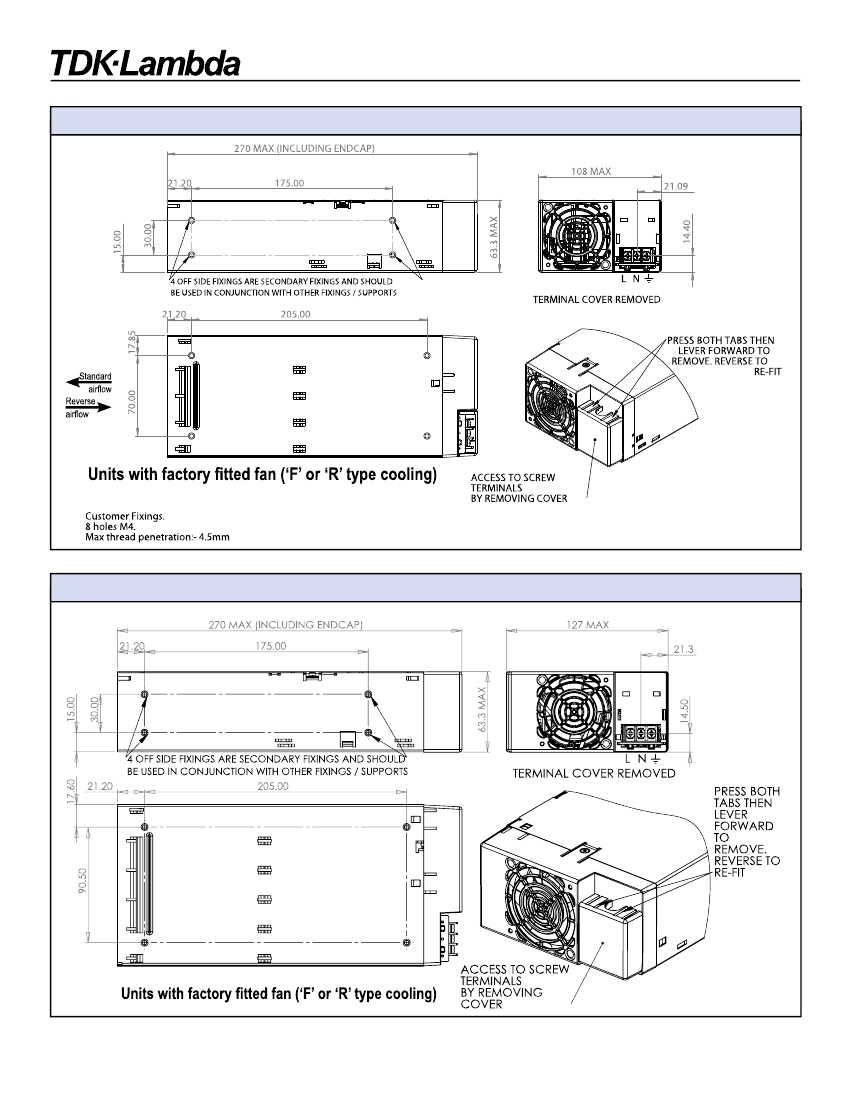

mm 108 x 63.3 x 270mm

127 x 63.3 x 270mm

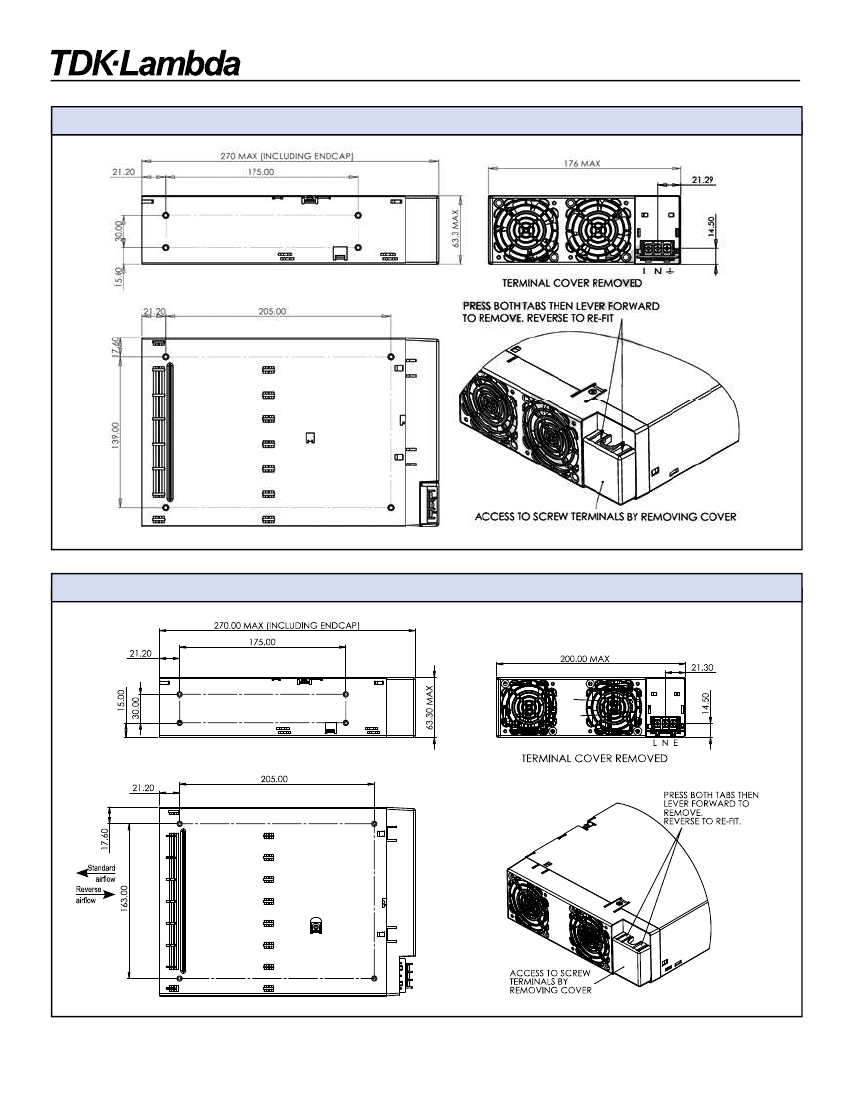

127 x 63.3 x 270mm 176 / 200 x 63.3 x 270mm

See Application Notes

yrs

Seven Years

(1) See website for detailed speciﬁcations
