DM22-012-12 datasheet, PDF - EEWORLD Datasheet

DM22-012-12: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid, 1 X 0.500 INCH, 0.450 INCH HEIGHT, PACKAGE-14/5; CategoryPower/power management The power supply circuit; File Size67KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric View All

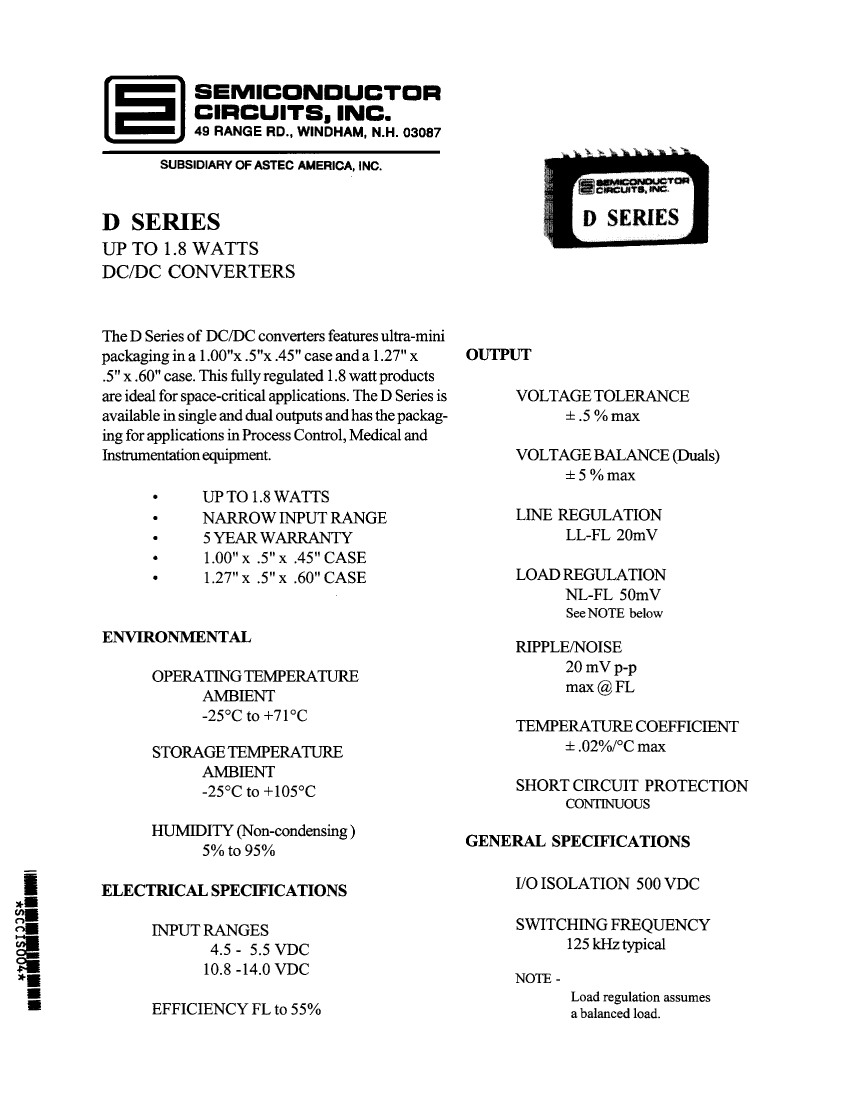

DM22-012-12 Overview

DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid, 1 X 0.500 INCH, 0.450 INCH HEIGHT, PACKAGE-14/5

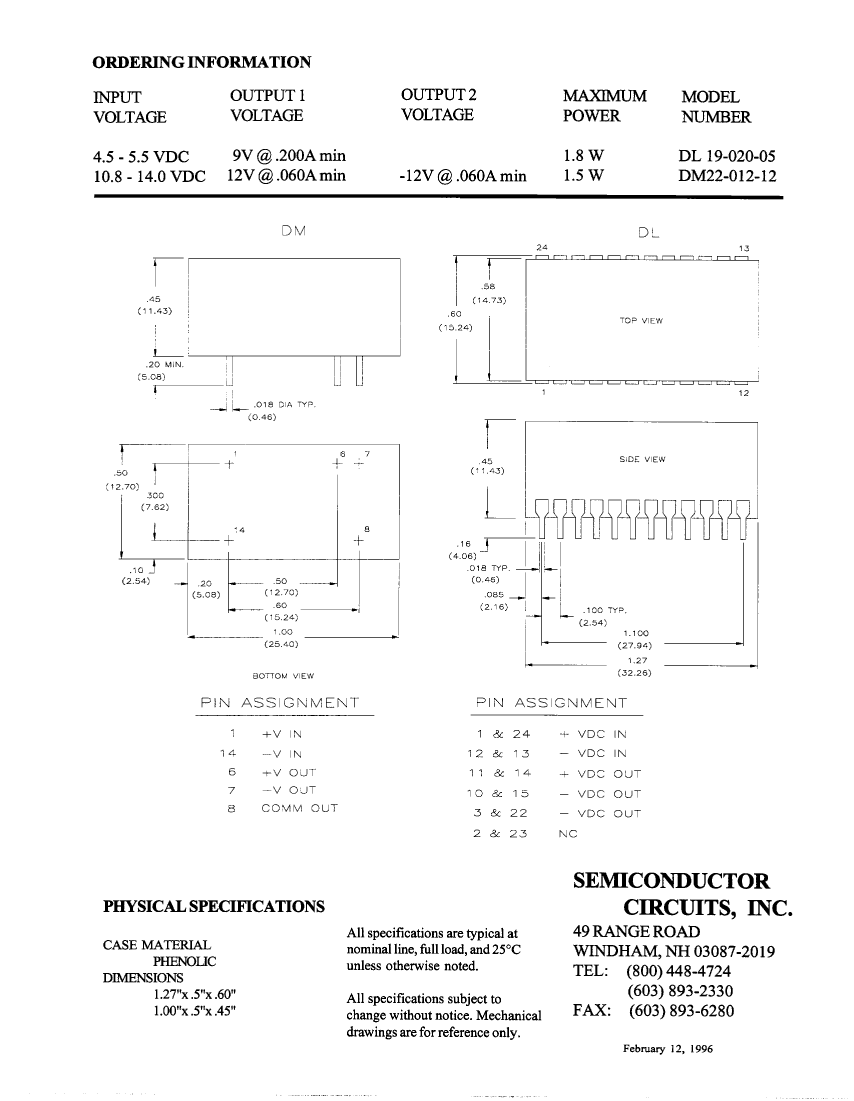

Parameter Name	Attribute value
Maker	Semiconductor Circuits Inc
Parts packaging code	MODULE
package instruction	DIP,
Contacts	14/5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	55%
Maximum input voltage	14 V
Minimum input voltage	10.8 V
JESD-30 code	R-PDIP-P5
length	25.4 mm
Maximum grid adjustment rate	0.167%
Maximum load regulation	0.417%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.06 V
Minimum output voltage	11.94 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	1.5 W
Fine-tuning/adjustable output	NO
width	7.62 mm
Base Number Matches	1
