3-0600-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-0600-10

3-0600-10: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

3-0600-10 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

3-0600-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aries Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (50)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	0600
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

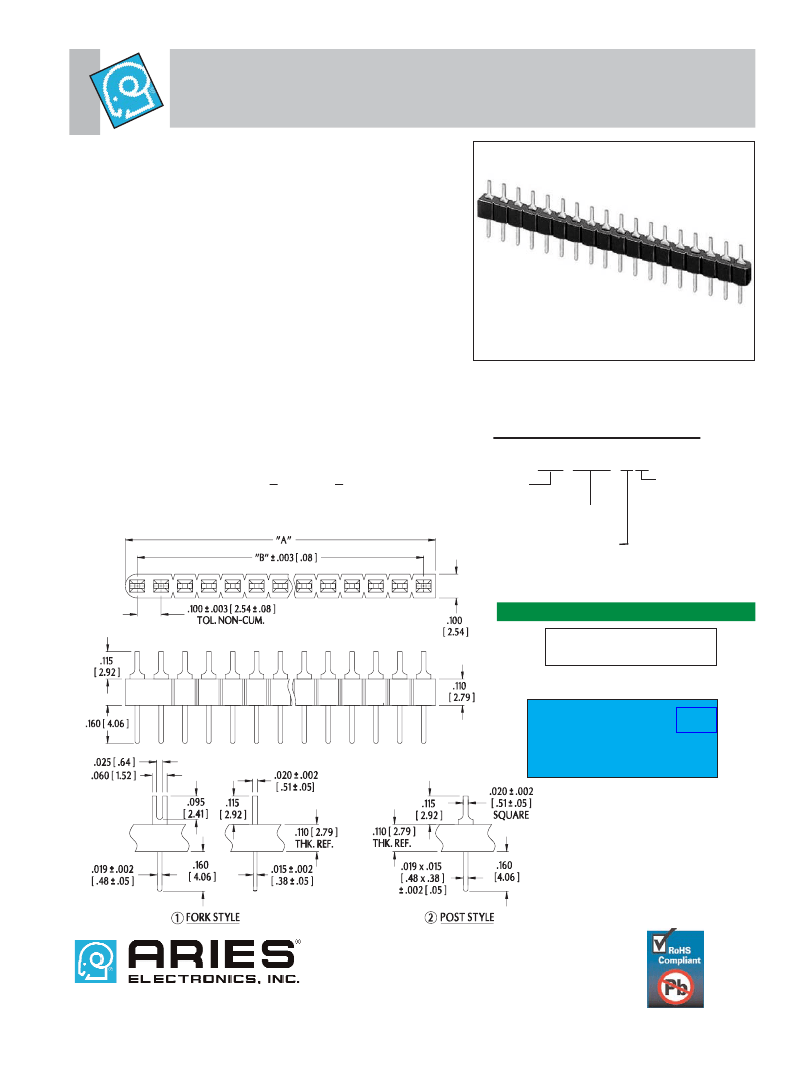

Series 0600

Strip-Line Headers with Coined Conacts

FEATURES:

• Aries Strip-Line headers are available with either fork or post

style coined contacts. Consult Data Sheet No.12036 for

pin=line headers with screw machine contacts.

• “Break” feature allows header to be cut to the number of posi-

tions desired.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94-V0 Glass-filled 4/6 Nylon.

• Coined contacts are Brass,1/2 hard

• Contact plating:

“0”=

200μ” min. Matte Tin plating per ASTM B545-97 over

50μ” min Nickel per QQ-N-290.

“1”=10μ”

min Gold per MIL-G-45204 over 50μ” min Nickel per

QQ-N-290.

in custom design and production. In

“0TL”=200μ”

min Tin/Lead 90/10 per MIL-T-10727 over 50μ”

Note: Aries specializesshown on this page, special materials,addition to

the standard products

platings,

min Nickel per QQ-N-290.

sizes, and configurations can be furnished, depending on quantities.

Aries reserves the right to change product specifications without notice.

• Contact current rating =2 Amps.

• Operating temperature=221°F [105°C] Tin & Tin/lead plating,

ORDERING INFORMATION

=257°F [125°C] Gold plating.

• Fork contact accepts up to .025 [.64] diameter leads.

XX-0600-XX

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.035+.002 [.89 + .05] dia.

Plating:

No. of pins:

“A”=NO. OF PINS PER ROW X .100 [2.54]

“B”=(NO. OF PINS PER ROW - 1) X.100 {2.54}

1 to 25

Series

Pin style:

1=Fork pin

2=Post pin

ALL DIMENSIONS: INCHES [MILLIMETERS]

0=Tin

0TL= Tin/Lead

1=Gold

All tolerances ± .005 [.13]

unless otherwise specified

Consult Data Sheet No. 12036

for pin line headers with screw

machine contacts

http://www.arieselec.com • info@arieselec.com

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX: (908) 996-3891

abc

12034

REV.C

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
