661-025-264-032

Description
D Subminiature Connector,
CategoryThe connector    The connector
File Size133KB,1 Pages
ManufacturerEDAC
Download Datasheet Parametric View All

661-025-264-032 Online Shopping

Suppliers Part Number Price MOQ In stock
661-025-264-032 - - View Buy Now

661-025-264-032 Overview

D Subminiature Connector,

661-025-264-032 Parametric

Parameter NameAttribute value
MakerEDAC
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
Base Number Matches1

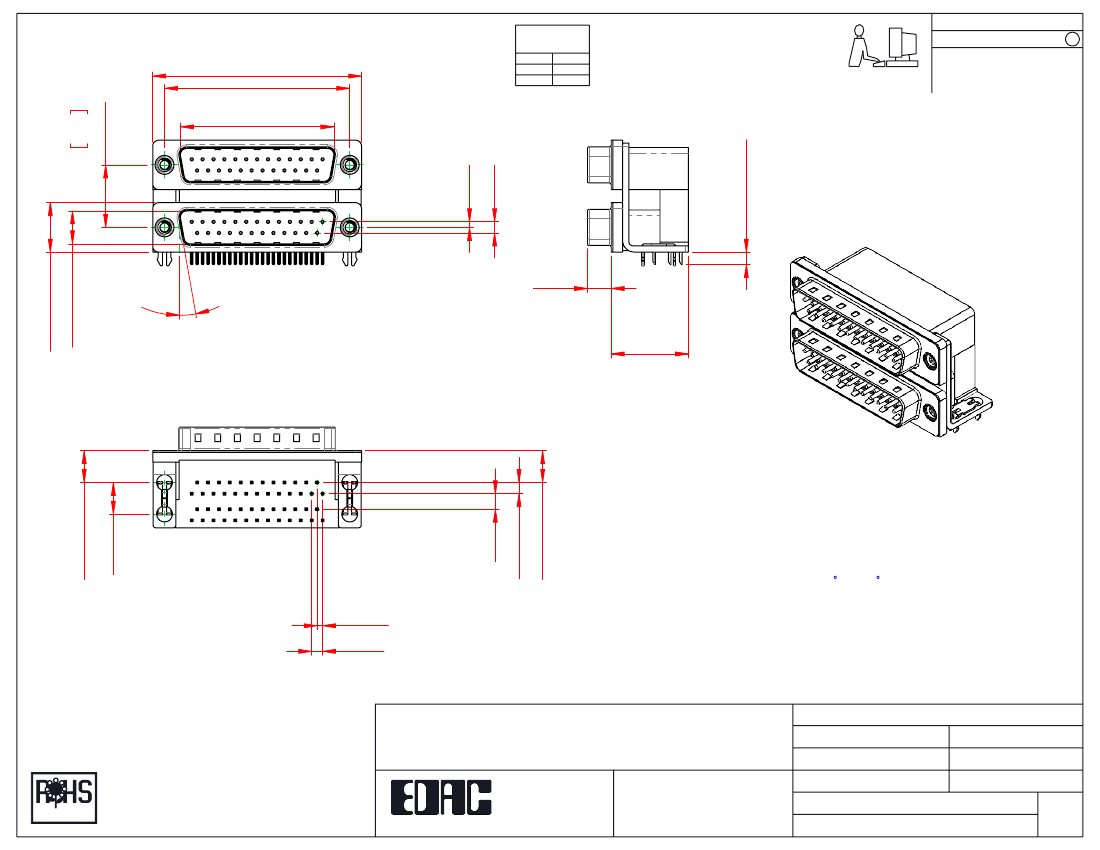

UNLESS OTHERWISE
SPECIFIED
TOLERANCE
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
53.04
±0.38
47.04
±0.25
0.63
15.88
38.96
.X
.XX
.XXX
±0.25
±0.13
±0.10
12.55
±0.38
8.36
6.0
10°
19.60
NOTES:
MATERIAL:
HOUSING: THERMOPLASTIC POLYESTER, UL94V-0
SHELL: STEEL, Sn or Ni PLATED
CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING
OPERATING TEMPERATURE: -55 C ~ 85 C
CURRENT RATING: 3A PER CONTACT
CONTACT RESISTANCE: 25mΩ MAX.
INSULATOR RESISTANCE: 5000MΩ min.
DIELECTRIC
WITHSTANDING VOLTAGE: 1000V AC rms
SW REFERENCE NO.:
661 ASSEMBLY
DATE:
DATE:
SHEET
AUG. 01/2018
8.08
±0.25
1.385
2.77
661 SERIES D-SUB CONNECTOR
THIS SERIES FULLY CONFORMS TO
THE EUROPEAN UNION DIRECTIVES
COMPLIANT
2011/65/EU FOR RoHS COMPLIANCY.
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
8.08
±0.25
2.84 TYP
8.0
3.92
3.18
±0.38
1.42
2.84
DRAWN:
CHECKED:
SCALE:
C.B
1:1
1
OF
1
ISSUE
DRAWING NUMBER:
PART NUMBER:
661-025-264-032
661-025-264-032
1
