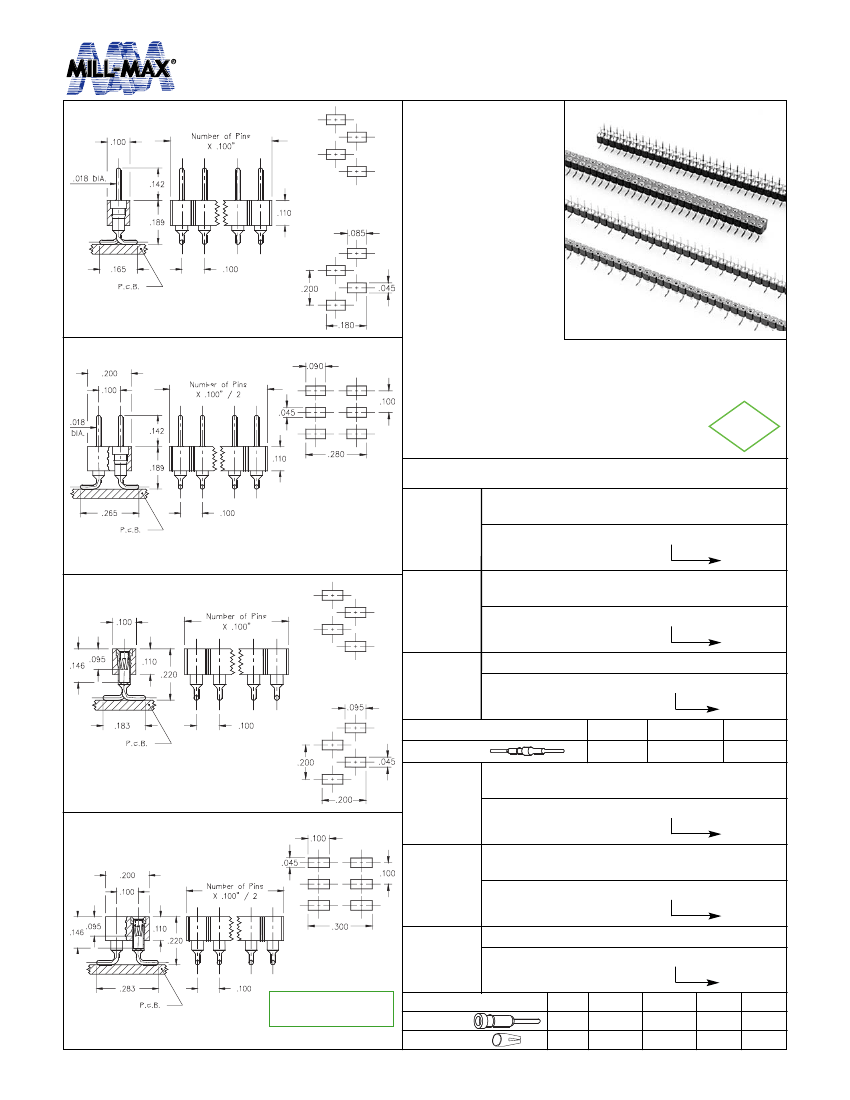

INTERCONNECTS
.018” dia. Pins
Surface Mount Headers and Sockets
Left Hand
Footprint
Series 310, 350
410, 450
•
Headers (350 &
450) use MM# 3404
pins. See page 170
for details.
Right Hand
Footprint
Coplanarity .005”. For Pin Counts
> 10 Consult Tech Support
Fig. 1
Footprint
•
Sockets (310 & 410)
use MM# 1005
receptacles and
accept pin diameters
from .015-.025. See
page 135 for details.
•
Coplanarity .005” (Single Row max 10 pins; Double
Row max 20 pins) for higher pin counts contact tech
support.
•
Insulators are high temp. thermoplastic.
Ordering Information
Single Row Header, Left Hand Footprint
Odd or Even # of pins
Fig. 1L
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
350-XX-1_ _-00-106000
Specify # of pins
02-64
Single Row Header, Right Hand Footprint
Even # of pins
Fig. 2
Left Hand
Footprint
Fig. 1R
350-XX-1_ _-00-107000
Specify even # of pins
02-64
Double Row Header, Even # of pins
Fig. 2
Right Hand
Footprint
SPECIFY PLATING CODE XX=
450-XX-2 _ _-00-106000
Specify even # of pins
10
90
04-72
40
Pin Plating
Coplanarity .005”. For Pin Counts
> 10 Consult Tech Support
10μ” Au 200μ” Sn/Pb 200μ” Sn
Fig. 3
Footprint
Single Row Socket, Left Hand Footprint
Odd or Even # of pins
Fig. 3L
310-XX-1_ _-41-105000
Specify # of pins
02-64
Single Row Socket, Right Hand Footprint
Even # of pins
Fig. 3R
310-XX-1_ _-41-107000
Specify even # of pins
02-64
Double Row Socket, Even # of pins
Fig. 4
For RoHS compliance
select plating code.
SPECIFY PLATING CODE XX=
410-XX-2 _ _-41-105000
Specify even # of pins
13
30µ” Au
04-72
99
43
44
93
30µ” Au
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
Sleeve (Pin)
Contact (Clip)
10µ” Au 200µ” Sn/Pb 200µ”Sn/Pb
200µ”Sn
200µ”Sn
200µ”Sn/Pb
30µ” Au
200µ”Sn
Fig. 4
