CD74AC652M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74AC652M

CD74AC652M: DescriptionRegistered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24; Categorylogic logic; File Size919KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74AC652M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74AC652M	-	-	View	Buy Now

CD74AC652M Overview

Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24

CD74AC652M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
Reach Compliance Code	unknown
Other features	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	17.1 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Trigger type	POSITIVE EDGE
Base Number Matches	1

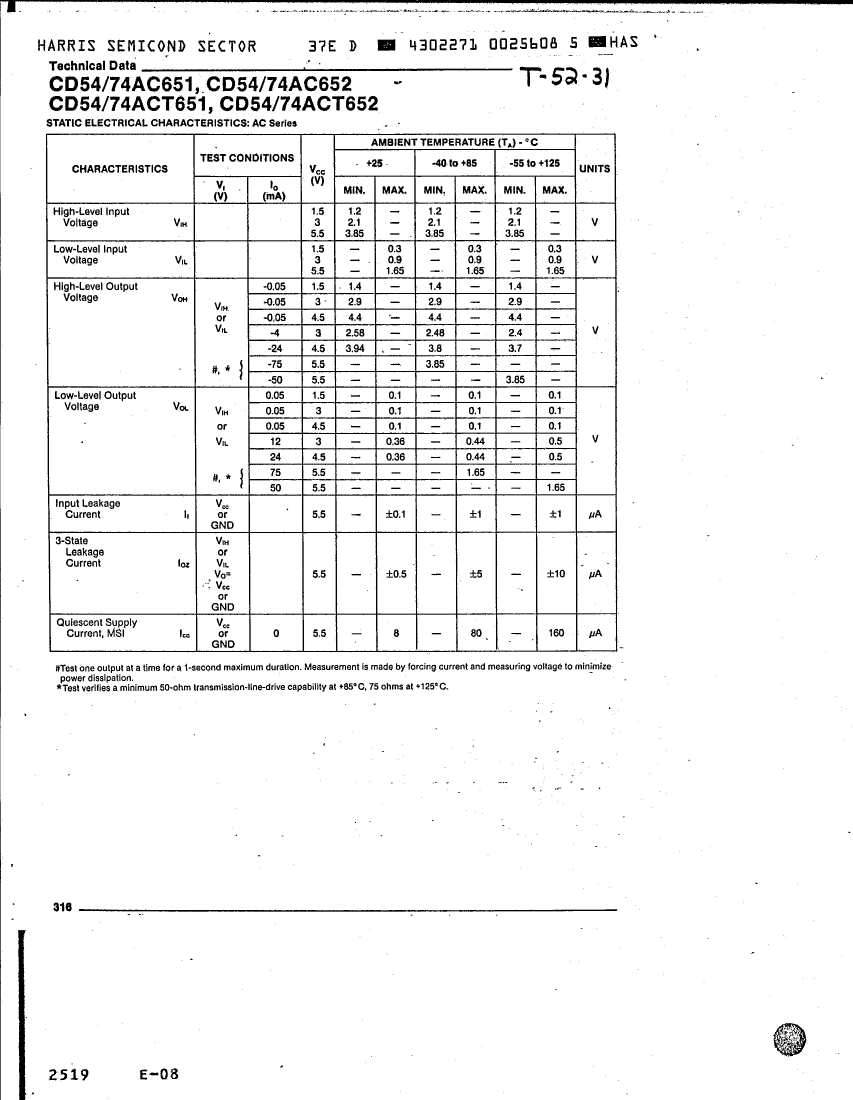

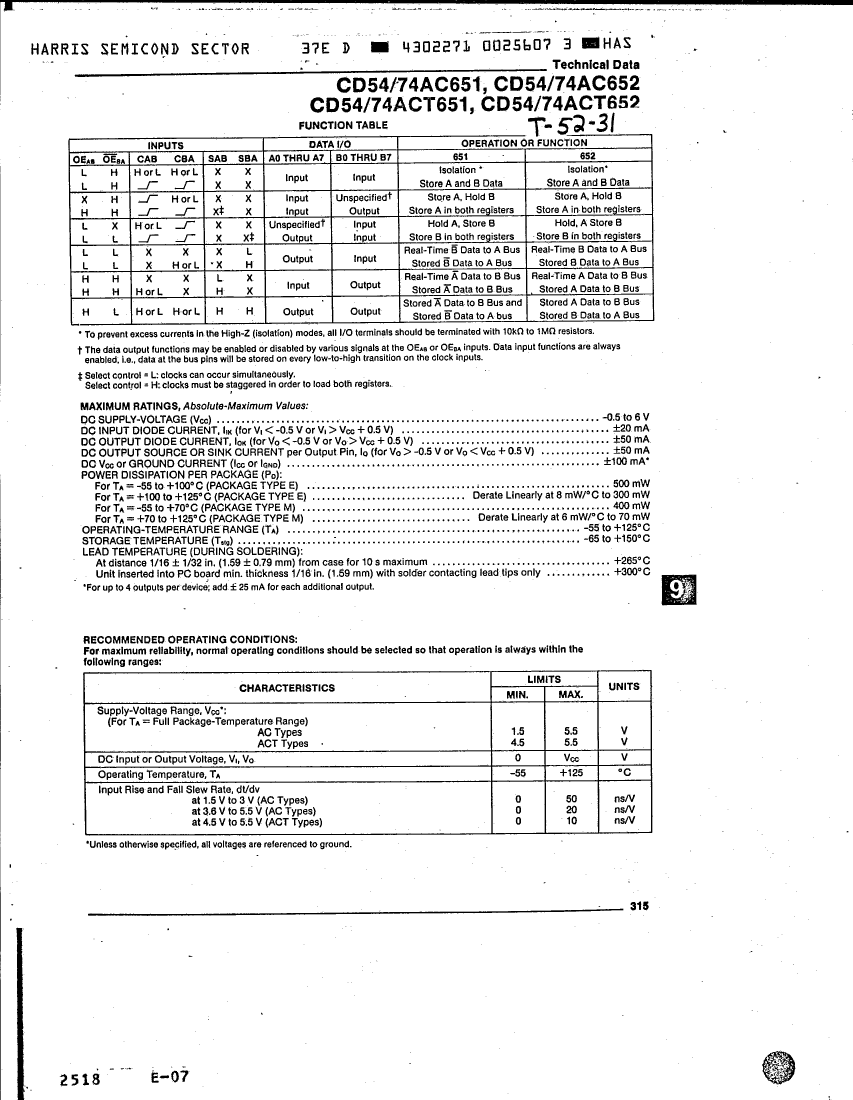

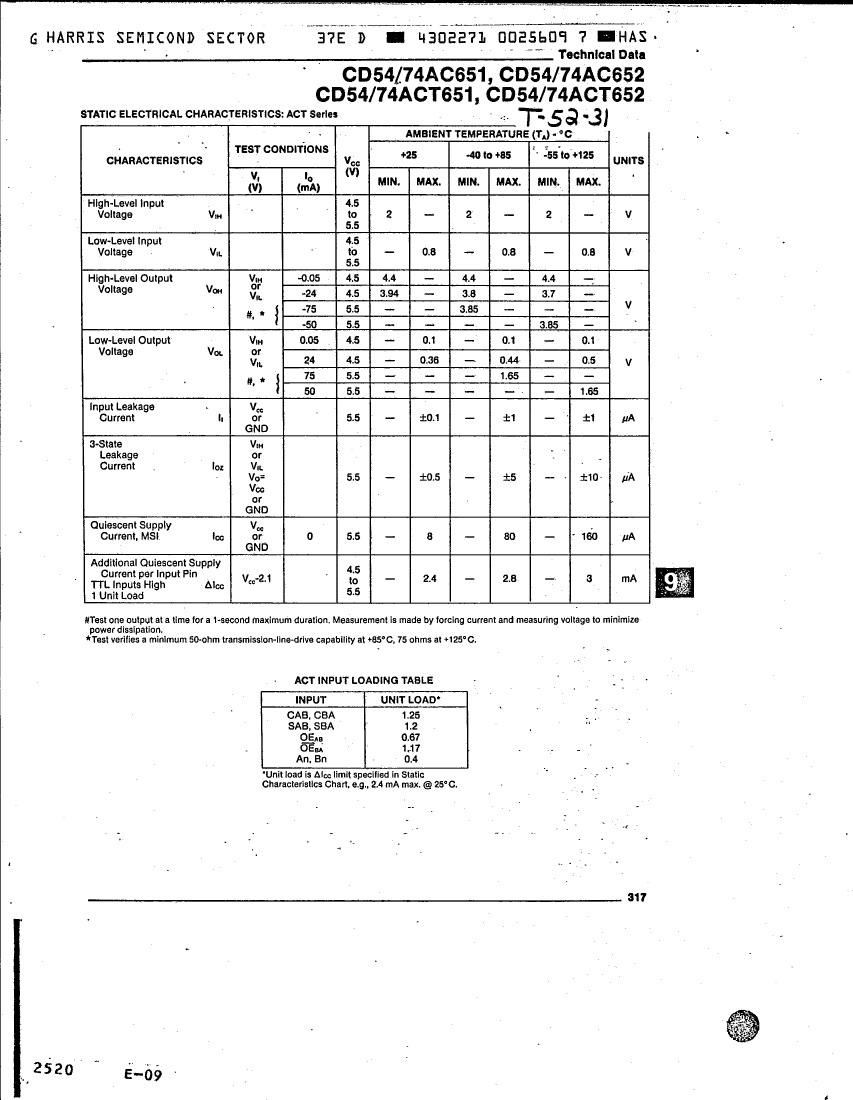

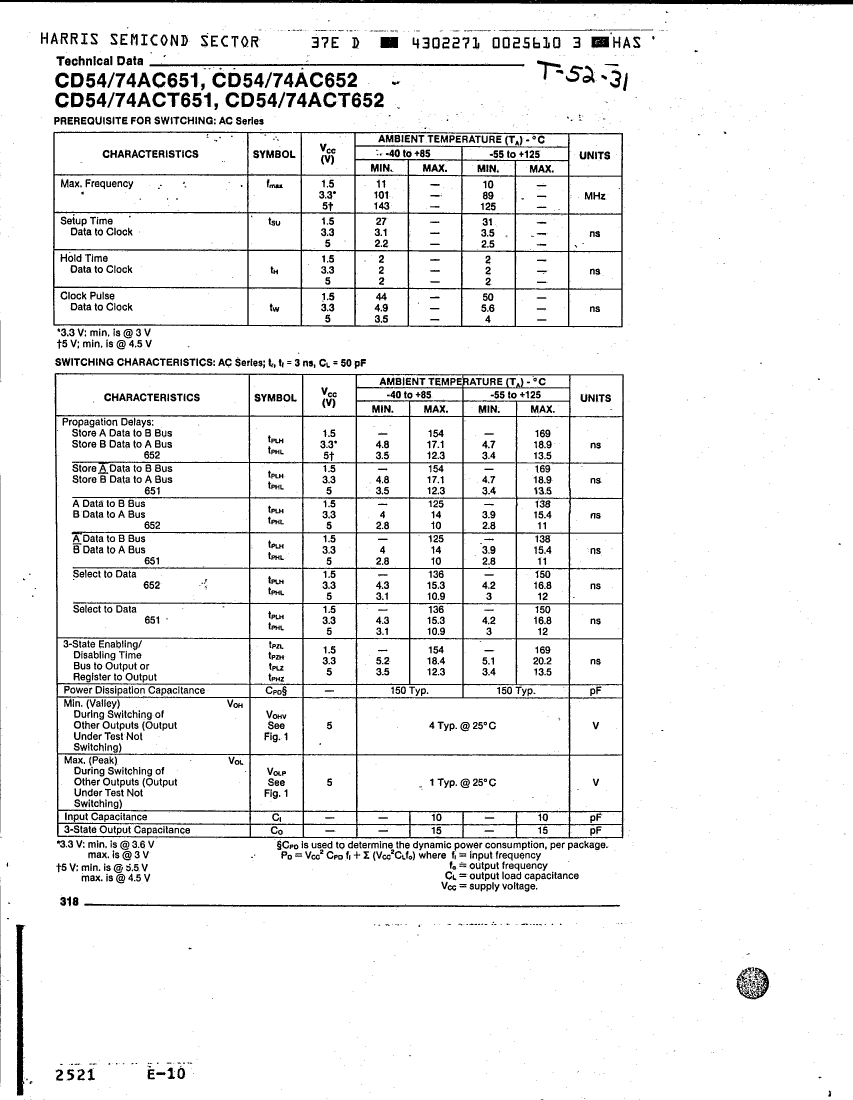

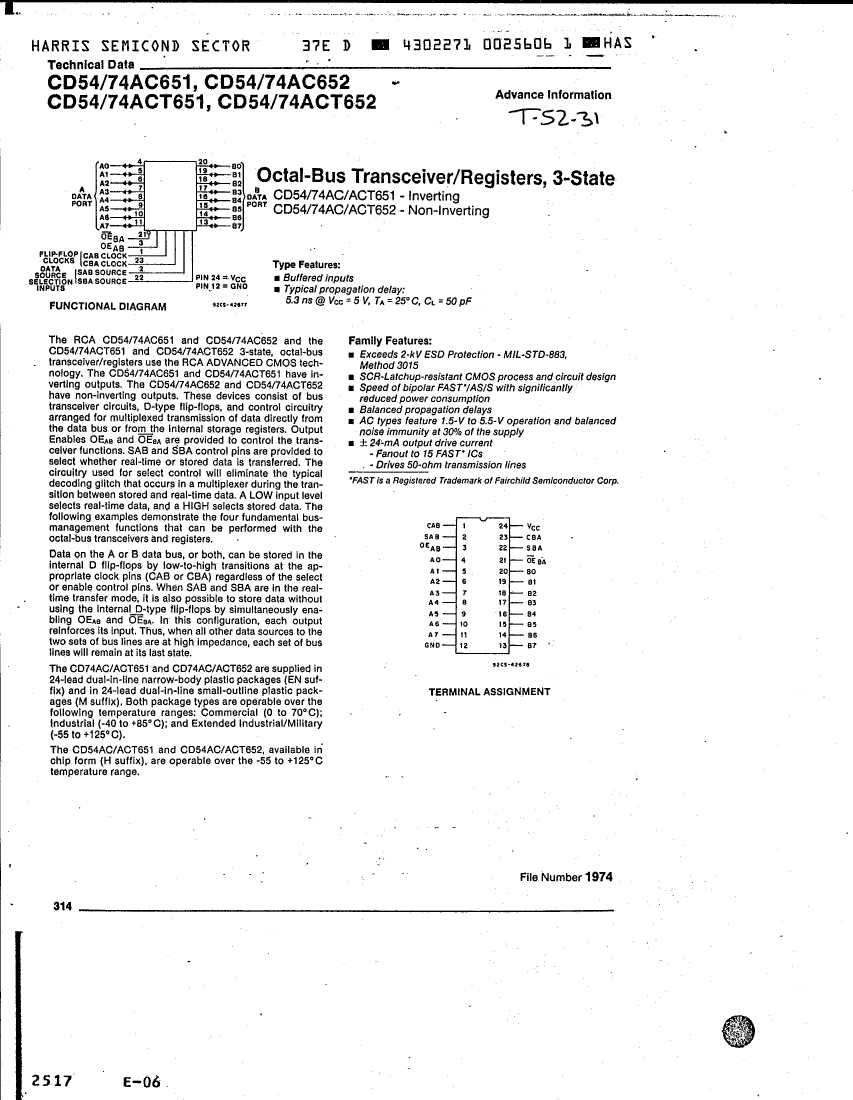

Preview

Download Datasheet

View All

CD74AC652M Related Products

	CD74AC652M	CD74AC651EN	CD74ACT652EN	CD74ACT652M	CD74ACT651EN	CD74ACT651M	CD74AC651M	CD74AC652EN
Description	Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24	Registered Bus Transceiver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP24	Registered Bus Transceiver, ACT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24	Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A	0.012 A	0.024 A	0.024 A	0.024 A	0.024 A	0.012 A	0.024 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	TRUE	TRUE	INVERTED	INVERTED	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	DIP	SOP	SOP	DIP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	SOP24,.4	SOP24,.4	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	3.3/5 V	3.3/5 V	5 V	5 V	5 V	5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	Harris	Harris	-	Harris	Harris	Harris	Harris	Harris
Prop。Delay @ Nom-Sup	17.1 ns	15.4 ns	15.5 ns	15.5 ns	15.5 ns	15.5 ns	15.4 ns	-
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	5 V	-
package instruction	-	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	DIP, DIP24,.3	SOP, SOP24,.4	SOP, SOP24,.4	DIP, DIP24,.3
