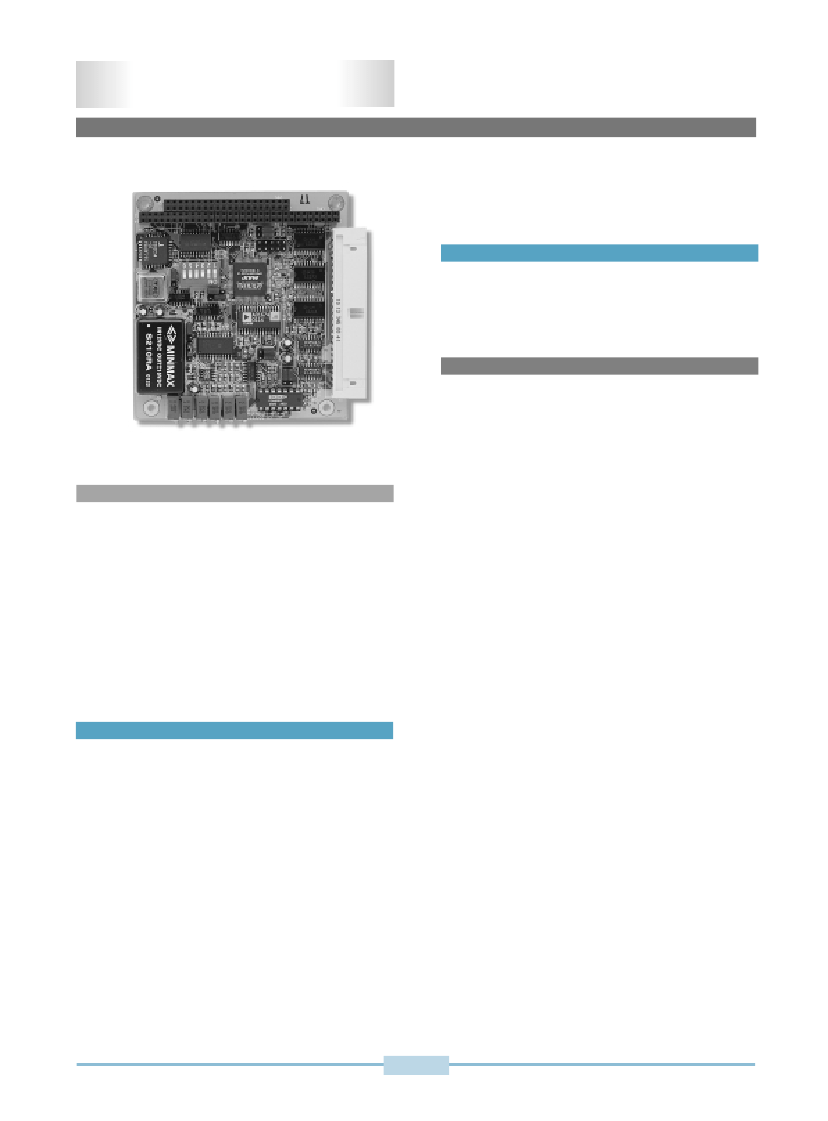

AX10410A

High Speed Data Acquisition Module

16 bits of digital I/O are available on the AX10410A.

Eight bits of digital output and eight bits of digital input

are brought out through the AX10410A’s 50-pin

connector.

APPLICATION

¥ Laboratory Automation

¥ Signal Analysis

¥ Chromatography

¥ Process Control

SPECIFICATIONS

Analog Input Subsystem

¥ Number of inputs:

16 S.E. or 8 D.I.

¥ Resolution:

12-bit

¥ Gain:

1, 2, 4, 8

¥ Input Range:

Unipolar: 0-1.25, 2.5, 5, 10V

Bipolar :

±1.25,

2.5, 5, 10V

¥ Sampling Rate:

100KHz max.

¥ PC/104 standard expansion module

¥ Compatible with Keithley Metrabyte DAS-16G

¥ Programmable gains: 1, 2, 4 and 8

¥ 16 Single-ended or 8 differential analog inputs with

12-bit resolution

¥ Up to 100KHz sample rate through DMA mode

operation

¥ 2 channels of 12-bit D/A output

¥ 8-bit TTL/DTL compatible inputs and outputs

¥ 1 channel counter/timer

¥ Software drivers containing Basic, C, Pascal and

Windows

3.1, Windows

95 and Windows

¥ System Accuracy (Gain=1):

±0.03%

FSR

¥ Channel Acquisition Time to –1/2 LSB

Gain=1, 2, 4, 8

¥ A/D Conversion Time:

10µs

¥ Input Impedance

Off Channel: 100MΩ, 20pF

On Channel: 100MΩ, 20pF

¥ Maximum Input Voltage Without Damage

Power On:

±35V

Power Off:

±20V

¥ Common Mode Rejection Ratio:

Gain=1 : 90dB

FEATURES

GENERAL DESCRIPTION

The AX10410A is a member of PC/104 family. This

module can be installed to any PC/104 CPU boards to

become a high performance data acquisition and

control system. It offers five most desired functions in

a PC/104 form-factor package: Analog Input, Analog

Output, Digital Input, Digital Output and Counter/

Timer.

The AX10410A features 8 differential or 16 single-

ended analog input with 12-bit resolution. The

AX10410A has a maximum sample rate of 100KHz.

The AX10410A provides ranges for signal level inputs

of +10V, +5V, +2.5V, +1.25V for unipolar and 10V,

5V, 2.5V, 1.25V for bipolar. The transfer of data can

be accomplished in 3 ways: by software trigger,

interrupt service routine or DMA.

In addition to its analog inputs, the AX10410A als

provides two channels of 12-bit analog output. The

D/A converter may be operated with internal reference

voltage 5V bipolar or 0 to 10V unipolar.

EPC 7-6

¥ Integral Nonlinearity:

±1

LSB

¥ Number of Interrupts:

¥ Channel of DMA:

1 or 3

Analog Output Subsystem

¥ Number of Channel:

¥ Output Ranges:

5V or 0 to +10V, internal reference supplied

¥ Current Output Capacity:

+5mA max.

Note: All specifications are subject to change without notice.
