54AC11828JT datasheet, PDF - EEWORLD Datasheet

54AC11828JT: DescriptionBus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, CDIP28, DIP-28; Categorylogic logic; File Size239KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

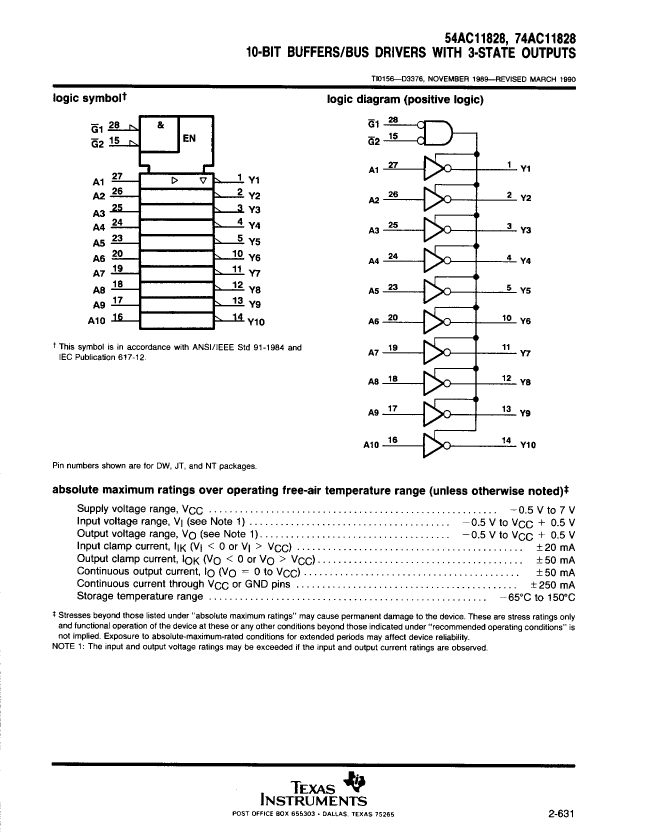

54AC11828JT Overview

Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, CDIP28, DIP-28

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	AC
JESD-30 code	R-GDIP-T28
length	36.83 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

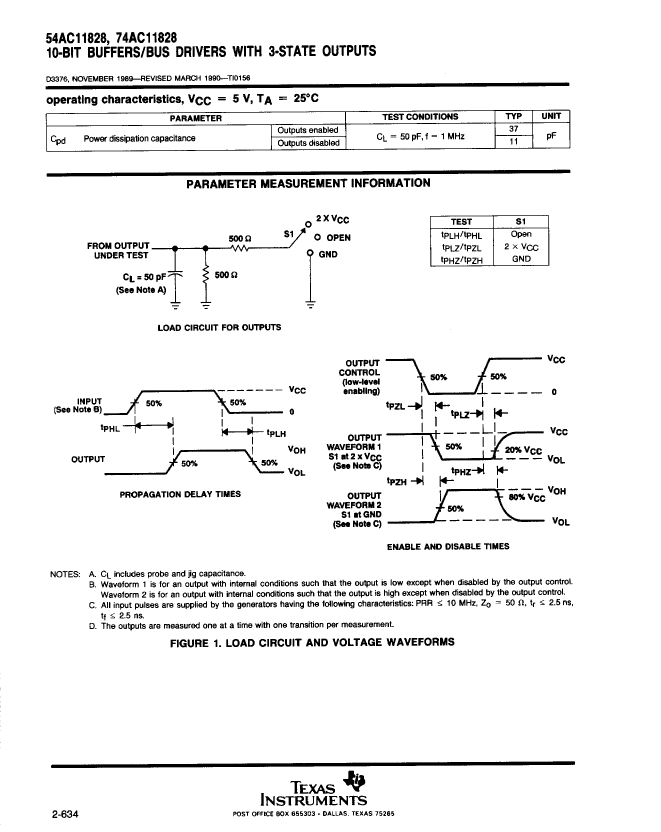

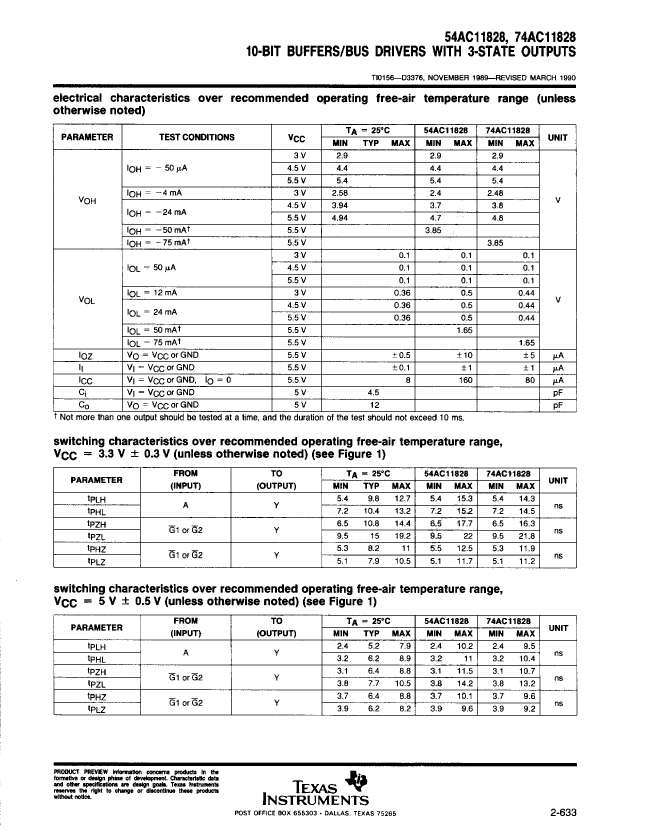

propagation delay (tpd)	11 ns
Maximum seat height	5.08 mm

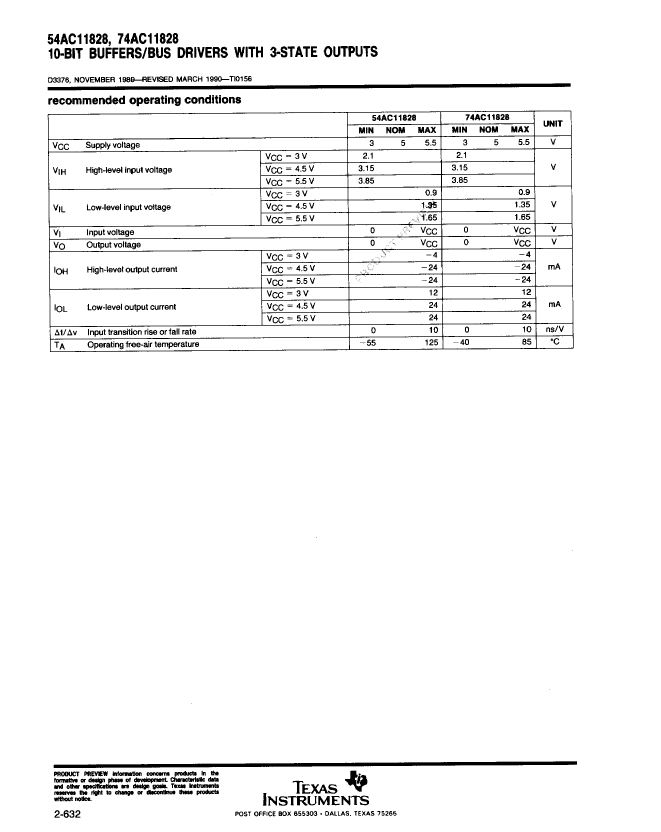

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	54AC11828JT	54AC11828FK
Description	Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, CDIP28, DIP-28	Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, CQCC28, QCC-28
Maker	Rochester Electronics	Rochester Electronics
package instruction	DIP,	QCCN,
Reach Compliance Code	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	AC	AC
JESD-30 code	R-GDIP-T28	S-CQCC-N28
length	36.83 mm	11.43 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	10	10
Number of functions	1	1
Number of ports	2	2
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
propagation delay (tpd)	11 ns	11 ns
Maximum seat height	5.08 mm	2.03 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
width	7.62 mm	11.43 mm
Base Number Matches	1	1
