Module no:3003460 LabelId:3003460 Operator:Phoenix
18:45:53, Donnerstag, 28. Juni 2001
ZIK 2,5-PE/L/L
Terminal width 6.2
(IEC)
[mm ]
DIN VDE 0611
2
rigid
solid
0.2-4
flexible
stranded AWG
0.2-2.5
24-12
I
[A]
30
U
[V]
*
400
250
Type
ZIK 2,5-PE/L/L
Order No.
30 03 46 0
Pcs.
Pkt.
50
* Phase conductor/phase conductor
Phase conductor/PE
Description
Three level installation terminal block,
with
green-yellow
PE
connection, and two phase conductor
connections
L
Accessories
(1)
End cover
(2)
Fixed bridge,
for
cross-connections in the terminal
center, screw heads with insulating
collar, 10-pos., divisible, with 10
screws
(3)
Isolator bridge bar,
10-pos.,
divisible, with 10 screws, for switchable
branches with
(4)
Bridge bar isolator IS-K 4
as
distance piece
(5)
Partition plate,
for optical and
electrical separation of terminal block
groups, 2 mm thick
(7)
Screwdriver,
for actuating the
tension spring
(9)
Zack marker sheet, flat,
100-section, for labelling the outer
marker grooves
Technical data
Dimensions
Width / length / end cover width
Height (NS 35:7.5 / NS 35:15)
Technical data in accordance with IEC/
DIN VDE
Maximum load current / cross section
Rated surge voltage / contamination class
S
lt
t
/i
l ti
t i l
[A] / [mm ]
[kV] / –
/
2
D-ZIK 2,5
FBI 10-6
30 00 93 9
I
max.
: 30 A
02 03 25 0
50
10
ISSBI 10-6
IS-K 4
ATP-ZIK
I
max.
: 26 A
03 01 50 5
13 02 33 8
30 06 46 7
10
100
50
SZF 1 - 0,6 x 3,5
ZBFM 6
(see
info)
12 04 51 7
1
[mm]
[mm]
6.2 / 118.5 / 2
51 / 58.5
30 / 4
4/3
III / I
Page 1 / 2
Phoenix Contact Elektronischer Katalog

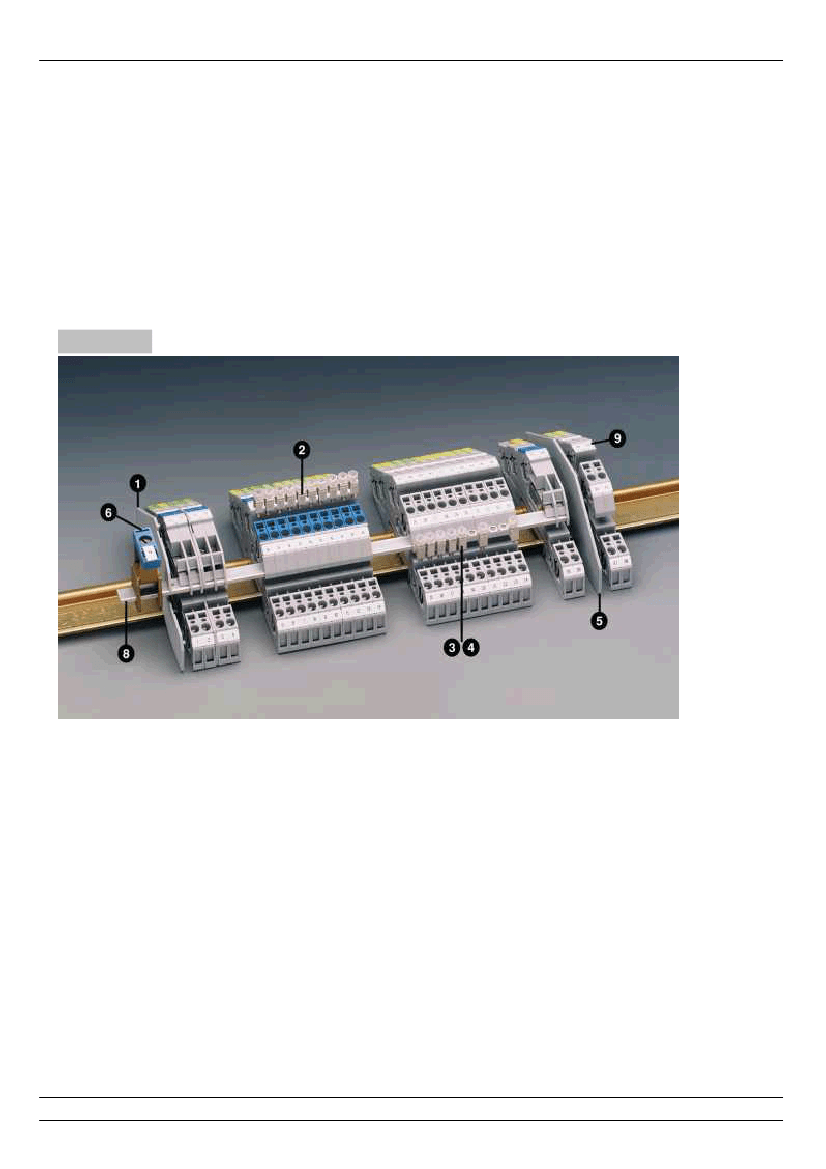

Module no:3003460 LabelId:3003460 Operator:Phoenix
Surge voltage category / insulation material
group
Connection capacity
stranded with ferrule with plastic sleeve
stranded with ferrule without plastic sleeve
stranded with TWIN ferrule with plastic
sleeve
Stripping length
Internal cylindrical gage (IEC 947-1:1988)
Insulation material
Inflammability class acc. to UL 94
Temperature indices RTI / Ti
Block diagram
[mm ]
[mm ]
[mm ]
[mm]
2
2
2
18:45:53, Donnerstag, 28. Juni 2001
III / I
–/–
0.25-2.5
0.25-2.5
0.5
10
A3
PA
V0
130 / 120
Phoenix Contact Elektronischer Katalog
Page 2 / 2
