1. Inductance tolerance is +/-30% for inductance values between 1uH and 8.2uH and +/-20% for values between
10uH and 680uH.
2. Inductance is measured at 100kHz, 250mV
3. The rated current as listed is the rms or heating current that the part can withstand with acceptable temperature
rise in typical applications. At the listed current the inductance typically drops to 85%-90% of the no load value
when measured at 25½C. The inductance is guaranteed to be greater than 65% of the no load inductance value
when measured at 25½C.
4. The temperature of the component (ambient plus temperature rise) must be within the stated operating
temperature.
5. Parts come in tape and reel packaging. Pulse complies with industry standard tape and reel specification EIA481.
The tape and reel for this product has a width (W=16mm) and pitch (P=12mm).
3
pulseelectronics.com
P756.B (08/15)

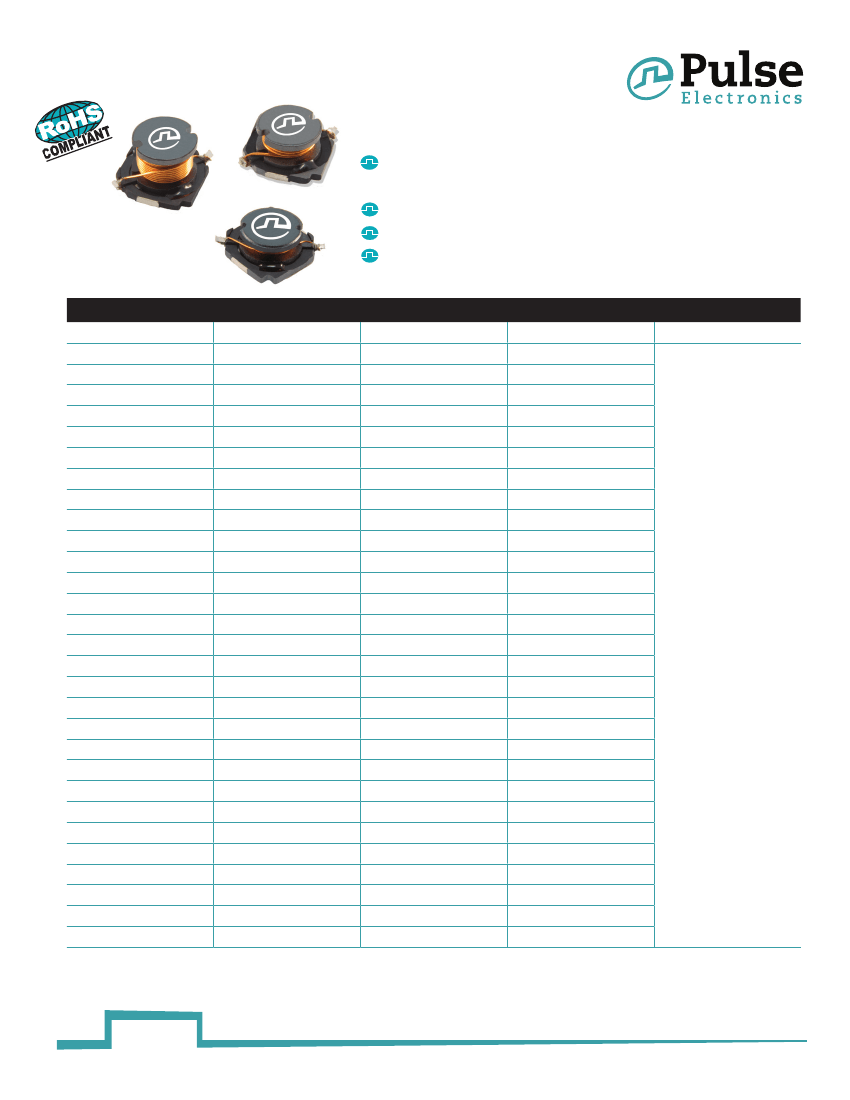

Pulse Jack
Unshielded Drum Core Inductor
PA4306.XXXNL, PA4307.XXXNL & PA4308.XXXNL Series

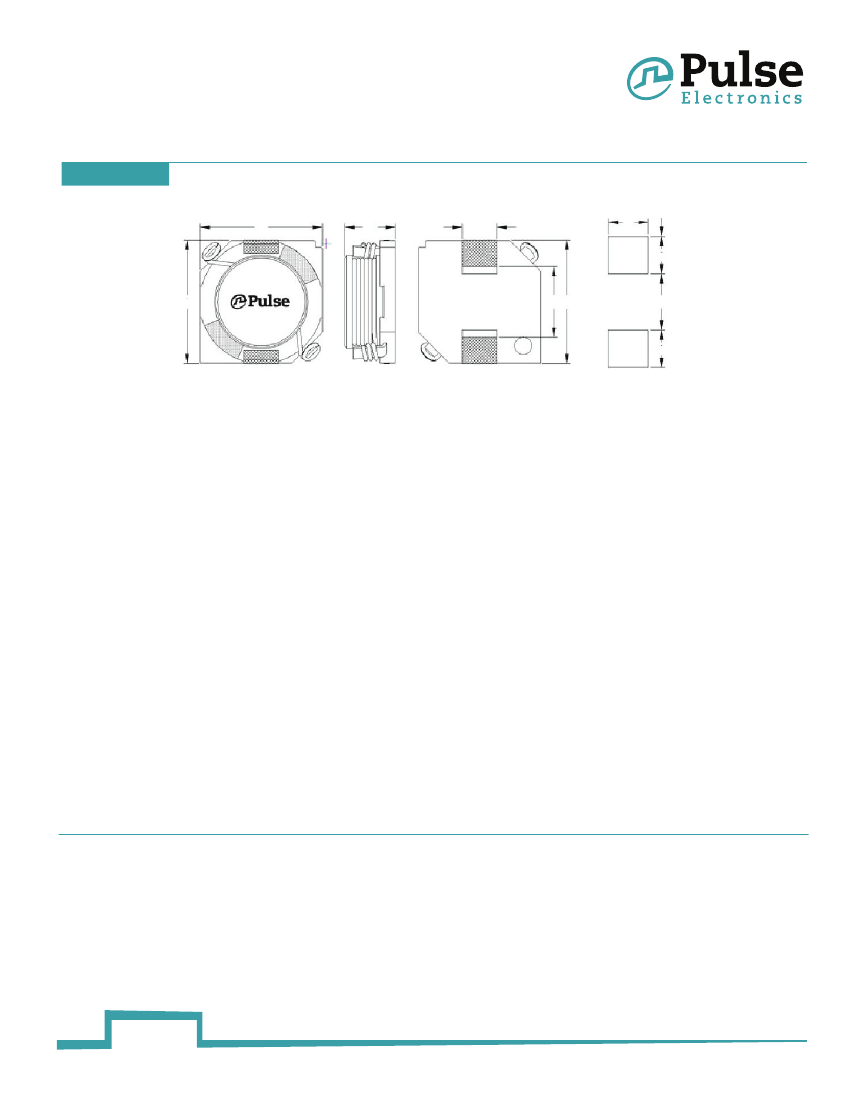

Mechanical
PA43XX.XXXNLT
7.3mm Max
7.3MAX
Electronics
C
C
[4.0]
(2.0)
(2.4)
(1.8)
[2.4]
7.3mm Max
7.3MAX
[2.0]
[1.5]
(4.0) (7.0)
[1.8]
[3.8]
[1.8]
(3.0)
(1.8)
PA4306.XXXNLT - C Dimension is 3.1mm Max
PA4307.XXXNLT – C Dimension is 3.5mm Max
PA4308.XXXNLT – C Dimenison is 4.8mm Max
Weight
......................0.266 grams (PA4306)
.......................0.314 grams (PA4307)
.......................0.44 grams (PA4308)
Tape & Reel
..................1000/reel
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technology Bldg.
Super Ocean Finance Ctr.
#03-02
Zhongyuan Road
10th Kejinan Road
2067 Yan An Road West
PM Industrial Bldg.
Zhongli City
High-Tech Zone
Shanghai 200336
Singapore 368363
Taoyuan County 320
Nanshan District
China
Taiwan R. O. C.
Shenzhen, PR China 518057
Tel: 886 3 4356768
Tel: 858 674 8100
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 86 21 62787060
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Fax: 858 674 8262
Fax: 49 7032 7806 12
Fax: 86 755 33966700
Fax: 86 2162786973
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
