5962R9572501VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9572501VXC

5962R9572501VXC: DescriptionInverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14; Categorylogic logic; File Size212KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9572501VXC Overview

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14

5962R9572501VXC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

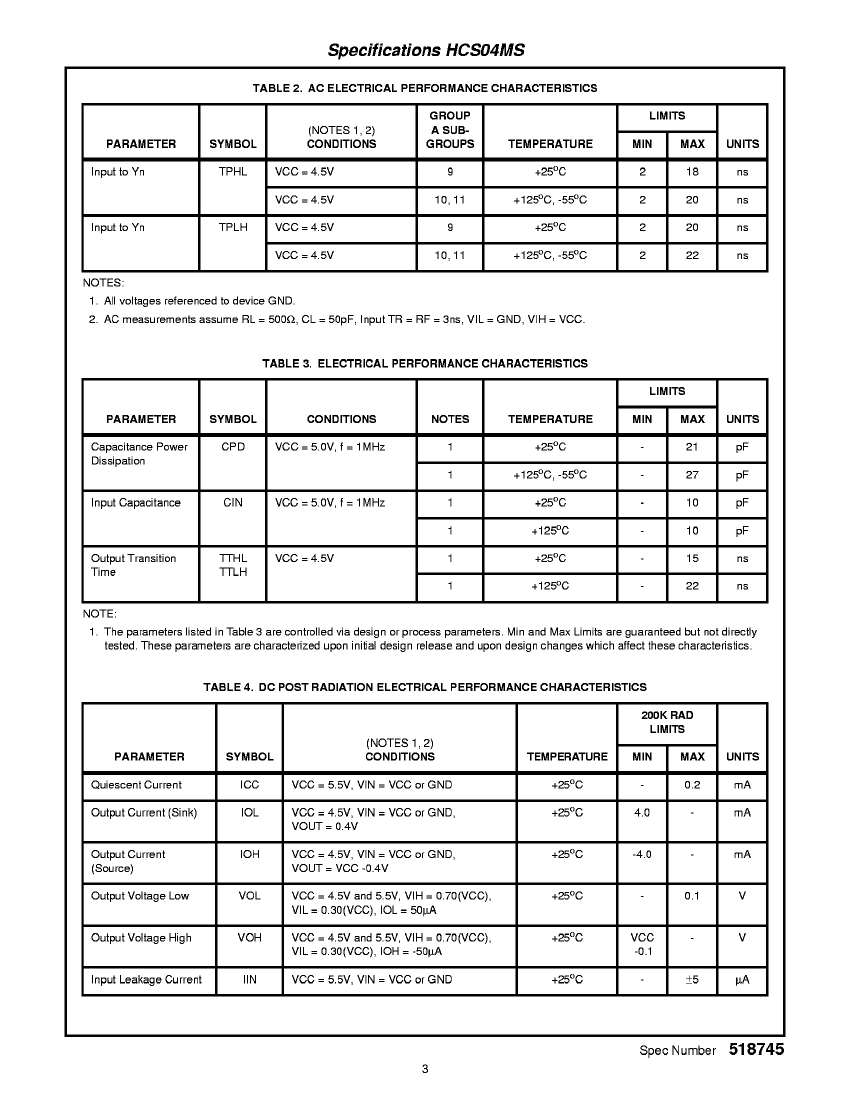

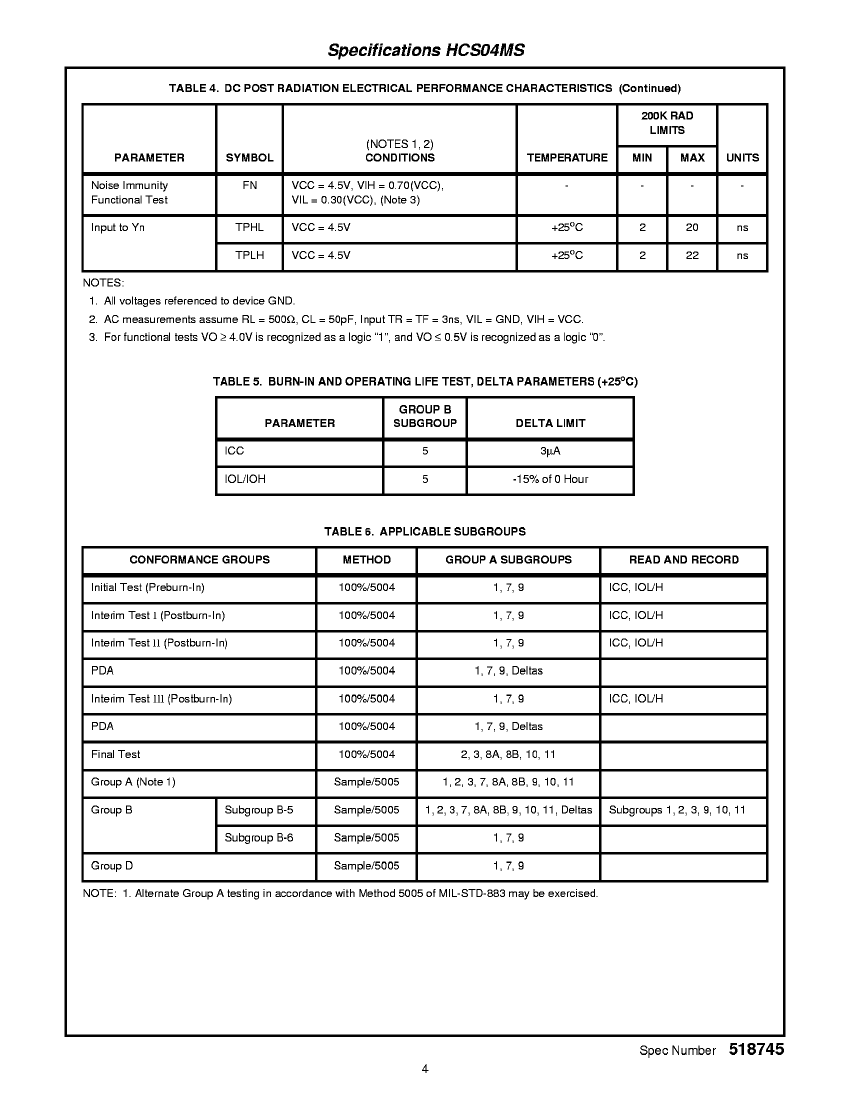

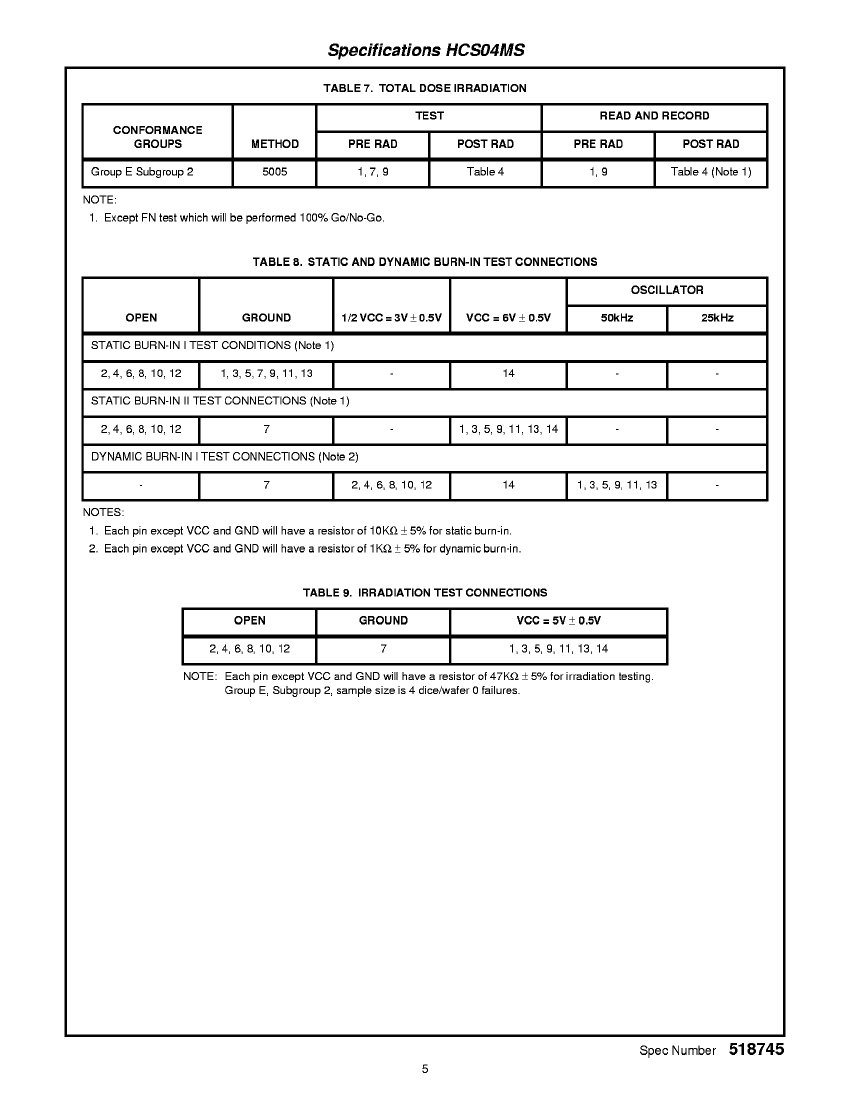

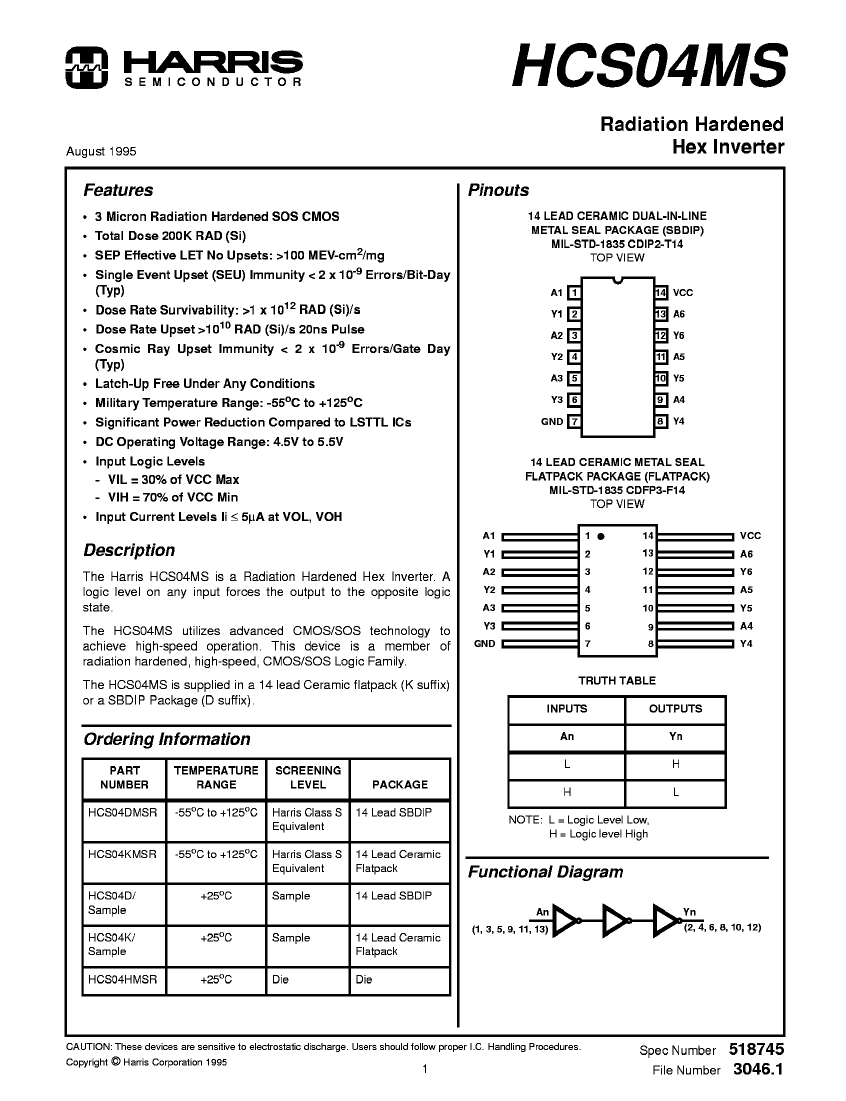

Preview

Download Datasheet

View All

5962R9572501VXC Related Products

	5962R9572501VXC	HCS04HMSR	5962R9572501V9A	HCS04D/SAMPLE	HCS04KMSR	5962R9572501VCC	HCS04DMSR	HCS04K/SAMPLE
Description	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F14	X-XUUC-N14	X-XUUC-N14	R-CDIP-T14	R-CDFP-F14	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	UNCASED CHIP	UNCASED CHIP	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	18 ns	18 ns	18 ns	20 ns	20 ns	20 ns	18 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	DUAL	UPPER	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL
JESD-609 code	e4	-	e0	-	e0	e4	e0	-
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY	-
Terminal surface	GOLD	-	TIN LEAD	-	Tin/Lead (Sn/Pb)	GOLD	Tin/Lead (Sn/Pb)	-
total dose	100k Rad(Si) V	-	100k Rad(Si) V	-	200k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	-
Maker	-	Harris	-	-	Harris	Harris	Harris	Harris
