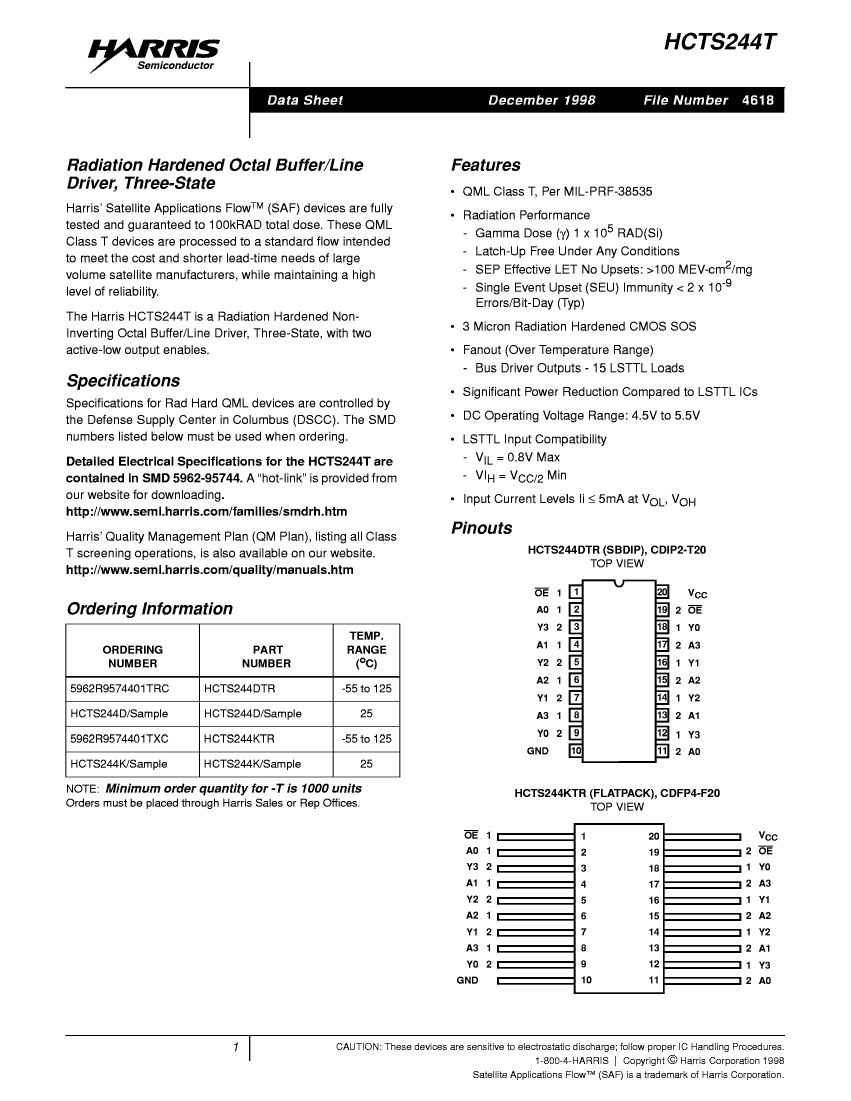

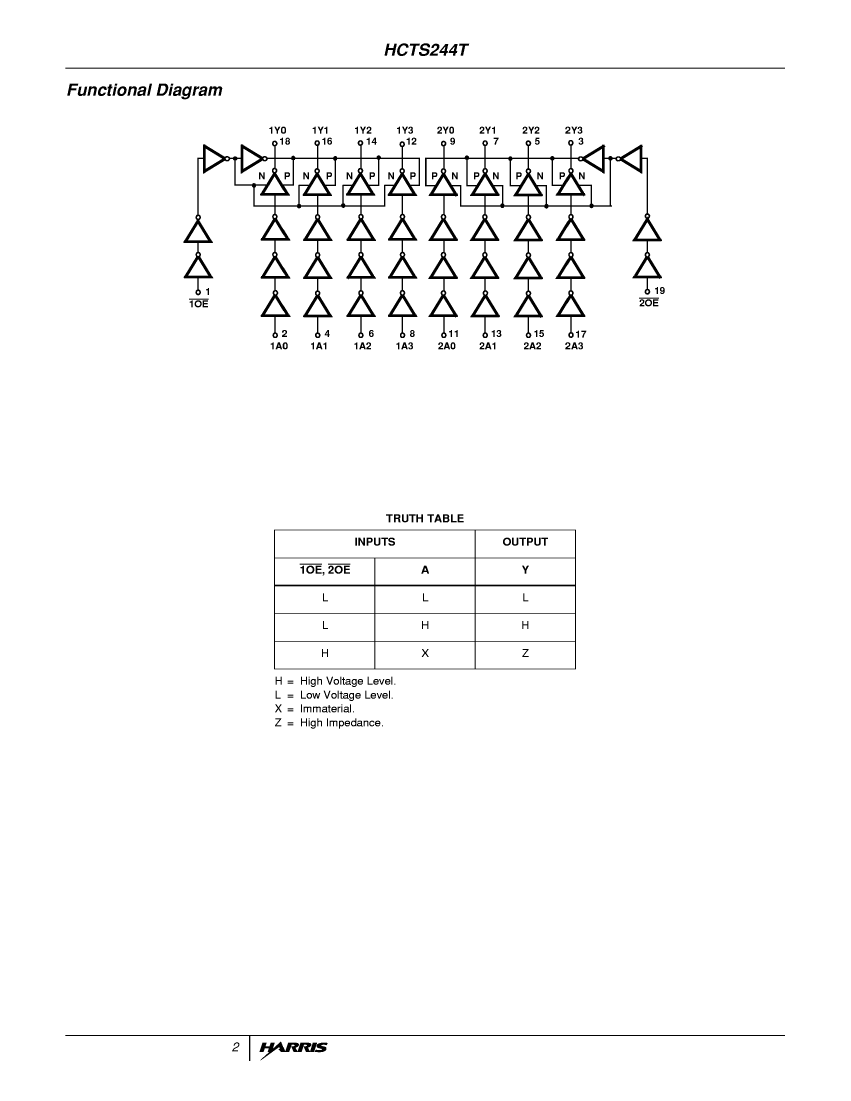

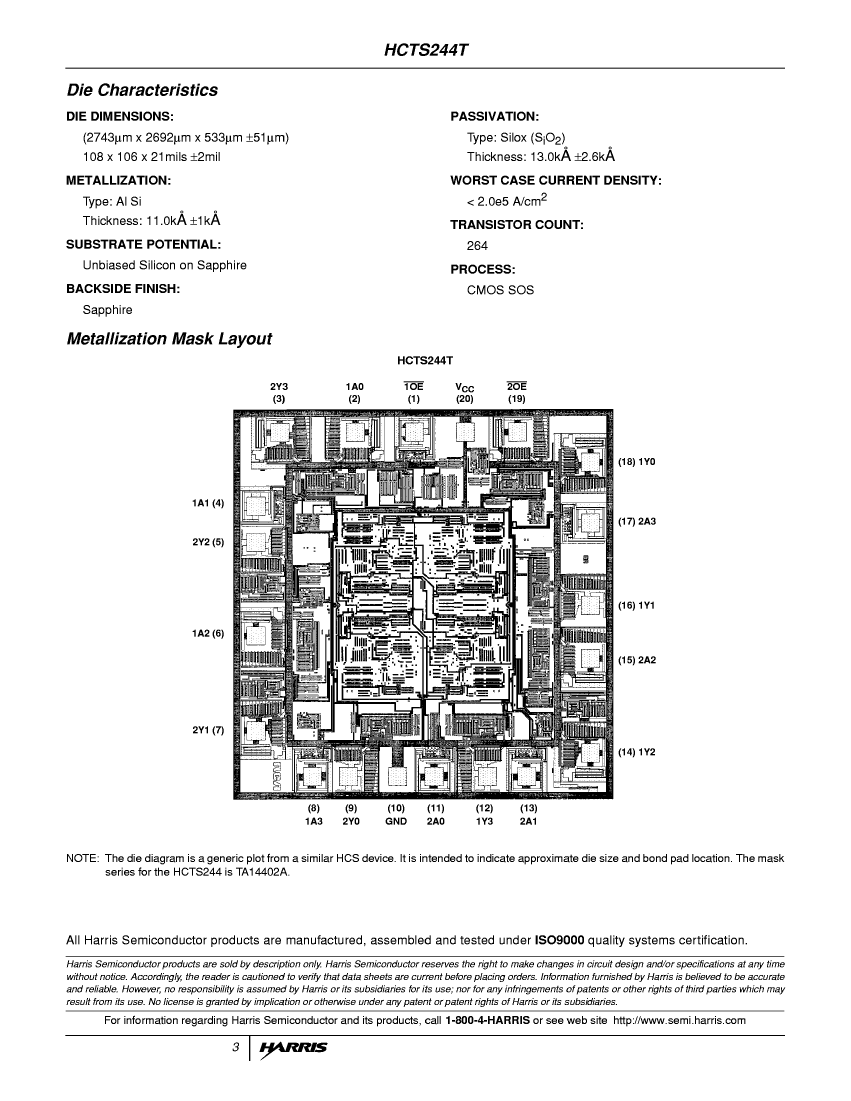

5962R9574401TXC: DescriptionBus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20; Categorylogic logic; File Size152KB，3 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9574401TXC Overview

Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20

5962R9574401TXC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDFP-F20
JESD-609 code	e4
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9574401TXC Related Products

	5962R9574401TXC	HTSW-218-08-G-T	HCTS244K/SAMPLE	HCTS244KTR	HCTS244D/SAMPLE	HCTS244DTR
Description	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20	Board Connector, 54 Contact(s), 3 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Natural Insulator, Receptacle	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown
series	HCT	-	HCT	HCT	HCT	HCT
JESD-30 code	R-CDFP-F20	-	R-CDFP-F20	R-CDFP-F20	R-CDIP-T20	R-CDIP-T20
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	-	4	4	4	4
Number of functions	2	-	2	2	2	2
Number of ports	2	-	2	2	2	2
Number of terminals	20	-	20	20	20	20
Maximum operating temperature	125 °C	125 °C	-	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-	-55 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	-	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	-	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V
surface mount	YES	-	YES	YES	NO	NO
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	-	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maker	-	-	Harris	Harris	Harris	Harris
