D-0540-8: DescriptionSplitter, 500MHz Min, 4000MHz Max, 1.6dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size333KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric Compare View All

D-0540-8 Overview

Splitter, 500MHz Min, 4000MHz Max, 1.6dB Insertion Loss-Max,

D-0540-8 Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	SMA-F, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
Maximum insertion loss	1.6 dB
Maximum operating frequency	4000 MHz
Minimum operating frequency	500 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.4
Base Number Matches	1

Preview

Download Datasheet

View All

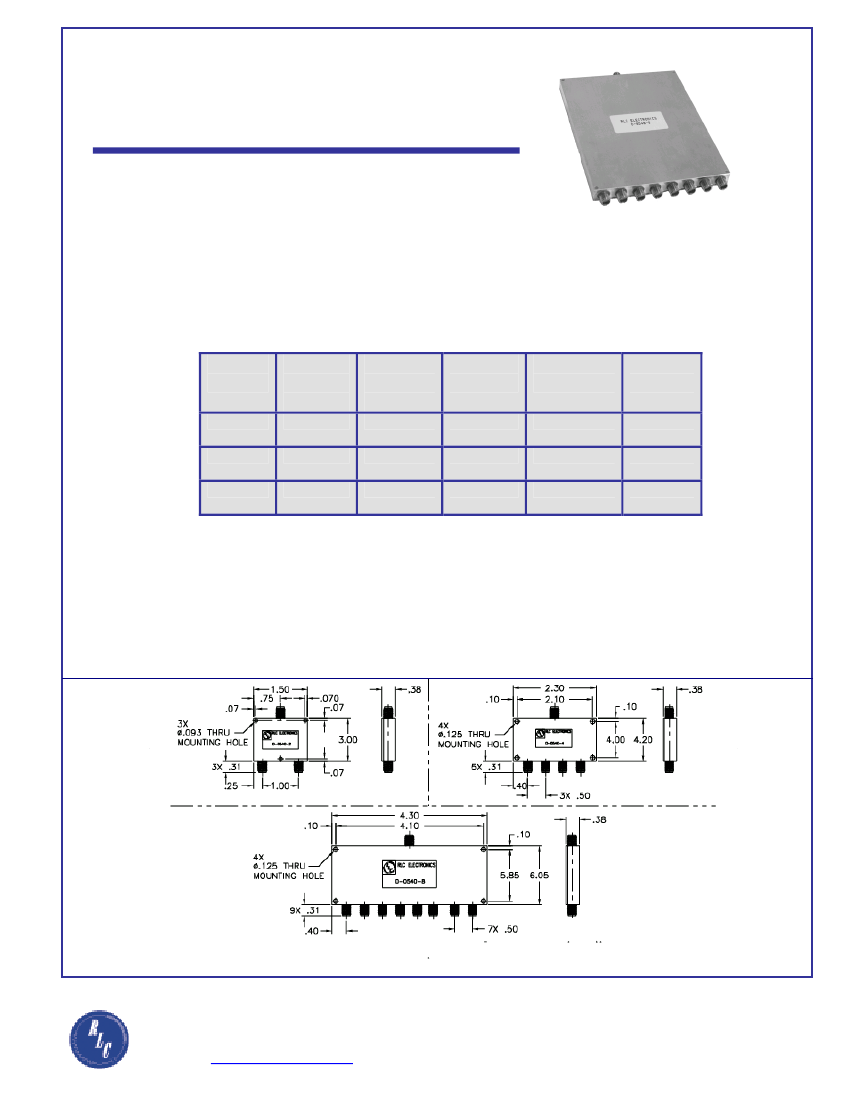

Isolated Power Dividers

.5 to 4 GHz 2, 4, & 8 way

RLC Electronics’ .5 to 4 GHz Power Dividers are

one of the best in the industry today. These are

compact multi-step “Wilkinson” type power

dividers with excellent electrical performance

over the frequency range. This was accomplished

by the use of today’s most advanced technology

in design & precision etching of a signal microstrip

board.

Specifications

D-0540-(1)

Model

No.

D-0540-2

D-0540-4

D-0540-8

VSWR

IN/OUT

(Max.)

1.3:1/1.2:1

1.4:1/1.3:1

1.5:1/1.4:1

Insertion Isolation Amplitude Phase

Loss

(Min.)

Balance Balance

(Max.)

0.5dB

1.1dB

1.6dB

20dB

+/-.2dB

+/-.25dB

+/-4

degrees

+/-4

degrees

+/-5

degrees

Power

10 watts average

(outputs terminated with a VSWR less than 1.35)

500 mW average

(outputs terminated with any VSWR and phase)

Frequency

Connectors

Impedance

Environmental

0.5 - 4.0 GHz

“SMA” female

50 ohms

MIL-E-5400, Class 1A

To designate the power divider desired use:

(1) -2 for 2-Way, -4 for 4-Way, -8 for 8-Way

Example: D-0540-2 is a 0.5 to 4.0 GHz, 2 output power divider

Specifications subject to change without notification.

Tolerances unless otherwise specified are .xx +/- .02

Specials requiring closer tolerances, different frequency ranges, special connectors

different materials, finishes, etc. can be furnished upon request.

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753

e-mail:

sales@rlcelectronics.com

www.rlcelectronics.com

D-0540-8 Related Products

	D-0540-8	D-0540-2	D-0540-4
Description	Splitter, 500MHz Min, 4000MHz Max, 1.6dB Insertion Loss-Max,	Splitter, 500MHz Min, 4000MHz Max, 0.5dB Insertion Loss-Max,	Splitter, 500MHz Min, 4000MHz Max, 1.1dB Insertion Loss-Max,
Maker	RLC Electronics Inc	RLC Electronics Inc	RLC Electronics Inc
Reach Compliance Code	unknown	unknown	unknown
Other features	SMA-F, ISOLATION-MIN (DB):20	SMA-F, ISOLATION-MIN (DB):20	SMA-F, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	26.99 dBm	40 dBm	40 dBm
Maximum insertion loss	1.6 dB	0.5 dB	1.1 dB
Maximum operating frequency	4000 MHz	4000 MHz	4000 MHz
Minimum operating frequency	500 MHz	500 MHz	500 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.4	1.2	1.3
