3006726 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 3006726

3006726: DescriptionModular Terminal Block, 17.5A, 1.5mm2; CategoryThe connector terminals; File Size93KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric Compare View All

3006726 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3006726	-	-	View	Buy Now

3006726 Overview

Modular Terminal Block, 17.5A, 1.5mm2

3006726 Parametric

Parameter Name	Attribute value
Maker	PHOENIX CONTACT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYAMIDE
Fastening method	SPRING LOADED
Installation type	C RAIL
Rated current	17.5 A
Rated voltage	500 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

Module no:3006726 LabelId:3006726 Operator:Phoenix

18:52:54, Donnerstag, 28. Juni 2001

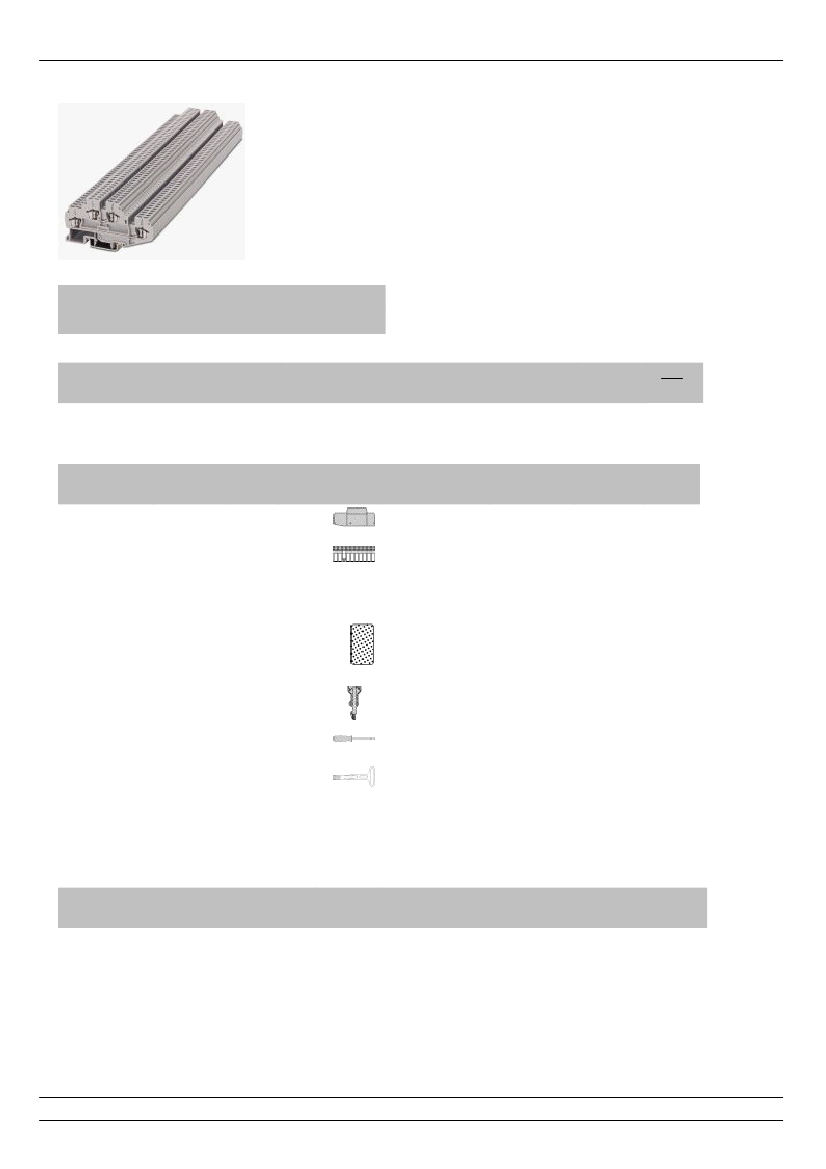

ZFKK 1,5

Terminal width 4.2

(IEC)

[mm ]

IEC 947-7-1

Description

Spring cage terminal block,

for mounting on

rigid

solid

flexible

stranded AWG

[A]

17.5

[V]

500

Color

Type

gray

ZFKK 1,5

blue

ZFKK 1,5 BU

Order No.

30 06 72 6

30 06 73 9

Pcs.

Pkt.

0.14-1.5 0.14-1.5 26-16

Accessories

(1)

End cover

(3)

Fixed bridge,

for

cross-connections in the

terminal center, divisible,

screw heads with insulation

collar

(5)

Separating plate,

for

electrical separation of

neighboring bridges, can be

fitted later, no loss of pitch

(7)

Test plugs,

assembled as a block of 10

(8)

Screwdriver,

for

actuating the tension spring

(9)

Actuation tool,

for

actuating the tension spring

(10)

Zack marker sheet, flat,

100- or 120-section, for

labelling the outer marker

grooves

Technical data

Dimensions

Width / length / end cover width

Height (NS 35:7.5 / NS 35:15)

Technical data in accordance with IEC/

DIN VDE

Maximum load current / cross section

Rated surge voltage / contamination class

Surge voltage category / insulation material

[A] / [mm ]

[kV] / –

gray

10-pos.

D-ZFKK 1,5

FBRN 10-4 N

30 05 87 9

max.

:12 A

30 01 62 4

TS-U3K 2,5

27 70 06 6

100

PS-ZFK 1,5

SZF 0 - 0,4 x 2,5

2-pos.

3-pos.

ZFK-BW 2-4

ZFK-BW 3-4

ZBFM 4

(see

info)

30 00 96 8

12 04 50 4

30 24 25 8

30 24 26 1

[mm]

4.2 / 84.5 / 2

49 / 56.5

17.5 / 1.5

6/3

III / I

Page 1 / 2

Phoenix Contact Elektronischer Katalog
