BYV72EF-150 datasheet, PDF - EEWORLD Datasheet

BYV72EF-150: DescriptionDIODE 10 A, 150 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size187KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

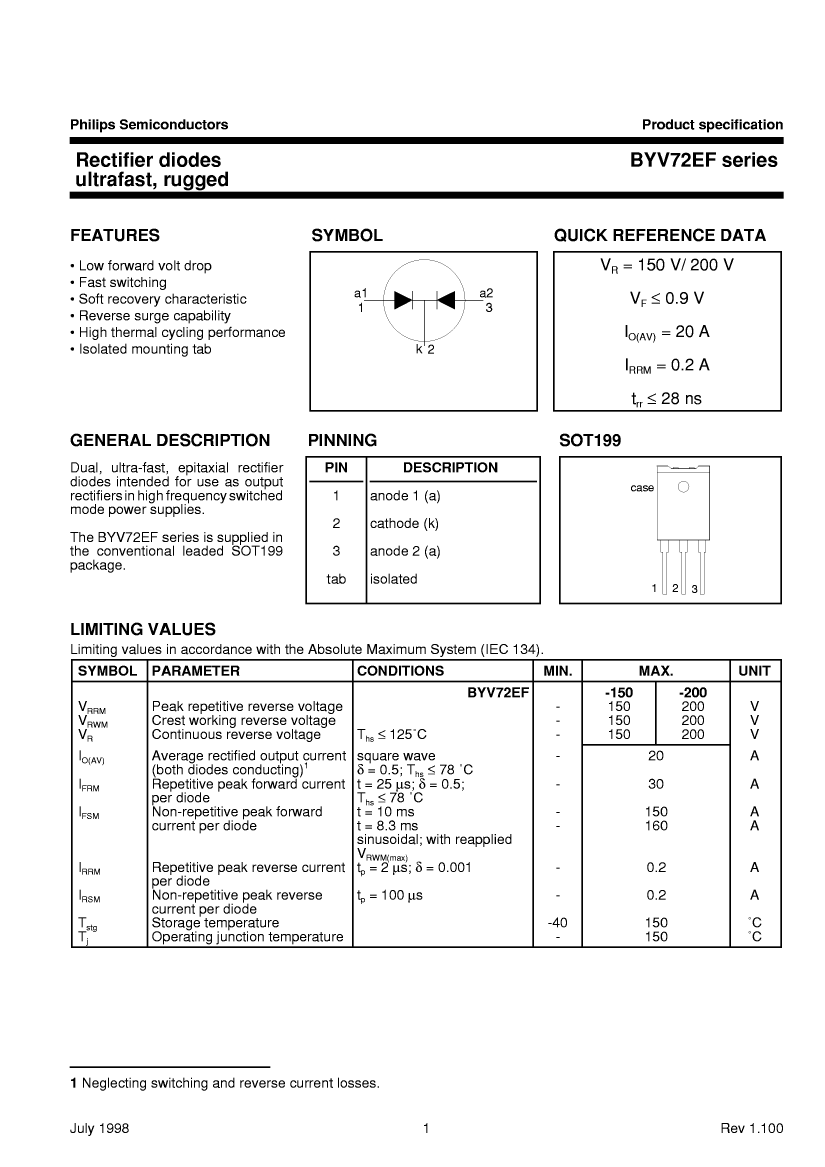

BYV72EF-150 Overview

DIODE 10 A, 150 V, SILICON, RECTIFIER DIODE, Rectifier Diode

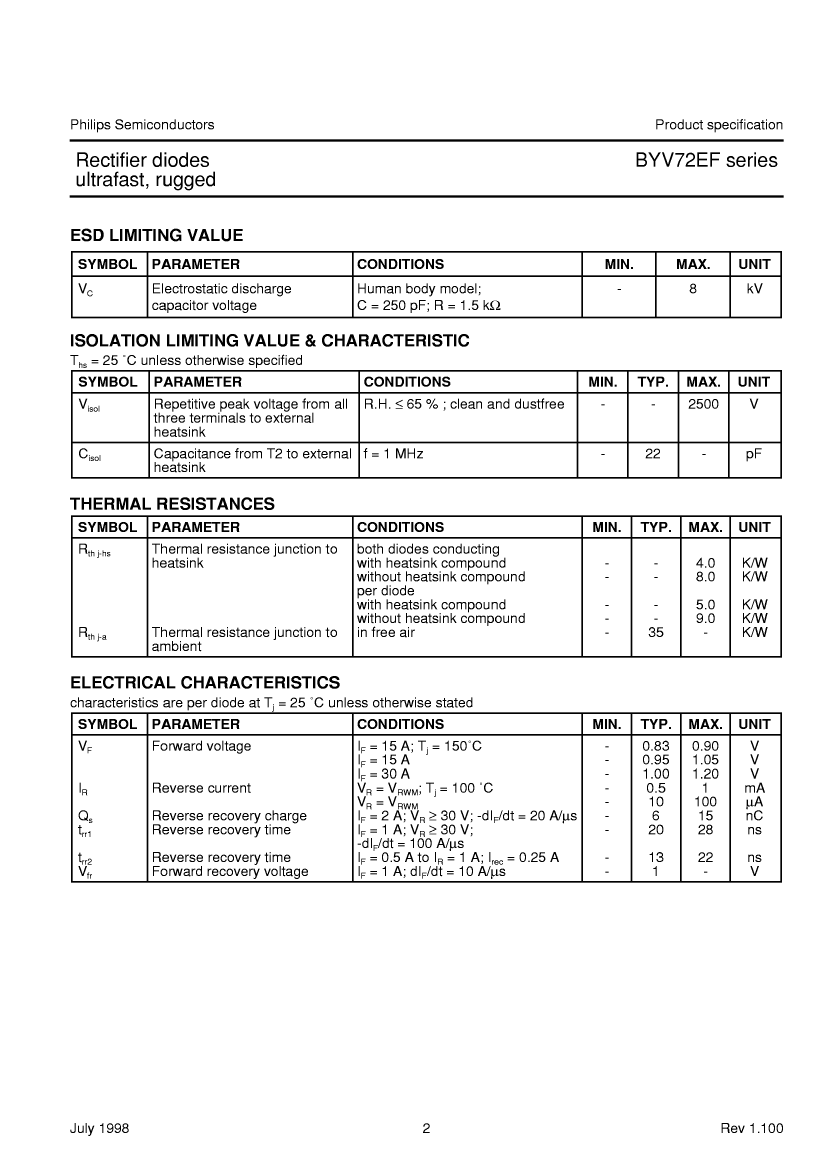

Parameter Name	Attribute value
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	10 A

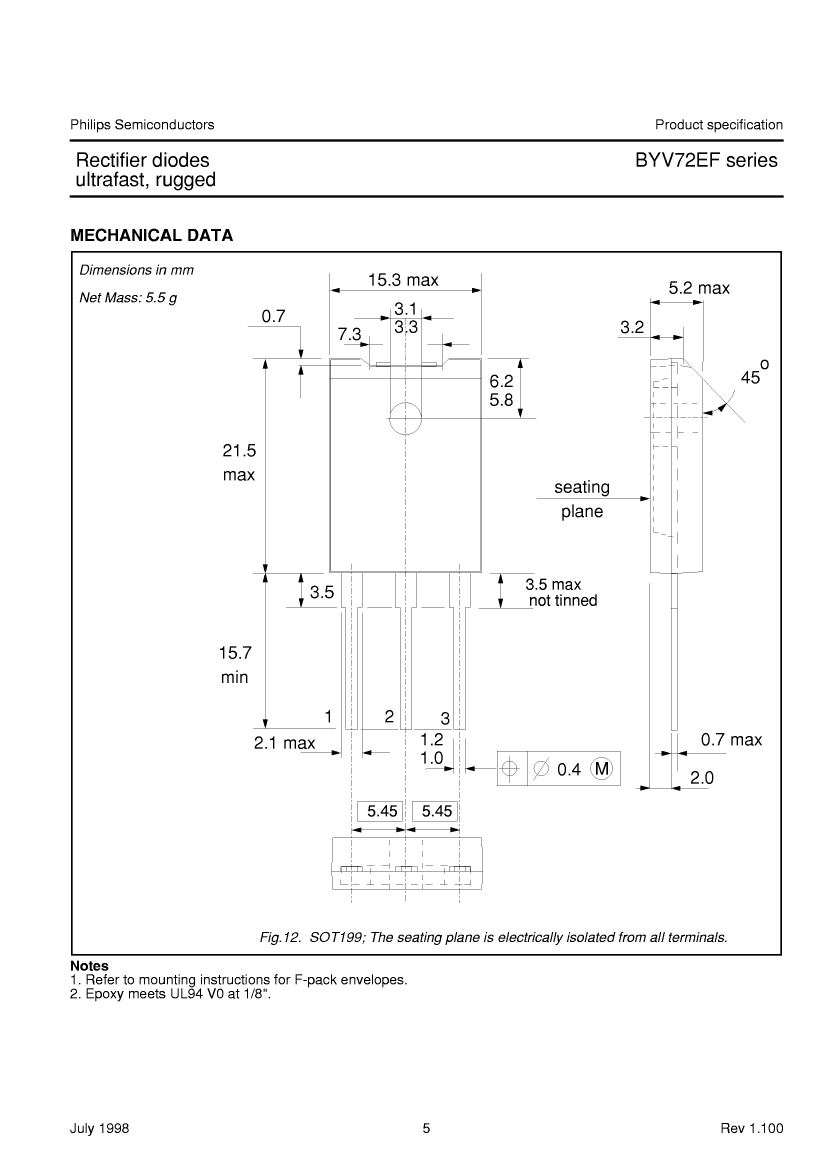

Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V

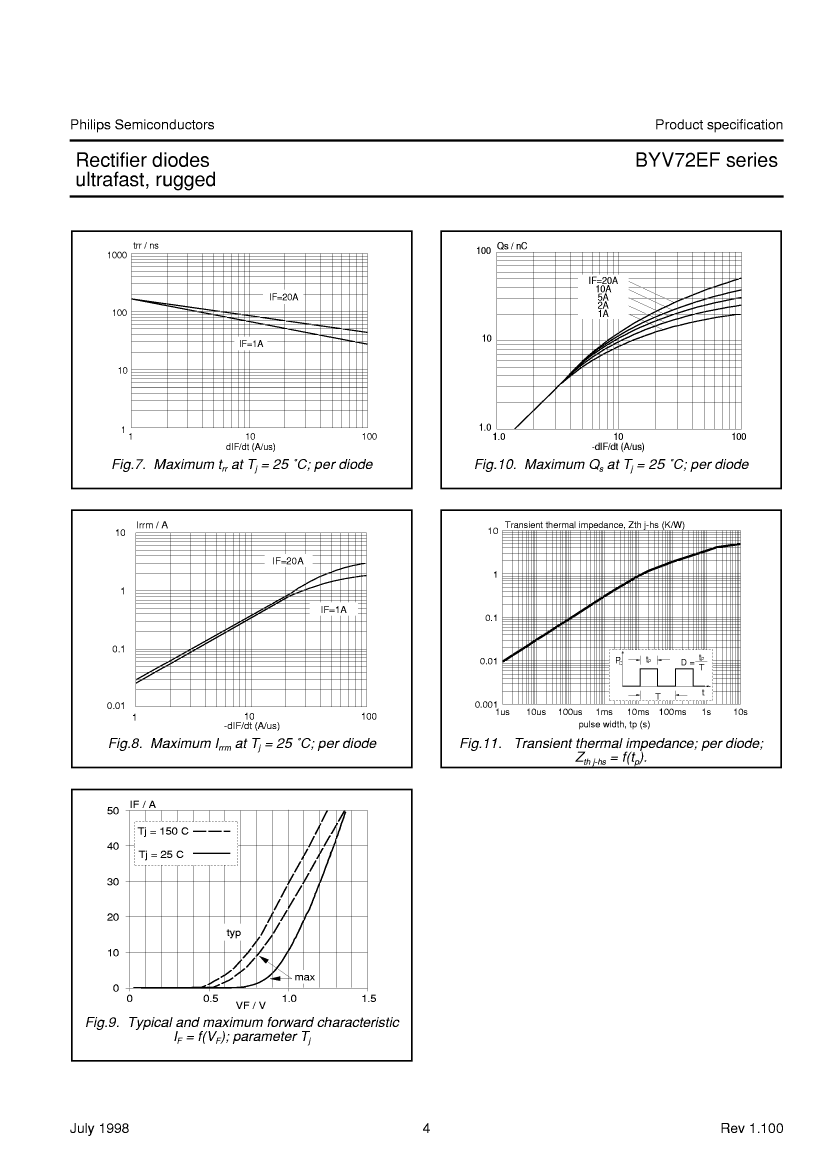

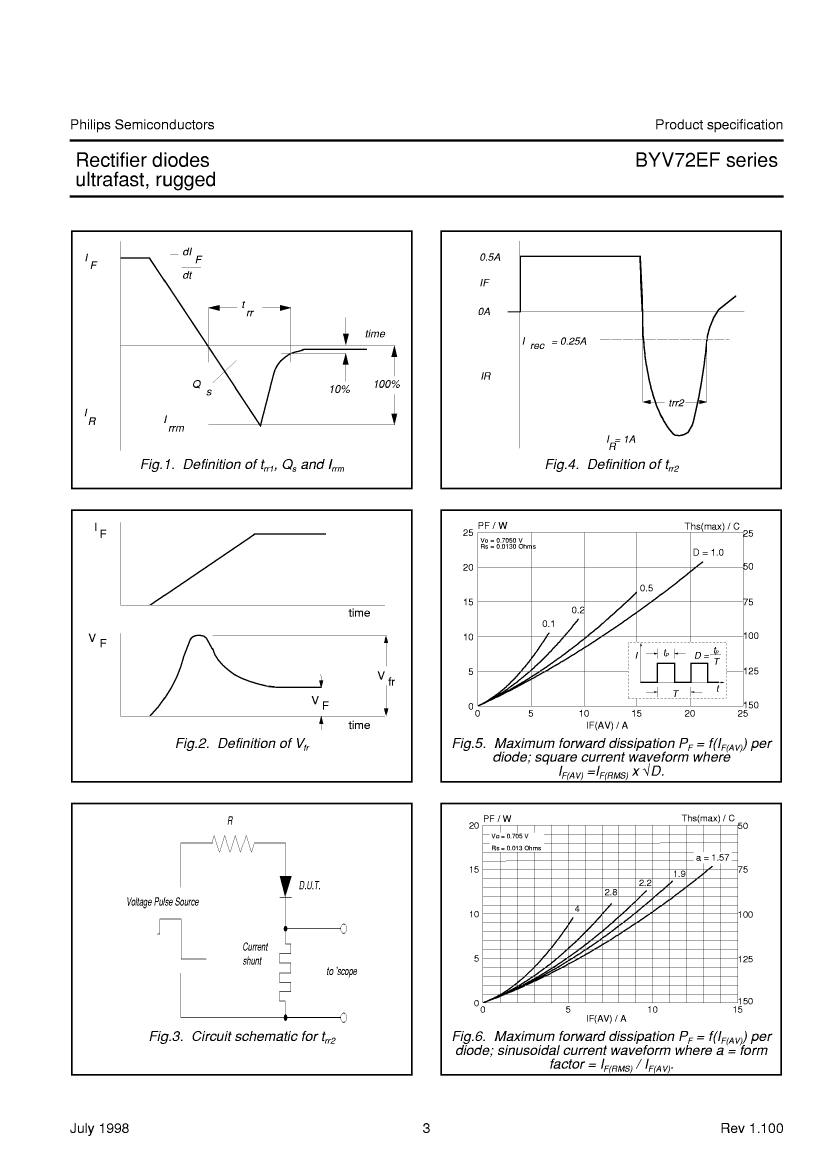

Maximum reverse recovery time	0.028 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	BYV72EF-150	BYV72EF-200
Description	DIODE 10 A, 150 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 10 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
package instruction	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A	160 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum output current	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V
Maximum reverse recovery time	0.028 µs	0.028 µs
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Base Number Matches	1	1
