Features
■
Rechargeable battery-pack applications
■
Precious metal contacts
■
Tape & reel available
■
RoHS compliant* - see
processing
*R
oH
S
CO
M
information
on RoHS compliant surface
mount components

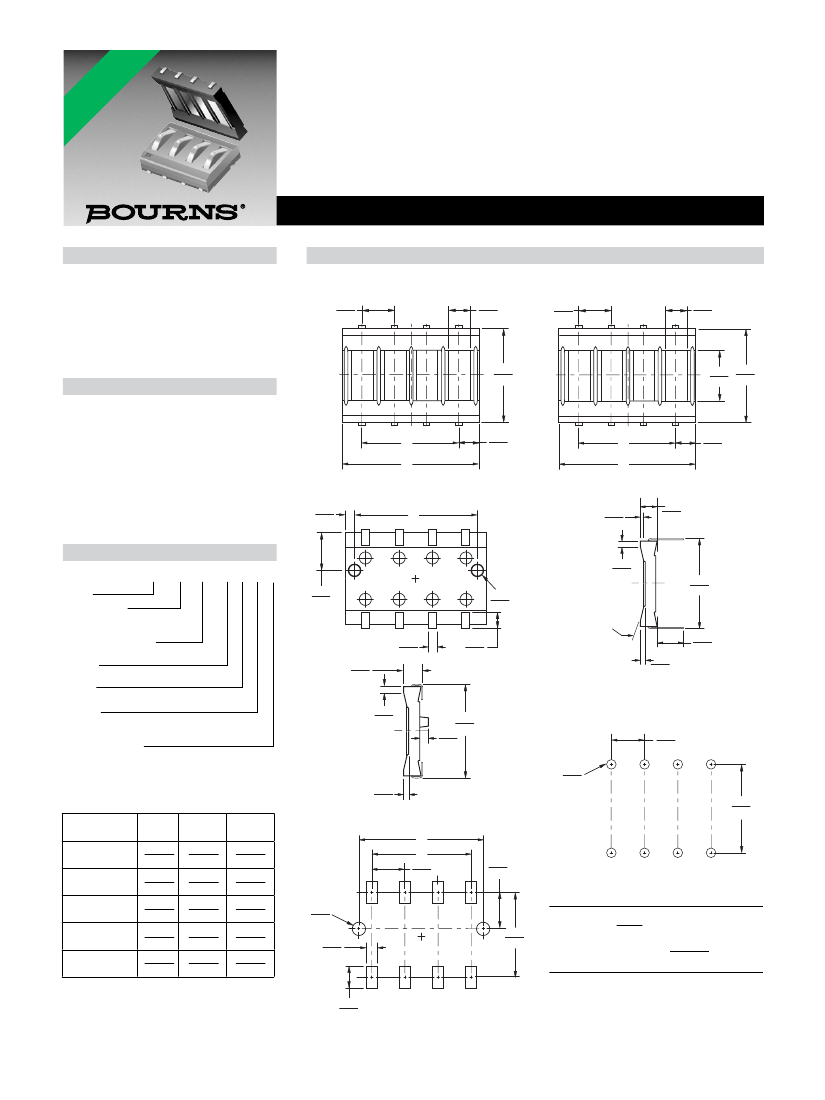

70AD/Female - Modular Contact
Materials & Finishes
Insulator Glass reinforced thermoplastic,
UL 94V-0 rated, black
Contact ...............................Copper alloy
Finish
Underplating.................. 30
μ”
to 60
μ”
Ni
Contact Area ......... 30
μ”
min. Au over Ni
Product Dimensions
70ADJ
4.0
(.157)
2.54
(.100)
70ADH
4.0
(.157)
2.5
(.098)
Termination.............................Tin alloy
(meets MIL-STD-202, method 208)
Operating Characteristics
Electrical
Current Rating .............DC 3 A/contact
Voltage Rating ....................... DC 30 V
Contact Resistance ..........25 m
Ω
max.
Dielectric Voltage .................AC 500 V
Insulating Resistance ......500 M
Ω
min.
Operating Temperature
..................................-55 °C to 125 °C
Mechanical
Durability .........................5,000 cycles
How to Order
11.0
(.433)
6.02 11.0
(.237) (.433)
B
A
2.5
(.098)
B
A
2.5
(.098)
1.0
(.039)
C
0.36
(.014)
2.08
(.082)
70AD J - 3 - F L 0 G
Model
Terminal Style
J = SMT
H = Through-hole
Number of Contacts
2 through 6
Gender
F = Female
Height
L = Low Profile
Options
0 = Standard
1 = Locator Pins (J style only)
Packaging Option
__ = Tube (240/N pcs. or 240 contacts
per tube)
G = Embossed Tape (500 pcs. per reel)
4.48
(.176)
1.27 DIA.
(.050)
0.7
(.028)
11.6
(.457)
15.0 REF
0.76
(.030)
2.3
(.091)
1.77
(.070)
0.6
(.024)
3.8
(.150)
0.7
(.028)
1.0
(.039)
11.6
(.457)
70ADH RECOMMENDED PWB MOUNTING PATTERN
4.0
(.157)
0.94
(.037)
DIA.
8 PLCS.
0.6
(.024)
Number of
Contacts
2
3
4
5
6
Dim.
A
9.0
(.354)
13.0
(.512)
17.0
(.669)
21.0
(.827)
25.0
(.984)
Dim.
B
4.0
(.157)
8.0
(.315)
12.0
(.472)
16.0
(.630)
20.0
(.787)
Dim.
C
6.99
(.275)
11.0
(.433)
15.0
(.591)
19.0
(.748)
22.9
(.900)
11.4
(.449)
70ADJ RECOMMENDED PWB MOUNTING PATTERN
C
B
4.0
(.157)
4.04
(.159)
1.65
(.065)
DIA.
1.3
(.051)
8 PLCS
10.08
(.397)
TOLERANCES:
±0.3
UNLESS OTHERWISE NOTED
(±.012)
MM
(INCHES)
DIMENSIONS:
2.8
(.110)
8 PLCS
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.

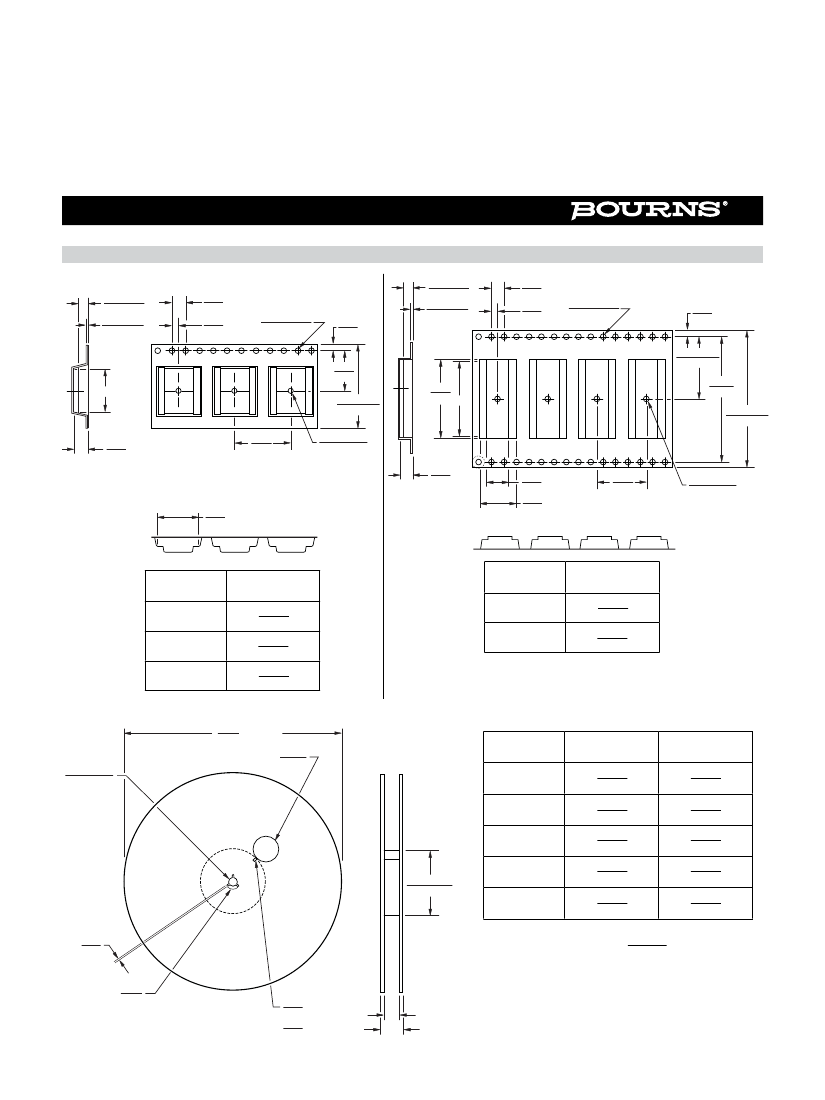

70AD/Female - Modular Contact
Packaging Specifications
2.8 ± 0.2
(.110 ± .008)
0.30 ± 0.06
(.012 ± .002)
1.75
(.069)
4.0
(.157)
2.0
(.079)
1.50 +0.10/-0
(.059 +.004/-0)
DIA.
1.75
(.069)
2.6 ± 0.2
(.102 ± .008)
0.33 ± 0.3
(.013 ± .001)
4.0
(.157)
2.0
(.079)
DIA.
1.50 +0.10/-0
(.059 +.004/-0)
11.5
(.453)
A
24.0 ± 0.3
(.945 ± .012)
1.5 +0.7/-0
(.059 +.028/-0)
DIA. MIN. HOLE
4.0
(.157)
7.8
(.307)
12.0
(.472)
16.0
(.630)
25.5
(1.004) A
20.20 ± 0.15
(.795 ± .006)
40.4
(1.591)
44.0 ± 0.03
(1.732 ± .001)
4.0
(.157)
16.0
(.630)
2.0 +0.2/-0
(.079 +.008/-0)
DIA. MIN. HOLE
12.0
(.472)
No. of
Contacts
2
3
4
Dimension
A
9.5
(.374)
13.5
(.531)
17.5
(.689)
No. of
Contacts
5
6
Dimension
A
19.5
(.768)
25.5
(1.004)
330.2
DIA. MAX.
(13.00)
40.0
DIA. MIN. ACCESS HOLE AT
(1.575)
SLOT LOCATION
No. of
Contacts
2
3
4
5
6
13.0 ± .204
(.512 ± .008)
DIA.
99.1 ± 1.02
(3.90 ± .04)
Dimension
A
24.41
(.961)
24.41
(.961)
24.41
(.961)
44.83
(1.765)
44.83
(1.765)
DIMENSIONS:
MM
(INCHES)
Dimension
B (Max.)
30.40
(1.197)
30.40
(1.197)
30.40
(1.197)
50.30
(1.98)
50.30
(1.98)
1.5
(.059)
MIN.
EQUALLY
SPACED
3 PLCS.
20.2
(.795)
DIA. MIN.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2.5
MIN. WIDTH X
(.098)
10.0
MIN. DEPTH X
(.394)
SLOT IN CORE
A
B MAX.
REV. 10/13
