DPGM/DPJM/DPJMB
Environmental, Rectangular Connectors for
Aircraft, Missile and Ground Support
Equipment Applicatoins

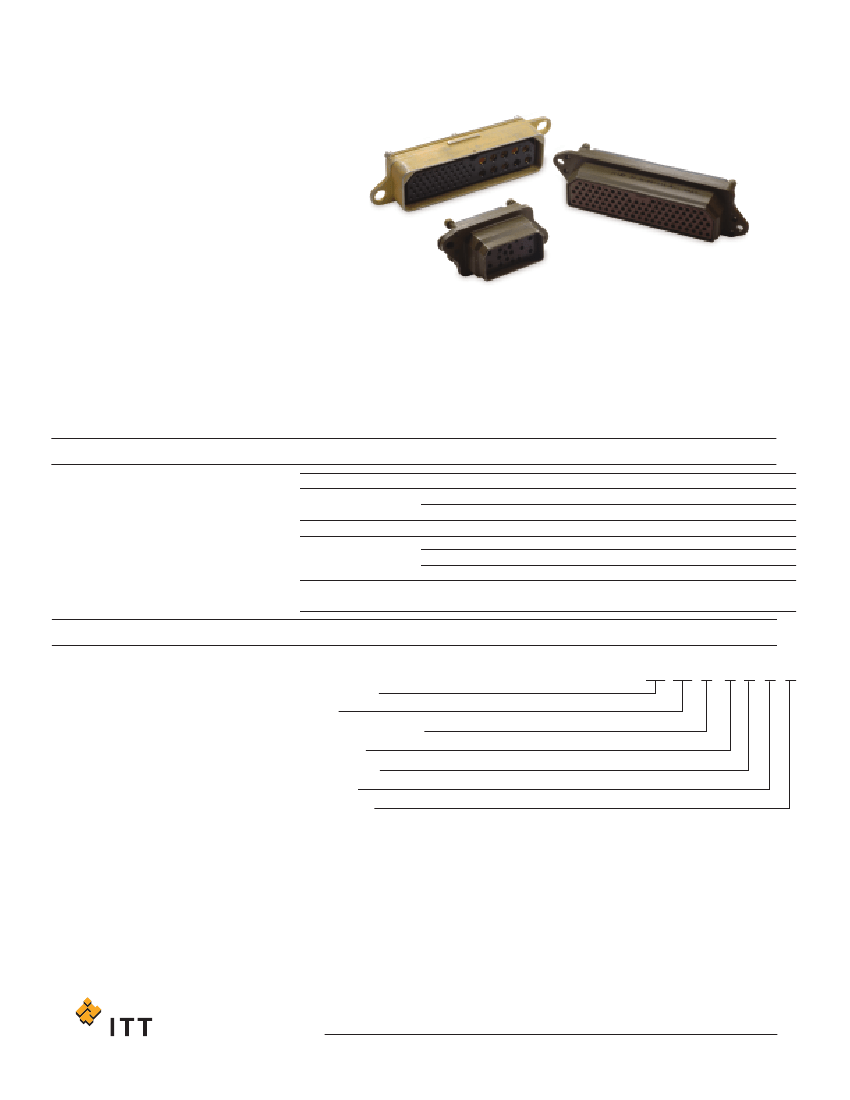

Cannon's DPGM, DPJM, and DPJMB connectors are
designed for applications where space and weight are
prime considerations. Their rectangular shape
provides maximum space utilization and permits
easy removal of equipment for inspection and/or
repair. DPGM and DPJM connectors feature crimp
snap-in contacts with ring-type retention while
DPJMB connectors feature the LITTLE CAESAR®
rear release contact retention assembly (rear insertion,
release
and
extraction
of
crimp
snap-in
contacts). They both have one piece diallyl phtha-
late insulators with polychloroprene wire sealing
grommets. They also incorporate a peripheral seal
design that allows an axial tolerance of up to .125
(3.175) while still effecting a seal. The 34 shell
utilizes a rubber seal encased in such a way that the
step down design of the mating 33 shell seats into
and against it.
All of these connectors utilize keystone corners for
polarization and are coupled by friction. Two shell
styles with different mounting provisions are avail-
able.
For all new applications, the referenced connectors
will be available only with insulators in the normal
position, that is, pin insulators in the 34 (receptacle)
shells and socket insulators in the 33 (plug)
shells.
For replacements it is suggested that where pract-
ical, customers using these connectors with re-
versed insulators change to connectors with
insulators in the normal position. However, for those
who are unable to change we will furnish connect -
tors with reversed insulators to maintain their
equipment usage.
Standard Data
DPGM/DPJM/DPJMB
Shell
Insulator
Contacts
Material
Finish
Material
Material
Finish
Termination
Contact
Arrangements
No. of Contacts
Aluminum alloy
Cadmium plate with olive drab irridite
Diallyl phthalate
Copper alloy
Gold plate
Crimp
8, 12, 15, 16, 20, 21, 32, 59, 98
How To Order
DPJ
DPG
MB-
M-
98
21
-34
-33
P
S
-K
-K
-2
SERIES PREFIX
CLASS
CONTACT ARRANEMENT
SHELL TYPE
CONTACT TYPE
MOUNTING
MODIFICATION
Contacts, coaxials and junction shells must be
ordered separately, except for the DPJMB where
the contacts are supplied with the connector. When
(ordering or reordering) please specify the 3-4-3
contact part number as shown. We have cross-
referenced these new part numbers with the previ-
ous part numbers (which have been obsoleted) for
vour convenience.
Example:
031-0900-001 new "3-4-3" part number
(038819-001) previous part number
SERIES PREFIX
DPG, DPJ
CLASS
M - One piece insulator
ring - type rentention
MB - LITTLE CAESAR contact retention assembly
CONTACT ARRANGEMENTS
DPGM - C8, 12, 15, 16, 20C4, 21 and 32
DPJM - C21, 59, 59C10, and 98
DPJMB - 59, 98
SHELL TYPE
33 for plug, 34 for receptacle
CONTACT TYPE
P for pin, S for socket
MOUNTING
33-K-With 6-32 clinch nuts
33-B-Clearance holes for 6-32 screw
34-K-Floating eyelet with 6-32 tapped I.D.
34-B-Floating eylet with .140 I.D.
MODIFICATION
-2-.125 (3.18) removed from front lip of -33
shell
www.ittcannon.com
98
DPGM/DPJM/DPJMB

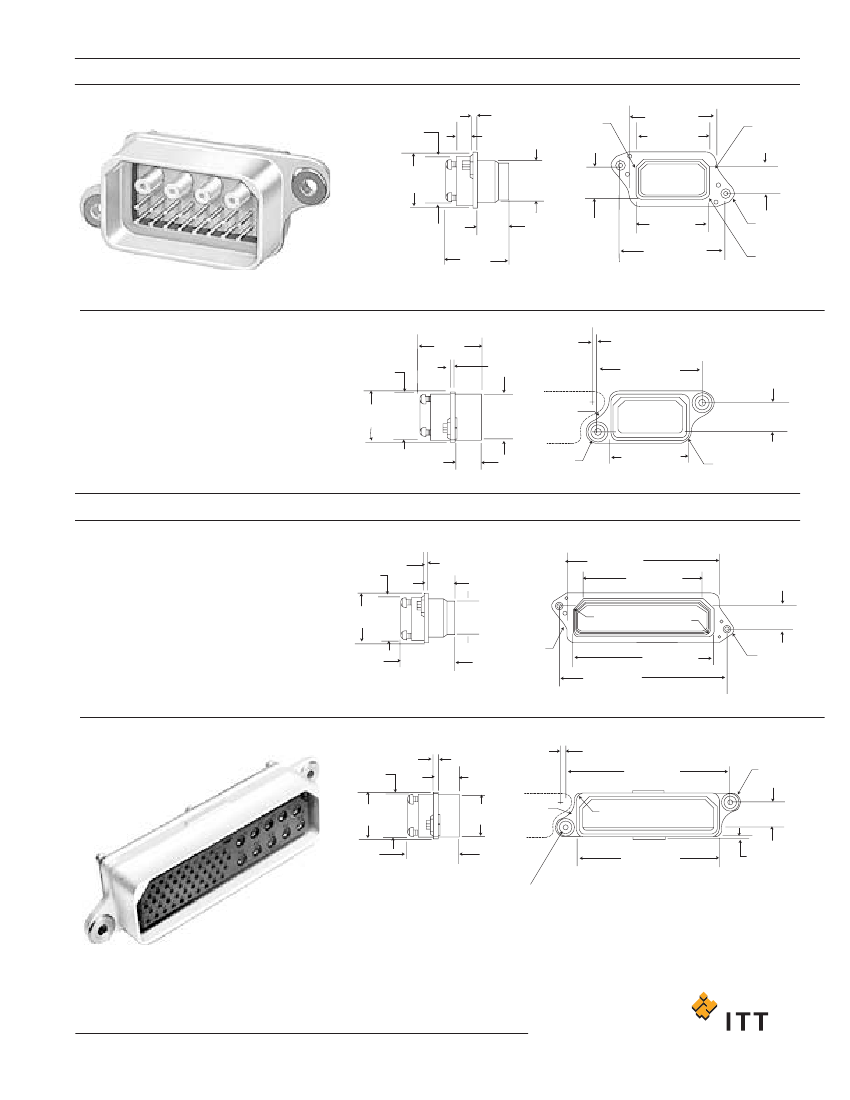

Contact Arrangements
DPGM
4
3
2
1
5
7
8
7
6
5
12
11
10
9
6
8
1
5
2
4
14
6
13
16
15
14
12
11
4
3
2
1
8
12
13
11
3
10
9
15
10
7
9
1
6
2
5
8
7
4
3
No. of Contacts & Wire Size
Test Voltage AC (RMS)
8 coax (1-8)
1000
C8*
12 #16 (1-12)
See note
12*
15 #16 (1-15)
See note
15*
5 #20 (3,6,10,11 & 16)
1500
9 #20 (1,4,5,7-9, 13-15)
1700
(2 #20 (2&12)
1500
16*
4
3
2
1
8
7
6
5
4
3
2
1
16
14
13
12
11
10
9
8
24
21
20
19
18
17
16
15
7
6
5
4
3
2
1
15
23
14
22
13
21
12
20
11
19
10
18
9
17
12
11
10
9
8
7
6
5
20
19
18
17
16
15
14
13
32
31
30
29
28
27
26
25
No. of Contacts & Wire Size
Test Voltage AC (RMS)
16 #20 (5-20)
1500
4 COAX (1-4)
1000
20C4*
21 #20 (1-21)
1500
21*
32 #20 (1-32)
1500
32*
*All DPGM arrangements have a 1500 VAC test voltage except for arrangements 12 and 15, which is 3200 VAC for contact 1,5,8 and 12. The remaining contacts have a 2200 VAC test
voltage. All coaxials have 1000 VAC rms test voltage.
DPJM/DPJMB
10
9
8
7
6
11
21
20
19
18
17
16
15
14
13
12
49
5
4
3
2
1
13
12
11
10
9
23
34
48
47
46
45
44
59
33
43
58
22
32
42
57
8
21
7
20
31
41
56
30
40
6
19
5
18
29
39
55
54
28
38
4
17
3
16
27
37
53
52
2
15
26
36
51
25
35
50
1
14
24
C21*
No. of Contacts & Wire Size
Test Voltage AC (RMS)
21 COAX (#1-21)
1000
59
49 #20 (1-8,14-44 & 50-59)
1500
10 #12 (9-13 & 45-49)
1500
13
12
11
10
9
23
34
33
43
59
22
8
21
32
42
58
7
20
31
41
57
6
19
30
40
56
5
18
29
39
55
4
17
28
38
54
3
16
27
37
53
2
15
26
36
52
1
14
25
35
51
50
98
24
57
36
16
35
15
34
55
76
96
14
33
13
32
12
31
11
30
51
10
29
9
28
49
70
90
48
69
89
68
88
27
47
67
87
26
46
8
25
45
66
86
7
24
44
65
85
6
23
43
64
84
5
22
42
63
83
62
21
4
3
20
2
19
39
60
80
1
18
38
59
79
17
37
58
78
56
77
97
54
75
95
53
74
94
52
73
93
72
50
71
41
40
61
49
48
47
46
45
44
92
91
82
81
No. of Contacts & Wire Size
Test Voltage AC (RMS)
49 #20 (1-8, 14-44&50-59)
1700
10 COAX (9-13&45-49)
1000
59C10*
98 #20 (1-98)
1500
98*†
* All DPJM and DPJMB power contact arrangements have a 1500 VAC rms test volstage. Coaxials have 1000 VAC rms voltage.
†* Available with LITTLE CAESAR contact assembly (DPJMB).
Current Carrying
Capacity of
Wires and Cables
Wire Size
#4
#8
#12
#16
#20
Amperage
80
46
23
13
7.5
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
100
DPGM/DPJM/DPJMB
Junction Shells
DPGM
DPGM junction shells are essentail for proper in-
stallation of connector and are ordered separately.
.250 (6.35)
DPJM/DPJMB
.248 (6.30)
1.001
(25.42)
.901
(22.88)
MAX.
1.526
(38.76)
Part No. 248-1711-000
(038989-0000)
Part No. 248-1711-000
(038989-0000)
3.190 (81.03) TYP.
3.371 (85.62)
.813
(20.65)
TYP.
.125 (3.18) DIA., 4 HOLES
.090 (2.28)
Part No. 248-1710-000
(038988-0000)
Part No. 248-1710-000
(038988-0000)
Wire Bushings
Small wires should be provided with rubber bushings before crimpin. Approximately 1/16 (1.59) of an inch
of bushing is visible when installed into grommet. Grommets witll seal with out bushings or wire .096 (2.44)
to.185 (4.70) to diameter.
Sealing Wires on #12 and Coaxial Contacts
3/8 (9.52)
A
New Part
Number
012-0319-000
1/8 (3.18) DIA.
012-0435-000
Existing
Part Number
021604-0002
021604-0004
Wire Size
O.D.
.040-.083
.080-.096
I.D
A
.062
.080
Hole Fillers
All holes in grommet require filling either by a wire
and contract, or by means of wire hole plugs.
Contact
Size
20
16
12
Coaxial
Part Number
225-0070-000
225-0071-000
225-0072-000
225-0085-000
Contact/Coaxial Data and Termination Tool
DPJMB
Contact
Size
20
12
Wire
Size
Accom.
20-24
12-14
Wire
Size
Accom.
20-24
16-20
12-14
18
Wire
Size
Accom.
50 ohm
(RG 196/U)
75 ohm
(RG 1871U)
95 ohm
(RG 195/U)
150 ohm
Contact Part Number
Pin
030-9081-001
030-9185-002
Socket
031-9082-001
031-9186-002
Crimp Tool
Part No.
M22520/1-01
M22520/1-01
Crimp Tool
Part No.
M22520/1-01
M22520/1-01
M22520/1-01
M22520/1-01
Locator
Color
red
yellow
Locator
Color
CIT 20
CIT 16
CIT 12
CIT 18
Extraction
Tool No.
CET 20-14
CET 12-4
Extraction
Tool No.
CET 20A
CET 16
CET 12
CET 20A
Locator
M22520/1-02
M22520/1-02
DPGM/DPJM
Contact
Size
20
16
12
20-18
Contact Part Number
Pin
031-0905-000
(038820-0001)
031-0944-000
(040370-0000)
031-0909-000
(038825-0000)
031-0907-000
(038820-0000)
Socket
031-0900-001
(038819-0001)
031-0945-000
(040371-0000)
031-0908-000
(038826-0000)
031-0906-000
(038819-0002)
Locator
M22520/1-02
M22520/1-02
M22520/1-02
M22520/1-02
Coaxials
Contact
Size
COAX
COAX
COAX
COAX
Contact Part Number
Pin
Plug
249-1178-001
(038834-0001)
249-1176-001
(038832-0001)
249-1174-001
(038830-0001)
249-1172-001
(038828-0001)
Socket
Recept
249-1177-001
(038833-0001)
249-1175-001
(038831-0001)
249-1173-001
(038829-0001)
249-1171-001
(038827-0001)
Crimp Tool
Part No.
M22520/5-01
with Y-193 Die
WT400
995-001-071
WT402
HX3-138
WT408
Insertion
Tool No.
CIT C2
CIT C2
CIT C2
CIT C2
Extraction
Tool No.
CET C1
CET C1
CET C1
CET C1
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
101
DPGM/DPJM/DPJMB
Assembly Procedures
Wiring and Crimping Contacts
#20 Contact
3/16 (4.76)
Wires should be stripped to the dimension
appropriate to the contact use
.089 DIA. MAX
(2.26)
SUPPORT OMITTED ON
DPJMB CONTACT
1. CONTACT INTO CRIMP TOOL
Drop contact into crimp tool, it will locate on the contact shoulder.
2. WIRE INTO CONTACT
Take wire stripped to dimensions above, and push into the contact crimp pot until it is completely home.
Where outside diameter of wire in the #12 or COAXIAL contact is less than .096 (2.44), a rubber
bushing most be slipped over the wire before crimping (see page 103).
3. CRIMP
Squeeze the crimp tool to secure the wire into the contact. It is not possible to remove the contact from
the crimp tool until crimp is completed.
4. REMOVED WIRED CONTACT FROM TOOL
5. INSPECT
If wires are stripped and crimped correctly, the wire will be visible through the small inspection hole in
the contact.
#2018
#16
#12
#20
WIRE
CONTACT
Contact Size
#2018, #16 & #12 Contact
1/4 (6.35)

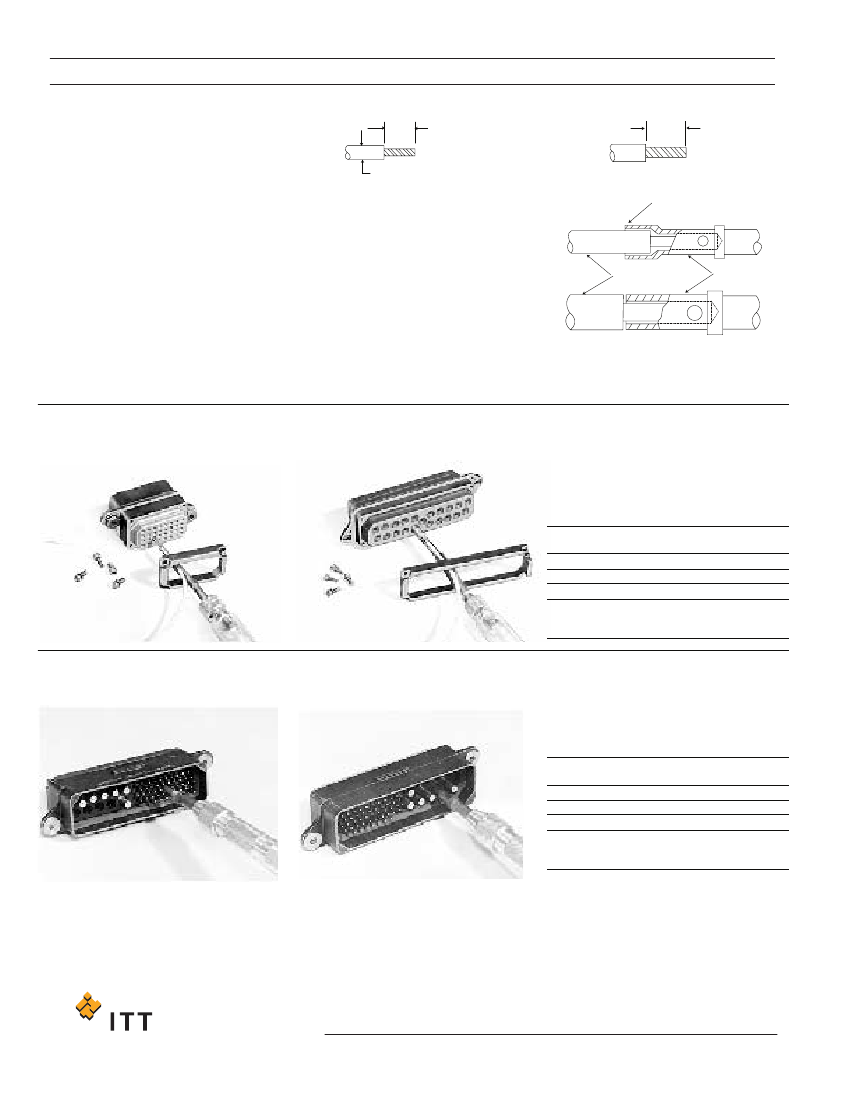

Contact Insertion (DPGM/DPJM)
Inserting #20 & #16
Contacts
Inserting Coaxial & #12
Contacts
After the contacts have been crimped, they should
be threaded through the junction shell and inserted
with the tools shown below. It is recommended that
the contacts be inserted in the center horizontal
row first, then work to the top and bottom horizon-
tal rows.
Contact
#20
#16
#12
Coaxial
50-75,95 &
150 ohm
Tool
Description
CIT - 20
CIT - 16
CIT - 12
CIT - C2
Assembly
Number
038894-0000
038895-0000
038896-0000
038901-0000
Contact Extraction (DPGM/DPJM
Extracting #20 & #16
Contacts
Extracting Coaxial & #12
Contacts
If it is necessary at any time to remove contacts,
this may be accomplished with an impact extraction
tool. Simply place the correct tool on the engaging
end of the contact and push. A reversible tip is
provided for pins and sockets.
Contact
#20
#16
#12
Coaxial
50-75,95 &
150 ohm
Tool
Description
CET - 20A
CET - 16
CET - 12
CET - C1
Assembly
Number
038889-0100
038888-0000
038890-0000
038869-0000
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
102
Talking
京公网安备 11010802033920号
EEWORLD
