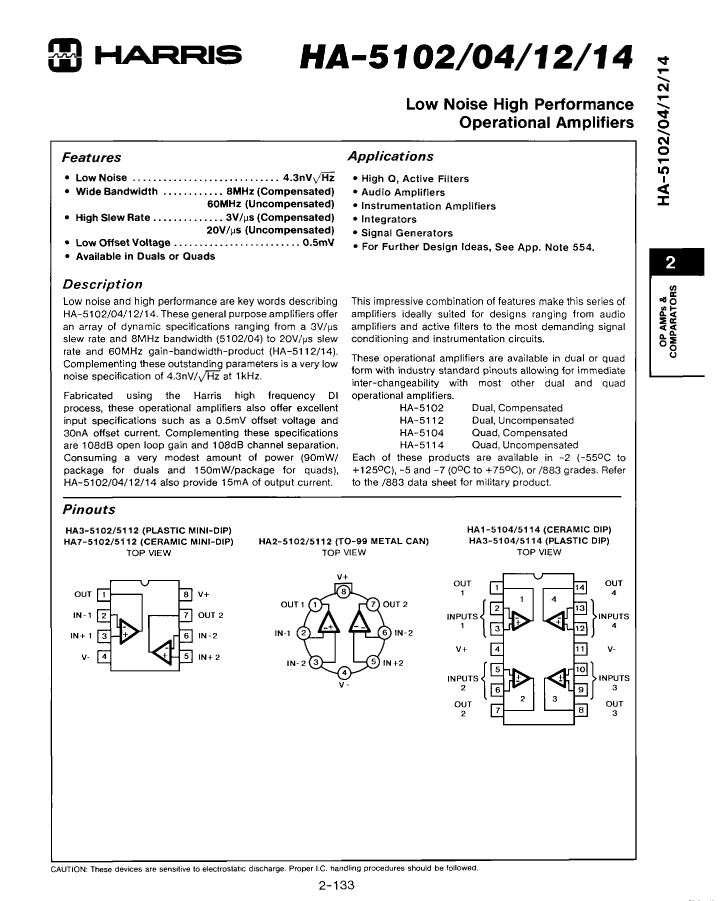

HA1-5104-7 amplifier basic information:
HA1-5104-7 is an OPERATIONAL AMPLIFIER.
HA1-5104-7 amplifier core information:
The minimum operating temperature of HA1-5104-7 is 75 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.2 µA Its maximum average bias current is 0.325 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the HA1-5104-7 has a nominal slew rate of 3 V/us. The manufacturer specifies a maximum slew rate of 6.5 mA for the HA1-5104-7 and a minimum slew rate of 1 V/us. Its minimum voltage gain is 100000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the HA1-5104-7 gain becomes 0.707 times the low-frequency gain is 8000 kHz.
The nominal supply voltage of HA1-5104-7 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of HA1-5104-7 is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of HA1-5104-7:
HA1-5104-7 has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
HA1-5104-7 amplifier additional information:
HA1-5104-7 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of HA1-5104-7 is: YES. Its temperature grade is: COMMERCIAL EXTENDED. HA1-5104-7 is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of HA1-5104-7 is: DIP. HA1-5104-7 packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The form of HA1-5104-7 package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.
HA1-5104-7 amplifier basic information:
HA1-5104-7 is an OPERATIONAL AMPLIFIER.
HA1-5104-7 amplifier core information:
The minimum operating temperature of HA1-5104-7 is 75 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.2 µA Its maximum average bias current is 0.325 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the HA1-5104-7 has a nominal slew rate of 3 V/us. The manufacturer specifies a maximum slew rate of 6.5 mA for the HA1-5104-7 and a minimum slew rate of 1 V/us. Its minimum voltage gain is 100000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the HA1-5104-7 gain becomes 0.707 times the low-frequency gain is 8000 kHz.
The nominal supply voltage of HA1-5104-7 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of HA1-5104-7 is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of HA1-5104-7:
HA1-5104-7 has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
HA1-5104-7 amplifier additional information:
HA1-5104-7 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of HA1-5104-7 is: YES. Its temperature grade is: COMMERCIAL EXTENDED. HA1-5104-7 is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of HA1-5104-7 is: DIP. HA1-5104-7 packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The form of HA1-5104-7 package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.

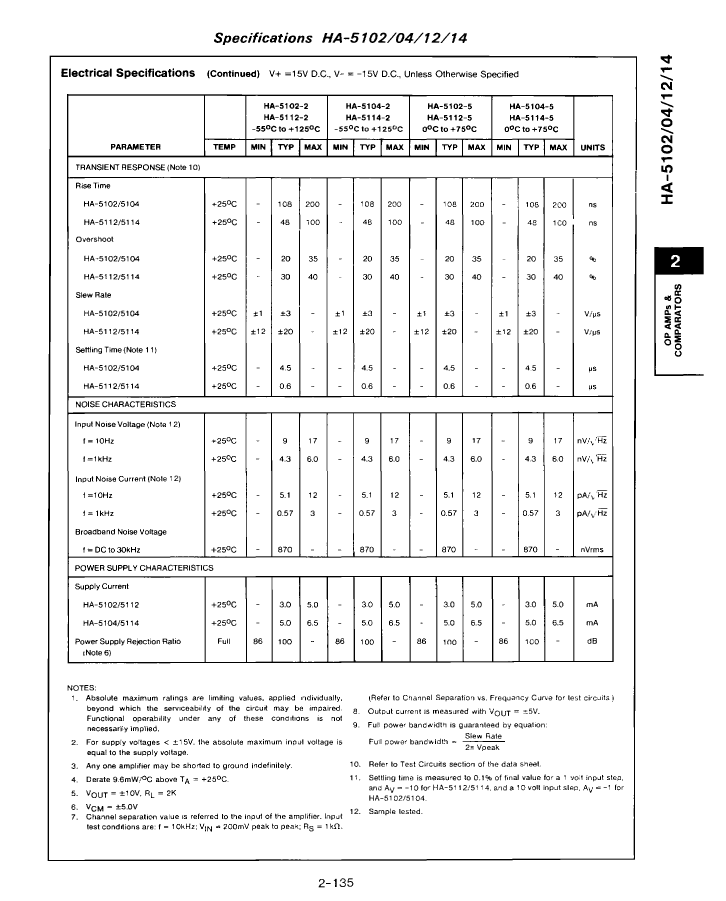

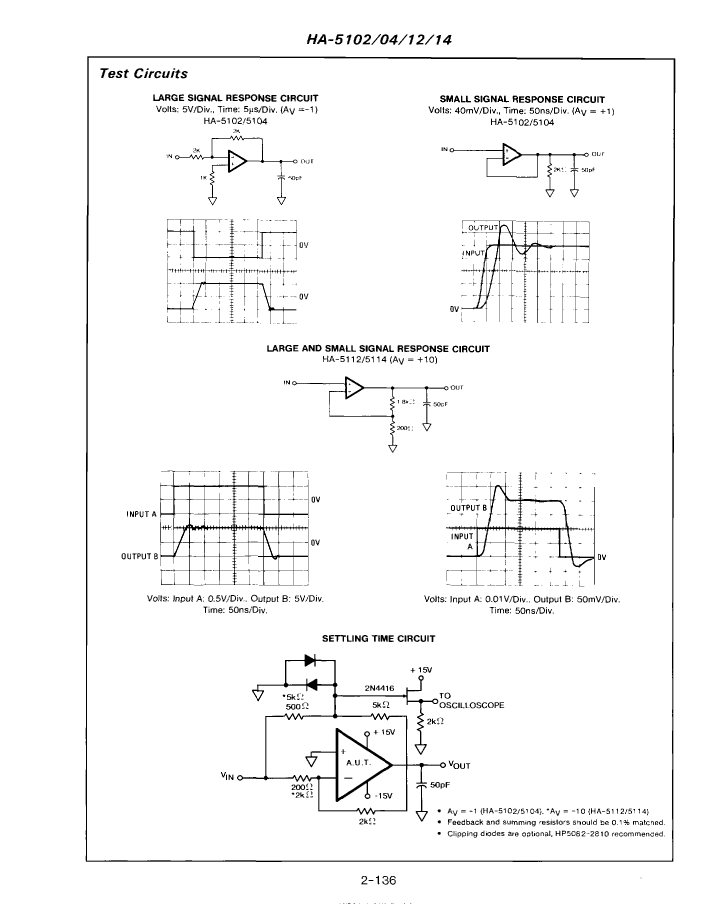

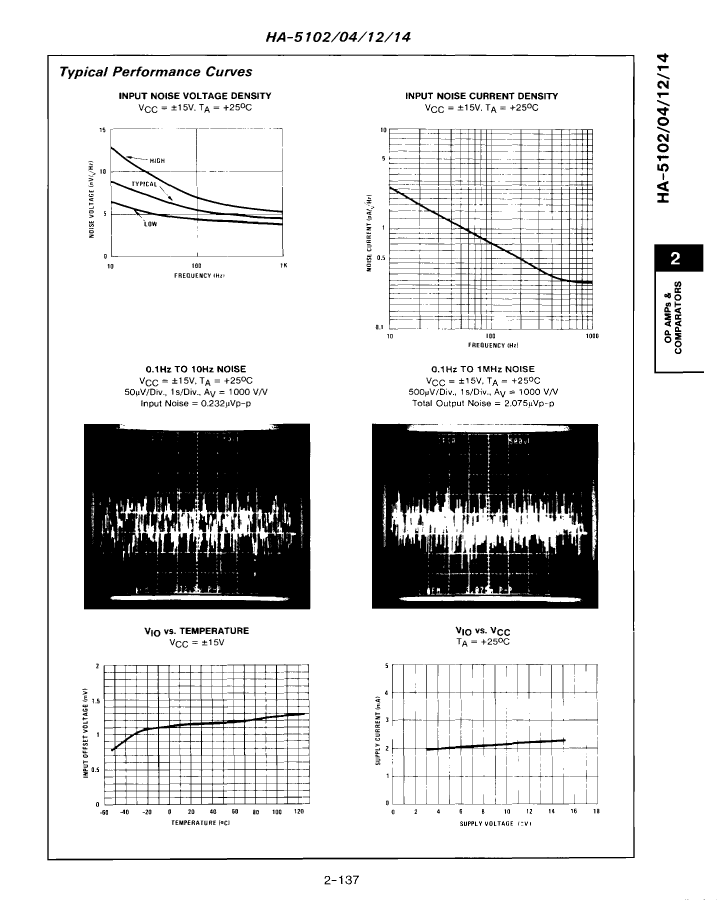

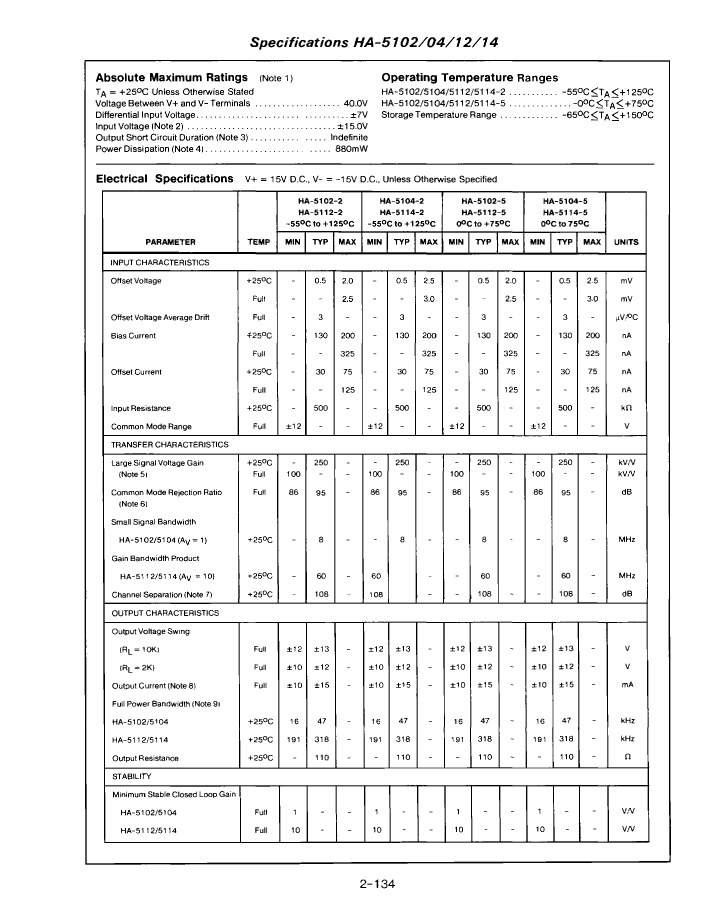

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Harris |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.325 µA |
| Maximum bias current (IIB) at 25C | 0.2 µA |
| Nominal Common Mode Rejection Ratio | 95 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 3000 µV |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 1 V/us |
| Nominal slew rate | 3 V/us |
| Maximum slew rate | 6.5 mA |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 8000 kHz |
| Minimum voltage gain | 100000 |
| Base Number Matches | 1 |
