563002350 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 563002350

563002350: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size321KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

563002350 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle

563002350 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Board mount options	SOLDER HOLDING FLANGE
body width	0.146 inch
subject depth	0.187 inch
body length	0.285 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5630
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

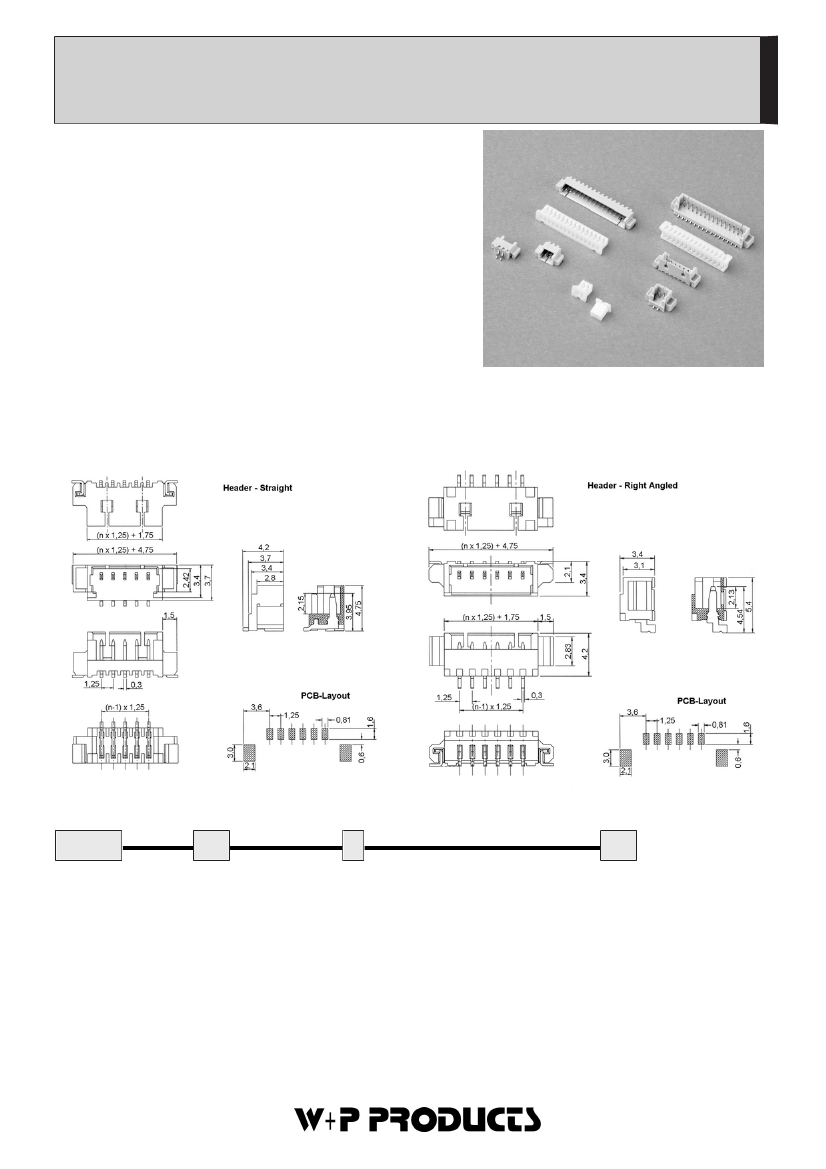

5630

SMT - Stiftleisten - Crimp-Rast-System - RM 1,25mm

SMT - Friction Lock Header and Crimp Housing - Pitch 1,25mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing, verzinnt

Contact Material

Brass, tin plated

Aderquerschnitt

AWG 28 ... 32

Applicable wire Gauge

AWG 28 ... 32

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 5x10

Ω

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennspannung

100V

AC/DC

max.

Voltage Rating

100V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Passende Buchsengehäuse Serie:

Mates with Housing Series:

563

Series

Contacts

Type

Plating

5630

02-20

Stiftleiste gerade

Straight pin header

Stiftleiste gewinkelt

Right angled pin header

Verzinnt

Tin plated

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
