BI15-K40SR-VP4X2 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI15-K40SR-VP4X2

BI15-K40SR-VP4X2: DescriptionProximity Sensor,; CategoryThe sensor Sensor/transducer; File Size162KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI15-K40SR-VP4X2 Overview

Proximity Sensor,

BI15-K40SR-VP4X2 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

BI15-K40SR-VP4X2

Inductive sensor

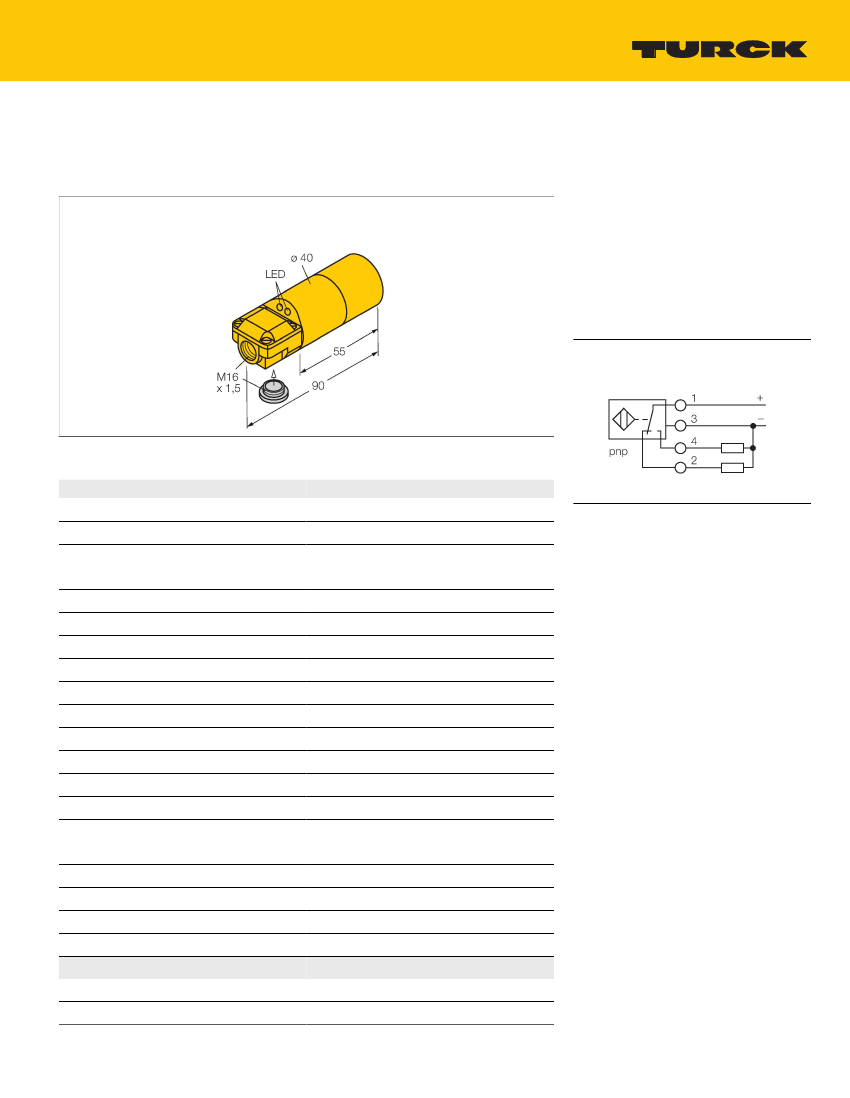

Features

■

2 cable entries (axial, radial)

■

Smooth barrel, Ø 40 mm

■

Plastic, ABS

■

DC 4-wire, 10…65 VDC

■

Changeover contact, PNP output

■

Terminal chamber

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

BI15-K40SR-VP4X2

15655

15 mm

Flush

≤ (0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

≤ 2 % of full scale

≤ ± 10 %

3…15 %

-25…+70 °C

≤ 10 % U

≤ 200 mA

≤ 15 mA

≤ 0.1 mA

≤ 0.5 kV

yes / Cyclic

≤ 1.8 V

yes / Complete

4-wire, Complementary contact, PNP

0.15 kHz

Smooth barrel,40 mm

90 mm

Plastic, ABS, Yellow

BI15-K40SR-VP4X2| 11/19/2019 14-47 | technical changes reserved

1|2

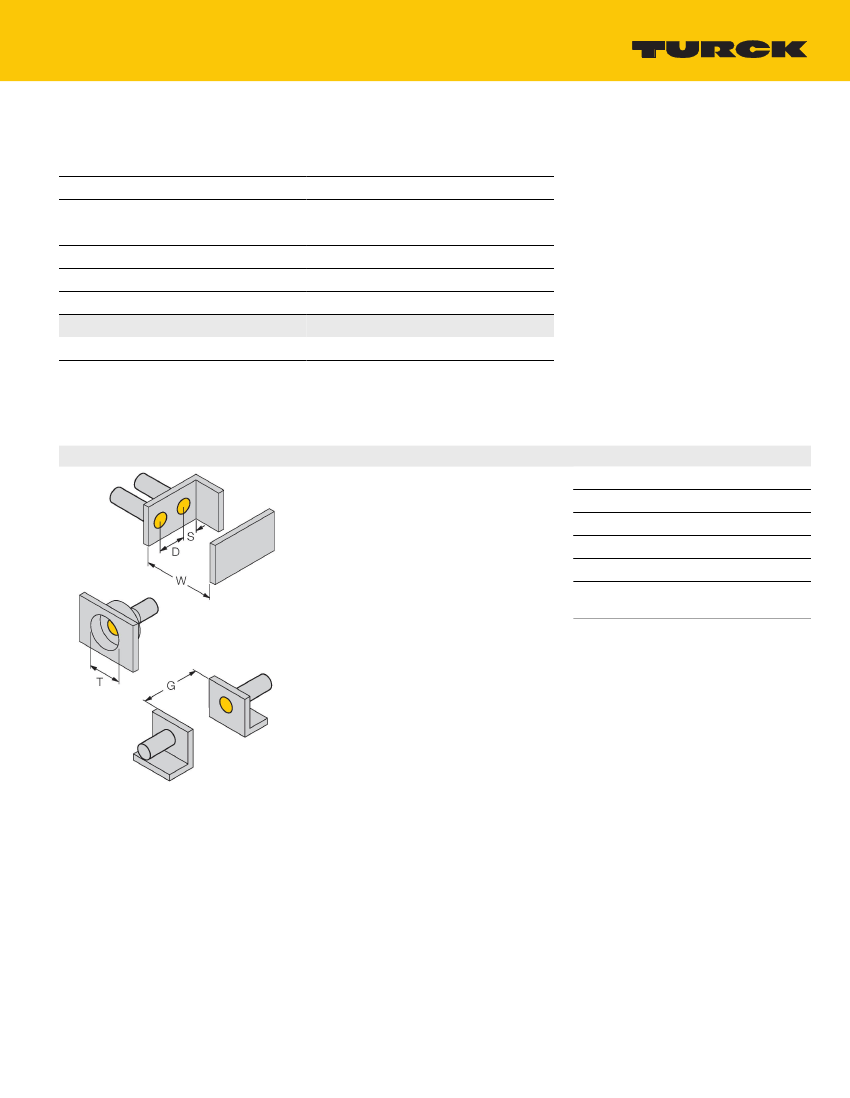

Functional principle

Inductive sensors detect metal objects contactless

and wear-free. For this, they use a high-frequency

electromagnetic AC field that interacts with the

target. Inductive sensors generate this field via an

RLC circuit with a ferrite coil.

10…65 VDC
