BAS40-06T-TP-HF datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-06T-TP-HF

BAS40-06T-TP-HF: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size206KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

BAS40-06T-TP-HF Overview

Rectifier Diode,

BAS40-06T-TP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.15 W
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAS40-04T

BAS40-05T

BAS40-06T

150mW 40Volt

Plastic-Encapsulate

Diode

SOT-523

•

Features

Pow Dissipation PD=150mW Tamb=25

Forward Current I

=200mA

Reverse Voltage V

=40V

Halogen

free available upon request by adding suffix "-HF"

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Lead Free Finish/Rohs Compliant ("P"Suffix designates

RoHS Compliant. See ordering information)

Maximum Ratings

•

Operating Temperature: -65 to +150

Storage Temperature: -65 to +150

Electrical Characteristics @ 25°C Unless Otherwise Specified

Reverse Breakdown

Voltage

Maximum

Instantaneous

Forward Voltage

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Total Capacitance

(BR)R

40V

=10µA

380mV

1000mV

= 1mA;

= 40mA;

DIMENSIONS

200nA

=30Volts

DIM

5pF

Measured at

1.0MHz, V

=0V

=10mA,

=1mA,R

=100

Reverse Recovery

Time

INCHES

MIN

MAX

.059

.067

.030

.033

.057

.069

.020 Nominal

.035

.043

.000

.004

.028

.031

.004

.008

.010

.014

MIN

MAX

1.50

1.70

0.75

0.85

1.45

1.75

0.50Nominal

0.90

1.10

.000

.100

.70

0.80

.100

.200

.25

.35

NOTE

5nS

Revision:

www.mccsemi.com

1 of 3

2013/01/01

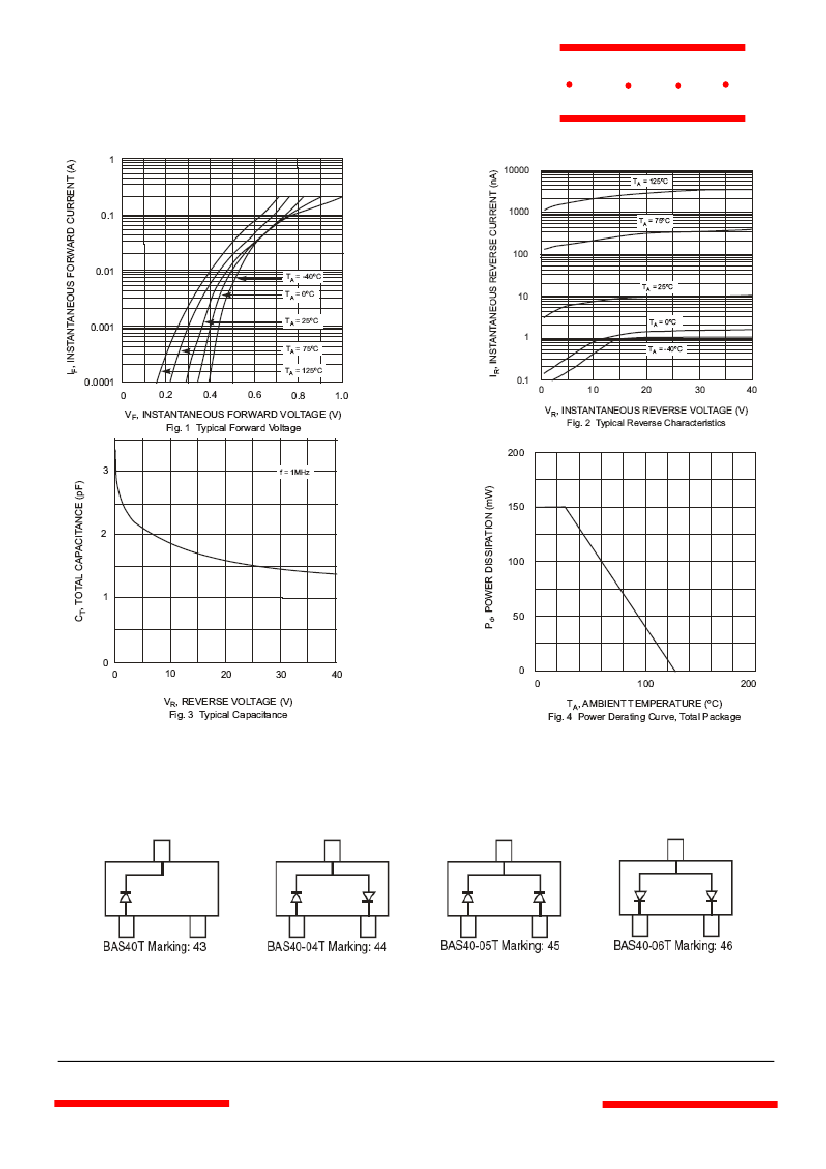

BAS40-06T-TP-HF Related Products

	BAS40-06T-TP-HF	BAS40-06T-TP	BAS40-04T-TP-HF	BAS40-04T-TP	BAS40-05T-TP	BAS40-05T-TP-HF
Description	Rectifier Diode,	Rectifier Diode, 2 Element, 0.2A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3	Rectifier Diode,	Rectifier Diode, 2 Element, 0.2A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3	Rectifier Diode, 2 Element, 0.2A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3	Rectifier Diode,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Humidity sensitivity level	1	1	1	1	1	1
Number of components	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V	40 V	40 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	-	Micro Commercial Components (MCC)
Base Number Matches	1	1	1	1	1	-
package instruction	-	ROHS COMPLIANT, PLASTIC PACKAGE-3	R-PDSO-G3	R-PDSO-G3	ROHS COMPLIANT, PLASTIC PACKAGE-3	R-PDSO-G3
