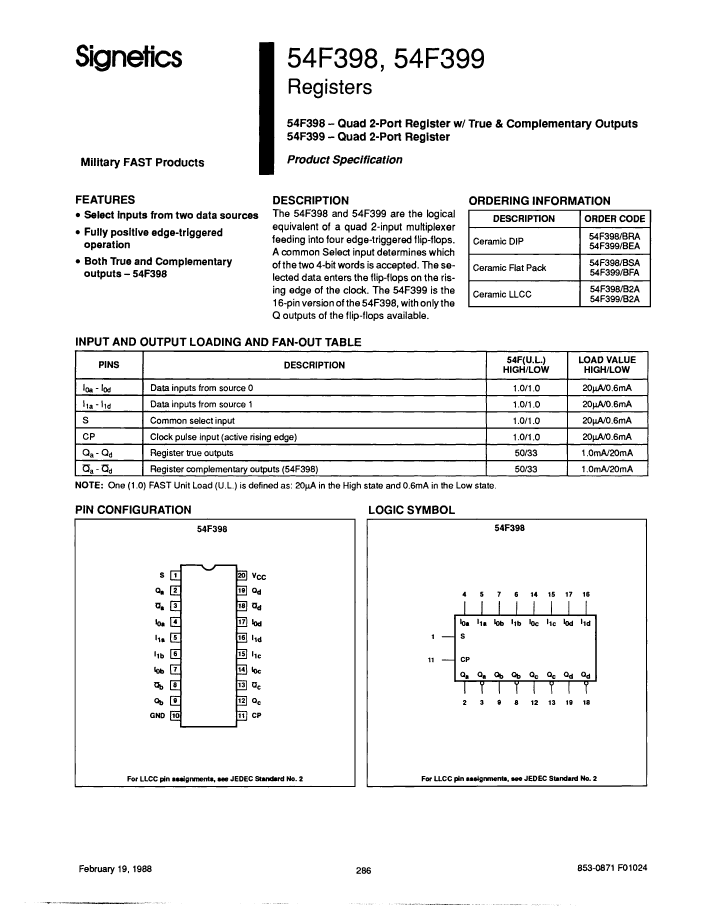

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDFP20

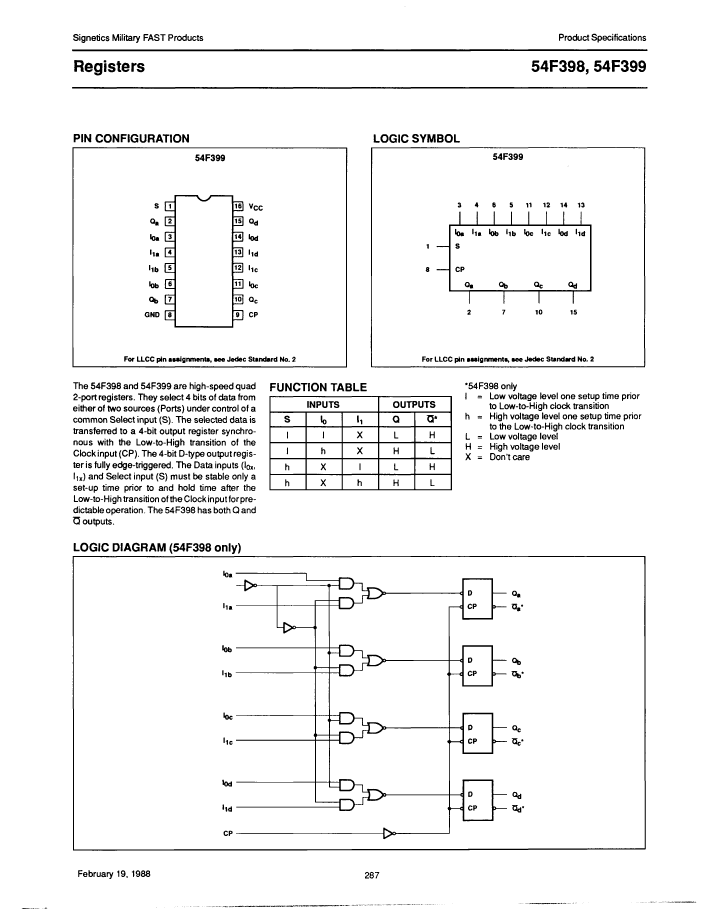

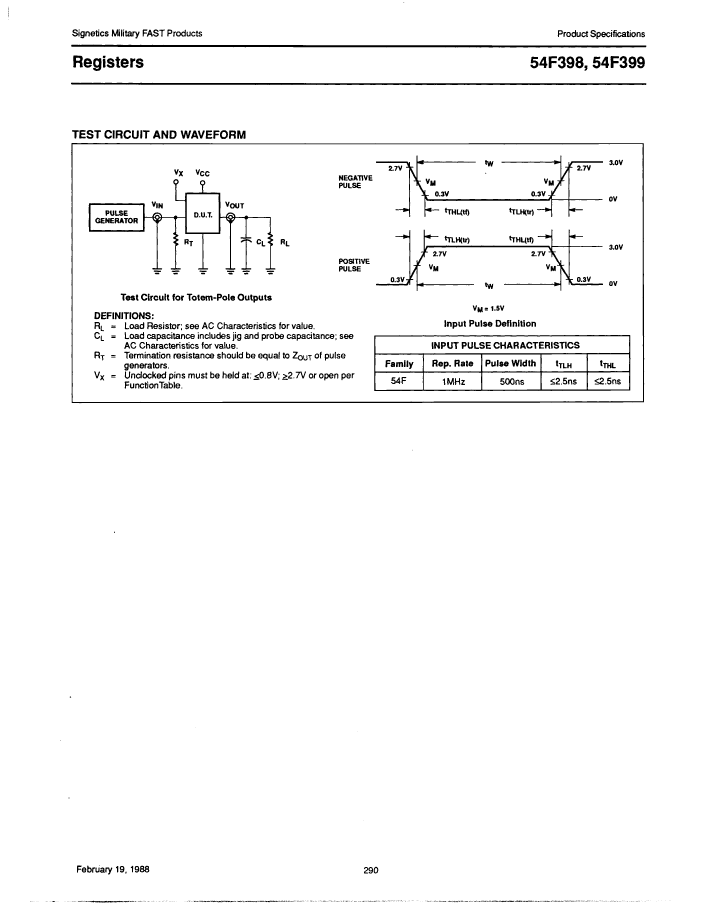

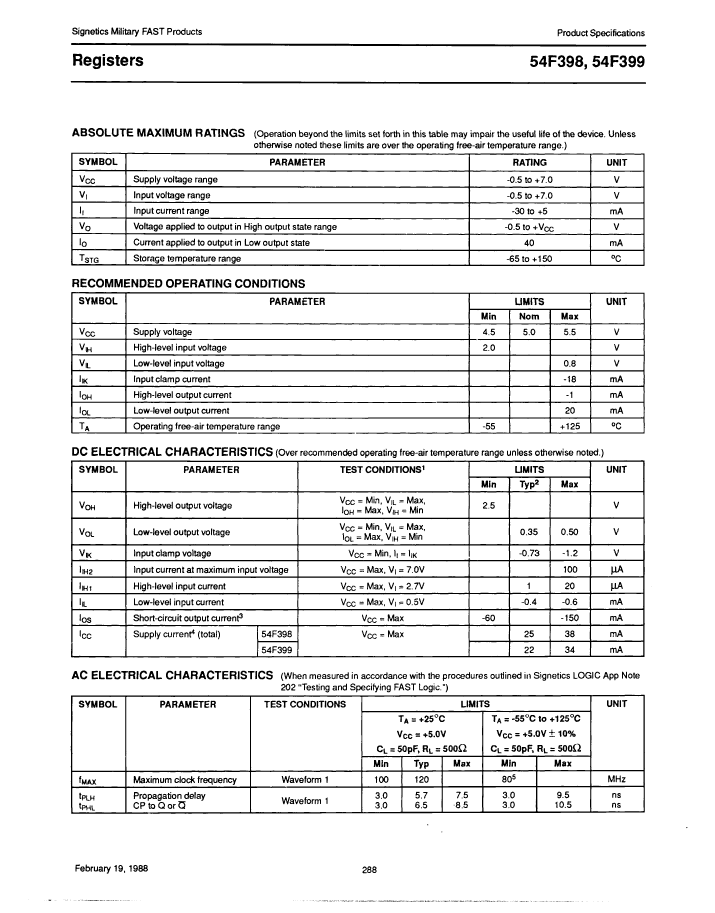

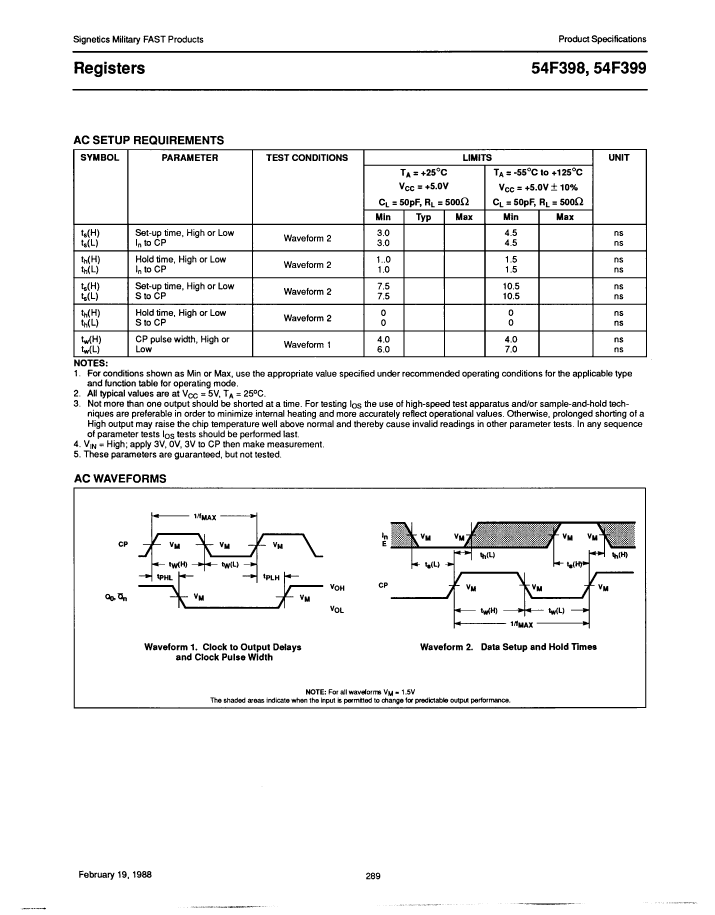

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | FOUR 2:1 MUX FOLLOWED BY REGISTER |
| series | F/FAST |
| JESD-30 code | R-CDFP-F20 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Maximum supply current (ICC) | 38 mA |
| propagation delay (tpd) | 10.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| minfmax | 80 MHz |
| Base Number Matches | 1 |
| 54F398/BSA | 54F398/BRA | 54F399/BEA | 54F398/B2A | 54F399/BFA | 54F399/B2A | |
|---|---|---|---|---|---|---|
| Description | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDFP20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDIP20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CQCC20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | FOUR 2:1 MUX FOLLOWED BY REGISTER | FOUR 2:1 MUX FOLLOWED BY REGISTER | FOUR 2:1 MUX FOLLOWED BY REGISTER | FOUR 2:1 MUX FOLLOWED BY REGISTER | FOUR 2:1 MUX FOLLOWED BY REGISTER | FOUR 2:1 MUX FOLLOWED BY REGISTER |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-CDFP-F20 | R-CDIP-T20 | R-CDIP-T16 | S-CQCC-N20 | R-CDFP-F16 | S-CQCC-N20 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 16 | 20 | 16 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | TRUE | COMPLEMENTARY | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE |
| Package form | FLATPACK | IN-LINE | IN-LINE | CHIP CARRIER | FLATPACK | CHIP CARRIER |
| Maximum supply current (ICC) | 38 mA | 38 mA | 34 mA | 38 mA | 34 mA | 34 mA |
| propagation delay (tpd) | 10.5 ns | 10.5 ns | 10.5 ns | 10.5 ns | 10.5 ns | 10.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | FLAT | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | QUAD | DUAL | QUAD |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| minfmax | 80 MHz | 80 MHz | 80 MHz | 80 MHz | 80 MHz | 80 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
