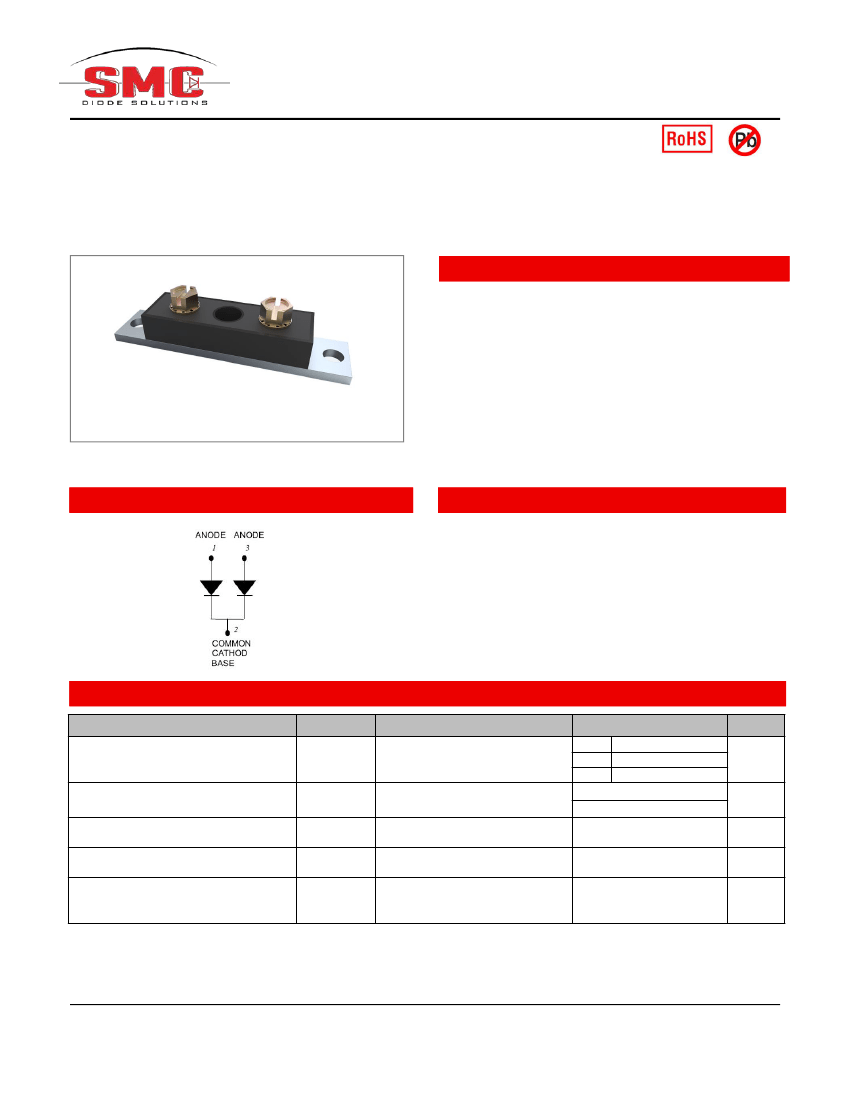

300CNQ SERIES
Technical Data
Data Sheet N1210, Rev. C
300CNQ035/300CNQ040/300CNQ045
SCHOTTKY RECTIFIER
Features
150℃ T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
PRM4 (Non-Isolated)
Additional testing can be offered upon request
Circuit Diagram
Applications
High current switching power supply
Plating power supply
Free-Wheeling diodes
Reverse battery protection
Converters
UPS System
Welding
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
Non-Repetitive Avalanche
Energy(Peg Leg)
Repetitive Avalanche Current
(Peg Leg)
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
E
AS
I
AR
Condition
-
50% duty cycle @T
C
=104°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=30A,L=0.67mH
Current decaying linearly to zero
in 1 μsec Frequency limited by
T
J
max. V
A
=1.5×V
R
typical
Max.
35
300CNQ035
40
300CNQ040
45
300CNQ045
150(Per Leg)
300(Per Device)
2880
150
30
Units
V
A
A
mJ
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
300CNQ SERIES
Technical Data
Data Sheet N1210, Rev. C
Electrical Characteristics:
Characteristics
Forward Voltage Drop(Per Leg)*
Symbol
V
F1
V
F2
Condition
@ 150A, Pulse, T
J
= 25
C
@ 300A, Pulse, T
J
= 25
C
@ 150A, Pulse, T
J
= 125
C
@ 300A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
-
Typ.
0.55
-
0.49
-
0.3
240
6000
-
Max.
0.61
0.77
0.62
0.75
15
750
7750
10,000
Units
V
V
Reverse Current(Per Leg)*
Junction Capacitance(Per leg)
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
I
R1
I
R2
C
T
dv/dt
mA
mA
pF
V/s
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case(Per leg)
Typical Thermal Resistance Junction to
Case(Per package)
Typical Thermal Resistance, case to
Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
JC
R
cs
Condition
-
-
DC operation
DC operation
Mounting surface, smooth
and greased
-
-
Specification
-55 to +150
-55 to +150
0.40
0.20
0.10
Mounting
Torque
Terminal
Torque
24(min)
35(max)
35(min)
46(max)
Units
C
C
C/W
C/W
C/W
TM
wt
Kg-cm
g
PRM4 Non-Isolated
79
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
300CNQ SERIES
Technical Data
Data Sheet N1210, Rev. C

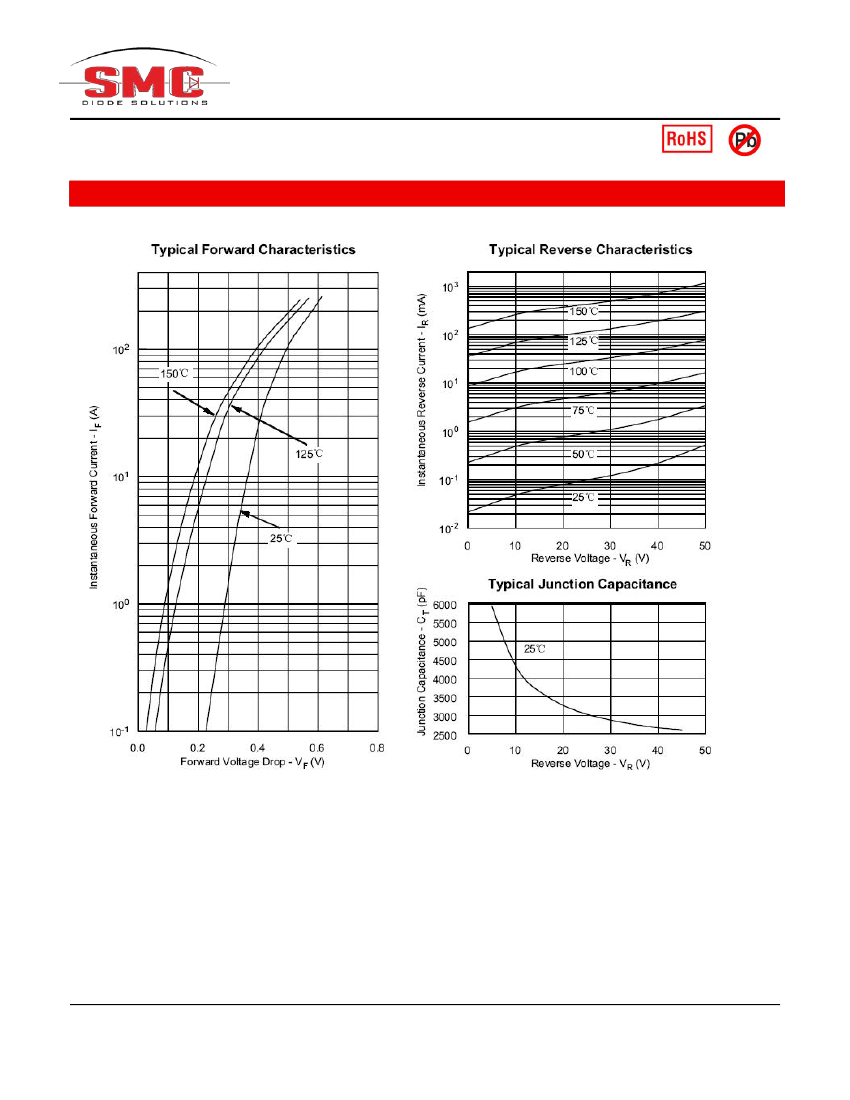

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
300CNQ SERIES
Technical Data
Data Sheet N1210, Rev. C

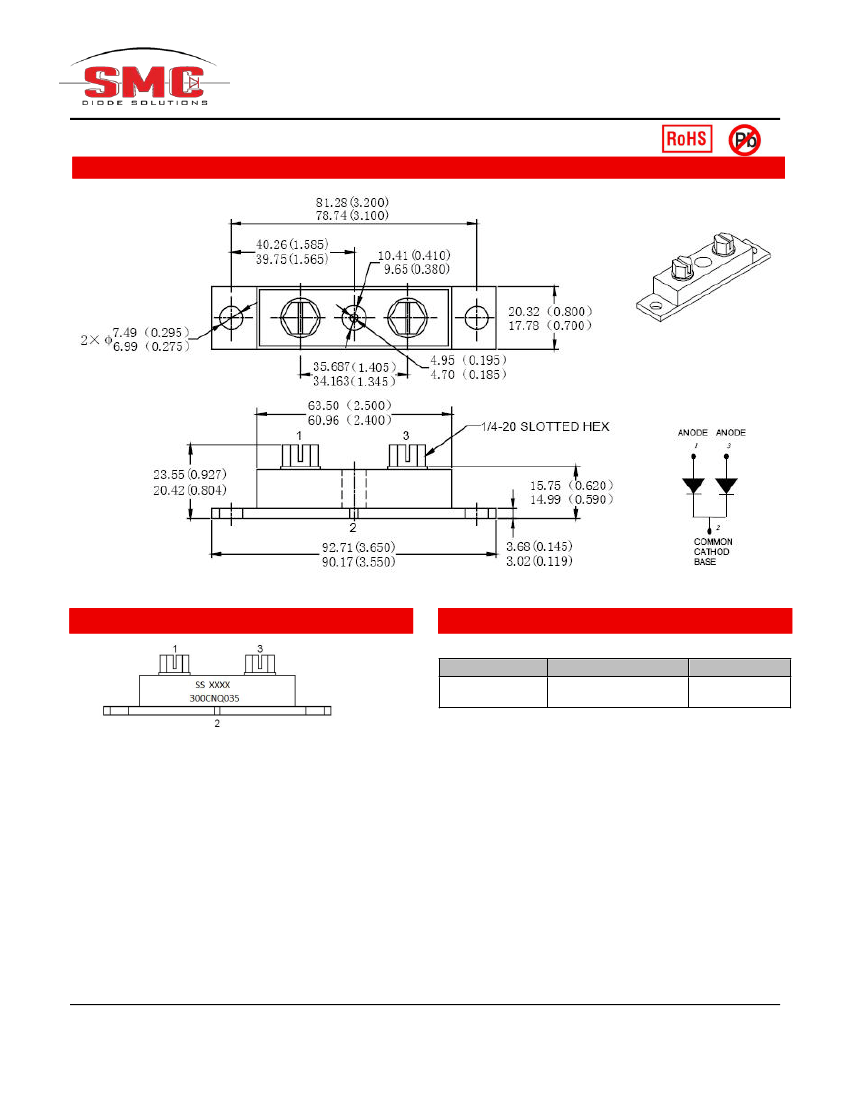

Mechanical Dimensions PRM4 Non-Isolated(Millimeters/Inches)
Marking Diagram
Ordering Information
Device
300CNQ SERIES
PRM4(Non- Isolated)
(Pb-Free)
Package
Shipping
9 pcs/box
Where XXXX is YYWW
300CNQ035
SS
YY
WW
= Part name
= SS
= Year
= Week
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
