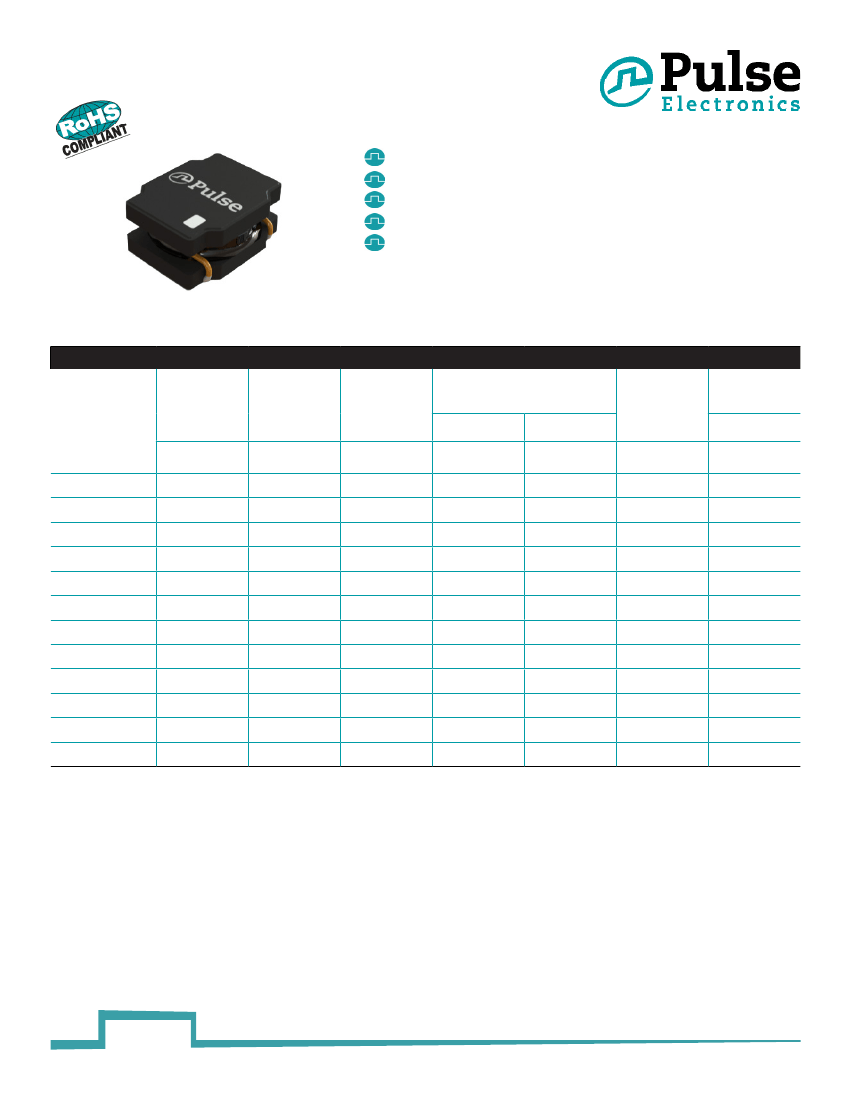

SMT Power Inductor
Shielded Drum Core - PA4335.XXXNLT Series
Height:
1.2mm Max
Footprint:
2.7mm x 2.2mm Max
Current Rating:
up to 4.05A
Inductance Range:
0.24uH to 10uH
Shielded magnetic circuit reduces leakage flux, Fe
base metal core enables high saturation and
metalized core termination results in excellent shock
resistance.
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
Number
PA4335.241NLT
PA4335.331NLT
PA4335.471NLT
PA4335.681NLT
PA4335.102NLT
PA4335.152NLT
PA4335.222NLT
PA4335.222YNLT
PA4335.332NLT
PA4335.472NLT
PA4335.682NLT
PA4335.103NLT
Inductance
1MHz, 1V
uH
0.24
0.33
0.47
0.68
1.0
1.5
2.2
2.2
3.3
4.7
6.8
10
Rated
Current
A
4.05
3.70
3.45
3.15
3.00
2.40
1.90
2.10
1.7
1.25
0.95
0.85
Min.
Self-Resonant
Frequency
MHz
117
104
89
67
52
38
32
36
25
23
16
14
DC
Resistance
MAX.
mΩ
23
28
35
43
54
72
120
102
163
260
366
480
TYP.
mΩ
19
23
29
36
48
60
100
85
136
225
305
435
Saturation
Current
(20½C)
A
6.50
5.00
4.70
3.50
3.60
2.90
2.60
2.30
1.70
1.60
1.15
1.10
Heating
Current
∆
T
≈
40½C
A
4.05
3.70
3.45
3.15
3.00
2.40
1.90
2.10
1.80
1.25
0.95
0.85
Notes:
1. Actual temperature of the component during system operation (ambient plus temperature
rise) must be within the standard operating range.
2. The rated current as listed is either the saturation current (@ 20°C) or the heating current
(∆ T
~
40°C) depending on which value is lower.
3. The saturation current is the current at which the initial inductance drops approximately
30% at the stated ambient temperature. This current is determined by placing the compo-
nent in the specified ambient environment and applying a short duration pulse current (to
eliminate self-heating effect) to the component.
4. The heating current is the DC current required to raise the component temperature by
approximately 40°C. Take note that the components’ performance varies depending on
the system condition. It is suggested that the component be tested at the system level, to
verify the temperature rise of the component during system operation.
5. Maximum voltage across terminals to be limited to <40Vdc
