536092-9 datasheet, PDF - EEWORLD Datasheet

536092-9: DescriptionCONNECTOR, 48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size119KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

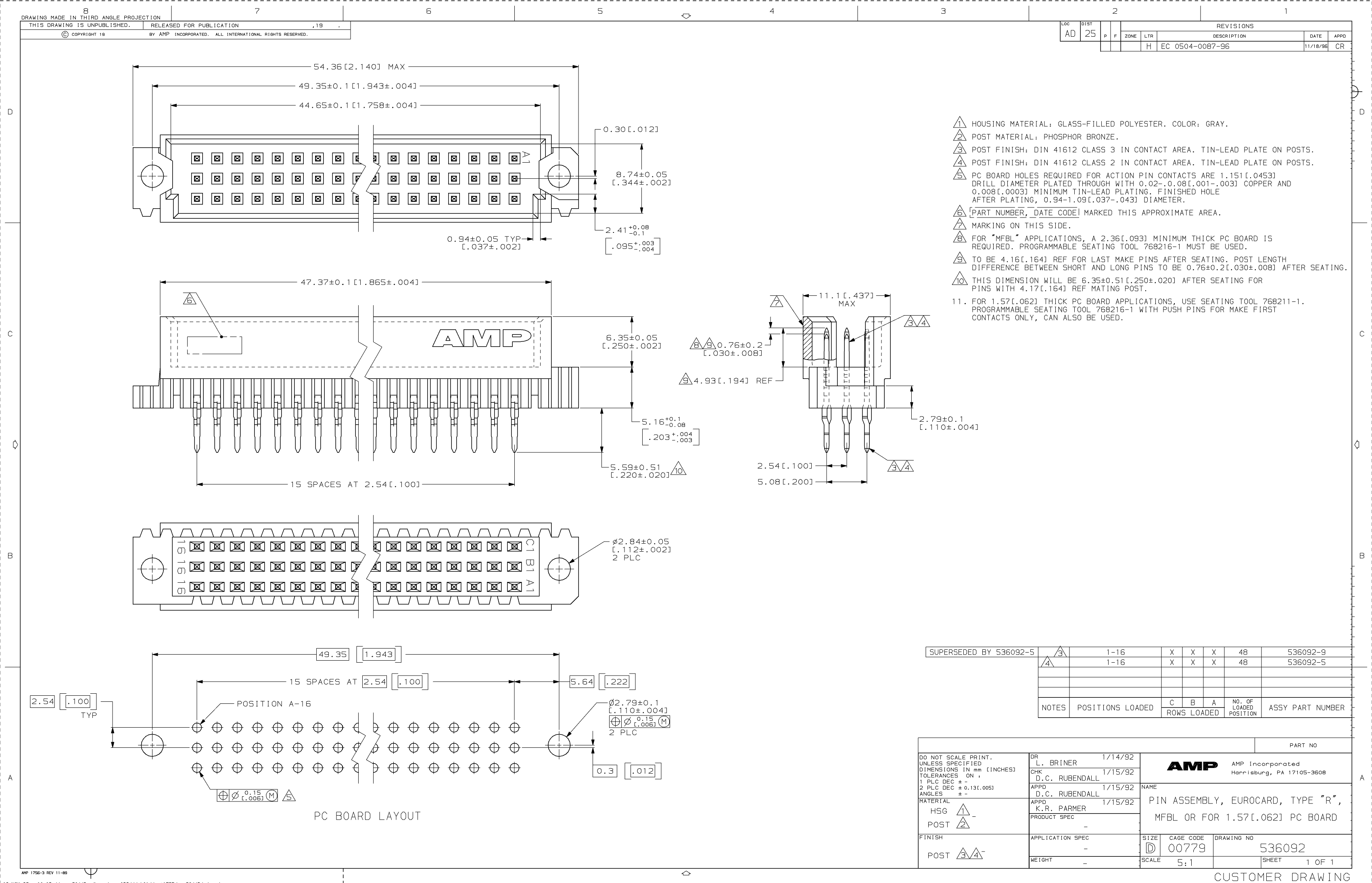

536092-9 Overview

CONNECTOR, 48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, PLUG

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	ACTION PIN, STANDARD: DIN 41612
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	536092
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	48
Base Number Matches	1
