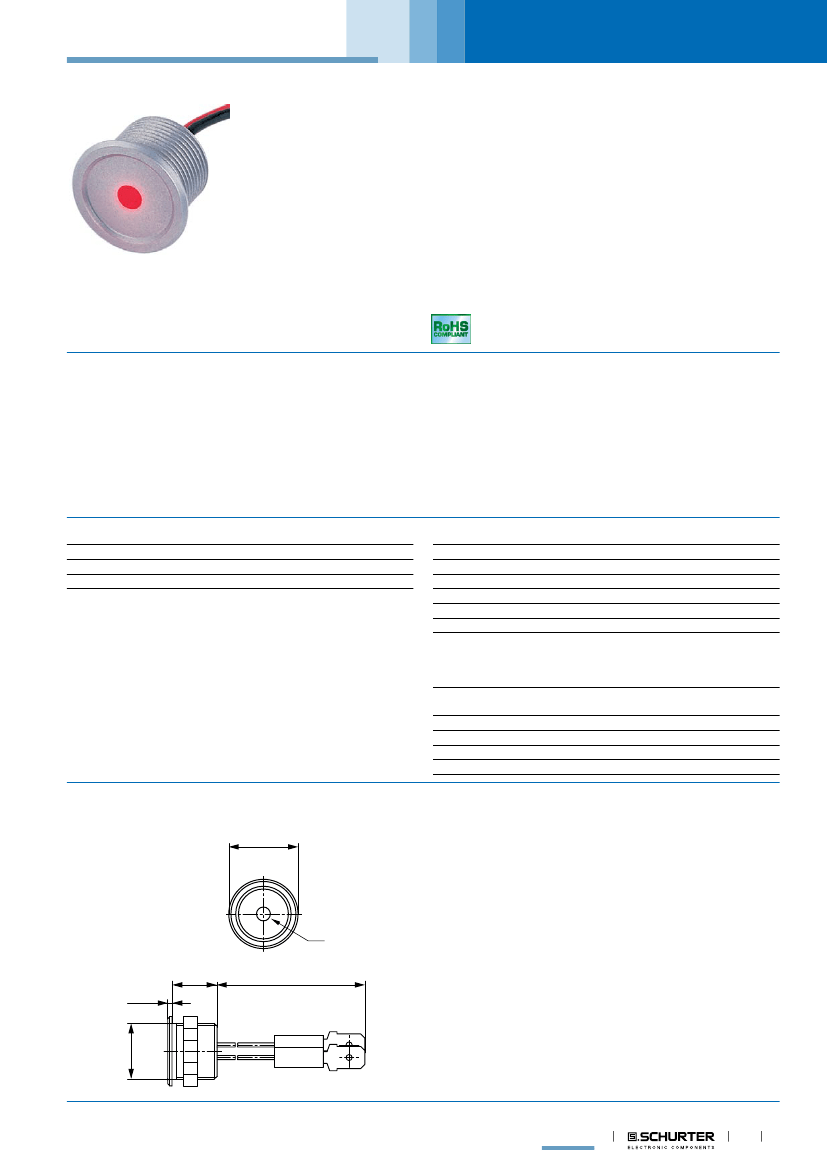

Metal Line Switches
www.schurter.com/PG70
Indicator
PSE AE 16
PSE M16 AE PI Indicator
Description
- The indicators are available with Lettering, Point Illumination or Ring
illumination
- Can be combined with the available piezo switch variants
- Pins, Wire, Crimp Terminal male or Cable with Faston
Characteristics
- High reliability, long lifetime
- Variety of design options regarding size, colour, material and connec-
tions
- For use in harsh environments, both indoors and outdoors
References
Weblinks
Alternative: switch normal operation:
PSE NO 16
html-datasheet, General Product Information, Approvals, CE declaration
of conformity, RoHS, CHINA-RoHS, e-Shop, CAD-Drawings, Product
News, Detailed request for product
Technical Data
Electrical Data
ESD-protection-classs
Supply Voltage
8 kV Class 3B
Point Illumination without series resistor
Mechanical Data
Tightening Torque
Shock Protection
Climatical Data
Operating Temperature
Storage Temperature
IP-Protection
2.5 Nm
IK 08, IK 02
min. -40 to +85 °C
min. -40 to +85 °C
IP 67 , Front Side submerged (1m water
column), front side / rear side DIN EN
60068-2-30 Db (Moist heat - air test
with 55°C / 93% humidity)
24 h / 48 h / 96 h Residence Time
Salt Spray Test (acc. to DIN
50021-SS)
Material
Housing
Gasket
Nut
Aluminium anodized
NBR70
Steel galvanized
Dimension
PSE AE M16 PI
Ø 20
A
13
1.2
M16x1
~85.0
Switches
1
PSE AE 16
Dimension
PSE M16
Ø 16.2
Metal Line Switches
www.schurter.com/PG70
Drilling diagram
Diagrams
PSE AE PI
A)
B)
C)
D)
A) Double-LED (2 colors, 3 pins) or simple LED (2 pins)
B) Cable 1 (color 1 of the LED), Supply voltage
C) Cable 2 (color 2 of the LED), Supply voltage
D) Cable 3 (black), Mass
Point Illumination
Operating Data
LED red
LED green
LED yellow
Forward Current max.
25 mA
25 mA
30 mA
Forward Voltage at 10 mA
2.1 VDC
2.05 VDC
2.0 VDC
Forward Voltage max.
2.5 VDC
2.5 VDC
2.5 VDC
Attentioin: Point illuminated Indicators are deliverd without series resistor.
Variants
Mounting
Diameter
[mm]
16
16
16
16
16
16
Terminal
Housing Material,
Torsion Protection
Colour of
Housing
Surface
Finish
Shock Pro-
tection
Illumination, LED
Config. Code
Order Number
Quick connect
terminal
Quick connect
terminal
Quick connect
terminal
Quick connect
terminal
Quick connect
terminal
Quick connect
terminal
Aluminium ano-
dized ,no
Aluminium ano-
dized ,no
Aluminium ano-
dized ,no
Aluminium ano-
dized ,no
Aluminium ano-
dized ,no
Aluminium ano-
dized ,no
Alu natural
red
Alu natural
green
Alu natural
yellow
F
F
F
F
F
F
IK 08
IK 08
IK 08
IK 08
IK 08
IK 08
Point Illumination, red
Point Illumination, red
Point Illumination, green
Point Illumination, green
Point Illumination, yellow
Point Illumination, yellow
PSE M 16 AE RU
PSE M 16 AE RU
PSE M 16 AE RU
PSE M 16 AE RU
PSE M 16 AE RU
PSE M 16 AE RU
1241.3033.M
1241.3036.M
1241.3034.M
1241.3037.M
1241.3035.M
1241.3038.M
Legende:
Type: PSE
AE = Indicator
RU = PI = Point Illumination
RI = Ring Illumination
AI = Area Illumination
Alu = Aluminium
ES = Stainless steel
F = Finger guidance
E = without finger guidance
Plastic nut with gasket are enclosed in the box.
Other mounting diameters, materials, colors, connections, supply voltages possible available on request.
Special materials for use in salt and chlorinated environment on request.
2
Switches
Metal Line Switches
www.schurter.com/PG70
PSE AE 16
Colour of
Housing
Surface
Finish
Shock Pro-
tection
Illumination, LED
Config. Code
Order Number
Mounting
Diameter
[mm]
Terminal
Housing Material,
Torsion Protection
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
10 pcs. PSE M16 AE / PSE M30 AE 20 pcs.
- Indicator elements in ESD safe packaging
- Screw nuts and sealing rings in a bag (enclosd in the box)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Switches
3
28.05.2014
