DCPDH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DCPDH

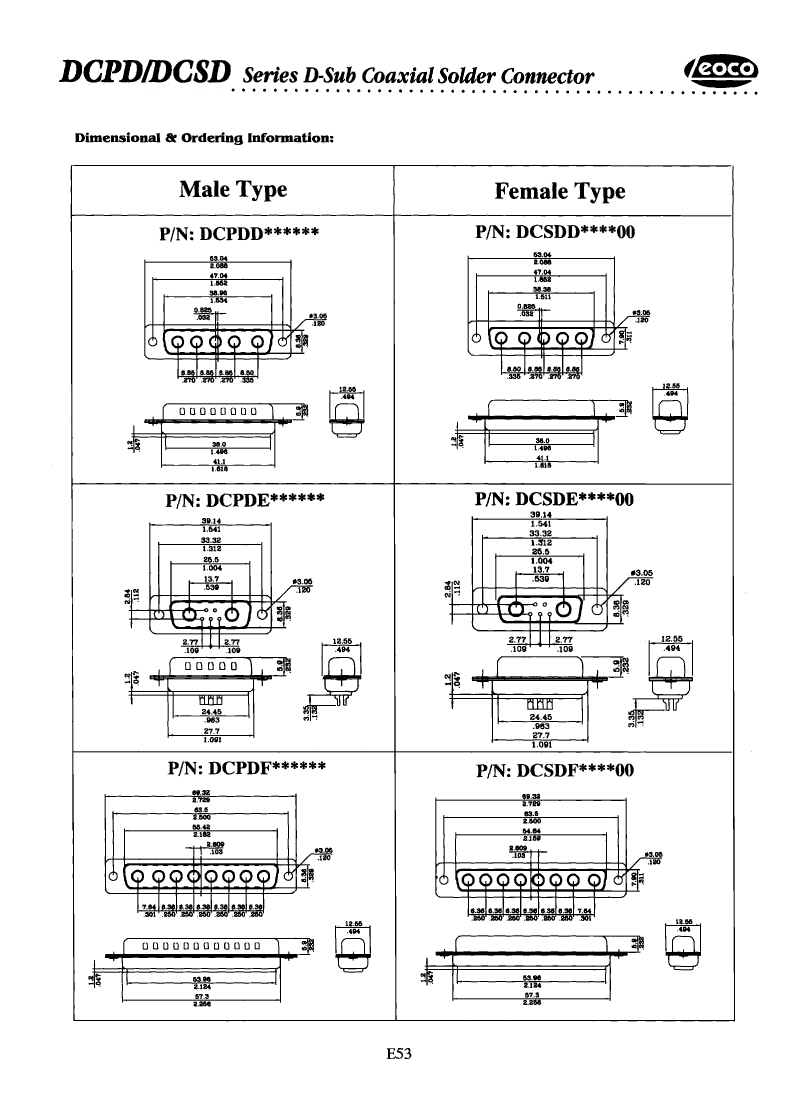

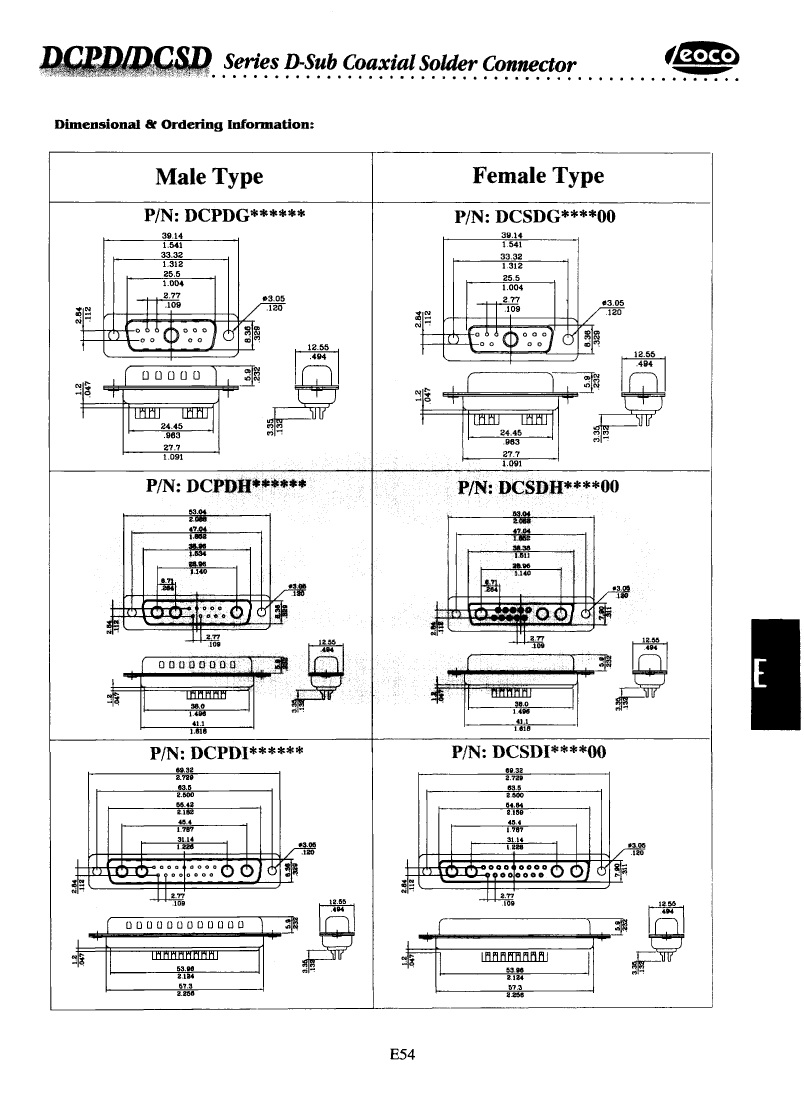

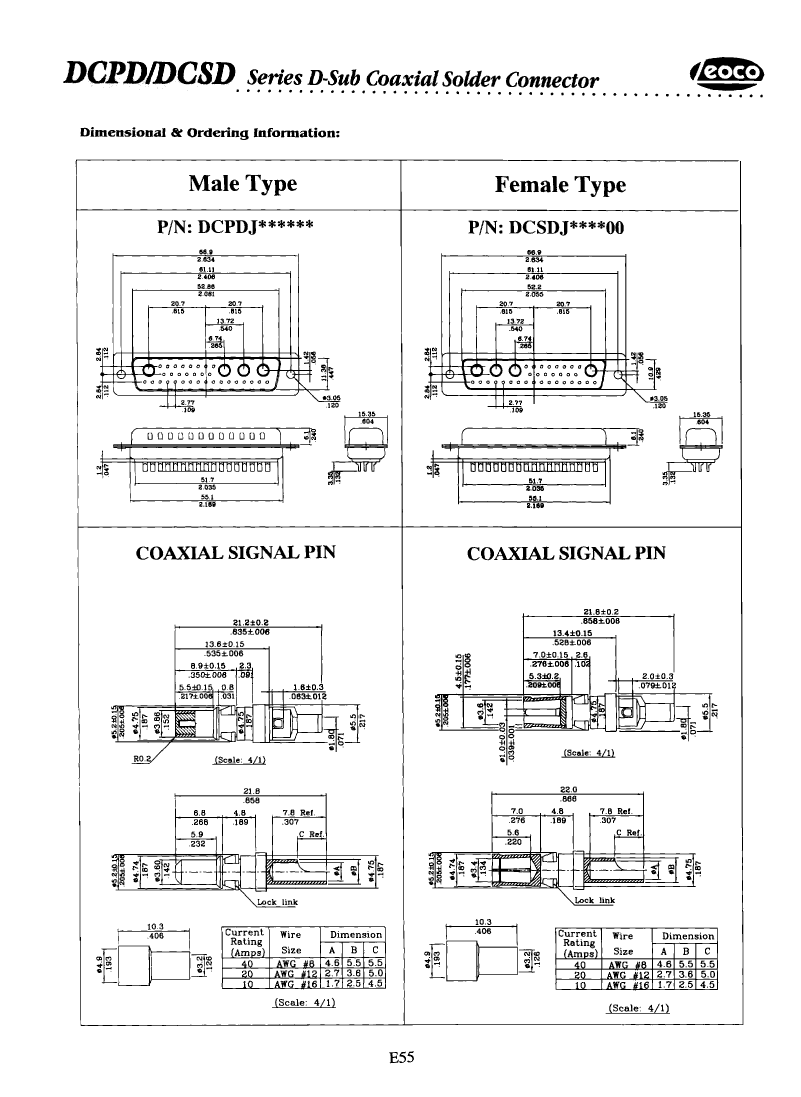

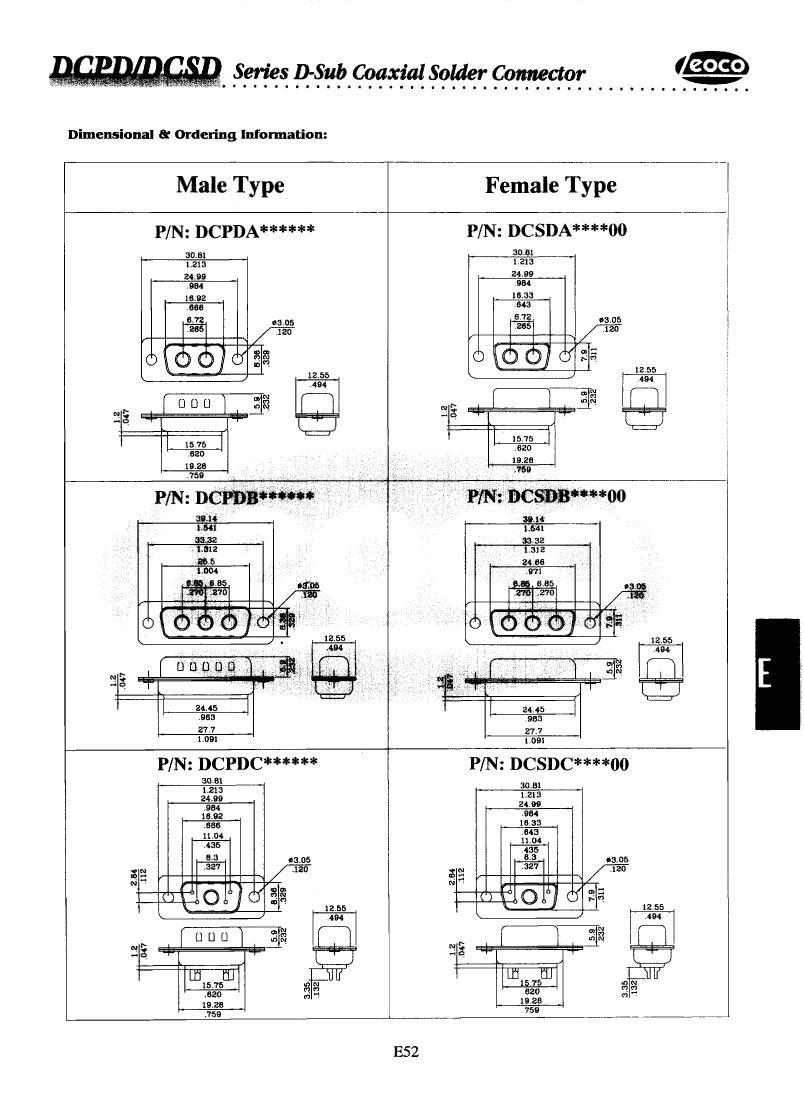

DCPDH: DescriptionD Subminiature Connector, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size211KB，4 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

DCPDH Overview

D Subminiature Connector, Male, Solder Terminal, Plug

DCPDH Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
Other features	MAX CONTACTS (SERIES)=13
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	DC
Mixed contacts	YES
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E; 2/A; 3/B; 4/C; 5/D
Termination type	SOLDER
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

DCPDH Related Products

	DCPDH	DCPDG	DCPDF	DCPDI	DCPDE	DCPDJ	DCPDD	DCPDC
Description	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug	D Subminiature Connector, Male, Solder Terminal, Plug
Maker	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MAX CONTACTS (SERIES)=13	MAX CONTACTS (SERIES)=11	MAX CONTACTS (SERIES)=8	MAX CONTACTS (SERIES)=21	MAX CONTACTS (SERIES)=7	MAX CONTACTS (SERIES)=36	MAX CONTACTS (SERIES)=5	MAX CONTACTS (SERIES)=5
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DC	DC	DC	DC	DC	DC	DC	DC
Mixed contacts	YES	YES	NO	YES	YES	YES	NO	YES
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D	1/E; 2/A; 3/B; 4/C; 5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
