5497-5-124-6: DescriptionPCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size359KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

5497-5-124-6 Overview

PCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal

5497-5-124-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.22 inch
subject depth	1.007 inch
body length	2.543 inch
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
maximum insertion force	.5004 N
Insulation resistance	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	5497
Plug contact pitch	0.031 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	8.2042 mm
Plating thickness	15u inch
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	124
Base Number Matches	1

Preview

Download Datasheet

View All

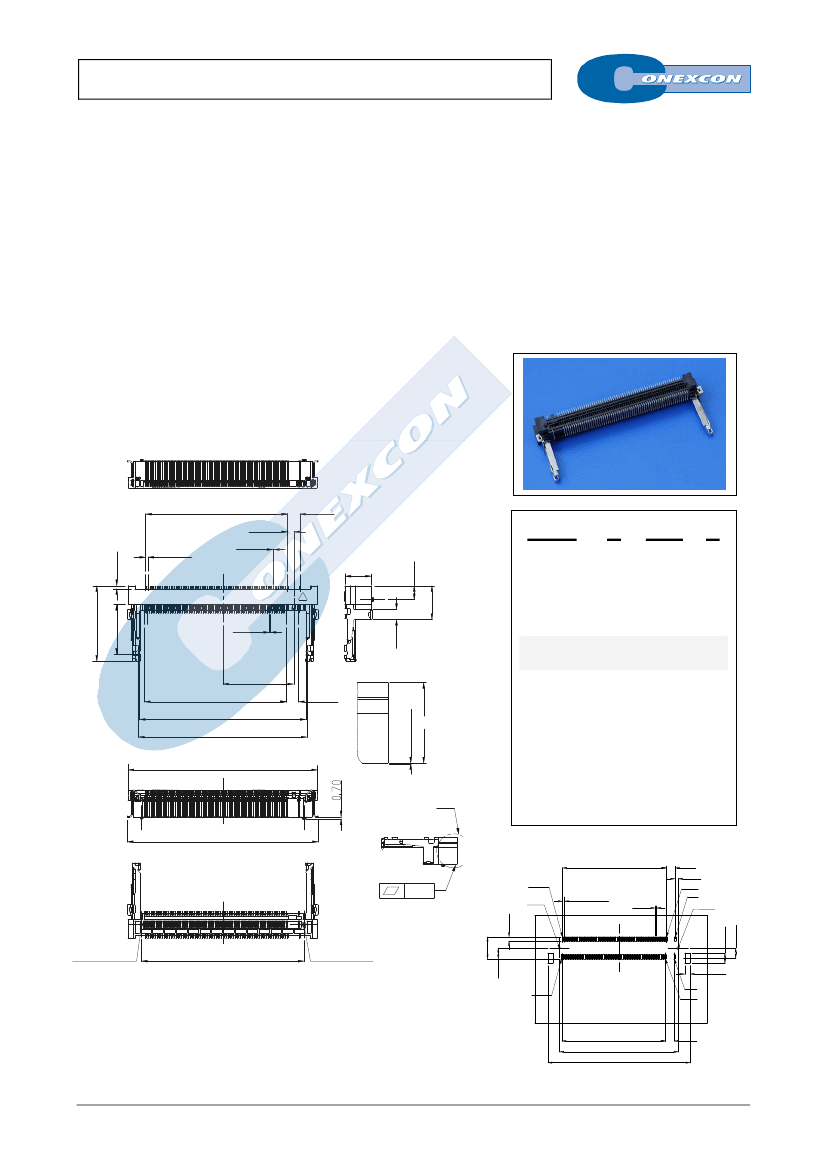

MINI PCI SOCKET

5497 SERIES.

MINI PCI socket.

General Features

Electrical Features



Accept MINI PCI card (124 contacts)

Contact area: different gold plating over 50 µ nickel

Solder area: tin plating over 50 µ nickel

Stand-off: 9.20 mm.



Voltage rating: < 25 V

Current rating: < 0.30 A

Contact resistance: < 30 mΩ

Dielectric withstanding voltage: 250 V AC/minute

Insulation resistance: >500 MΩ

Materials

Mechanical Features

Insertion force: > 50 gf/pin

Durability: 100 cycles



Insulator: LCP UL 94 V-0



Contact: Phosphor bronze



Metal spring: Stainless steel



Operating temperature. -25ºC to +85ºC



RoHS compliant

Dimensional Information

48.00

2.10

1.00

0.80

(Pitch)

0.24

4.15

5497 - T- 124- L

C

4.70

1

1. Series

2. Plating Options

2

3

4

16.80±0.15

25.6

3.5

0.24

11.5



T =

5.

15µ” gold over nickel

Recommended Finish

24.00

48.00

56.40±0.25

57.10±0.25

64.2

Detail 1

See detail 1

64.6

4.15

0.08±0.08

C

3. Number of circuits



Available in 124 circuits

4. Stand-off Options

L =

2.

Dim. C= 9.20 mm.

L =

4.

Dim. C= 4.00 mm.

L =

5.

Dim. C= 5.20 mm.

L =

6.

Dim. C= 5.60 mm.

48.00

Pin 123

ø1.1

2.00

0.80(Pitch)

0.50

4.15

1.45

10

Pin 3

Pin 1

ø1.6

4.80

5.10

2.50

Pin 124

Pin 2

Pin 4

48.00

55.00

66.00

RECOMMENDED PCB LAYOUT

4.15

ø0.85±0.05

55.00±0.05

ø1.35±0.05

E-XX

10.20

FULL LINE CATALOGUE

4.75

5497-5-124-6 Related Products

	5497-5-124-6	5497-5-124-2	5497-5-124-5	5497-5-124-4
Description	PCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal	PCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal	PCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal	PCMCIA Connector, 124 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	0.22 inch	0.362 inch	0.205 inch	0.157 inch
subject depth	1.007 inch	1.007 inch	1.007 inch	1.007 inch
body length	2.543 inch	2.543 inch	2.543 inch	2.543 inch
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
maximum insertion force	.5004 N	.5004 N	.5004 N	.5004 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	5497	5497	5497	5497
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of ports	1	1	1	1
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	8.2042 mm	8.2042 mm	8.2042 mm	8.2042 mm
Plating thickness	15u inch	15u inch	15u inch	15u inch
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	124	124	124	124
Base Number Matches	1	1	1	1
