BK1/GDC-80MAV: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 0.08A, 250VAC, 35A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size166KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK1/GDC-80MAV Overview

TIME DELAY BLOW ELECTRIC FUSE, 0.08A, 250VAC, 35A (IR), THROUGH HOLE

BK1/GDC-80MAV Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME DELAY
body height	21.1 mm
Body length or diameter	5.54 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Manufacturer's serial number	GDC
Installation features	THROUGH HOLE
method of packing	BAG
physical size	5.54mm x 21.1mm
Rated breaking capacity	35 A
Rated current	0.08 A
Rated voltage (AC)	250 V
Guideline	BSI; CSA; IMQ; SEMKO; UL; VDE
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

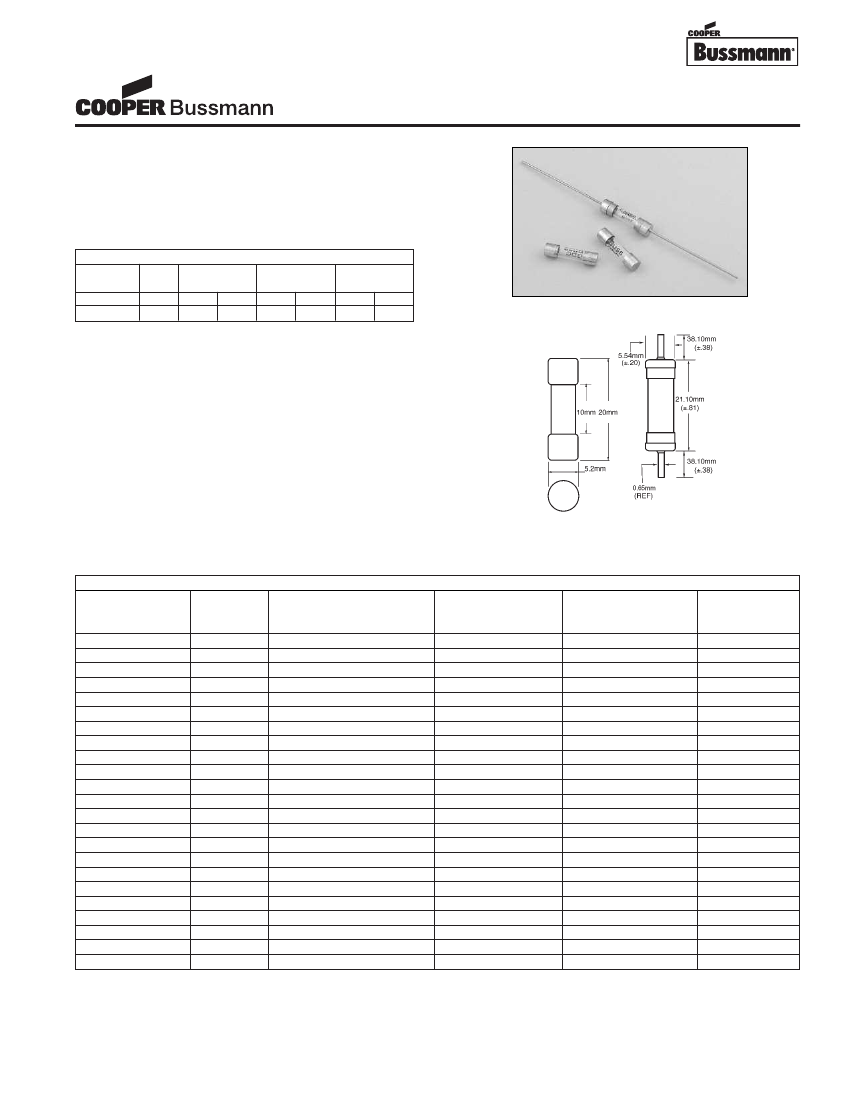

5mm x 20mm Fuses

GDC Series, Time Delay, Glass Tube

Description

• Time delay, low breaking capacity

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Optional axial leads are .032" x 1.5" copper tinned

• Designed to IEC 60127-2 (32mA-6.3A)

GDC ELECTRICAL CHARACTERISTICS

2.1 In

2.75 In

4 In

10 In

max

min

max

min

max

min

max

32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec 10 ms 300 ms

125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms

Dimensions

Drawing Not to Scale

Ordering

• Specify product code, option code and packaging code

Agency Information

• UL Recognized Card: (32mA-6.3A) Guide JDYX2,

File E19180

• CSA Component Acceptance: File 53787

• Semko Approval, 32mA-6.3A

• VDE Approval, 32mA-5A

• BSI Approval, 32mA-6.3A

• IMQ Approval, 32mA-6.3A

• MITI Approval, 1A-6.3A

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

GDC-32mA

GDC-40mA

GDC-50mA

GDC-63mA

GDC-80mA

GDC-100mA

GDC-125mA

GDC-160mA

GDC-200mA

GDC-250mA

GDC-400mA

GDC-500mA

GDC-630mA

GDC-800mA

GDC-1A

GDC-1.25A

GDC-1.6A

GDC-2A

GDC-2.5A

GDC-3.15A

GDC-4A

GDC-5A

GDC-6.3A

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage (50Hz)

35A

Typical DC

Cold Resistance

(ohms)*

21.7

14.2

9.5

7.1

4.5

2.8

2.0

1.3

1.0

0.66

0.37

0.268

0.191

0.131

0.064

0.046

0.039

0.029

0.024

0.18

0.13

0.010

0.009

Typical

Melting I

t (A

Sec)

AC†

0.0014

0.0034

0.006

0.012

0.015

0.022

0.034

0.052

0.078

0.17

0.61

0.75

1.3

3.1

3.6

133

270

Typical

Voltage

Drop (mV)‡

1050

920

800

760

580

490

390

320

340

270

210

180

160

140

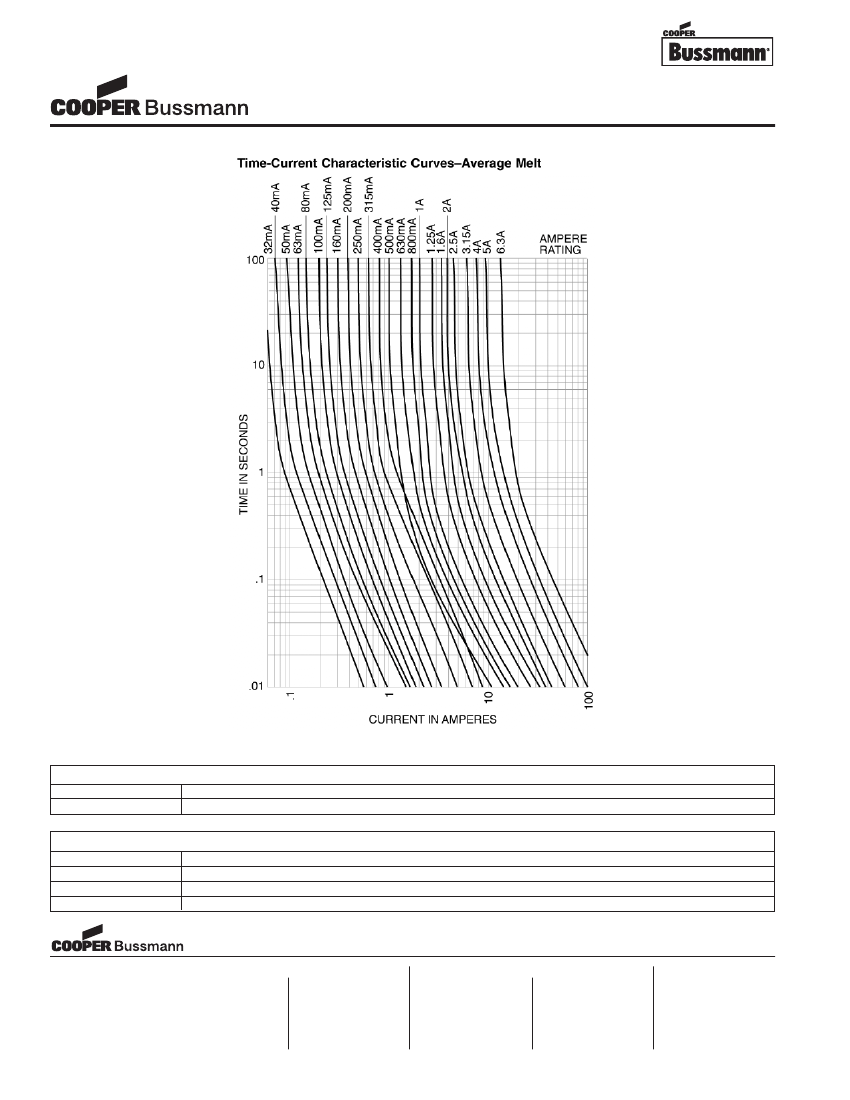

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

t (I

t was measured at listed interrupting rating and rated voltage)

‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)

BK1/GDC-80MAV Related Products

	BK1/GDC-80MAV	BK1/GDC-400MAV	BK/GDC-4AV	BK1/GDC-200MAV	BK/GDC-200MAV	1SMA4759A	1SMA4762A	TR2/GDC-1AV	TR2/GDC-250MAV	TR2/GDC-200MAV
Description	TIME DELAY BLOW ELECTRIC FUSE, 0.08A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 0.4A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 4A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 0.2A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 0.2A, 250VAC, 35A (IR), THROUGH HOLE	ZENER DIODES	ZENER DIODES	TIME DELAY BLOW ELECTRIC FUSE, 1A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 0.25A, 250VAC, 35A (IR), THROUGH HOLE	TIME DELAY BLOW ELECTRIC FUSE, 0.2A, 250VAC, 35A (IR), THROUGH HOLE
Maker	Eaton	Eaton	Eaton	Eaton	-	-	-	Eaton	Eaton	Eaton
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	-	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99
Fusing characteristics	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	-	-	TIME DELAY	TIME DELAY	TIME DELAY
body height	21.1 mm	21.1 mm	21.1 mm	21.1 mm	21.1 mm	-	-	21.1 mm	21.1 mm	21.1 mm
Body length or diameter	5.54 mm	5.54 mm	5.54 mm	5.54 mm	5.54 mm	-	-	5.54 mm	5.54 mm	5.54 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	-	-	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3	e3	e3	e3	-	-	e3	e3	e3
Manufacturer's serial number	GDC	GDC	GDC	GDC	GDC	-	-	GDC	GDC	GDC
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	-	-	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
method of packing	BAG	BAG	BOX	BAG	BOX	-	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	5.54mm x 21.1mm	5.54mm x 21.1mm	5.54mm x 21.1mm	5.54mm x 21.1mm	5.54mm x 21.1mm	-	-	5.54mm x 21.1mm	5.54mm x 21.1mm	5.54mm x 21.1mm
Rated breaking capacity	35 A	35 A	35 A	35 A	35 A	-	-	35 A	35 A	35 A
Rated current	0.08 A	0.4 A	4 A	0.2 A	0.2 A	-	-	1 A	0.25 A	0.2 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	-	-	250 V	250 V	250 V
Guideline	BSI; CSA; IMQ; SEMKO; UL; VDE	BSI; CSA; IMQ; SEMKO; UL; VDE	BSI; CSA; IMQ; MITI; SEMKO; UL; VDE	BSI; CSA; IMQ; SEMKO; UL; VDE	BSI; CSA; IMQ; SEMKO; UL; VDE	-	-	BSI; CSA; IMQ; MITI; SEMKO; UL; VDE	BSI; CSA; IMQ; SEMKO; UL; VDE	BSI; CSA; IMQ; SEMKO; UL; VDE
surface mount	NO	NO	NO	NO	NO	-	-	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN	TIN	-	-	TIN	TIN	TIN
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	-	-	PIN WIRE	PIN WIRE	PIN WIRE
