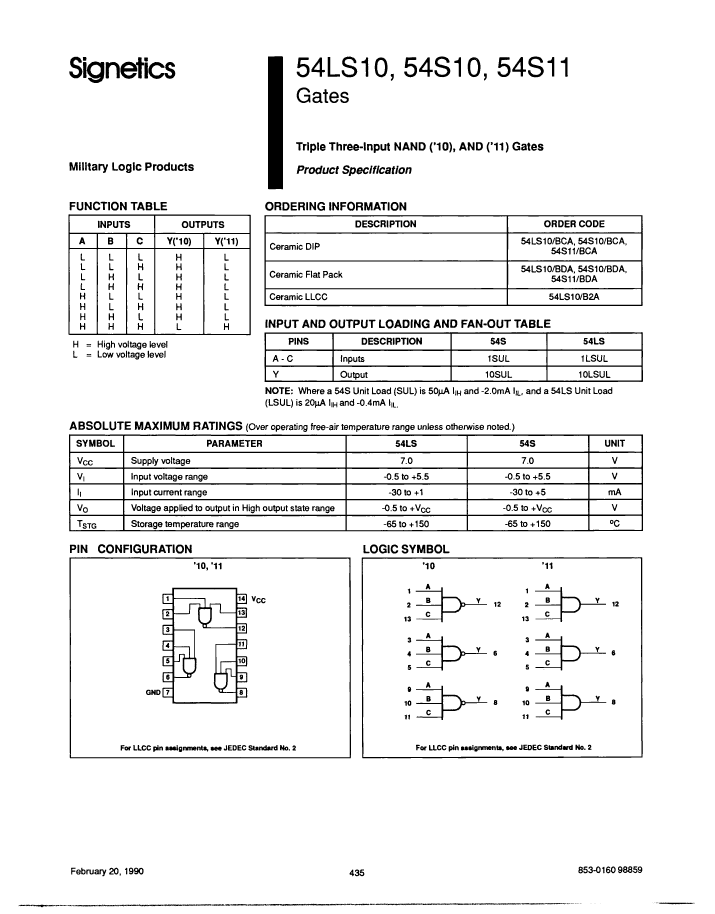

AND Gate, S Series, 3-Func, 3-Input, TTL, CDFP14

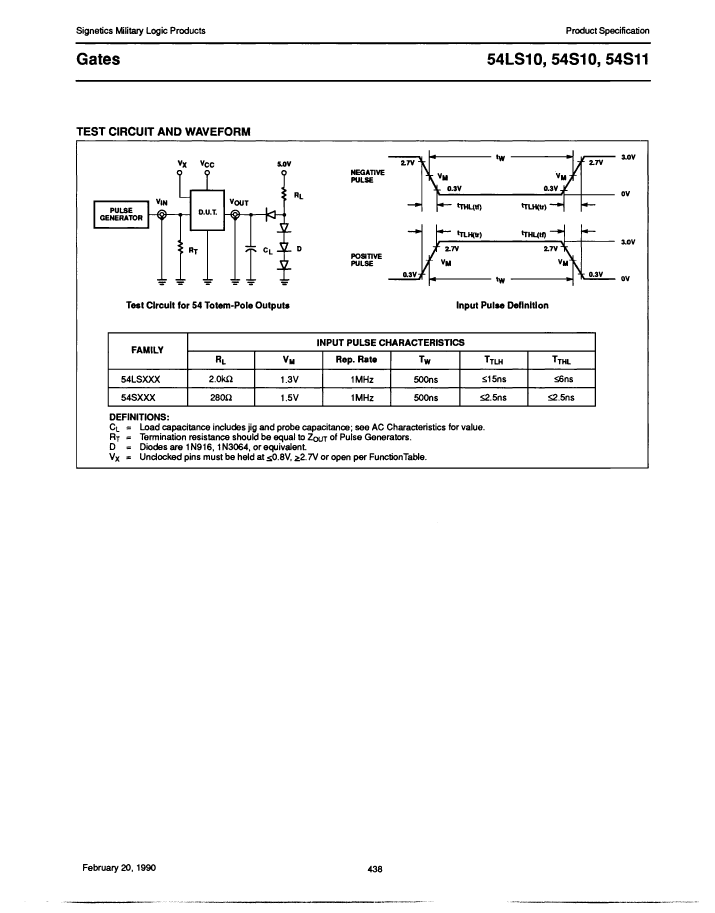

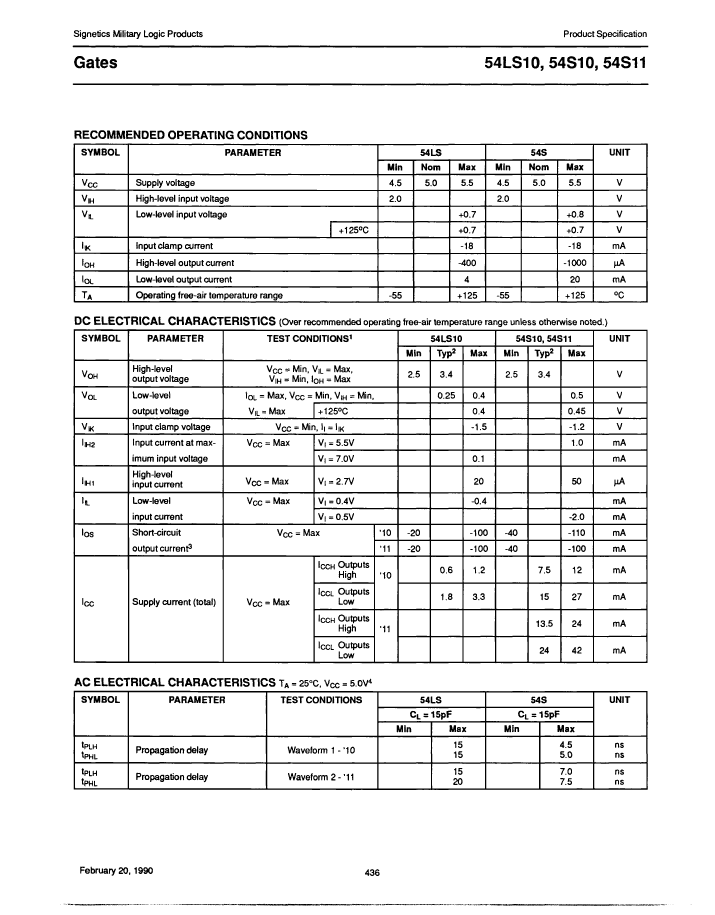

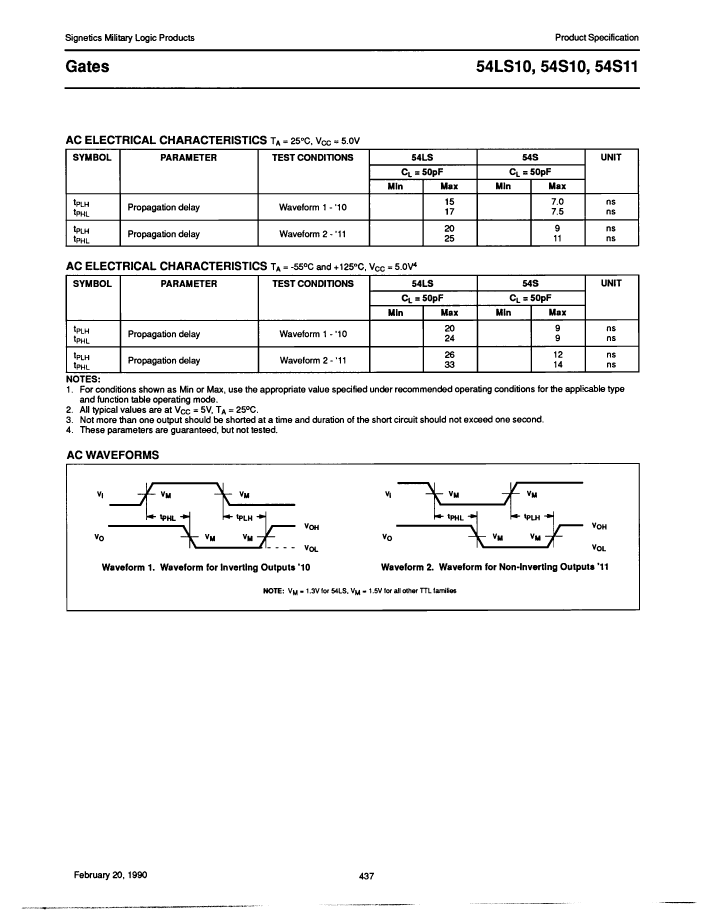

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| series | S |
| JESD-30 code | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | AND GATE |
| Number of functions | 3 |
| Number of entries | 3 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Maximum supply current (ICC) | 42 mA |
| propagation delay (tpd) | 14 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54S11/BDA | 54LS10/BCA | 54S10/BCA | 54S11/BCA | 54LS10/B2A | 54LS10/BDA | 54S10/BDA | |
|---|---|---|---|---|---|---|---|
| Description | AND Gate, S Series, 3-Func, 3-Input, TTL, CDFP14 | NAND Gate, LS Series, 3-Func, 3-Input, TTL, CDIP14 | NAND Gate, S Series, 3-Func, 3-Input, TTL, CDIP14 | AND Gate, S Series, 3-Func, 3-Input, TTL, CDIP14 | NAND Gate, LS Series, 3-Func, 3-Input, TTL, CQCC20 | NAND Gate, LS Series, 3-Func, 3-Input, TTL, CDFP14 | NAND Gate, S Series, 3-Func, 3-Input, TTL, CDFP14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| series | S | LS | S | S | LS | LS | S |
| JESD-30 code | R-CDFP-F14 | R-CDIP-T14 | R-CDIP-T14 | R-CDIP-T14 | S-CQCC-N20 | R-CDFP-F14 | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | AND GATE | NAND GATE | NAND GATE | AND GATE | NAND GATE | NAND GATE | NAND GATE |
| Number of functions | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of entries | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 14 | 14 | 14 | 14 | 20 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | FLATPACK | FLATPACK |
| Maximum supply current (ICC) | 42 mA | 3.3 mA | 27 mA | 42 mA | 3.3 mA | 3.3 mA | 27 mA |
| propagation delay (tpd) | 14 ns | 24 ns | 9 ns | 14 ns | 24 ns | 24 ns | 9 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | FLAT | FLAT |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - |
| Maker | - | YAGEO | - | YAGEO | YAGEO | YAGEO | YAGEO |
