51K508-200N4: DescriptionRF BNC Connector, Female, Panel Mount, Solder Terminal, Jack,; CategoryThe connector The connector; File Size119KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

51K508-200N4 Overview

RF BNC Connector, Female, Panel Mount, Solder Terminal, Jack,

51K508-200N4 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Other features	CAPTIVE CENTER CONTACT
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	51K508-200N4
Plug information	NO
Installation method	STRAIGHT
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.62
Base Number Matches	1

Preview

Download Datasheet

View All

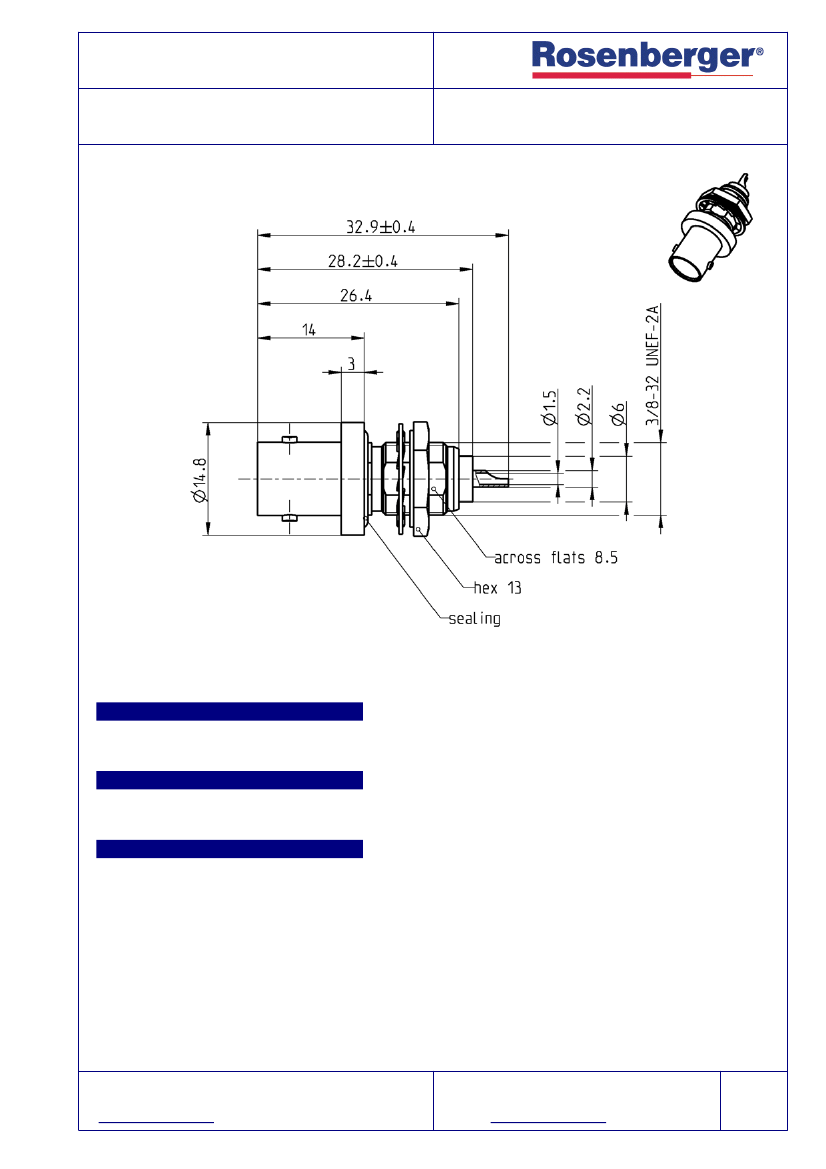

TECHNICAL DATA SHEET

BNC 50

Ω

BULKHEAD JACK

SOLDER END

51K508-200N4

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-8, MIL-PRF-39012, CECC 22120

Documents

Panel piercing

B1

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Material

Beryllium copper

Brass

PTFE

Silicone

NBR

Plating

Gold, min. 0.8 µm, over nickel

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
