3540-12-811 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3540-12-811

Preview

3540-12-811: DescriptionDry Reed Relay, 1 Form A, SPST, Latched, 0.5A (Contact), 500VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size291KB，2 Pages; ManufacturerCOTO TECHNOLOGY; Websitehttp://www.cotorelay.com/; Environmental Compliance

Download Datasheet Parametric View All

3540-12-811 Overview

Dry Reed Relay, 1 Form A, SPST, Latched, 0.5A (Contact), 500VDC (Contact), DC Input, Random, AC/DC Output

3540-12-811 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.7 mm
body height	12.32 mm
Body length or diameter	30.48 mm
Coil operating voltage (DC)	9 V
Coil release voltage (DC)	1 V
Coil resistance	1500 Ω
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	0.5A@500VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated power R load	10W@500VDC
Contact (DC) maximum rated R load	0.5A@500VDC
Maximum contact voltage (AC)	500 V
Maximum contact voltage (DC)	500 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Input switching control type	Random
Insulation resistance	1000000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	3500
Number of terminals	14
operating hours	1 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	14
physical size	30.48mm x 12.7mm x 12.32mm
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.2 ms
seal	HERMETICAL
Terminal surface	Matte Tin (Sn)
Terminal length	0.0032 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

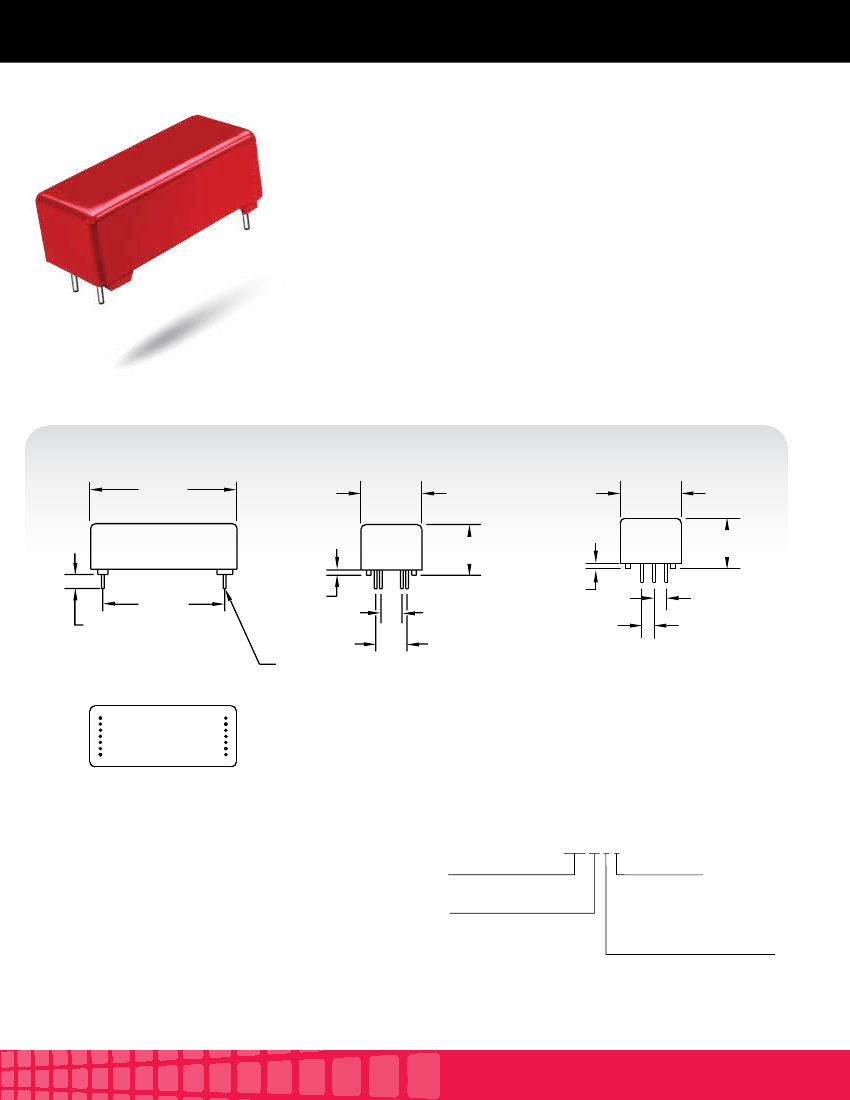

3500 SERIES/LOW THERMAL EMF REED RELAYS

3500 Series Low Thermal EMF Reed Relays

The 3500 Series is ideally suited to the needs of Instrumentation, Data Acquisition and

Process Control. The specification tables allow you to select the appropriate relay for

your particular application. Recommended for use in high accuracy DVM’s, Multi-

plexers and Digital or Analog Multipoint Recorders. If your requirements differ from

the selection options, please consult Coto’s Factory to discuss a custom reed relay.

3500 Series Features

u

Low Thermal EMF: < 10 µV through < 0.5 µV with 50 nV stability

u

Patented Low Thermal Design. U.S. Patent #4,084,142

u

Low power coils to ensure low thermal EMF

u

High Insulation Resistance - 10

12

Ω

u

Control/Signal isolation of 1500 VDC

u

High reliability, hermetically sealed contacts

u

Form A, Dry or Hg Wetted contacts. High Dielectric Strength

u

Epoxy coated steel shell provides magnetic shielding

u

RoHS compliant (except for 3520)

DIMENSIONS

in Inches (Millimeters)

1.20

(30.48)

.500

(12.7)

.485 MAX

(12.32)

.050

(1.27)

.500

(12.7)

.485 MAX

(12.32)

.125

(3.17)

1.00

(25.4)

.200

(5.08)

.300

(7.62)

.050

(1.27)

.100

(2.54)

.100

(2.54)

.026 DIA.

(0.66)

13

1

For Model

3501 & 3540

For Model

3502, 3520 & 3541

14

2

Bottom View

Ordering Information

XXXX-XX-X1X

Part Number

Shielding Options

2

Model Number

1=Electrostatic Shield

3501 3502 3520 3540 3541

Coil Voltage

05=5 volts

Thermal EMF Rating

12=12 volts

See available ratings in speciﬁcation table.

1=<10µV Hg Wetted Only

9=<5µV Dry or Wetted

8=<3µV Dry Only

7=<1µV Dry Only

5=<0.5µV Dry Only

07082013

tel: (401) 943.2686

|

fax: (401) 942.0920

Recommended Resources

Remote control circuit a composed of TDC1808

JSJ type transistor time relay circuit

Composite pipe a

Dry battery charger circuit

Low voltage electric shock safety device circuit diagram

Two-line intercom telephone circuit diagram
