54765-7070 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54765-7070

54765-7070: DescriptionBoard Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size421KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

54765-7070 Overview

Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE

54765-7070 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Samacsys Description	Board to Board & Mezzanine Connectors 0.3FPC ZIF EO HsgAssyAuPlt19CktEmbsTpPkg
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54765
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Base Number Matches	1

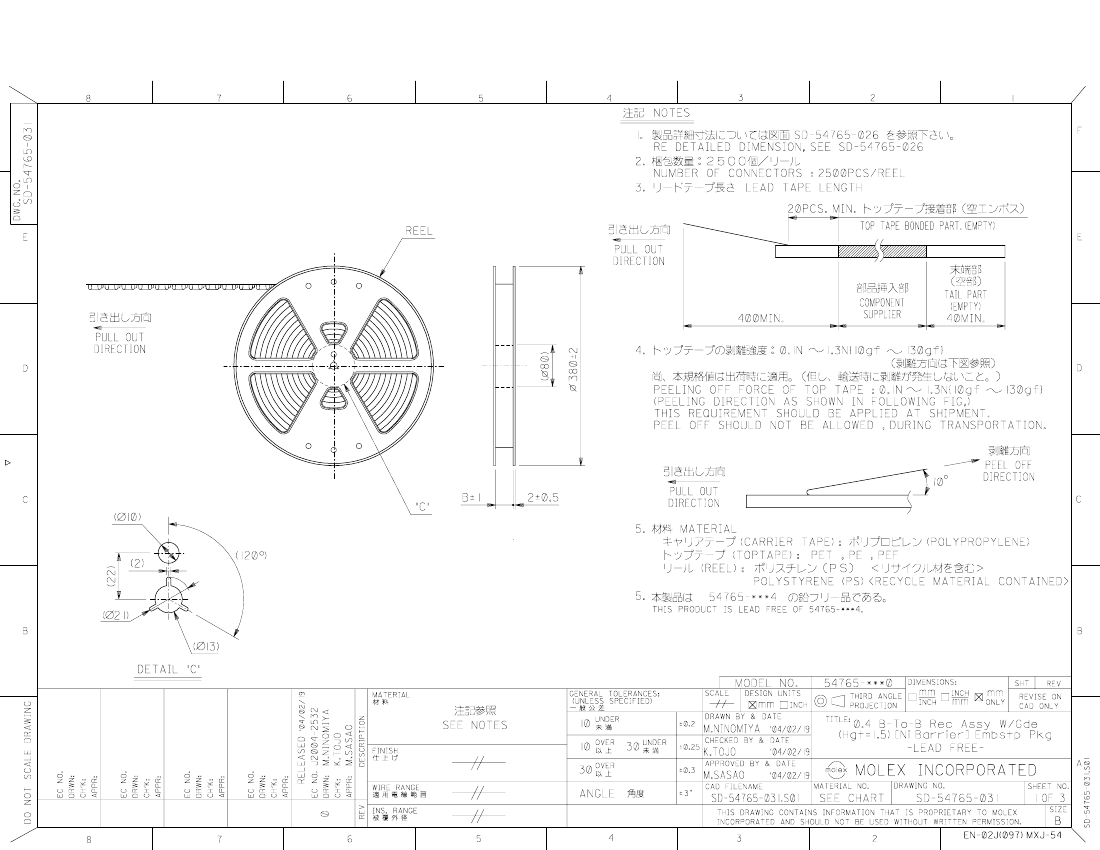

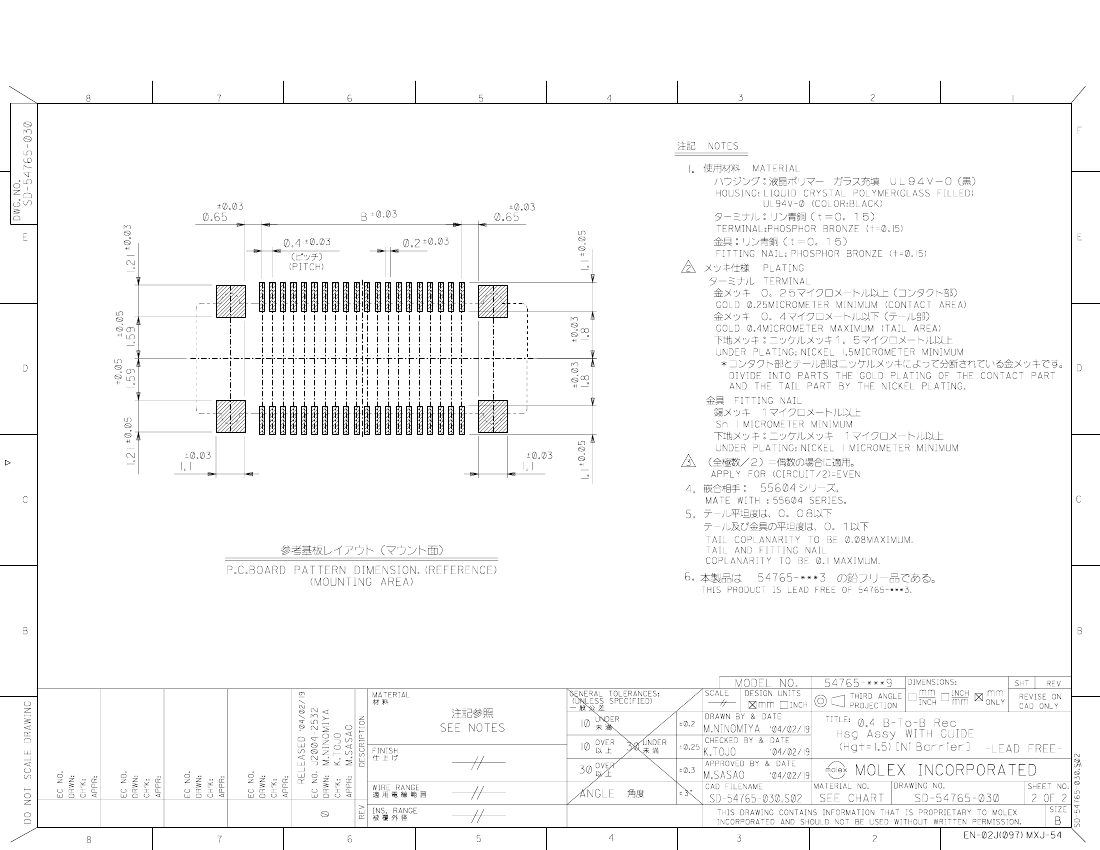

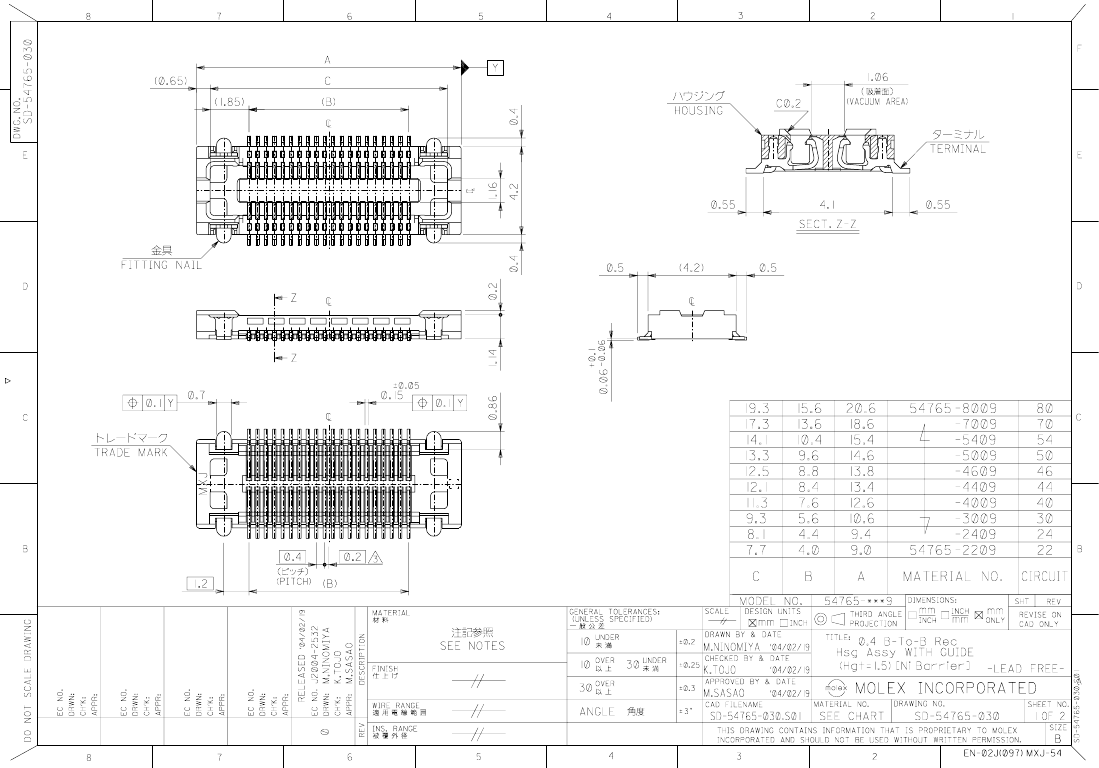

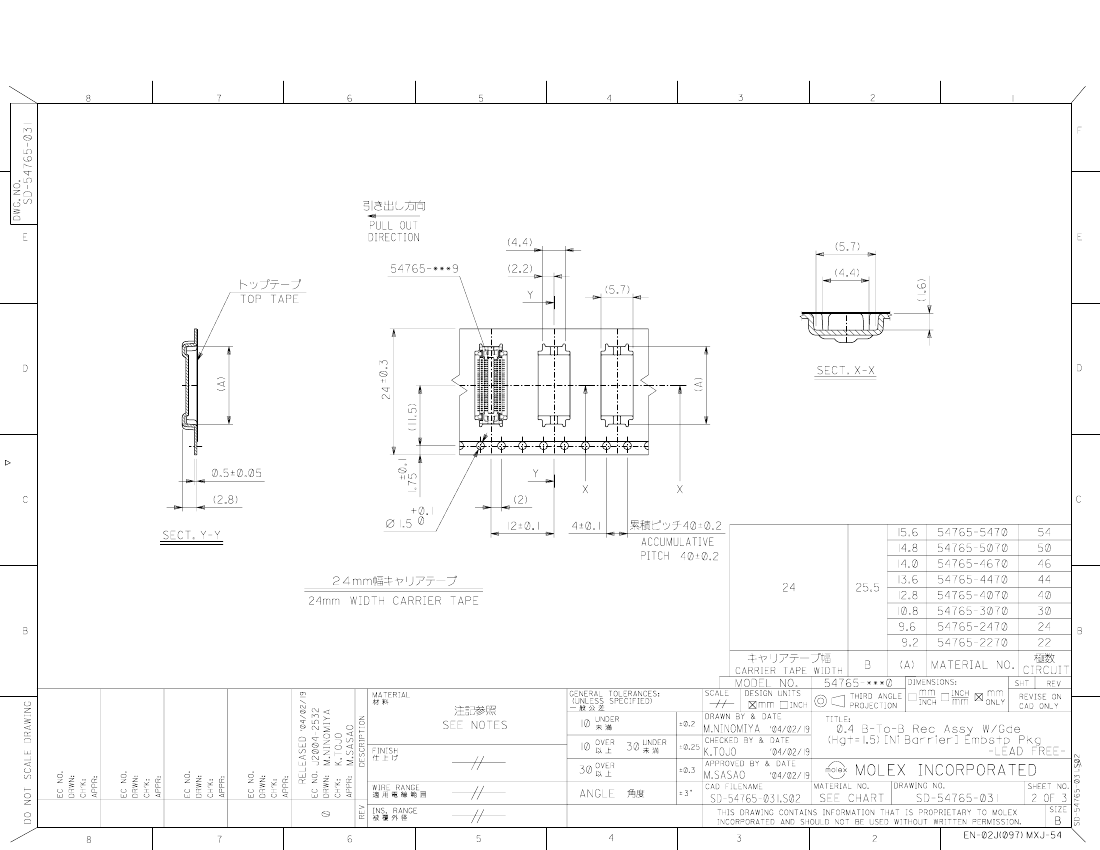

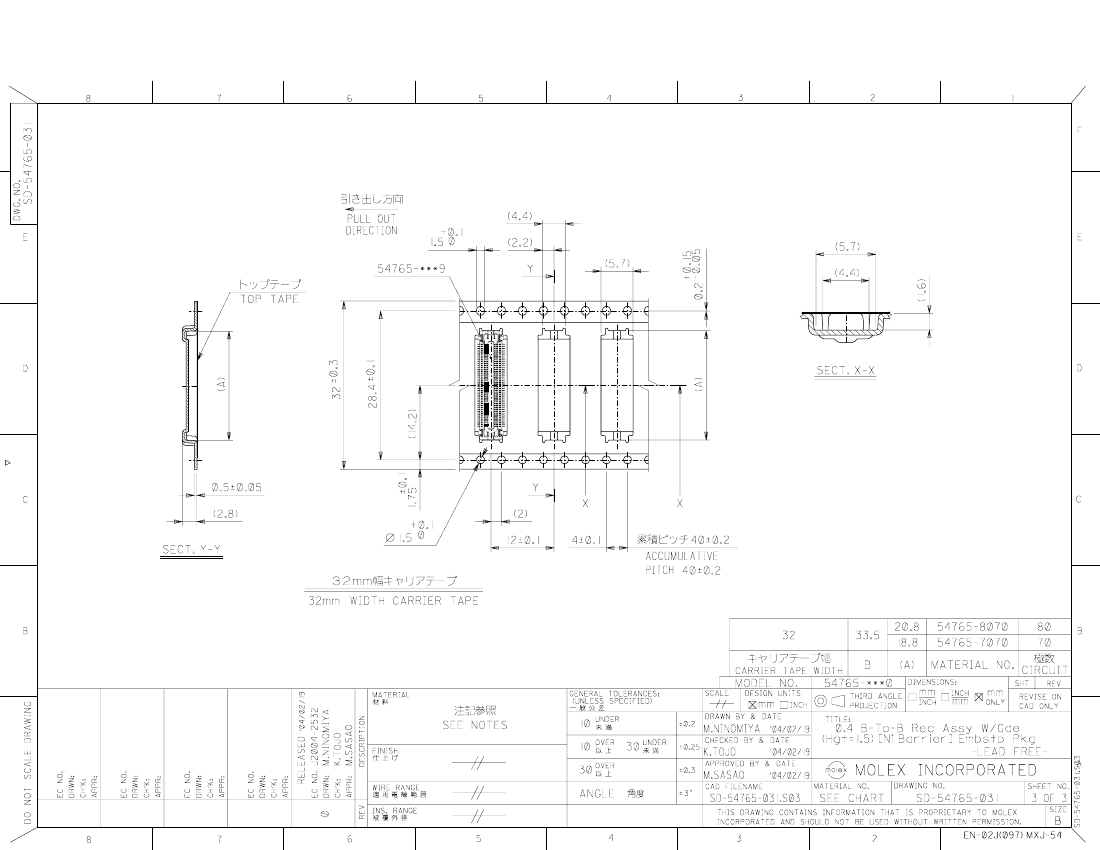

Preview

Download Datasheet

View All

54765-7070 Related Products

	54765-7070	54765-4470	54765-3070
Description	Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	Board Stacking Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant
Samacsys Description	Board to Board & Mezzanine Connectors 0.3FPC ZIF EO HsgAssyAuPlt19CktEmbsTpPkg	Board to Board & Mezzanine Connectors 0.4 BtB Rec Hsg Assy W/Gde44CktEmbsTpPkg	Board to Board & Mezzanine Connectors 0.4 BtB Rec Hsg Assy W/Gde30CktEmbsTpPkg
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	54765	54765	54765
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	70	44	30
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
