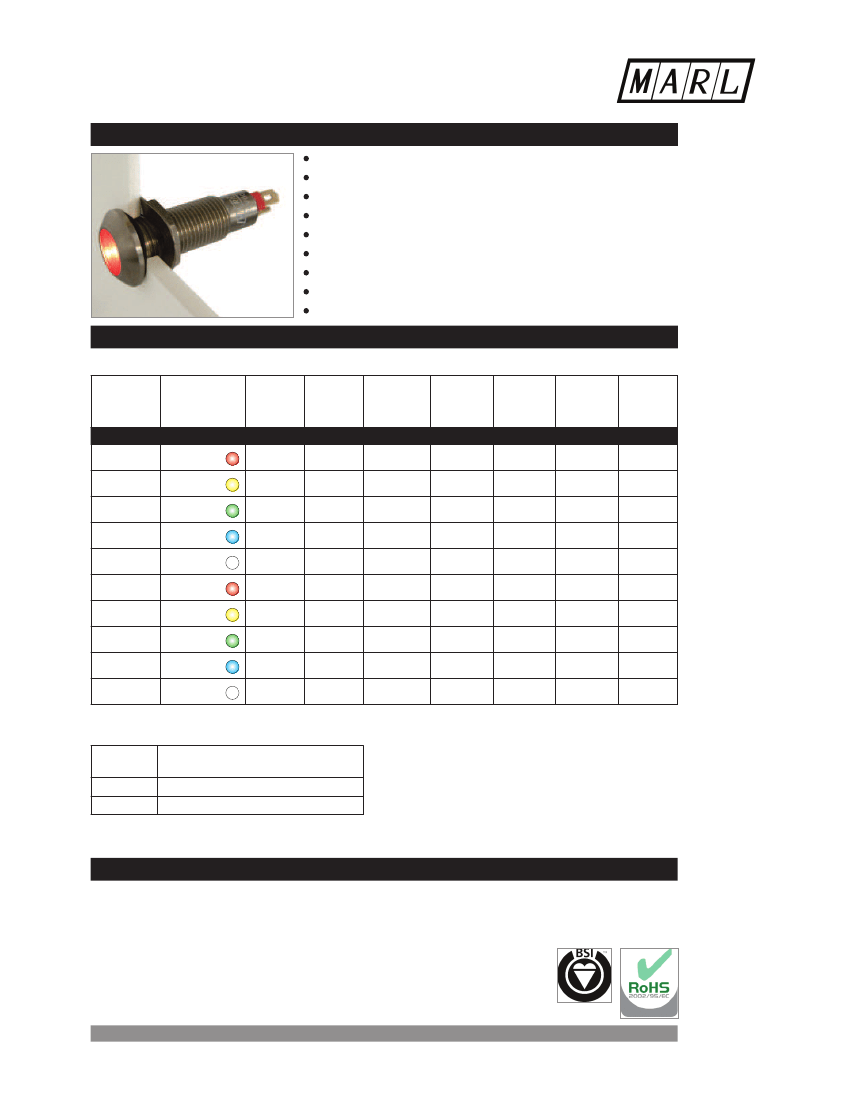

524 series
features
Industrial LED Indicator - Ø 8.1mm mounting
Robust stainless steel housing
Low profile styling and Wide viewing angle
Sunlight readable LEDs
Sealed to IP67
Colour diffused lens
Suitable for high vibration applications
Internal reverse protection diode fitted as standard
Pack quantity = 10 pieces
specifications
Typical characteristics (Ta = 25°C)
Part
Number
high intensity
524-501-21 Red
524-521-21 Yellow
524-532-21 Green
524-930-21 Blue
524-997-21 Cool White
524-501-23 Red
524-521-23 Yellow
524-532-23 Green
524-930-23 Blue
524-997-23 Cool White
12
12
12
12
12
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
20
20
20
20
20
20
20
20
20
20
600
600
800
400
1200
600
600
800
400
1200
630
585
515
465
*
630
585
515
465
*
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
-40 ~ +80^ -40 ~ +100
D
D
F
F
F
D
D
F
F
F
Colour
Voltage
DC (Vdc)
Vopr
Current
DC (mA)
Iopr
Luminous
Intensity
(mcd) Iv
at 20mA
Wave
Length
(nm) λp
Operating
Temp.
(°C) Topr
Storage
Temp.
(°C) Tstg
De-rating
Graphs
^ = Products must be de-rated according to the de-rating information. Each de-rating graph refers to specific
LEDs, refer to graphs on page 3.
997
x
y
*Typical Emission Colour Cool White
0.31
0.32
Intensities (lv) and colour shades of white (x, y co-ordinates) may vary between LEDs within a batch
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for
the intention of providing information, which must not be copied or released to a third party without prior
written consent from marl international limited. the information provided does not constitute part of any
order or contract and should not be regarded as a representation relating to either products or service. no
responsibility can be assumed for inaccuracies or printing errors. marl international limited reserve the
right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited ds: 059/ 10 issue 5
page 1 of 4

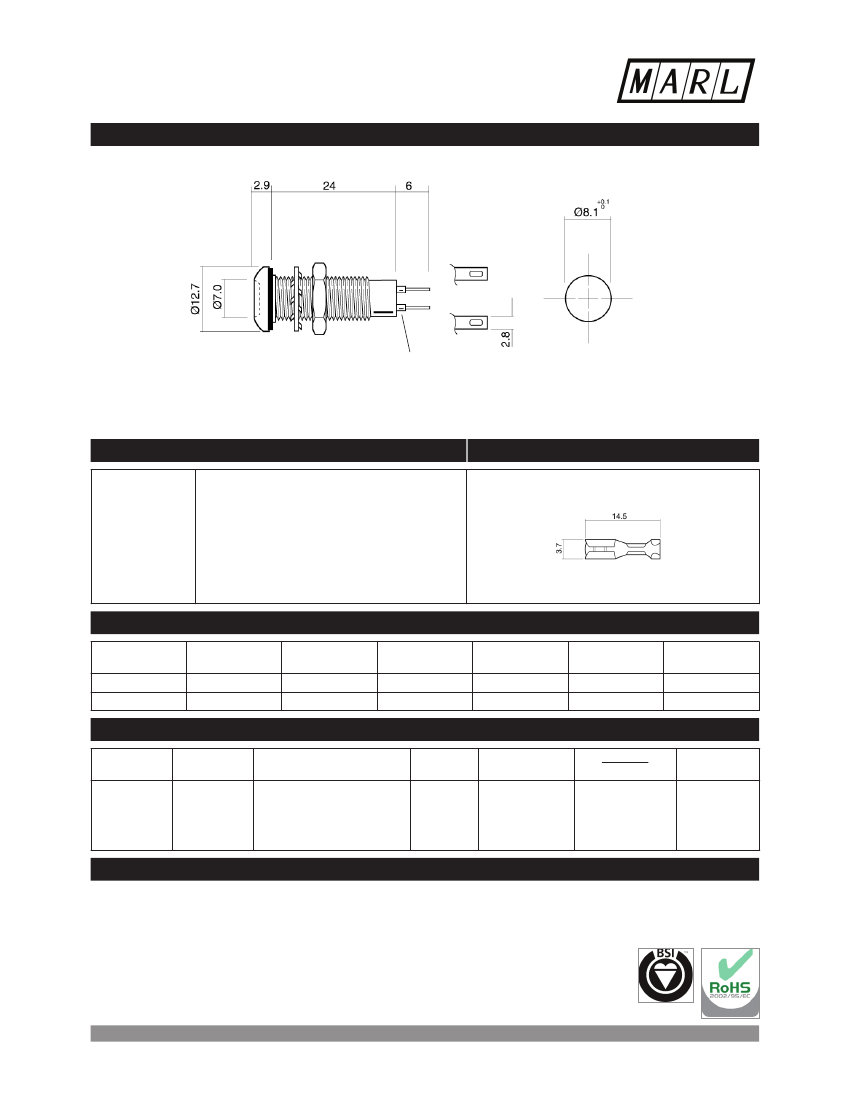

industrial panel lamps
524 series
technical data
Sleeve
Mounting Hole
Dimensions in mm (typical)
Not to scale
Anode termination indicated by red sleeve
Mounting hole to be clean and burr free
housing material
Body
Nut
Panel Seal
Termination
Lock Washer
Fresnel Lens
Encapsulation
Stainless Steel grade 303
Stainless Steel grade 303
Viton
Brass to BS 2874 CZ108
Copper flash undercoat with silver flash finish
Stainless Steel
Polycarbonate
PC5430 Resin
push on connectors
925-000-00 is Brass Tin Plated. For use with 524 Series
Lamps
Dimensions in mm (typical) Not to scale.
technical characteristics
Series
524
units
Max. Power
Dissipation
825
mW
Max. Reverse
Voltage
1000
Vdc
Panel Cutout
8.1
mm
Nut Mounting
Torque
0.65
Nm
Min. Mounting
Centres
x, y = 14.5
mm
Max. Panel
Thickness
1.5 - 13.0
mm
optional flying lead terminators
Order Code
Suffix
15
15
19
19
Supply
Voltage
DC products
AC products
DC products
AC products
Wire
Colour
Red-anode/ Black-cathode
Brown-live/ Blue-neutral
Red-anode/ Black-cathode
Brown-live/ Blue-neutral
Wire
Length
150mm
150mm
1000mm
1000mm
No/Diameter
of Conductor
Diameter
Insulation
Comments
Customised
lengths
available
19/ 0.15mm
1.2mm
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl international
limited. the information provided does not constitute part of any order or contract and should not be regarded as a representation
relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl international
limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited ds: 059/ 10 issue 5
page 2 of 4
524 series
de-rating information
Derating Graph D
55
50
45
40
35
55
50
45
40
35
Derating Graph F
Forward Current IF (mA)
Forward Current IF (mA)
20.0
40.0
60.0
80.0
100.0
30
25
20
15
10
5
0
0.0
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
design considerations
Electro-Static Discharge (ESD)
Build up of electro-static discharge occurs in many situations involving people moving and handling products. The range of
possible situations is very diverse but voltage levels as high as several thousand volts can and do arise in many individual
situations. When an operator charged up to these levels handles a static sensitive device, there is a very probable likelihood
that the device will be irreversibly damaged. It is essential that precautions are taken at all stages during manufacture and
assembly of these products. Although LEDs were never considered to be static sensitive devices, changes in manufacturing
technology and materials used to produce higher intensity products over a large range of the wavelength spectrum have
changed this. Marl has an approved system of ESD control from goods in, through production and into final packing and
despatch. Marl recommend all users of LED based products follow the guidelines of BS 100015.
Power De-Rating
The forward voltage/ current value of an LED is dependant upon the ambient temperature of the environment in which it is
operated. Therefore, care must be taken to operate the LED at the correct voltage/ current values, depending upon the
ambient temperature. Consequently, a recommendation regarding operating voltages and currents is given in order to address
these temperature effects. This recommendation is termed ‘de-rating’. It is usual for forward voltages and currents to be
specified for ambient temperature of 25°C. However, because the values of these qualities vary with temperature, please refer
to the de-rating graphs for correct operation. Marl accept no liability for any product that is operated higher than the stated
voltage.
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl international
limited. the information provided does not constitute part of any order or contract and should not be regarded as a representation
relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl international
limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited ds: 059/ 10 issue 5
page 3 of 4
524 series
also available
Part numbers also available in the 524 series:
Part
Number
524-501-04
524-501-20
Colour
Red
Red
Voltage DC
(Vdc) Vopr
*20mA
*20mA
5/6Vdc
5/6Vdc
5/6Vdc
12Vdc
24Vdc
24Vdc
48Vdc
48Vdc
110Vdc
110Vac
230Vac
115Vac
*20mA
12Vdc
48Vdc
115Vac
*20mA
*20mA
5/6Vdc
5/6Vdc
5/6Vdc
12Vdc
24Vdc
24Vdc
48Vdc
28Vdc
28Vdc
524-532-20-19 Green
524-532-20-22 Green
524-532-21-22 Green
524-532-22
Green
524-532-22-15 Green
524-532-22-22 Green
524-532-24
Green
524-532-24-19 Green
524-532-24-22 Green
524-532-25
Green
524-532-72-15 Green
524-532-75-15 Green
524-532-76-15 Green
524-532-86
524-930-04
Green
Blue
524-532-86-22 Green
524-930-04-15 Blue
524-930-04-50 Blue
524-930-20
Blue
524-930-21-15 Blue
524-930-21-19 Blue
524-930-22
524-930-24
524-930-25
524-997-04
Blue
Blue
Blue
White
5/6Vdc
5/6Vdc
12Vdc
24Vdc
24Vdc
24Vdc
48Vdc
48Vdc
48Vdc
110Vdc
24Vac
110Vac
230Vac
115Vac
115Vac
*20mA
*20mA
*20mA
5/6Vdc
12Vdc
12Vdc
24Vdc
48Vdc
110Vdc
*20mA
*20mA
12Vdc
24Vdc
24Vdc
48Vdc
48Vdc
24Vac
115Vac
524-501-04-15 Red
524-501-20-19 Red
524-501-20-22 Red
524-501-21-15 Red
524-501-22
524-501-24
524-501-25
Red
Red
Red
524-501-22-22 Red
524-501-24-19 Red
524-501-75-15 Red
524-501-76-15 Red
524-501-86-19 Red
524-512-04
524-512-21
524-512-24
524-512-86
524-521-04
524-521-20
Green
Green
Green
Green
Yellow
Yellow
524-521-04-15 Yellow
524-521-20-19 Yellow
524-521-20-22 Yellow
524-521-21-15 Yellow
524-521-22
Yellow
524-521-22-22 Yellow
524-521-24-22 Yellow
524-523-23
524-525-23
524-530-20
524-530-23
524-532-04
524-532-20
Red
Green
524-997-04-15 White
524-997-21-15 White
524-997-22
524-997-24
524-997-72
White
White
White
524-997-22-22 White
524-997-24-22 White
524-997-86-22 White
524-530-04-50 Red/ Green *20mA
Red/ Green 5/6Vdc
Red/ Green 28Vdc
Green
Green
*20mA
*20mA
5/6Vdc
5/6Vdc
524-530-21-15 Red/ Green 12Vdc
524-532-04-15 Green
524-532-20-15 Green
The products listed above illustrate all of the options available to order. These
products may have custom modifications that alter their operation beyond the
generic information contained within this datasheet. Please contact sales for further
information.
* = These products do not contain an integral resistor.
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl international
limited. the information provided does not constitute part of any order or contract and should not be regarded as a representation
relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl international
limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited ds: 059/ 10 issue 5
page 4 of 4
