BB02-CF112-K03-240000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB02-CF112-K03-240000

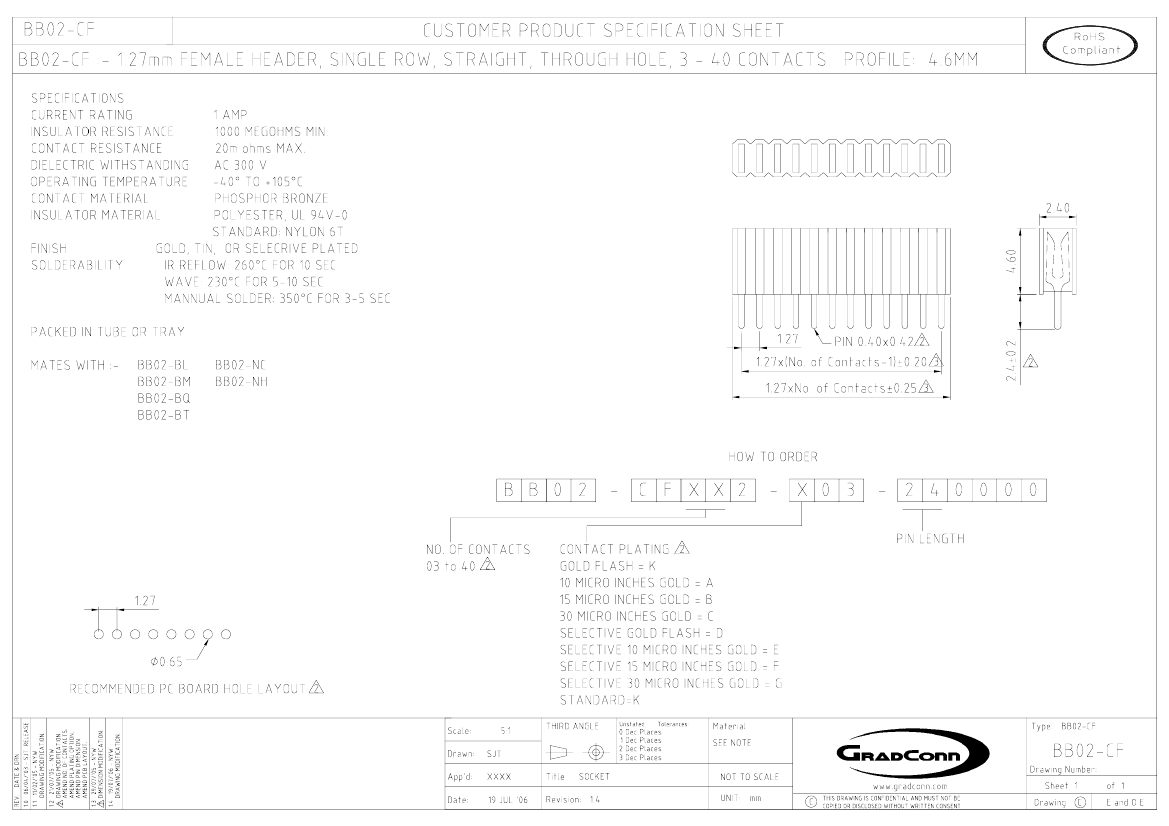

BB02-CF112-K03-240000: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-CF112-K03-240000 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

BB02-CF112-K03-240000 Parametric

Parameter Name	Attribute value
Maker	GradConn Ltd
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT,TUBE/TRAY PKG
body width	0.094 inch
subject depth	0.181 inch
body length	0.55 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-CF
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

BB02-CF112-K03-240000 Related Products

	BB02-CF112-K03-240000	BB02-CF072-K03-240000	BB02-CF122-K03-240000	BB02-CF092-K03-240000	BB02-CF032-K03-240000	BB02-CF102-K03-240000	BB02-CF082-K03-240000	BB02-CF042-K03-240000	BB02-CF052-K03-240000	BB02-CF062-K03-240000
Description	Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug
Maker	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG	ROHS COMPLIANT,TUBE/TRAY PKG
body width	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch
subject depth	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch
body length	0.55 inch	0.35 inch	0.6 inch	0.45 inch	0.15 inch	0.5 inch	0.4 inch	0.2 inch	0.25 inch	0.3 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF	BB02-CF
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	11	7	12	9	3	10	8	4	5	6
Base Number Matches	1	1	1	1	1	1	1	1	-	-
