5962F9862201VCC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9862201VCC

5962F9862201VCC: DescriptionAC SERIES, TRIPLE 3-INPUT AND GATE, CDIP14; Categorylogic logic; File Size49KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9862201VCC Overview

AC SERIES, TRIPLE 3-INPUT AND GATE, CDIP14

5962F9862201VCC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-14
Contacts	14
Reach Compliance Code	not_compliant
series	AC
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.012 A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	12 ns
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACS11MS

Data Sheet

November 1998

File Number

4543

Radiation Hardened Triple 3-Input AND

Gate

The Radiation Hardened ACS11MS is a Triple 3-Input AND

Gate. When all three inputs to one of the gates are at a

HIGH level, the corresponding Y output will be HIGH. A LOW

level on any input will cause the output for that gate to be

LOW. All inputs are buffered and the outputs are designed

for balanced propagation delay and transition times.

The ACS11MS is fabricated on a CMOS Silicon on Sapphire

(SOS) process, which provides an immunity to Single Event

Latch-up and the capability of highly reliable performance in

any radiation environment. These devices offer signiﬁcant

power reduction and faster performance when compared to

ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS11MS are

contained in SMD 5962-98622. A “hot-link” is provided

on our homepage with instructions for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25 Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-Up Free Under any Conditions

- Total Dose. . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD (Si)

- SEU Immunity . . . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels . . . . V

= (0.3)(V

), V

= (0.7)(V

)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . .

±8mA

(Min)

• Quiescent Supply Current . . . . . . . . . . . . . . 100µA (Max)

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . 12ns (Max)

Applications

• High Speed Control Circuits

• Sensor Monitoring

• Low Power Designs

Ordering Information

ORDERING NUMBER

5962F9862201VCC

ACS11D/SAMPLE-03

5962F9862201VXC

ACS11K/SAMPLE-03

5962F9862201V9A

INTERNAL MKT. NUMBER

ACS11DMSR-03

ACS11D/SAMPLE-03

ACS11KMSR-03

ACS11K/SAMPLE-03

ACS11HMSR-03

TEMP. RANGE (

-55 to 125

PACKAGE

14 Ld SBDIP

14 Ld Flatpack

Die

DESIGNATOR

CDIP2-T14

CDFP4-F14

N/A

Pinouts

ACS11MS

(SBDIP)

TOP VIEW

A2 3

B2 4

C2 5

Y2 6

GND 7

12 Y1

11 C3

10 B3

9 A3

8 Y3

GND

ACS11MS

(FLATPACK)

TOP VIEW

A1 1

B1 2

14 V

13 C1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

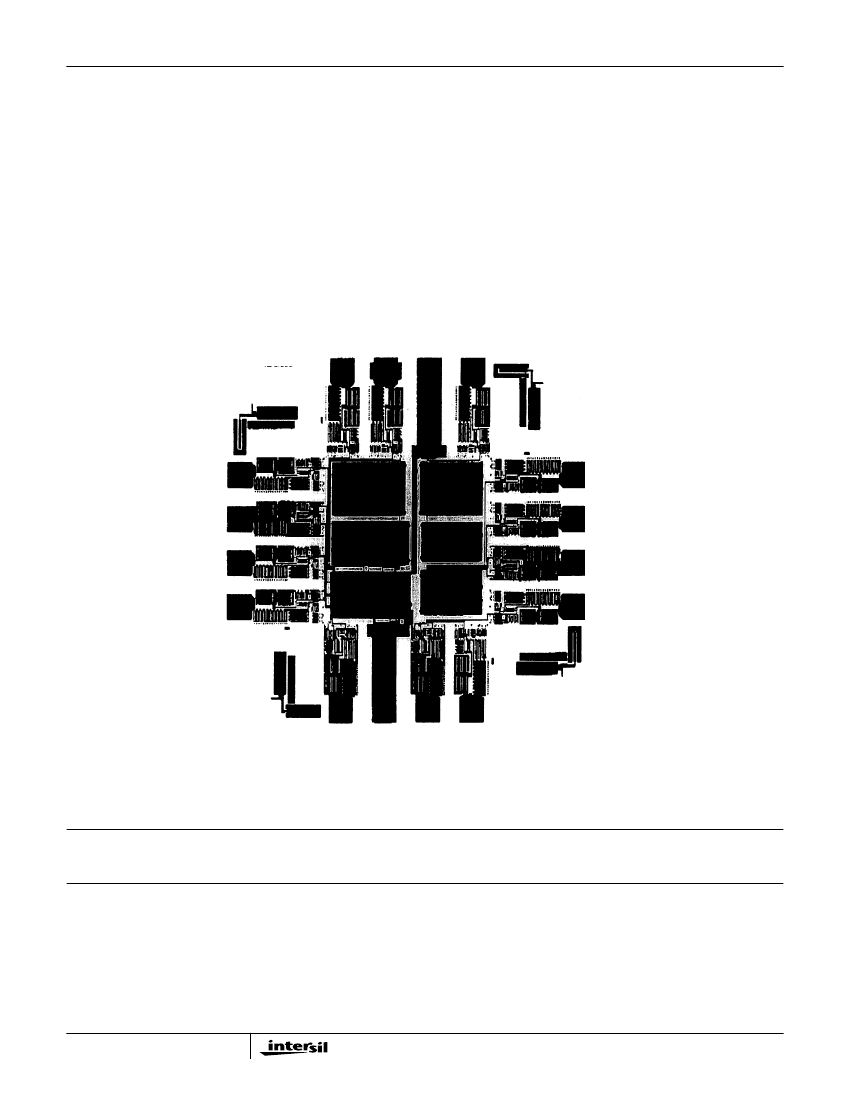

5962F9862201VCC Related Products

	5962F9862201VCC	5962F9862201V9A	5962F9862201VXC
Description	AC SERIES, TRIPLE 3-INPUT AND GATE, CDIP14	AC SERIES, TRIPLE 3-INPUT AND GATE, UUC16, DIE-16	AC SERIES, TRIPLE 3-INPUT AND GATE, CDFP14
Parts packaging code	DIP	DIE	DFP
package instruction	SIDE BRAZED, CERAMIC, DIP-14	DIE,	DFP, FL14,.3
Contacts	14	16	14
Reach Compliance Code	not_compliant	unknown	not_compliant
series	AC	AC	AC
JESD-30 code	R-CDIP-T14	R-XUUC-N16	R-CDFP-F14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE
Number of functions	3	3	3
Number of entries	3	3	3
Number of terminals	14	16	14
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIE	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP	FLATPACK
propagation delay (tpd)	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	UPPER	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Base Number Matches	1	1	1
Is it Rohs certified?	incompatible	-	incompatible
Load capacitance (CL)	50 pF	-	50 pF
MaximumI(ol)	0.012 A	-	0.012 A
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Encapsulate equivalent code	DIP14,.3	-	FL14,.3
power supply	5 V	-	5 V
Prop。Delay @ Nom-Sup	12 ns	-	12 ns
Schmitt trigger	NO	-	NO
Maximum seat height	5.08 mm	-	2.92 mm
Nominal supply voltage (Vsup)	5 V	-	5 V
Temperature level	MILITARY	-	MILITARY
Terminal pitch	2.54 mm	-	1.27 mm
width	7.62 mm	-	6.285 mm
