5962-9226803MXX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9226803MXX

5962-9226803MXX: DescriptionBus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, CERPACK-56; Categorylogic logic; File Size236KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9226803MXX Overview

Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, CERPACK-56

5962-9226803MXX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL56,.4,25
Contacts	56
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
series	FCT
JESD-30 code	R-GDFP-F56
JESD-609 code	e0
length	18.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	10
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL56,.4,25
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	6.3 ns
propagation delay (tpd)	6.8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	9.652 mm
Base Number Matches	1

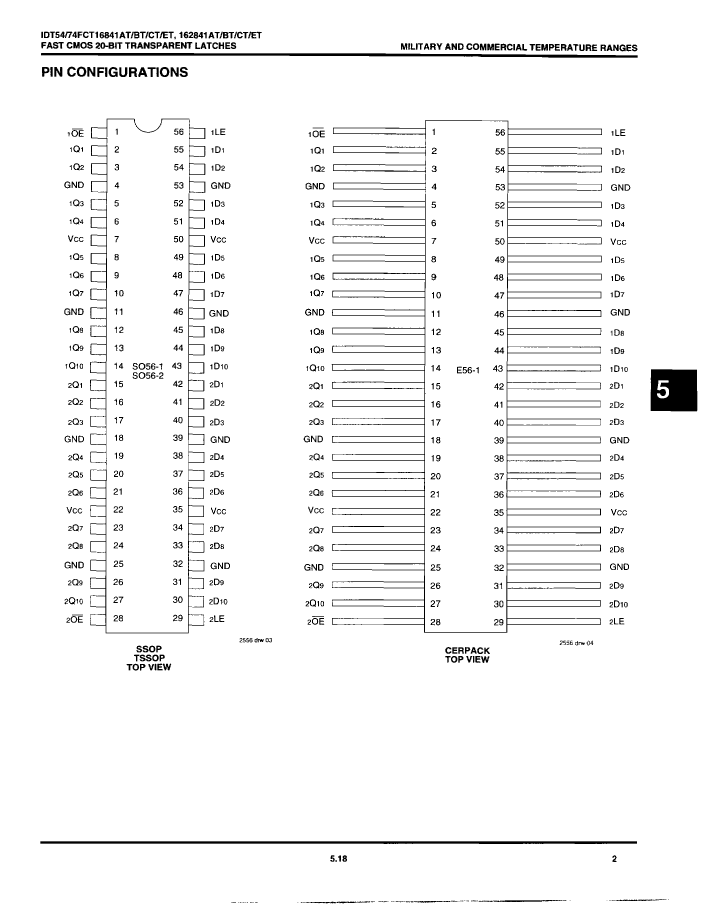

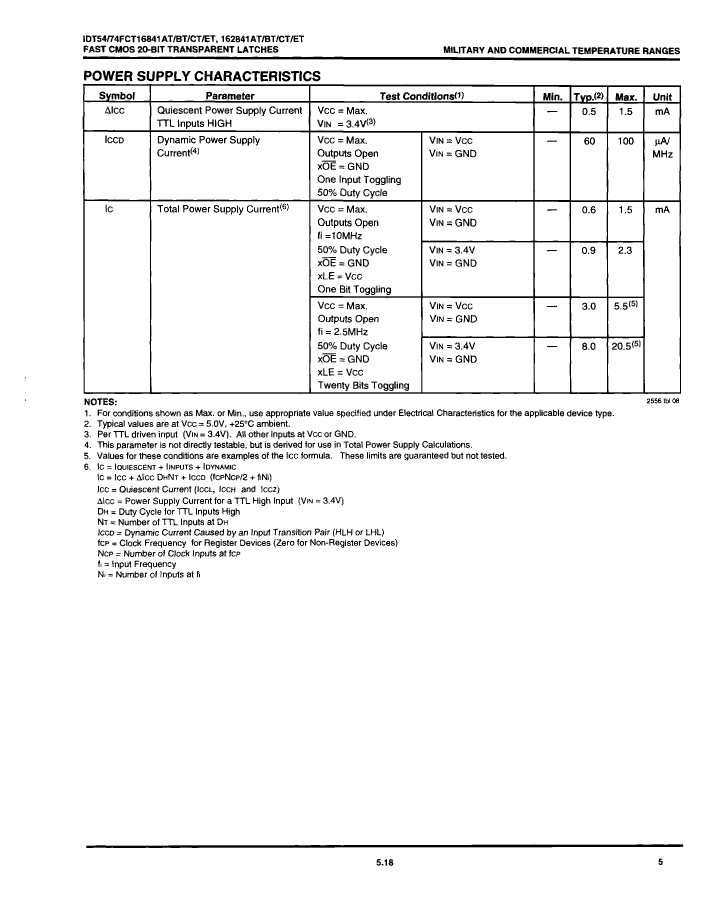

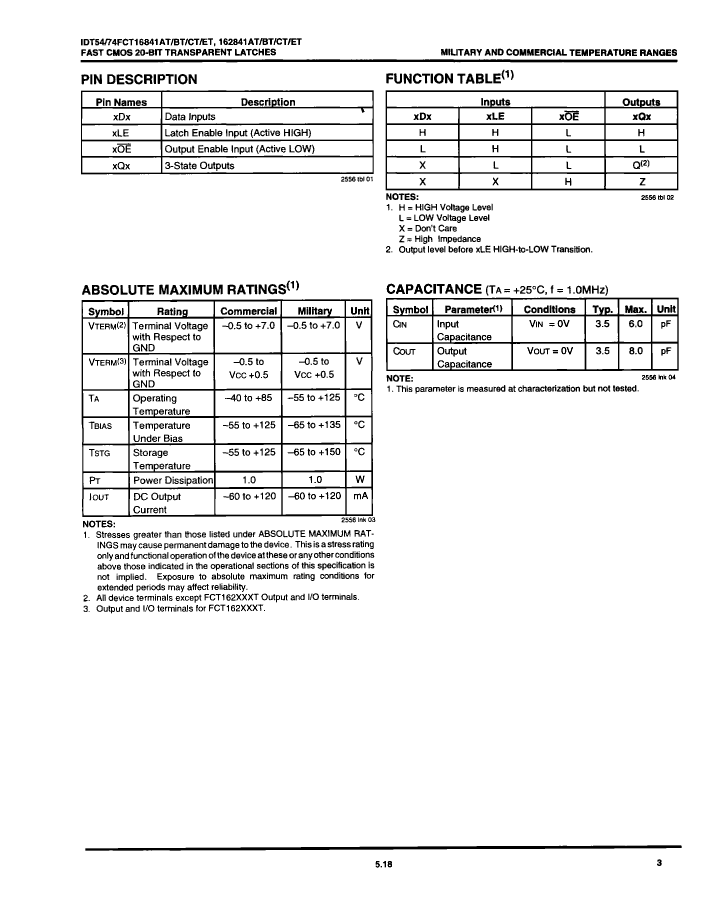

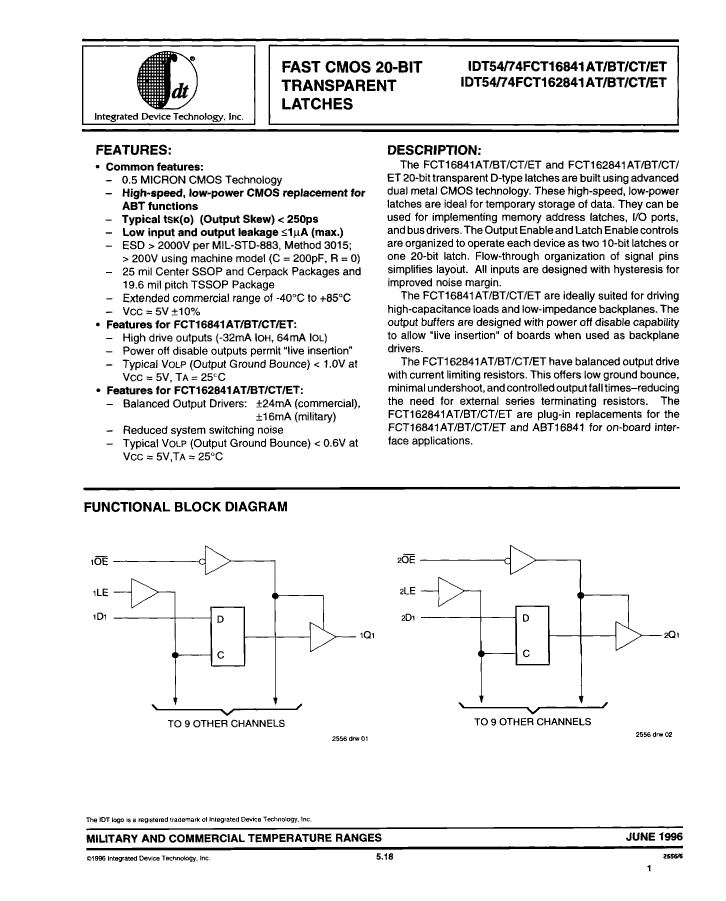

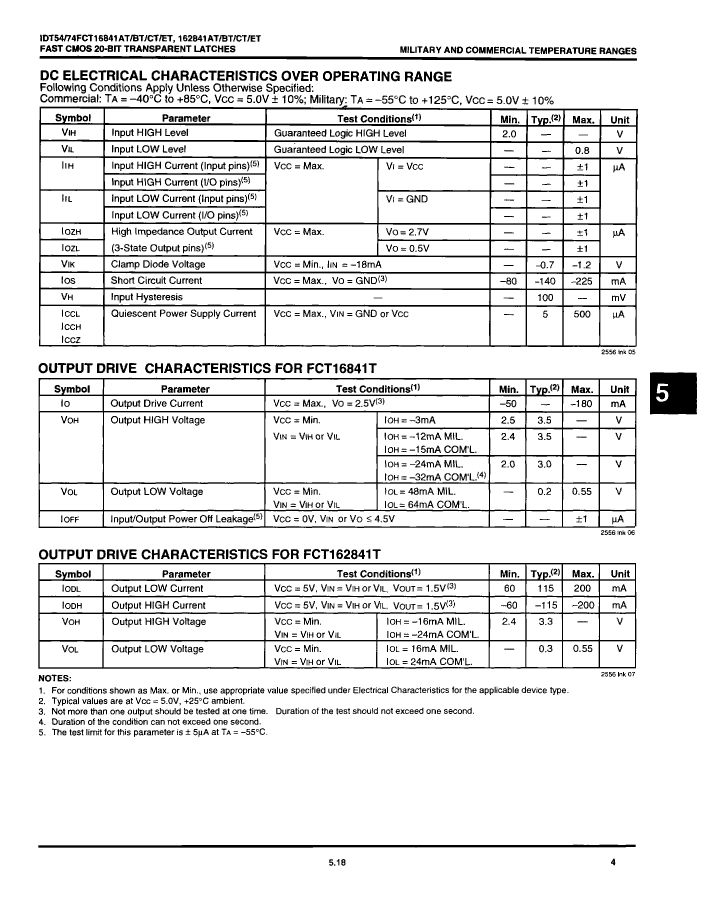

Preview

Download Datasheet

View All

5962-9226803MXX Related Products

	5962-9226803MXX	5962-9228201MXA	5962-9228202MXX	5962-9228203MXX	5962-9226801MXA	5962-9226803MXA	5962-9226802MXX	5962-9226801MXX	5962-9226802MXA	5962-9228201MXX
Description	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, CERPACK-56	CPACK-56, Tube	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, FP-56	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, FP-56	CPACK-56, Tube	CPACK-56, Tube	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, CERPACK-56	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, CERPACK-56	CPACK-56, Tube	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, CDFP56, FP-56
Parts packaging code	DFP	CPACK	DFP	DFP	CPACK	CPACK	DFP	DFP	CPACK	DFP
package instruction	DFP, FL56,.4,25	FP-56	DFP,	DFP,	CERPACK-56	DFP,	DFP,	DFP,	CERPACK-56	DFP,
Contacts	56	56	56	56	56	56	56	56	56	56
Reach Compliance Code	unknown	not_compliant	unknown	unknown	not_compliant	not_compliant	unknown	unknown	not_compliant	unknown
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10	10	10	10	10	10	10
Number of functions	2	2	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56	56	56	56	56
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DFP	DFP	DFP	DFP	DFP	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
propagation delay (tpd)	6.8 ns	20 ns	20 ns	20 ns	13 ns	6.8 ns	10.5 ns	13 ns	10.5 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1	1	1
length	18.415 mm	-	-	-	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	-
Filter level	MIL-STD-883	MIL-STD-883	-	-	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	-
Maximum seat height	2.413 mm	-	-	-	2.413 mm	2.413 mm	2.413 mm	2.413 mm	2.413 mm	-
Terminal pitch	0.635 mm	0.635 mm	-	-	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	-
width	9.652 mm	-	-	-	9.652 mm	9.652 mm	9.652 mm	9.652 mm	9.652 mm	-
