5962R9574401TRX: DescriptionHCT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20; Categorylogic logic; File Size106KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9574401TRX Overview

HCT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20

5962R9574401TRX Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDIP-T20
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

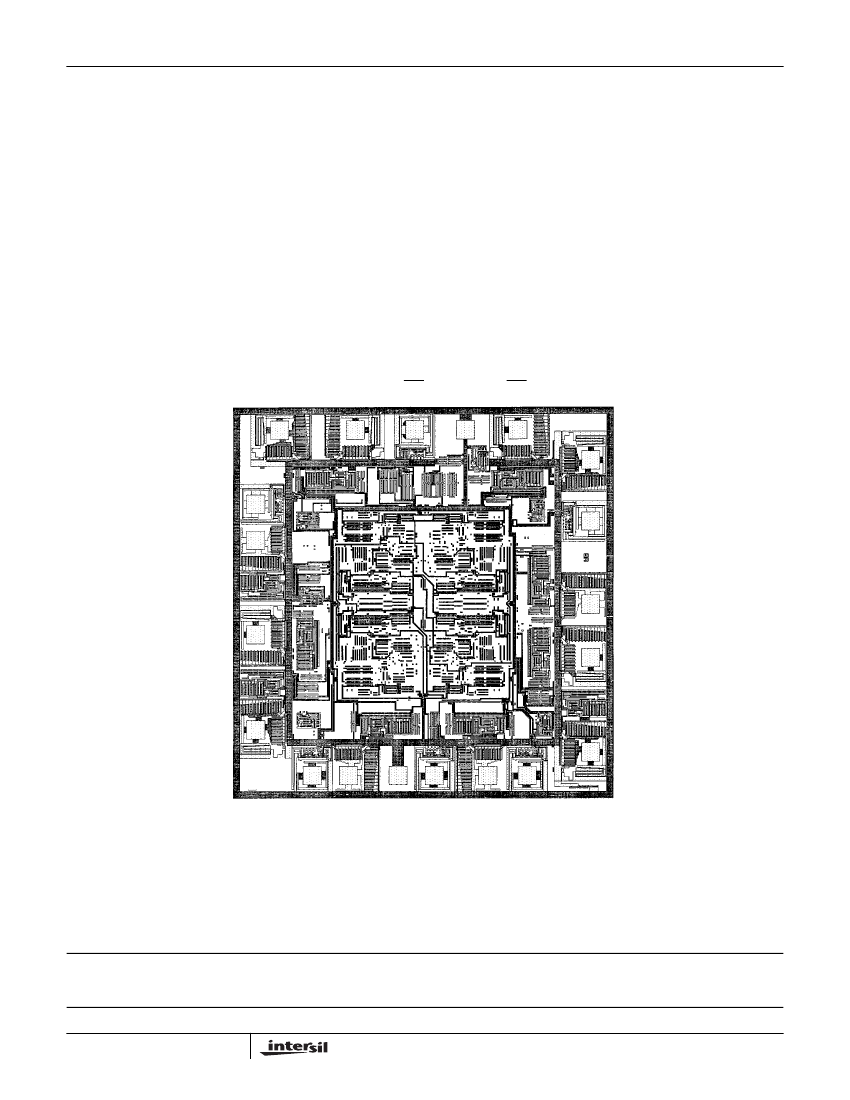

HCTS244T

Data Sheet

July 1999

File Number

4618.1

Radiation Hardened Octal Buffer/Line

Driver, Three-State

Intersil‘s Satellite Applications

(SAF) devices are

fully tested and guaranteed to 100kRAD total dose. These

QML Class T devices are processed to a standard ﬂow

intended to meet the cost and shorter lead-time needs of

large volume satellite manufacturers, while maintaining a

high level of reliability.

The Intersil HCTS244T is a Radiation Hardened Non-

Inverting Octal Buffer/Line Driver, Three-State, with two

active-low output enables.

Flow

TM

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

5

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

2

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened CMOS SOS

• Fanout (Over Temperature Range)

- Bus Driver Outputs - 15 LSTTL Loads

• Signiﬁcant Power Reduction Compared to LSTTL ICs

• DC Operating Voltage Range: 4.5V to 5.5V

• LSTTL Input Compatibility

- V

IL

= 0.8V Max

- VI

H

= V

CC/2

Min

• Input Current Levels Ii

≤

5mA at V

OL

, V

OH

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HCTS244T are

contained in SMD 5962-95744.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil‘s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

Pinouts

HCTS244DTR (SBDIP), CDIP2-T20

TOP VIEW

OE 1

A0 1

1

2

3

4

5

6

7

8

9

10

20

V

CC

19 2 OE

18 1 Y0

17 2 A3

16 1 Y1

15 2 A2

14 1 Y2

13 2 A1

12 1 Y3

11 2 A0

Ordering Information

ORDERING

NUMBER

5962R9574401TRC

5962R9574401TXC

PART

NUMBER

HCTS244DTR

HCTS244KTR

TEMP.

RANGE

(

o

C)

-55 to 125

Y3 2

A1 1

Y2 2

A2 1

Y1 2

A3 1

Y0 2

GND

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

HCTS244KTR (FLATPACK), CDFP4-F20

TOP VIEW

OE 1

A0 1

Y3 2

A1 1

Y2 2

A2 1

Y1 2

A3 1

Y0 2

GND

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

V

CC

2 OE

1 Y0

2 A3

1 Y1

2 A2

1 Y2

2 A1

1 Y3

2 A0

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

|

Copyright

©

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
