Part Number

Search

3450-0001

Description
24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET
CategoryThe connector    The connector
File Size112KB,3 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric Compare View All

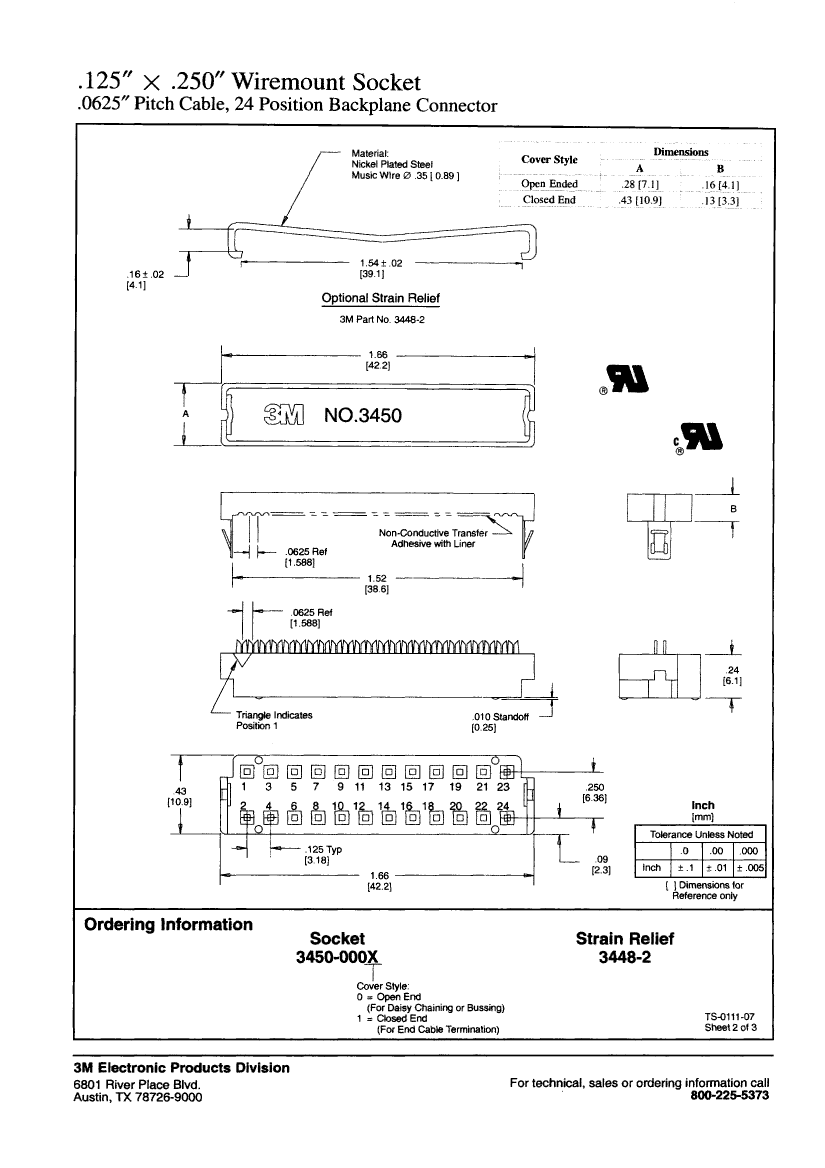

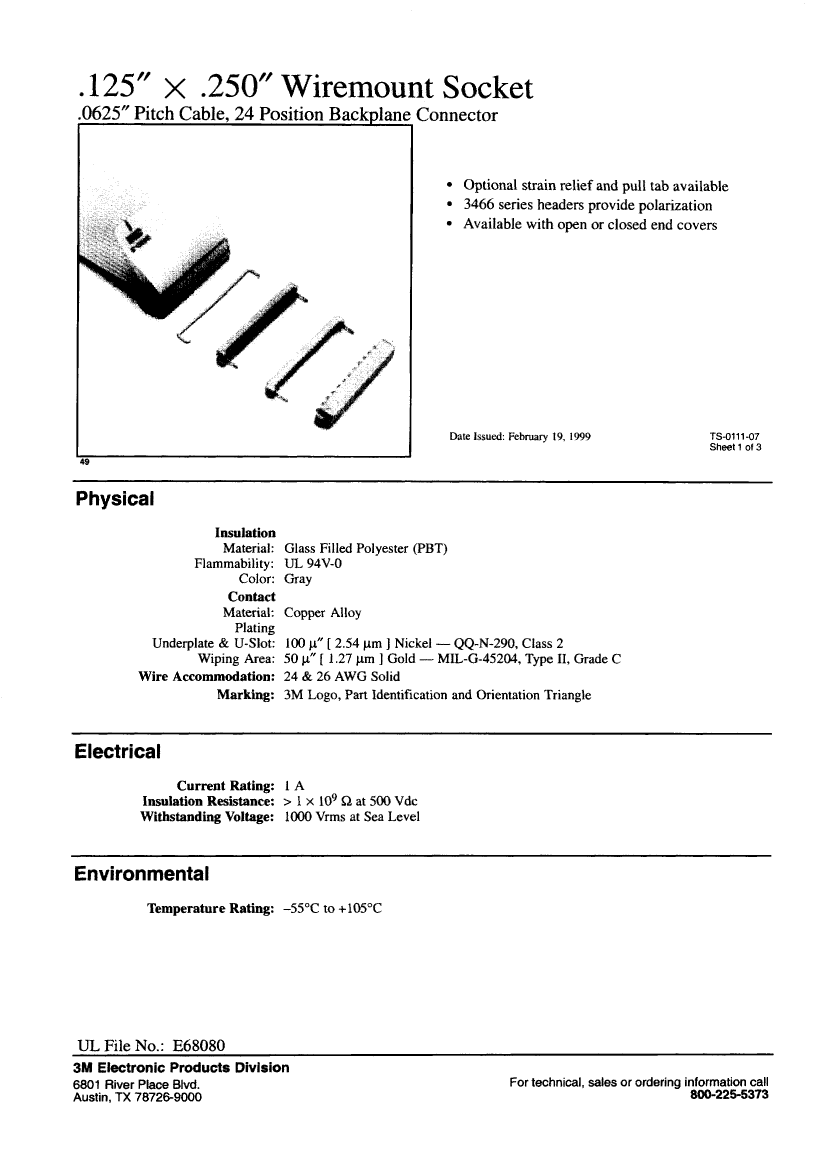

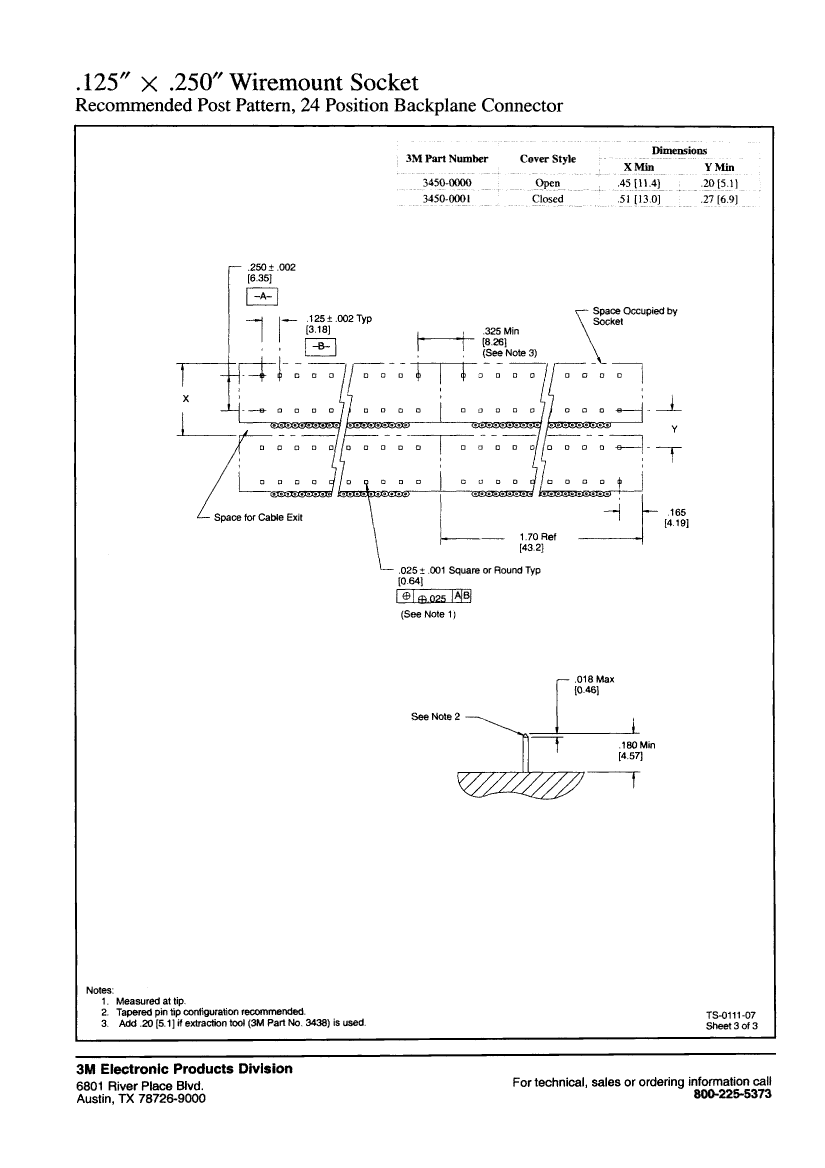

3450-0001 Overview

24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET

3450-0001 Parametric

Parameter NameAttribute value
Maker3M
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresEND CLOSE TO TERMINATE CABLE
body width0.429 inch
subject depth0.38 inch
body length1.661 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedNICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number3450
Plug contact pitch0.125 inch
Match contact row spacing0.25 inch
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness50u inch
polarization keyENDS
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts24
UL Flammability Code94V-0
Maximum wire diameter24 AWG
Minimum wire diameter26 AWG
Base Number Matches1

3450-0001 Related Products

3450-0001 3450-0000
Description 24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET 24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET
Maker 3M 3M
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features END CLOSE TO TERMINATE CABLE END OPEN FOR DAISY CHAINING
body width 0.429 inch 0.429 inch
subject depth 0.38 inch 0.411 inch
body length 1.661 inch 1.661 inch
Body/casing type SOCKET SOCKET
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN
Contact to complete cooperation AU ON NI AU ON NI
Contact completed and terminated NICKEL NICKEL
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V
Filter function NO NO
IEC compliance NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color GRAY GRAY
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER
MIL compliance NO NO
Manufacturer's serial number 3450 3450
Plug contact pitch 0.125 inch 0.125 inch
Match contact row spacing 0.25 inch 0.25 inch
Mixed contacts NO NO
Installation type CABLE CABLE
Number of rows loaded 2 2
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 50u inch 50u inch
polarization key ENDS ENDS
Rated current (signal) 1 A 1 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Termination type IDC IDC
Total number of contacts 24 24
UL Flammability Code 94V-0 94V-0
Maximum wire diameter 24 AWG 24 AWG
Minimum wire diameter 26 AWG 26 AWG
Base Number Matches 1 1
