5-829258-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-829258-4

5-829258-4: DescriptionEDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-829258-4 Overview

EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL

5-829258-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TUBE PACKAGING
Board mount options	EDGE MOUNT
body width	0.571 inch
subject depth	0.63 inch
body length	1.764 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V
maximum insertion force	8.0064 N
Minimum insulation diameter	0.079 inch
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	829258
Plug contact pitch	0.197 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	79u inch
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	16
Maximum wire diameter	18 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	3.9198 N
Base Number Matches	1

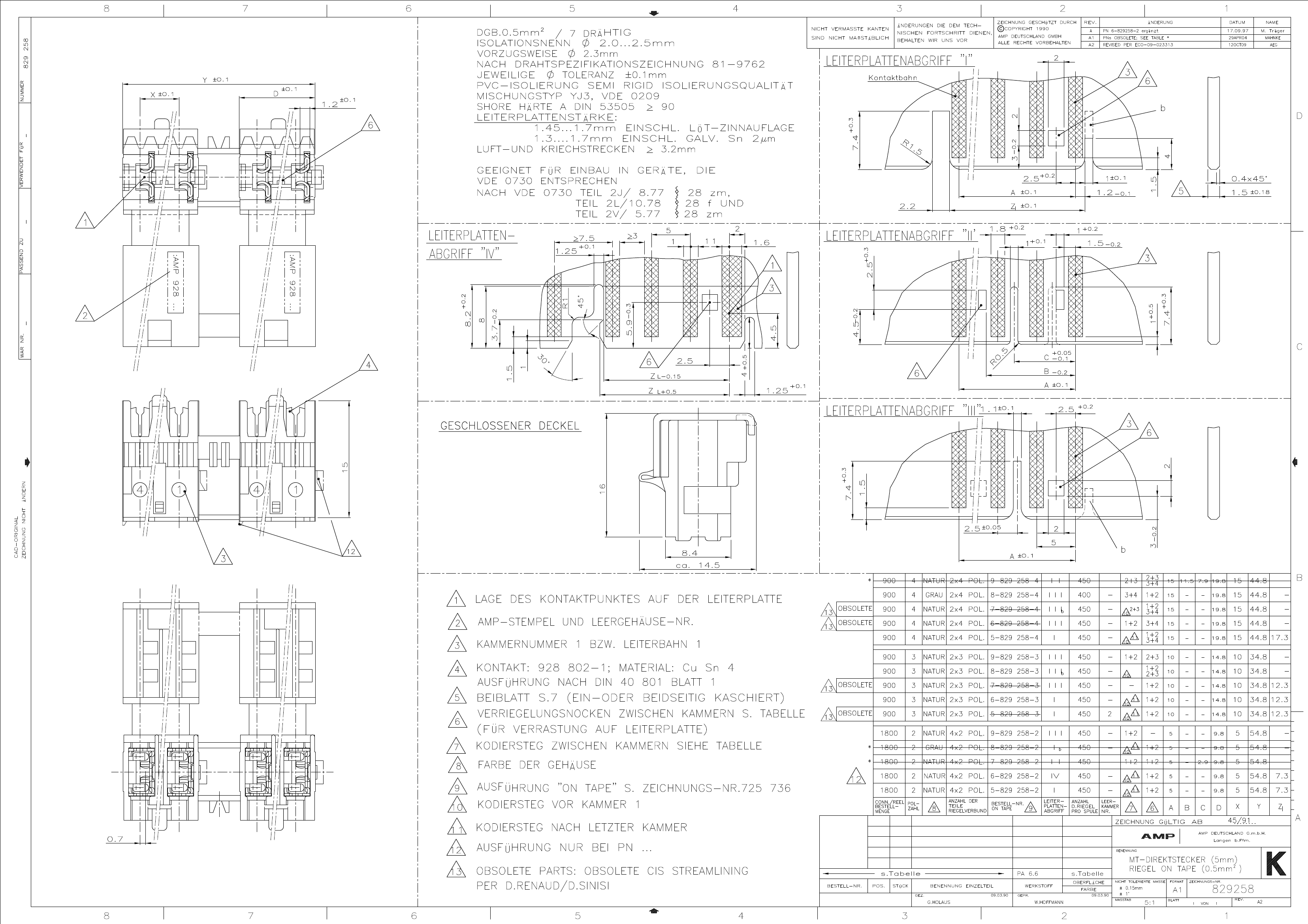

Preview

Download Datasheet

View All

5-829258-4 Related Products

	5-829258-4	9-829258-3	9-829258-2	6-829258-3	5-829258-2
Description	EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL	EDGE CONNECTOR,CABLE MNT,12 CONTACTS,2,IDC TERMINAL	EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL	EDGE CONNECTOR,CABLE MNT,12 CONTACTS,2,IDC TERMINAL	2 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, IDC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING	POLARISED
Board mount options	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT
body width	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch
subject depth	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch
body length	1.764 inch	1.37 inch	2.157 inch	1.37 inch	2.157 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	NOT SPECIFIED
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V	3500VAC V	3500VAC V	3500VAC V	3500VAC V
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
Minimum insulation diameter	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	829258	829258	829258	829258	829258
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	79u inch	79u inch	79u inch	79u inch	79u inch
Rated current (signal)	6 A	6 A	6 A	6 A	6 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC
Total number of contacts	16	12	16	12	2
Maximum wire diameter	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Minimum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Evacuation force-minimum value	3.9198 N	3.9198 N	3.9198 N	3.9198 N	3.9198 N
Base Number Matches	1	1	1	-	-
Maker	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
