Ordering number : EN5860A
DL-3148-033
Red Laser Diode
DL-3148-033
Index Guided AlGaInP Laser Diode
Overview
The DL-3148-033 is index guided 635 nm (Typ.) AlGaInP laser diode with
low threshold current and high operating temperature. The low threshold
current and short wavelength are achieved by a strained multiple quantum
well active layer. The lasing wavelength is 635nm which is 8 times
brighter than that of 670nm lasers. The DL-3148-033 is suitable for
applications such as bar-code scanners, laser printer, and other optical
information systems.
Package Dimensions
0
ø5.6 – 0.025
ø4.4
ø3.55±0.1
ø1.6
Effective window diameter 1.0min.
Tolerance :
±0.2
Unit
: mm
1
2
3
Top view
0.4±0.1
1.2±0.1
1.0±0.1
Features
•Short wavelength
•Low threshold current
•High operating temperature
•Small package
: 635 nm (Typ.)
: Ith = 40 mA (Typ.)
: 5 mW at 50°C
: 5.6 mmØ
1.27±0.08
0.25
LD facet
3.5±0.5
0.5max.
ø1.4max.
6.5±1.0
3–ø0.45±0.1
Absolute Maximum Ratings at Tc=25
°
C
Parameter
Light Output
Reverse Voltage
Laser
PIN
Symbol
Po
V
R
Topr
Tstg
Ratings
5
2
30
-- to +50
-10
-- to +85
-40
Unit
mW
V
°C
°C
Pin No.
1 2 3 ø2.0
5.6mm ø stem
Electrical Connection
1
3
Operating Temperature
Storage Temperature
LD
PD
2
Electrical and Optical Characteristics at Tc=25
°
C
Parameter
Threshold Current
Operating Current
Operating Voltage
Lasing Wavelength
Beam
g)
Perpendicular
Divergence
Parallel
Off Axis
Perpendicular
Angle
Parallel
Differential Efficiency
Monitoring Output Current
Astigmatism
g)
Full angle at half maximum
Symbol
Ith
Iop
Vop
λ
p
θ⊥
θ
//
∆θ ⊥
∆θ //
dPo/dIop
Im
As
Condition
CW
Po=5mW
Po=5mW
Po=5mW
Po=5mW
Po=5mW
--
-
--
-
--
-
Po=5mW
Po=5mW
Min.
-
-
-
-
-
-
-
-
25
6
-
-
-
-
-
-
0.1
-
-
Typ.
40
55
2.2
635
35
8
-
-
-
-
0.4
0.2
8
– power supply system
Max.
60
75
2.4
640
40
10
±3
±3
-
-
0.5
-
-
Unit
mA
mA
V
nm
deg.
deg.
deg.
deg.
mW/mA
mA
µm
note : The above product specifications are subject to change without notice.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
N2798 GI / N2897 GI, (IM) No.5860 1/3
DL-3148-033

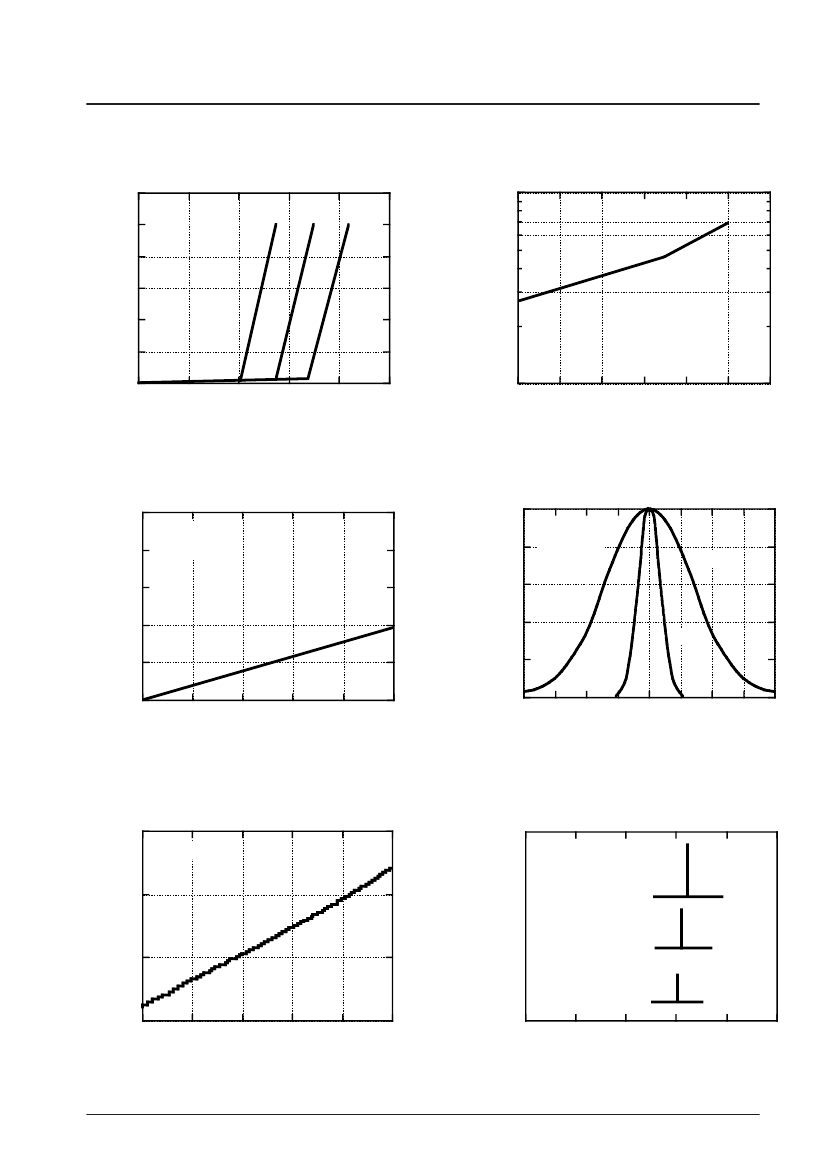

Characteristics
Output power vs. Forward current
25°C
5
4
3
2
1
0
0
20
40
60
80
100
40°C
50°C
Threshold current vs. Temperature
Threshold current Ith (mA)
100
80
60
40
6
Output power Po (mW)
20
10
0
10
20
30
40
50
60
Forward current IF (mA)
Temperature Tc (°C)
Monitor current vs. Output power
0.5
1.0
Beam divergence
Po=5mW
Tc=25°C
Monitor current Im (mA)
0.3
0.2
0.1
0
0
1
2
3
4
5
Output power Po (mW)
Relative intensity
0.4
Tc=25°C
Vr(PD)=5V
0.8
0.6
0.4
0.2
0
θ⊥
θ
//
-40 -30 -20 -10
0
10
20
30
40
Angle
θ
(deg.)
Lasing wavelength vs. Temperature
645
Output power vs. Lasing wavelength
Tc=25°C
Lasing wavelength
λp
(nm)
Po=5mW
640
Relative intensity
Po=5mW
Po=3mW
635
Po=1mW
630
0
10
20
30
40
50
630
632
634
636
638
640
Temperature Tc (°C)
Lasing wavelength
λp
(nm)
No.5860 2/3
DL-3148-033
CAUTION
1. No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster / crime-prevention equipment or
the like, and the failure of which may directly or indirectly cause injury, death or property loss.
2. Anyone purchasing any products described or contained herein for an above-mentioned use shall:
1) Accept full responsibility and indemnify and defend SANYO ELECTRIC CO.,LTD., it’s affiliates,
subsidiaries and distributors or any of their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, costs and expenses associated with such use.
2) Not impose any responsibility for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., it’s affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
3. Information (including circuit diagrams and circuit parameters) disclosed herein is for example only; it is not
guaranteed for mass production, SANYO believes the information disclosed herein is accurate and reliable,
but no guarantees are made or implied regarding it’s use or any infringements of intellectual property rights
or other rights of third parties.
Precautionary instructions in handling gallium arsenic products
Special precautions must be taken in handling this product because it contains, gallium arsenic, which is
designated as a toxic substance by law. Be sure to adhere strictly to all applicable laws and regulations
enacted for this substance, particularly when it comes to disposal.
Manufactured by ;
Tottori SANYO Electric Co., Ltd.
Electronics Device Bussiness Headquaters LED Division
5-318, Tachikawa-cho, Tottori City, 680-8634 Japan
TEL: +81-857-21-2137 FAX: +81-857-21-2161
No.5860 3/3
