ICM7556IPDZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> ICM7556IPDZ

ICM7556IPDZ: DescriptionGeneral Purpose Timers; PDIP14; Temp Range: -40° to 85°C; CategoryAnalog mixed-signal IC The signal circuit; File Size679KB，13 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

ICM7556IPDZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICM7556IPDZ	-	-	View	Buy Now

ICM7556IPDZ Overview

General Purpose Timers; PDIP14; Temp Range: -40° to 85°C

ICM7556IPDZ Parametric

Parameter Name	Attribute value
Brand Name	Intersil
Maker	Renesas Electronics Corporation
Parts packaging code	PDIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
Samacsys Description	General purpose timer,ICM7556IPD 1MHz
Analog Integrated Circuits - Other Types	SQUARE
JESD-30 code	R-GDIP-T14
JESD-609 code	e3
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output frequency	1 GHz
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

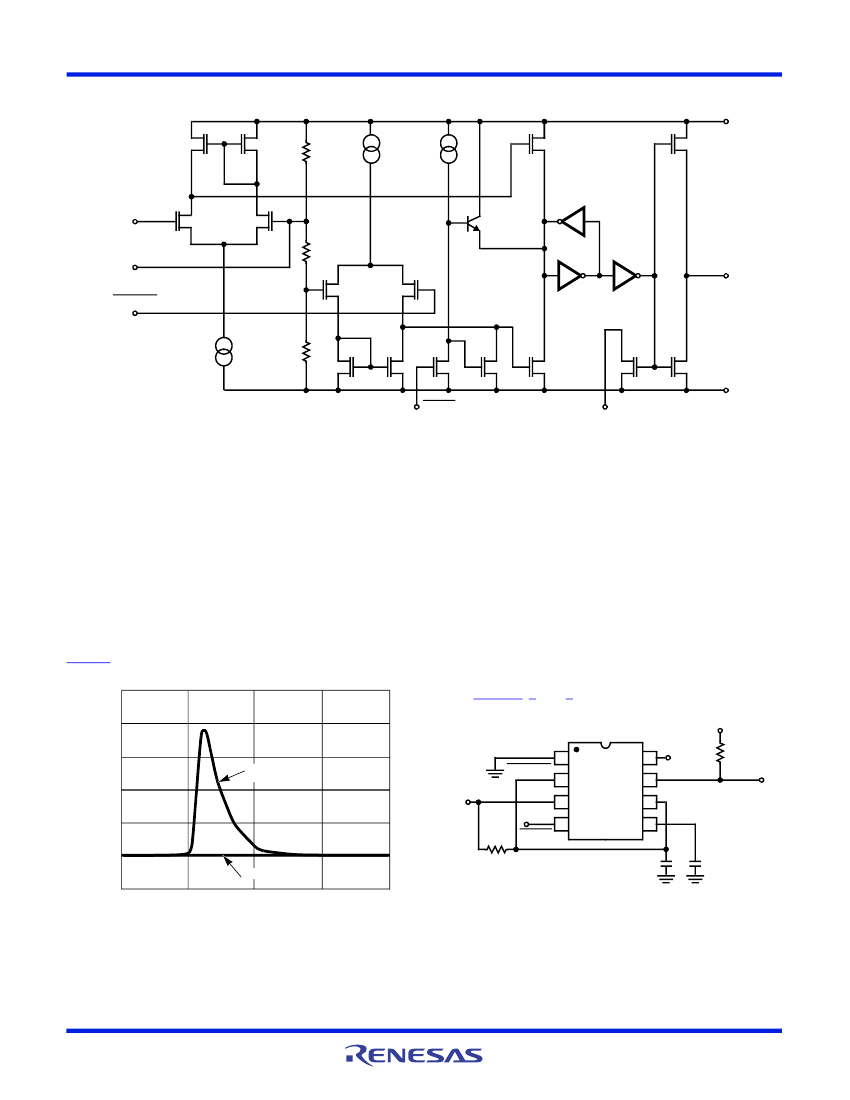

ICM7555, ICM7556

General Purpose Timers

The

ICM7555

and

ICM7556

are CMOS RC timers providing

significantly improved performance over the standard

SE/NE 555/556 and 355 timers, while at the same time being

direct replacements for those devices in most applications.

Improved parameters include low supply current, wide

operating supply voltage range, low Threshold, Trigger and

Reset currents, no crowbarring of the supply current during

output transitions, higher frequency performance and no

requirement to decouple Control Voltage for stable operation.

Specifically, the ICM7555 and ICM7556 are stable controllers

capable of producing accurate time delays or frequencies. The

ICM7556 is a dual ICM7555, with the two timers operating

independently of each other, sharing only V+ and GND. In the

one shot mode, the pulse width of each circuit is precisely

controlled by one external resistor and capacitor. For astable

operation as an oscillator, the free running frequency and the

duty cycle are both accurately controlled by two external

resistors and one capacitor. Unlike the regular bipolar

SE/NE 555/556 devices, the Control Voltage terminal need not

be decoupled with a capacitor. The circuits are triggered and

reset on falling (negative) waveforms, and the output inverter

can source or sink currents large enough to drive TTL loads, or

provide minimal offsets to drive CMOS loads.

FN2867

Rev.10.01

Mar 5, 2020

Features

• Exact equivalent in most cases for SE/NE 555/556 or

TLC555/556

• Low supply current

- ICM7555 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60µA

- ICM7556 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120µA

• Extremely low input currents . . . . . . . . . . . . . . . . . . . . . . 20pA

• High speed operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1MHz

• Guaranteed supply voltage range . . . . . . . . . . . . . . 2V to 18V

• Temperature stability . . . . . . . . . . . . . 0.005%/°C at +25°C

• Normal reset function - no crowbarring of supply during

output transition

• Can be used with higher impedance timing elements than

regular 555/556 for longer RC time constants

• Timing from microseconds through hours

• Operates in both astable and monostable modes

• Adjustable duty cycle

• High output source/sink driver can drive TTL/CMOS

• Outputs have very low offsets, HIGH and LOW

• Pb-free (RoHS Compliant)

Applications

• Precision timing

• Pulse generation

• Sequential timing

• Time delay generation

• Pulse width modulation

• Pulse position modulation

• Missing pulse detector

Related Literature

For a full list of related documents, visit our website:

•

ICM7555

and

ICM7556

device pages

Pin Configurations

ICM7555

(8 LD PDIP, SOIC)

ICM7556

(14 LD PDIP)

TOP VIEW

DISCHARGE1 1

GND 1

TRIGGER 2

OUTPUT 3

RESET 4

8 V

7 DISCHARGE

6 THRESHOLD

5 CONTROL

VOLTAGE

THRESHOLD1 2

CONTROL 3

VOLTAGE1

RESET1 4

OUTPUT1 5

TRIGGER1 6

GND 7

TOP VIEW

14 V

13 DISCHARGE2

12 THRESHOLD2

11 CONTROL

VOLTAGE2

10 RESET2

9 OUTPUT2

8 TRIGGER2

FN2867 Rev.10.01

Mar 5, 2020

Page 1 of 13
