BXO9320 / SXO9320 VCO Performance Datasheet
Cross Reference Guide
BXO9320 / SXO9320*
* Part number for additional environmental screening.
Performance Data
Frequency
P
1dB
Harmonics
Phase Noise @ 100 kHz
Power Supply
Tuning Voltage
1700.0 - 2300.0 MHz
12.0 dBm Typical
10.0 dBm Min
-20.0 dBC Typical
-15.0 dBC Max
-105.0 dBC/Hz Typical
15.0 Volts
45.0 mA
3.0 - 15.0 V

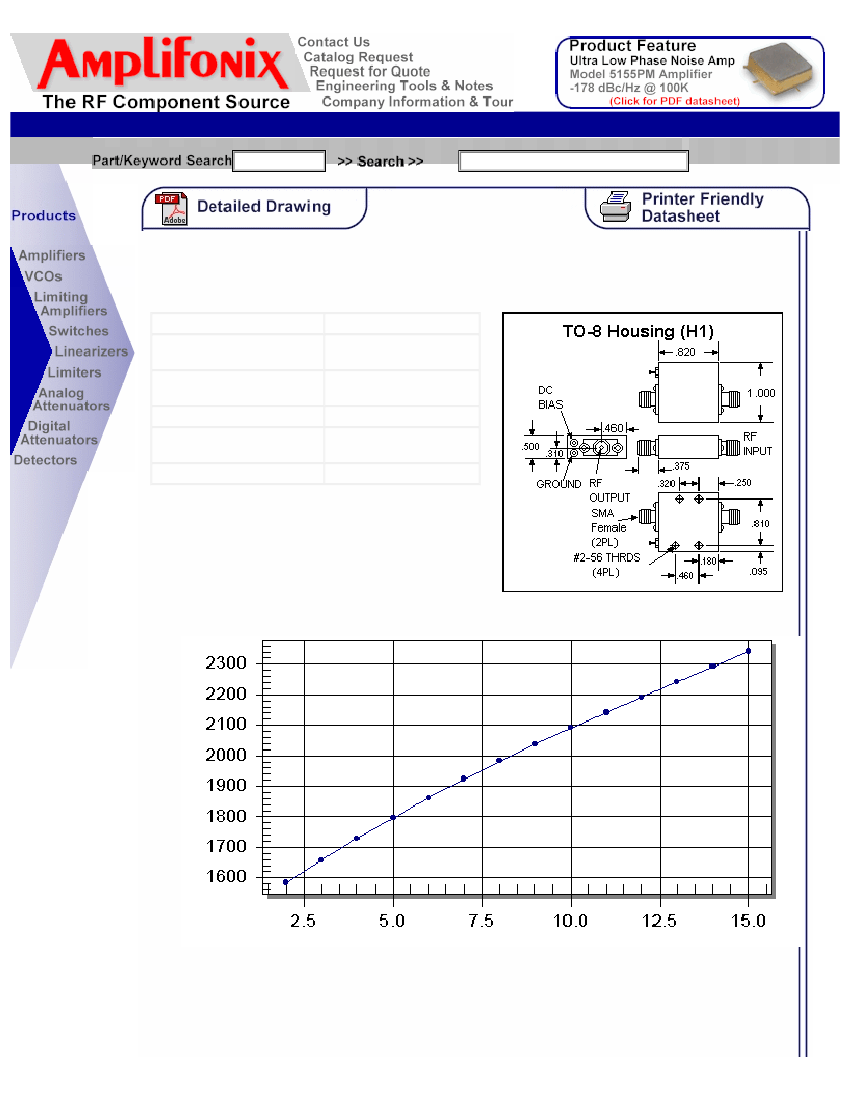

Package Drawing
Frequency
MHz
Tuning Voltage (V)
P
1dB
Compression Point
http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9320&Pack=H1 (1 of 2) [1/25/2005 10:27:00 AM]
BXO9320 / SXO9320 VCO Performance Datasheet
dBm
Tuning Voltage (V)
Performance vs Tuning Voltage
Tuning Voltage
(Volts)
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
Frequency
(MHz)
1584.2
1657.8
1729.6
1796.2
1861.5
1924.2
1982.3
2038.2
2091.1
2141.7
2191.7
2241.9
2291.7
2342.0
Tuning Voltage Sensitivity
(MHz/V)
-
73.6
71.8
66.6
65.3
62.7
58.1
55.9
52.9
50.6
50.0
50.2
49.8
50.3
Power
(dBm)
14.5
14.1
13.6
13.5
13.5
13.5
13.4
13.5
13.8
13.7
13.3
13.0
12.0
11.0
