J-Y7587#01: DescriptionKeylock Switch, SP4T, Latched, 0.01A, 12VDC, Panel Mount, LEADF FREE; CategoryMechanical and electronic products switch; File Size48KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

J-Y7587#01 Overview

Keylock Switch, SP4T, Latched, 0.01A, 12VDC, Panel Mount, LEADF FREE

J-Y7587#01 Parametric

Parameter Name	Attribute value
Maker	SMK
package instruction	LEADF FREE
Reach Compliance Code	unknown
ECCN code	EAR99
body width	30.5 mm
body height	15 mm
Body length or diameter	34.5 mm
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	.01A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	J-Y7587#01
Installation features	PANEL MOUNT
Number of independent keys	1
Number of switching segments	1
surface mount	NO
Switch action	LATCHED
switch function	SP4T
Switch type	KEYLOCK SWITCH
Base Number Matches	1

Preview

Download Datasheet

View All

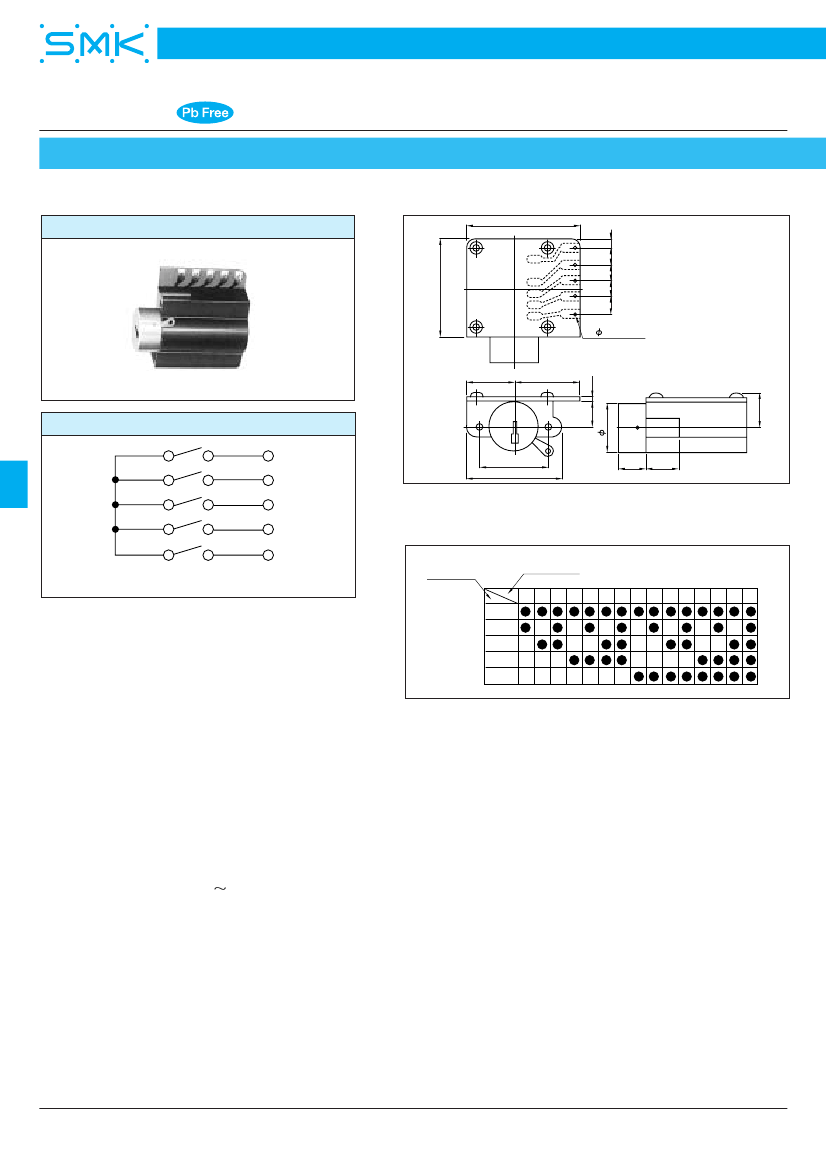

KEY LOCK SWITCH

Mold Type

Part No.

J-Y7587#01

Outline Drawing

34.5

5 3

5

0

1

2

30.5

4

8

5- 1.2 Holes

1.2

14.5

20

Circuit

C

1

2

21

29

8

15

8

10

KEY LOCK SWITCH

4

8

BCD Code Table

Terminal

Signal No.

1

0

1

2

4

8

2

3

4

5

6

7

8

9 10 11 12 13 14 15

■

Features

1. 15 types binary-code outputs only by inserting the key into

switch.

2. The earth teriminals mounted to metallic cap is provided in

consideration of safety against static electricity.

■

Specifications

1.

2.

3.

4.

5.

6.

7.

Rating

Circuit

Insertion Force

Operating Life

Contact Resistance

Insulation Resistance

Withstanding Voltage

: 10mA 12V DC (Resistance load)

: SP4T

: 2 12N

: 100,000 cycles

: 100Ωmax.

: 100MΩmin at 250V DC

: 250V AC for one minute

■

Applications

ECR/POS equipment.

98

10
