SLKG3113141G: DescriptionBoard Connector, 141 Contact(s), 3 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

SLKG3113141G Overview

Board Connector, 141 Contact(s), 3 Row(s), Male, Straight, Solder Terminal

SLKG3113141G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SLK
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	141
Base Number Matches	1

Preview

Download Datasheet

View All

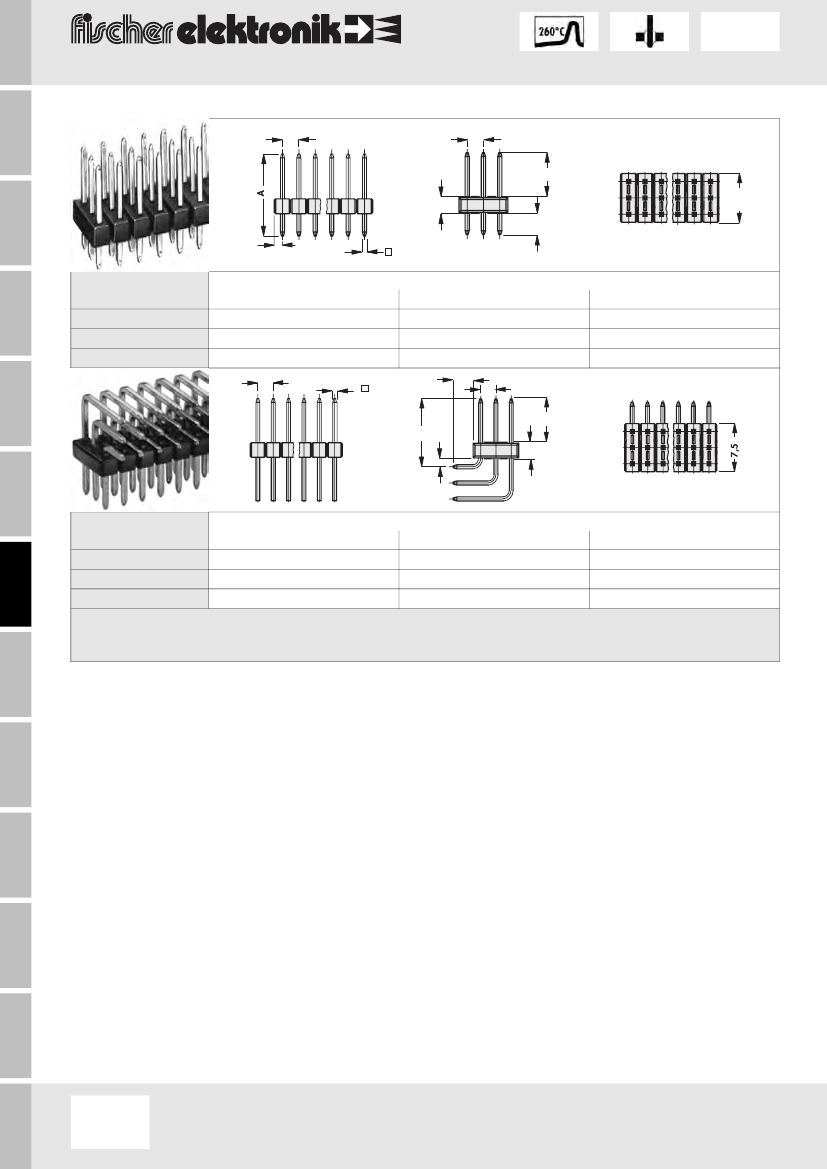

A

Male headers

Three rows, □ 0.635 mm

2.54

B

2,54

C

1,27

0,635

2,5

art. no.

D

SL KG 3 113 ...

SL KG 3 126 ...

SL KG 3 147 ...

2,54

A

11.3

12.6

14.7

0,635

dim. [mm]

B

3.3

B

C

5.5

6.8

8.9

E

2,54

C

1,27

A

F

art. no.

SL KA 3 072 ...

SL KA 3 085 ...

SL KA 3 108 ...

please indicate:

G

A

7.2

8.5

10.8

... no. of contacts

three rows 3 - 150

dim. [mm]

B

3.3

... surface of contact

G = gold-plated

Z = tin-plated

2,5

C

3.4

4.7

7.0

H

I

K

L

M

Female headers 2.54 THT

Direct female connectors

Female headers 2.54 SMD

Female headers 2.54 press-fit



G

52

75

58 – 63

50 – 66

Jumpers

High-prec. male headers 2.54 THT

Female headers for PC 104

Technical data



G

76

45

55

78

–

77

55

56

84

N

G 17

7,5
