32_BNC-PC7-50-1/1--_UE

Description
RF Connector Adapter, BNC-PC7, Male-Male, Plug-plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

32_BNC-PC7-50-1/1--_UE Overview

RF Connector Adapter, BNC-PC7, Male-Male, Plug-plug, ROHS COMPLIANT

32_BNC-PC7-50-1/1--_UE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeBNC-PC7
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/404
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-MALE
Coupling typeBAYONET-THREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE/PPH
MIL complianceYES
Manufacturer's serial numberBETWEEN
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.04
Base Number Matches1
HUBER+SUHNER
®

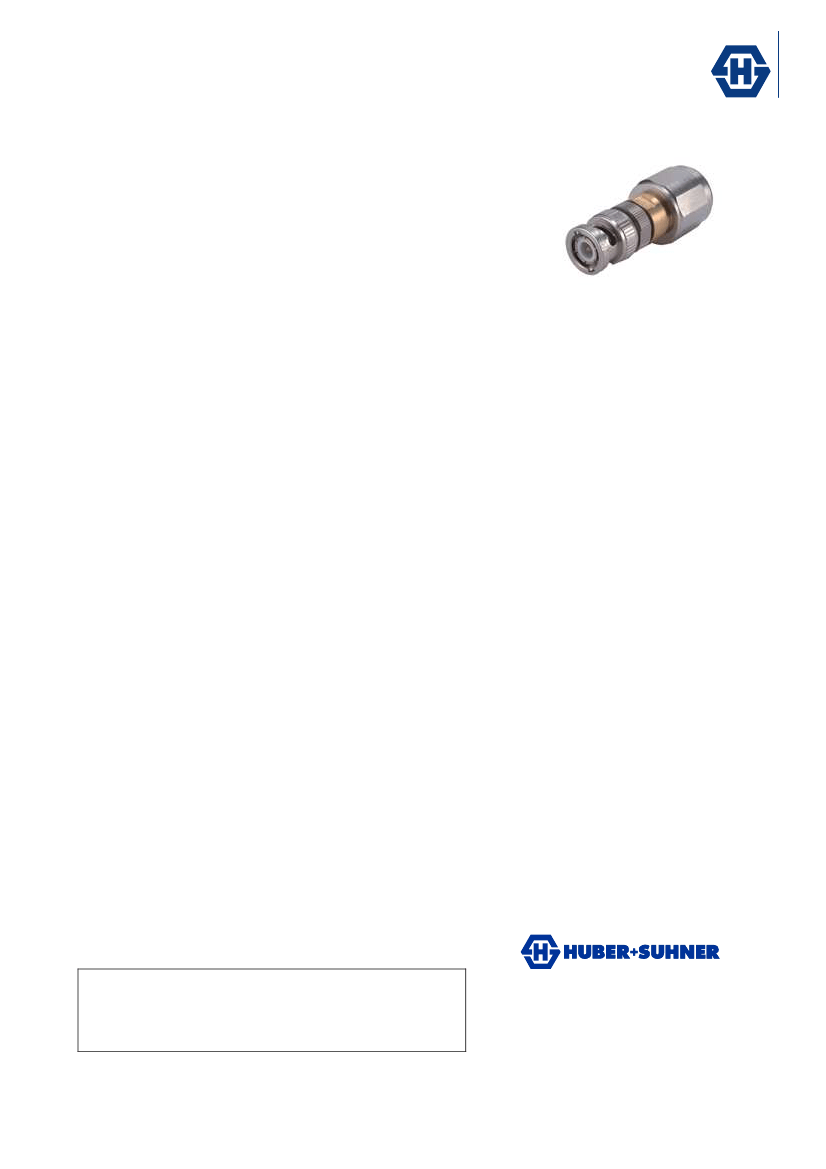

DATA SHEET
Between Series Adapter: 32_BNC-PC7-50-1/1--_U
Description
Rev.: D
Adaptor plug/plug
BNC-precision plug (male) / PC 7 plug (male)
Interface standards
IEC 60169-8_MIL-STD-348A/404_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50
4 GHz
DC - 4 GHz
≤ 1.02 + 0.006 f
500
0.0492 kg
-55 °C to 70 °C
compliant
Material
Brass
Stainless Steel
Stainless Steel
PFA / PTFE
Brass
MVQ (Silicone Rubber)
Material
Copper Beryllium Alloy
Brass
Brass
Air Dielectric - Bead - PPH
Brass
Surface Plating
Gold Plating (without Nickel underplating)
Mechanical Data
Number of matings
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
(BNC-precision)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Piece Parts
(PC 7)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material Data
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
Related Documents
Single package
Ordering Information
32_BNC-PC7-50-1/1--_UE
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000195514 K
Issued: 19.08.08
Uncontrolled Copy
Page 1/1
