TEA1204T datasheet, PDF - EEWORLD Datasheet

TEA1204T: DescriptionIC SWITCHING REGULATOR, 240 kHz SWITCHING FREQ-MAX, PDSO8, 3.90 MM, PLASTIC, MS-012AA, SOT-96-1, SOP-8, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size376KB，20 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

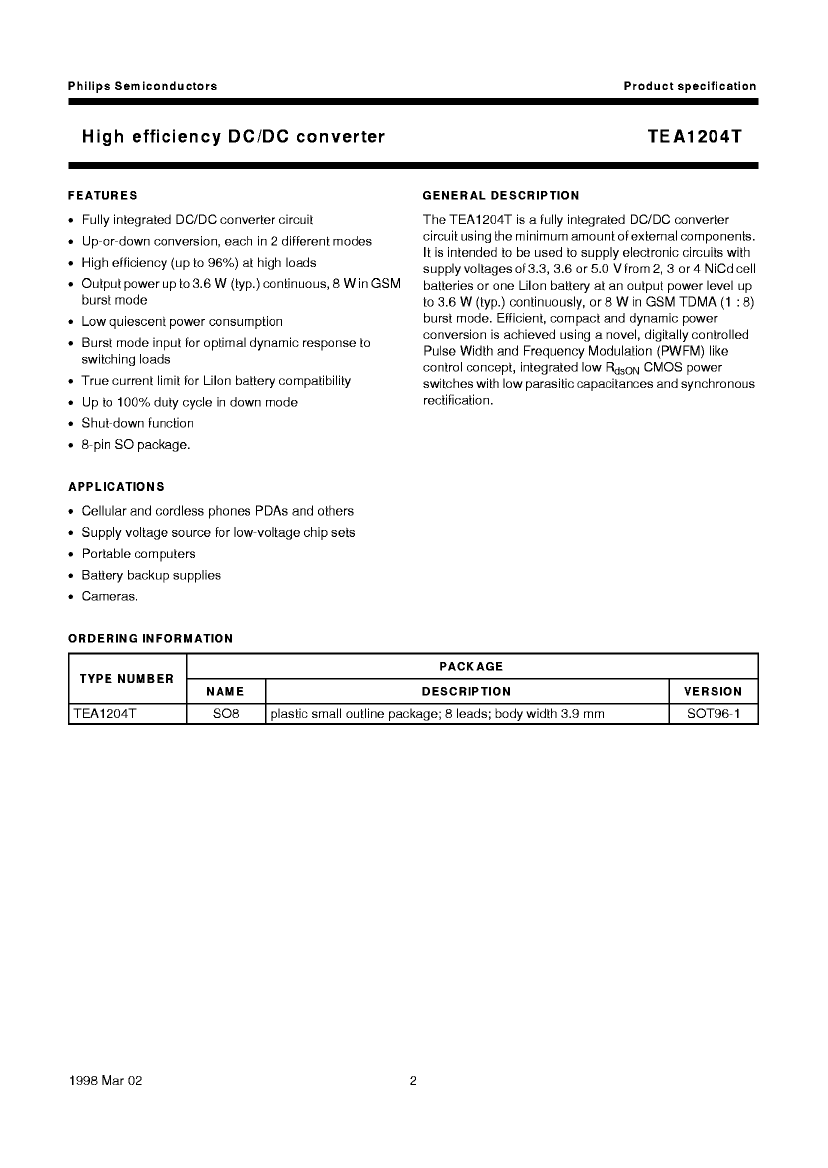

TEA1204T Overview

IC SWITCHING REGULATOR, 240 kHz SWITCHING FREQ-MAX, PDSO8, 3.90 MM, PLASTIC, MS-012AA, SOT-96-1, SOP-8, Switching Regulator or Controller

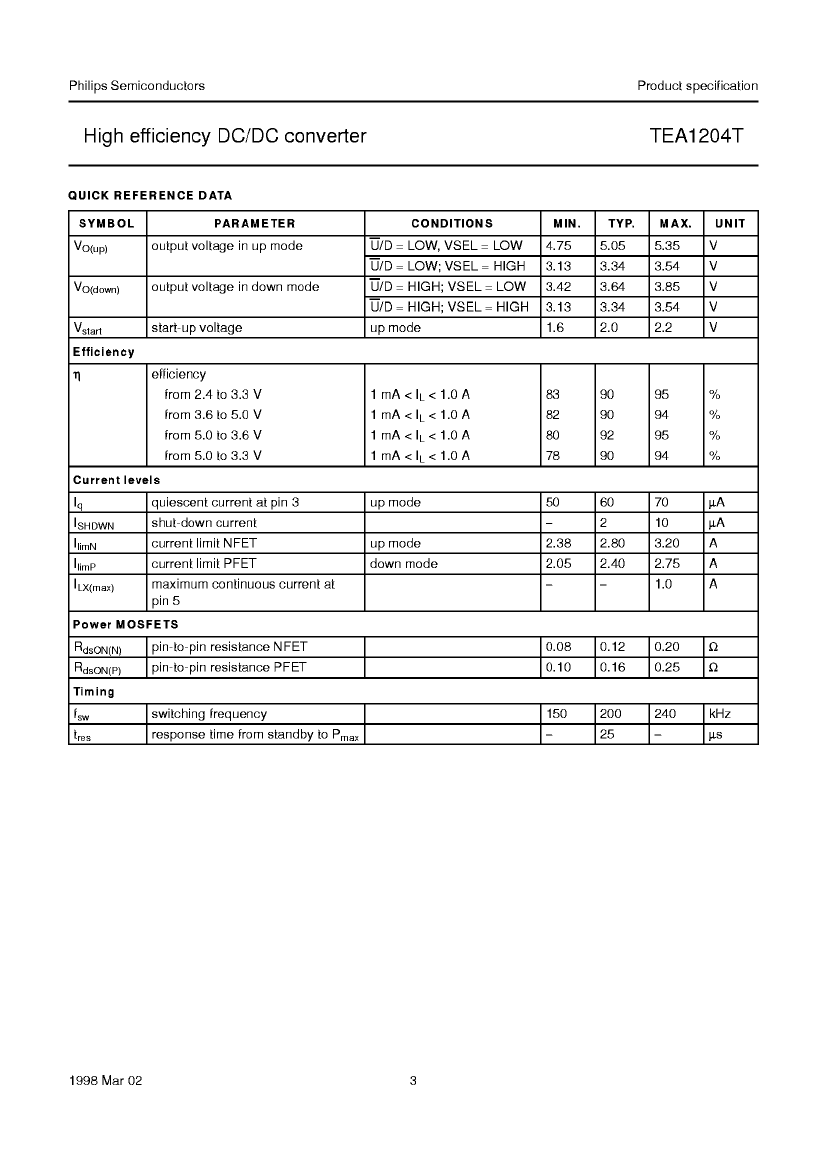

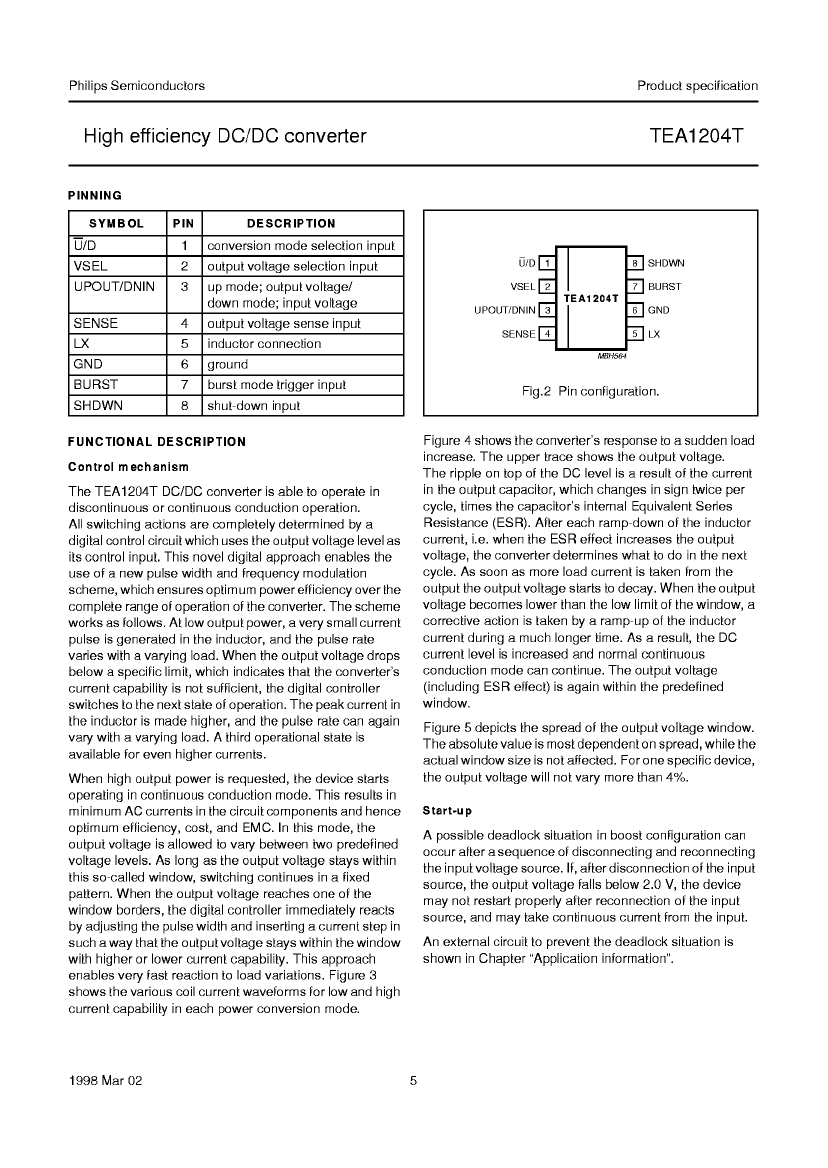

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	240 kHz
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	TEA1204T	RNR55K2083DRB1465
Description	IC SWITCHING REGULATOR, 240 kHz SWITCHING FREQ-MAX, PDSO8, 3.90 MM, PLASTIC, MS-012AA, SOT-96-1, SOP-8, Switching Regulator or Controller	Fixed Resistor, Metal Film, 0.1W, 208000ohm, 200V, 0.5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED
package instruction	SOP,	AXIAL LEADED
Reach Compliance Code	unknow	not_compliant
ECCN code	EAR99	EAR99
Number of terminals	8	2
Maximum operating temperature	80 °C	175 °C
Minimum operating temperature	-20 °C	-65 °C
Package form	SMALL OUTLINE	Axial
surface mount	YES	NO
