MIC5209-1.8YUTR datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> MIC5209-1.8YUTR

MIC5209-1.8YUTR: Description2.5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSSO5, LEAD FREE, TO-263, 5 PIN; CategoryPower/power management The power supply circuit; File Size2MB，18 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

MIC5209-1.8YUTR Overview

2.5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSSO5, LEAD FREE, TO-263, 5 PIN

MIC5209-1.8YUTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micrel ( Microchip )
Parts packaging code	D2PAK
package instruction	TO-263,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.6 V
Maximum input voltage	16 V
Minimum input voltage	2.5 V
JESD-30 code	R-PSSO-G5
JESD-609 code	e3
length	10.363 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Maximum output voltage 1	2.55 V
Minimum output voltage 1	2.45 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	4.902 mm
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
width	8.7755 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MIC5209

500mA Low-Noise LDO Regulator

General Description

The MIC5209 is an efﬁcient linear voltage regulator with

very low dropout voltage, typically 10mV at light loads and

less than 500mV at full load, with better than 1% output

voltage accuracy

Designed especially for hand-held, battery-powered

devices, the MIC5209 features low ground current to help

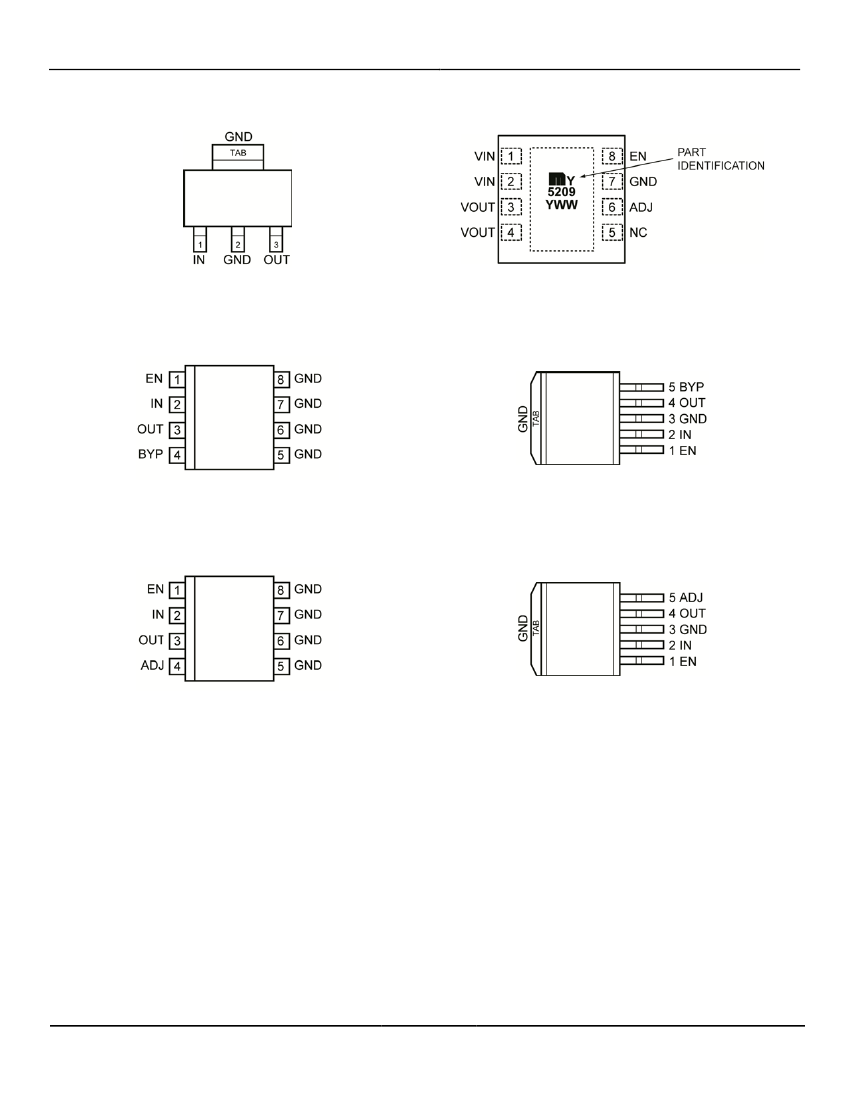

prolong battery life. An enable/shutdown pin on SO-8 and

TO-263- 5 versions can further improve battery life with

near-zero shutdown current.

Key features include reversed-battery protection, current

limiting, overtemperature shutdown, ultra-low-noise

capability (SO-8 and TO-263-5 versions), and availability

in thermally-efﬁcient packaging. The MIC5209 is available

in adjustable or ﬁxed output voltages.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features

•

Output voltage range: 1.8V

−

•

Meets Intel Slot 1 and Slot 2 requirements

•

Guaranteed 500mA output over the full operating

temperature range

•

Low 500mV maximum dropout voltage at full load

•

Extremely tight load and line regulation

•

Thermally-efﬁcient surface-mount package

•

Low temperature coefﬁcient

•

Current and thermal limiting

•

Reversed-battery protection

•

No-load stability

•

1% output accuracy

•

Ultra-low-noise capability in SO-8 and TO-263-5

•

Ultra-small 3mm × 3mm DFN package

Applications

•

Pentium II Slot 1 and Slot 2 support circuits

Laptop, notebook, and palmtop computers

Cellular telephones

Consumer and personal electronics

SMPS post-regulator/DC-to-DC modules

High-efﬁciency linear power supplies

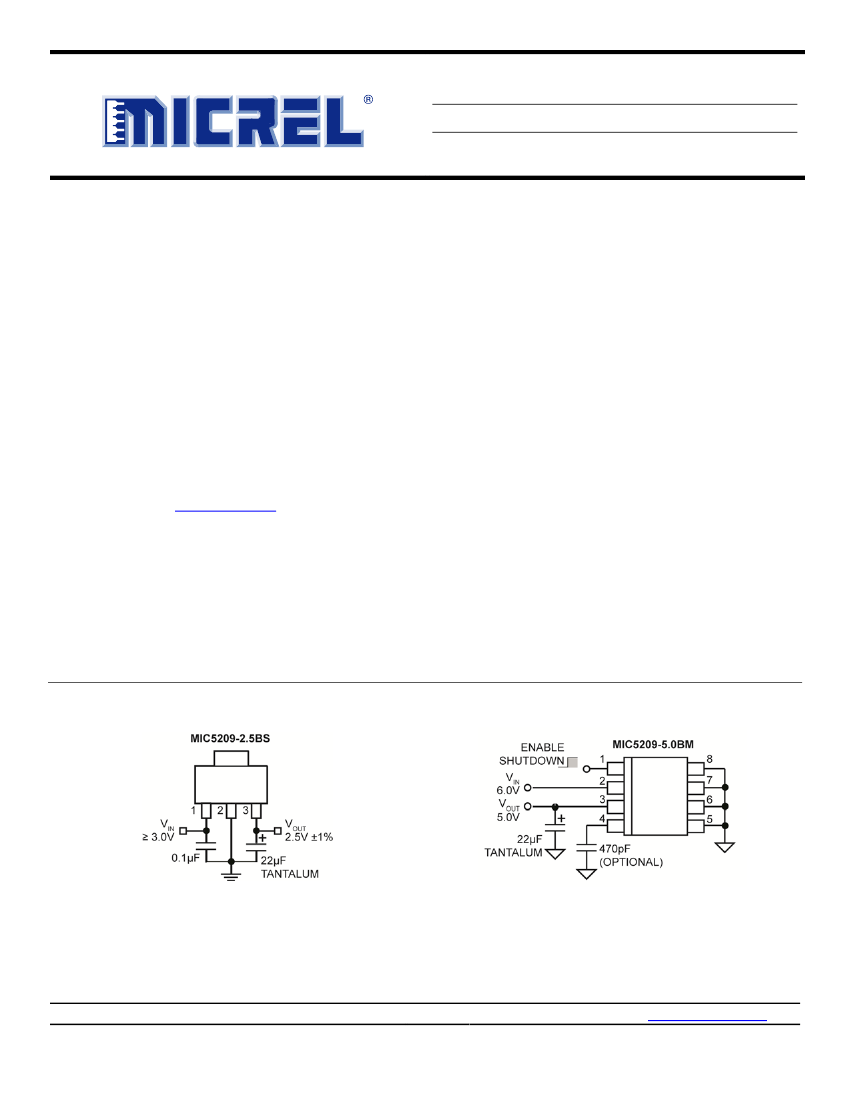

Typical Application

3.3V Nominal Input Slot 1 Power Supply

Ultra-Low Noise 5V Regulator

Intel is a registered trademark of Intel Corporation.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

June 2, 2014

Revision 3.0
