Part Number

Search

5962-89900013X

Description
IC 1-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter
CategoryAnalog mixed-signal IC    converter
File Size117KB,3 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

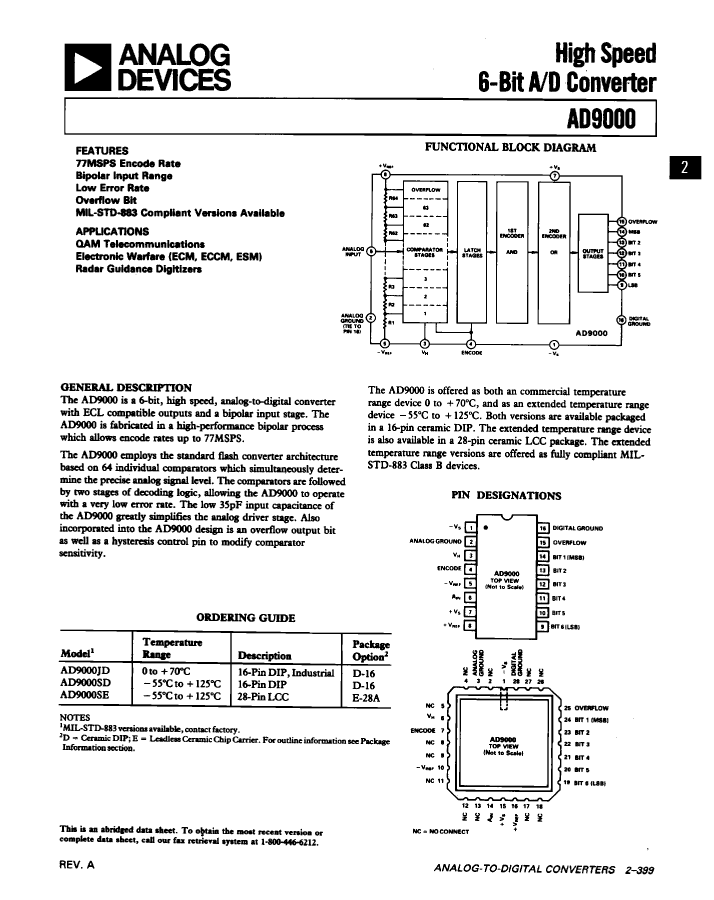

5962-89900013X Overview

IC 1-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter

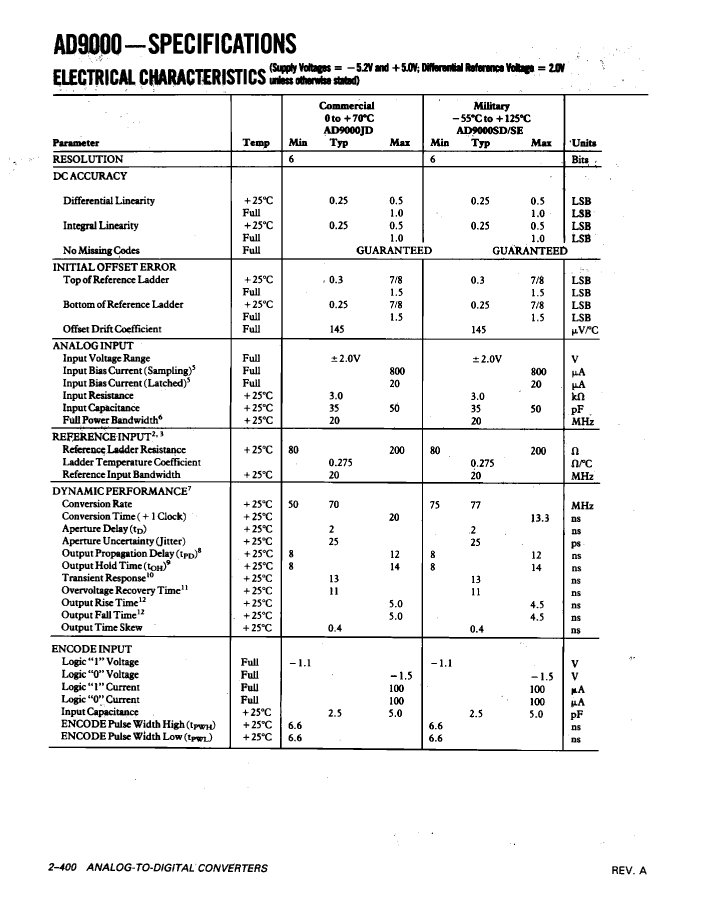

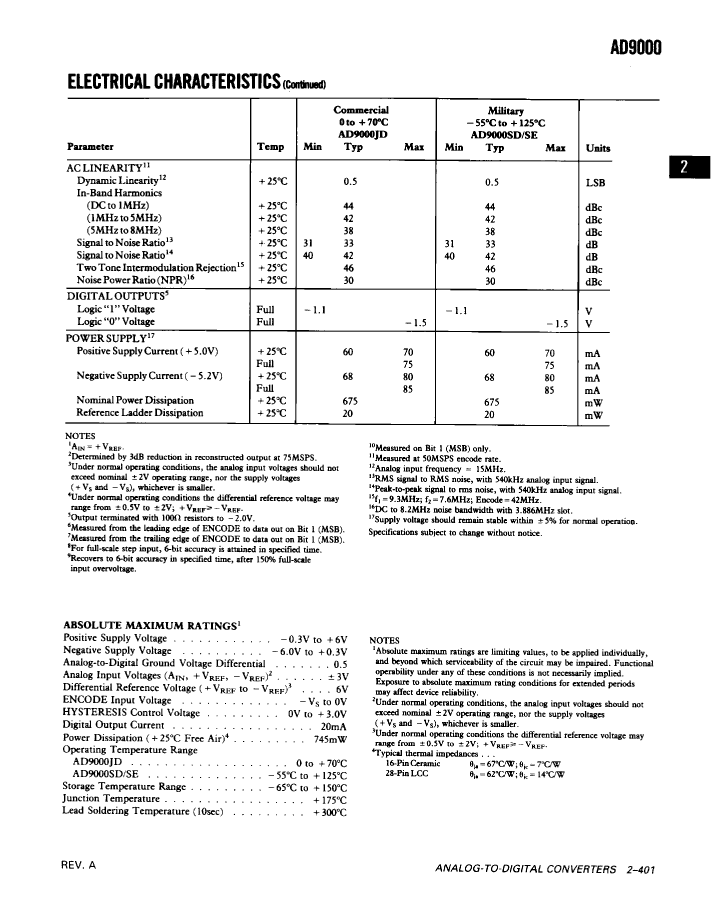

5962-89900013X Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeQLCC
package instructionCERAMIC, LCC-28
Contacts28
Reach Compliance Codecompliant
ECCN code3A001.A.2.C
Maximum analog input voltage2 V
Minimum analog input voltage-2 V
Maximum conversion time0.0133 µs
Converter typeADC, FLASH METHOD
JESD-30 codeS-CQCC-N28
JESD-609 codee0
Maximum linear error (EL)1.5625%
Nominal negative supply voltage-5.2 V
Number of analog input channels1
Number of digits6
Number of functions1
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output bit codeBINARY
Output formatPARALLEL, WORD
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Encapsulate equivalent codeLCC28,.45SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5,-5.2 V
Certification statusNot Qualified
Filter levelMIL-STD-883
Nominal supply voltage5 V
surface mountYES
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

5962-89900013X Related Products

5962-89900013X 5962-8990001EX 5962-8990001EA
Description IC 1-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter IC 1-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP16, CERAMIC, DIP-16, Analog to Digital Converter IC 1-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP16, CERAMIC, DIP-16, Analog to Digital Converter
Maker ADI ADI ADI
Parts packaging code QLCC DIP DIP
package instruction CERAMIC, LCC-28 CERAMIC, DIP-16 DIP,
Contacts 28 16 16
Reach Compliance Code compliant compliant compliant
ECCN code 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C
Maximum analog input voltage 2 V 2 V 2 V
Minimum analog input voltage -2 V -2 V -2 V
Maximum conversion time 0.0133 µs 0.0133 µs 0.0133 µs
Converter type ADC, FLASH METHOD ADC, FLASH METHOD ADC, FLASH METHOD
JESD-30 code S-CQCC-N28 R-CDIP-T16 R-CDIP-T16
Maximum linear error (EL) 1.5625% 1.5625% 1.5625%
Nominal negative supply voltage -5.2 V -5.2 V -5.2 V
Number of analog input channels 1 1 1
Number of digits 6 6 6
Number of functions 1 1 1
Number of terminals 28 16 16
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output bit code BINARY BINARY BINARY
Output format PARALLEL, WORD PARALLEL, WORD PARALLEL, WORD
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code QCCN DIP DIP
Package shape SQUARE RECTANGULAR RECTANGULAR
Package form CHIP CARRIER IN-LINE IN-LINE
Certification status Not Qualified Not Qualified Not Qualified
Nominal supply voltage 5 V 5 V 5 V
surface mount YES NO NO
technology BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY MILITARY MILITARY
Terminal form NO LEAD THROUGH-HOLE THROUGH-HOLE
Terminal location QUAD DUAL DUAL
Base Number Matches 1 1 1
JESD-609 code e0 - e0
Encapsulate equivalent code LCC28,.45SQ DIP16,.3 -
power supply 5,-5.2 V 5,-5.2 V -
Filter level MIL-STD-883 MIL-STD-883 -
Terminal surface TIN LEAD - TIN LEAD
Terminal pitch 1.27 mm 2.54 mm -
