LTC1060CJ datasheet, PDF - EEWORLD Datasheet

LTC1060CJ: DescriptionUniversal Dual Filter Building Block; CategoryAnalog mixed-signal IC filter; File Size1MB，20 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

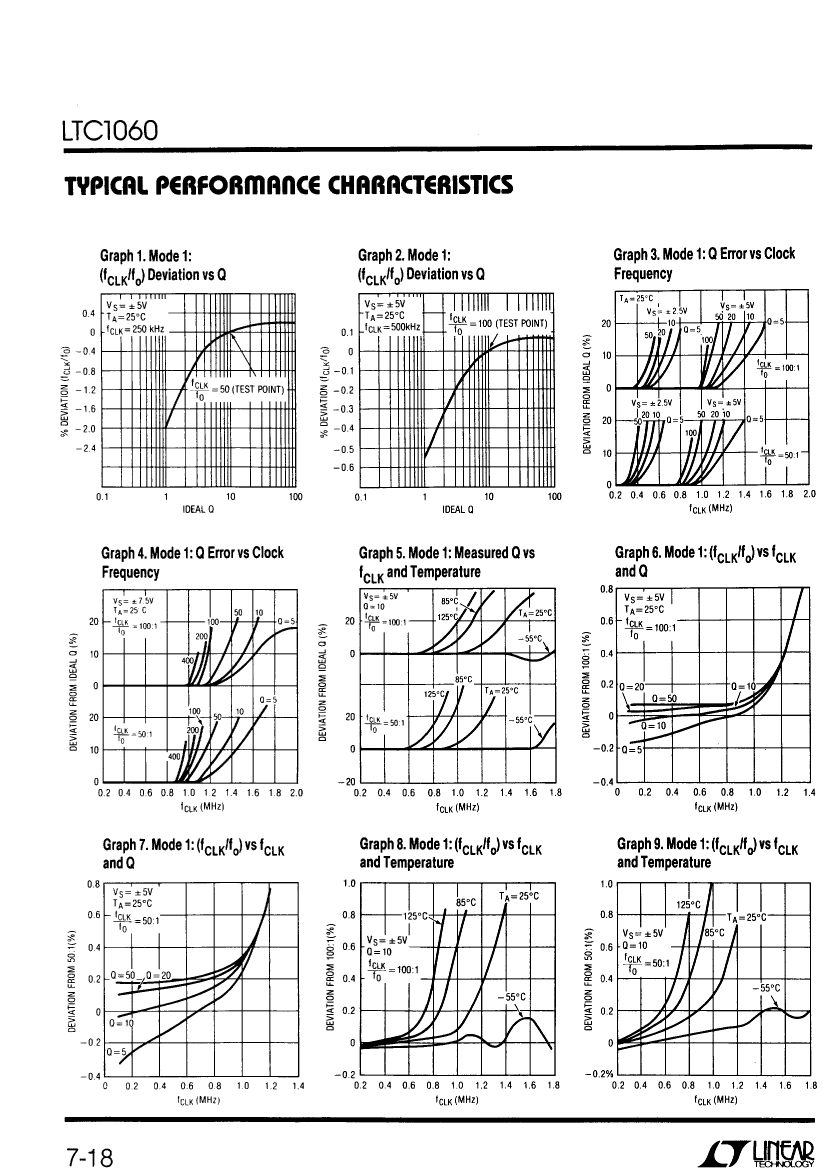

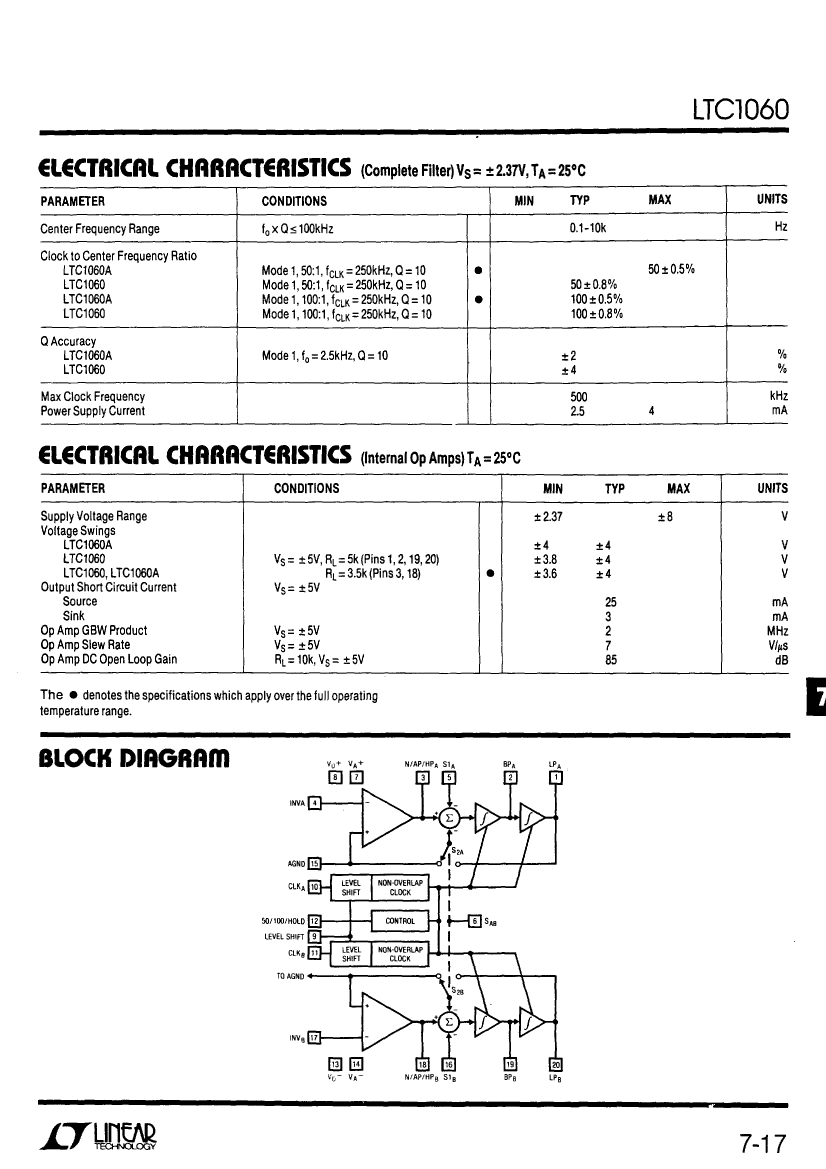

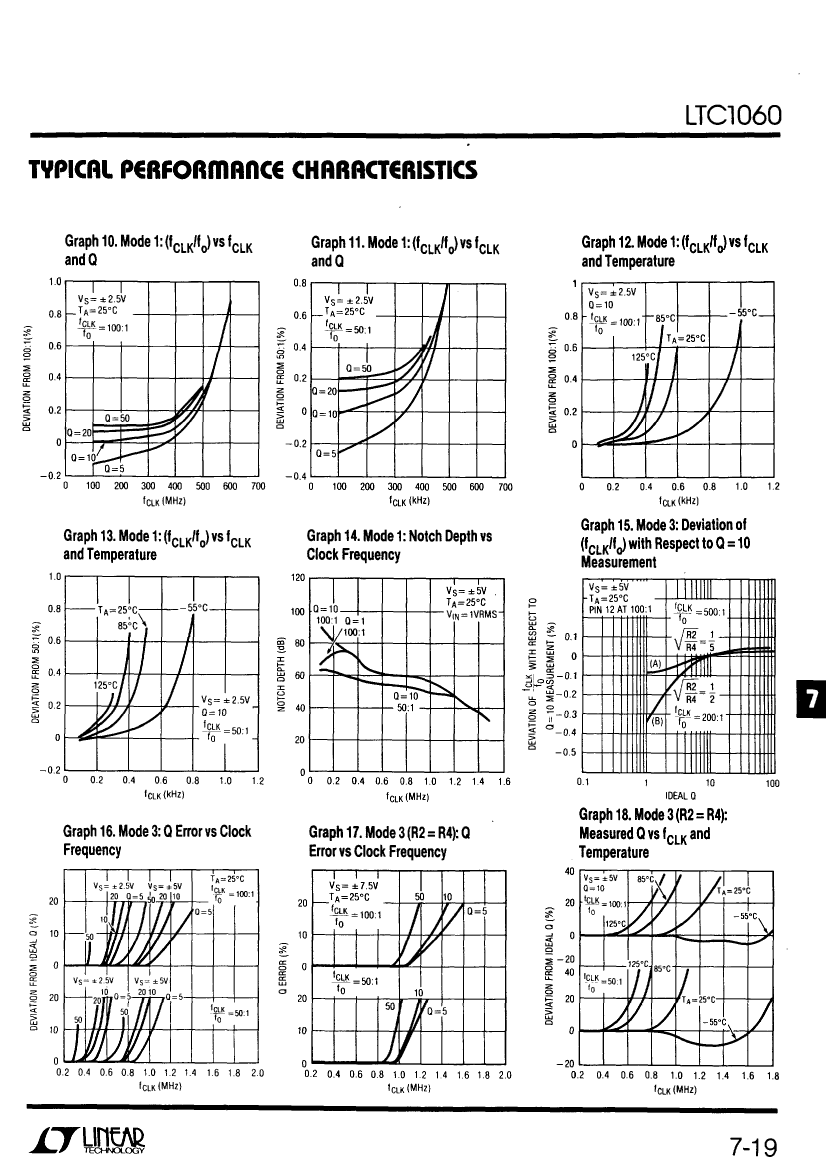

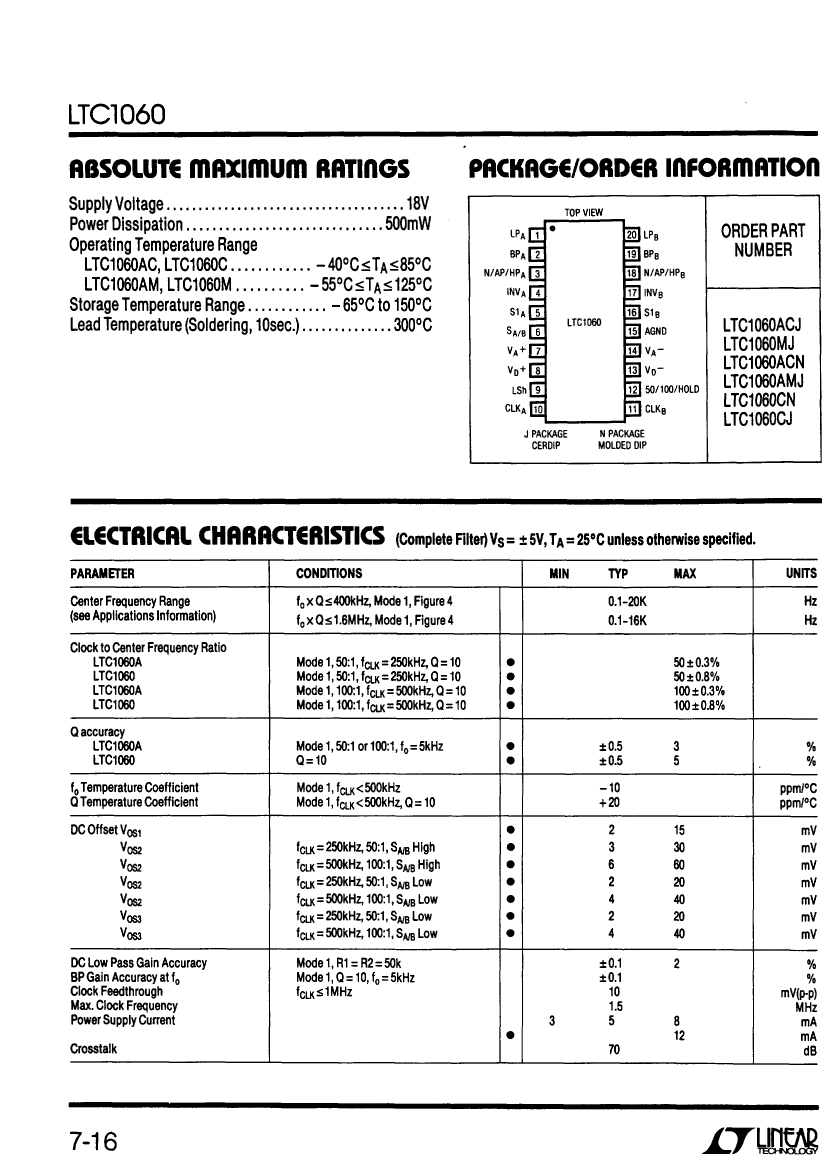

LTC1060CJ Overview

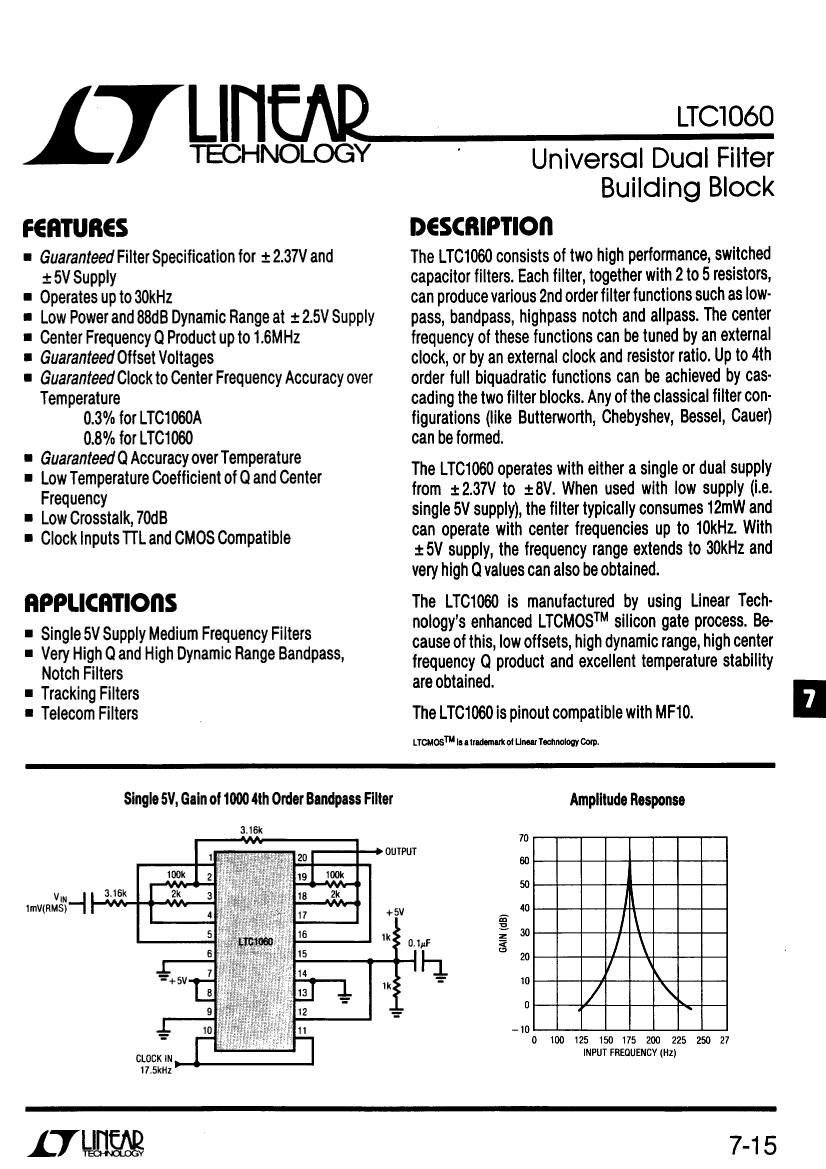

Universal Dual Filter Building Block

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Active filter type	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	20 kHz
Center frequency or cutoff frequency minimum range	0.1 kHz
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-8 V
Negative supply voltage minimum (Vsup)	-2.37 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Order	2ND
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
poles and zeros	2 AND 0
Certification status	Not Qualified
response	UNIVERSAL
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	8 V
Minimum supply voltage (Vsup)	2.37 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transfer characteristics	BUTTERWORTH/BESSEL/CHEBYSHEV
width	7.62 mm

	LTC1060CJ	LTC1060M	LTC1060C	LTC1060AM	LTC1060ACJ	LTC1060MJ	LTC1060AMJ	LTC1060AC
Description	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block	Universal Dual Filter Building Block
